COOLLEO SSD-V2 HR-10 M.2 2280 SSD Heatsink with 14.8W/m·K Thermal Pads and Dual Heat Pipes
Features:
SSD-V2 Heatsink
* Ultra-fast heat dissipation — opening a new chapter in M.2 cooling
* Pure aluminum cooling fins
* Dual heat pipes with powerful thermal dissipation capability
* Stainless steel mirror-finish top cover
* Equipped with high thermal conductivity silicone pads
High-Conductivity Heat Pipes
* Dual heat pipes and full aluminum cooling fins
* M.2 SSDs, while offering extremely high read/write performance, inevitably face a severe overheating issue. Their compact size causes large amounts of heat to accumulate during data processing. Poor heat dissipation can lead to performance degradation at best, or even data loss and permanent drive damage at worst! For this reason, you need an M2-20 heatsink that is easy to install, delivers remarkable results, and effectively lowers the operating temperature of your M.2 SSD.
* Equipped with 6mm anti-gravity heat pipes, it uses dual-pipe dual-contact reflow soldering technology to significantly enhance thermal conductivity efficiency.

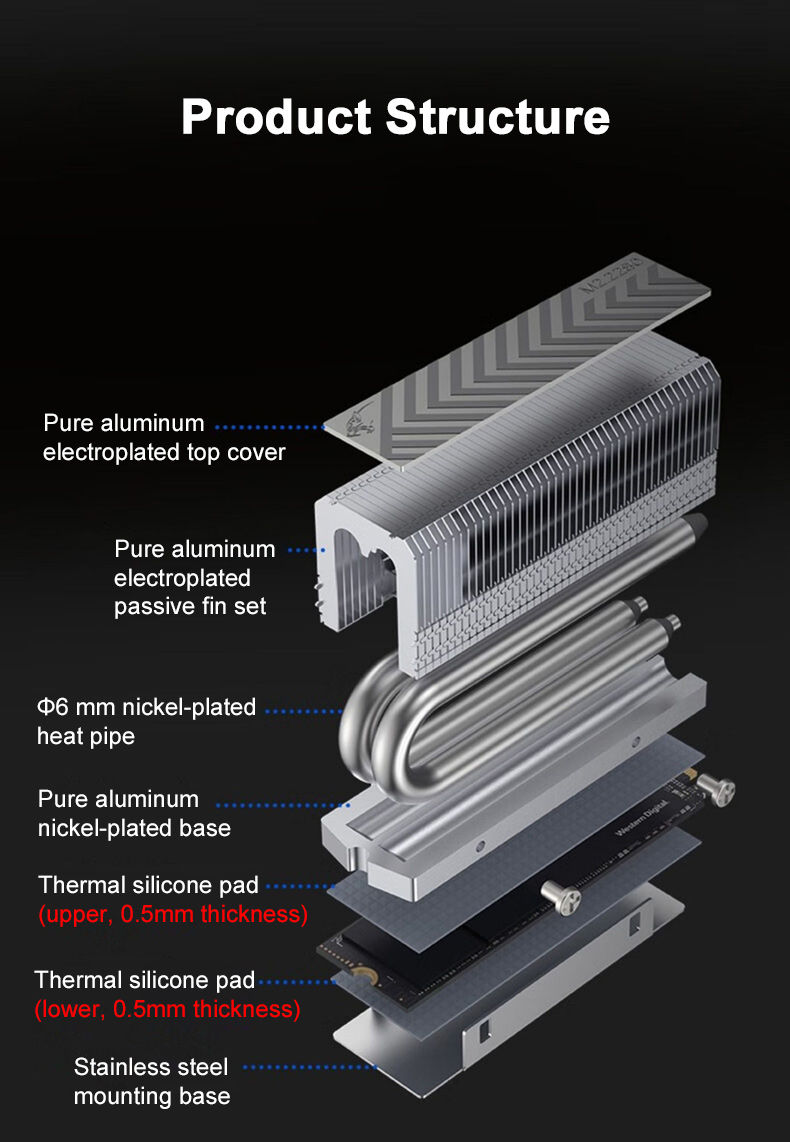

Solid Build with Quality Materials
* Pure aluminum electroplated top cover
* Pure aluminum electroplated passive fin set
* Φ6mm nickel-plated heat pipes
* Pure aluminum nickel-plated base
* Thermal silicone pad (upper, 0.5mm thickness)
* Thermal silicone pad (lower, 0.5mm thickness)
* Stainless steel mounting base
Strong Because of Attention to Detail
* Welded fins and metal base ensure a stable structure that is durable and robust. This design not only provides efficient heat dissipation but also protects your M.2 SSD.
Large-Area Passive Cooling Module
* Meticulously engineered to provide approximately 65,000mm² of cooling surface area.
High-Performance Thermal Pads
* Equipped with thermal silicone pads with a thermal conductivity of 14.8W/m·K.
* Upper thermal silicone pad: 0.5mm thickness
* Lower thermal silicone pad: 0.5mm thickness
* Supports single- and double-sided 2280 SSDs.
Wide Compatibility for Mainstream Systems
* Smooth installation and use, leaving no regrets.
Product Specifications:
* Product Name: M.2 2280 Heatsink
* Product Model: SSD-V2
* Product Dimensions: 79mm × 24mm × 36mm
* Weight: 80g
* Heat Pipe Specification: Φ6mm × 2pcs
* Fin Technology: Reflow Soldering
* Number of Fins: 32pcs
* Warranty: 6 Years
Packing List:
* 1 × Heatsink
* 1 × Screwdriver
Packaging Details:
* Weight: 0.15kg
