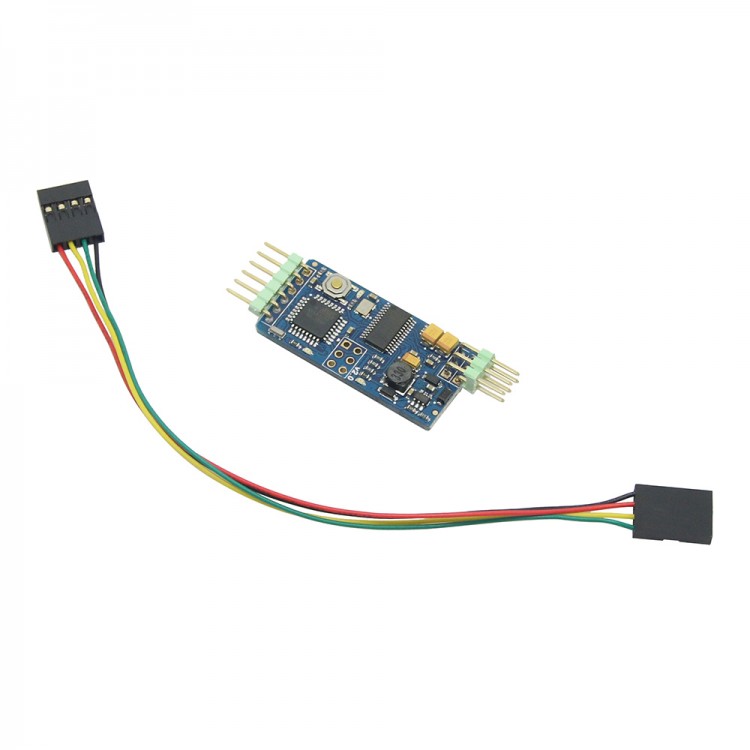

CRIUS MAVLink-OSD for Multicopeter DC-DC stabilivolt compatible with MinimOSD
Description:
- MAVLink-OSD is an Arduino based project and it is fully compatible with original MinimOSD.
- This board can be used for CRIUS AIOP / Arduflyer / ArduPilot-Mega.
- MAVLink-OSD with switching DC/DC stepdown powersupply to maximize efficiency on power system. No more heating problems when using this OSD board. It can be only use two way power source.
- Default firmware is original, but we suggest to use MinimOSD-Extra firmware.
- MinimOSD-Extra firmware is wrote by Gábor Zoltán.
- About how to use the configurator tool to setup OSD function:
- https://code.google.com/p/minimosd-extra/
- How to setup hardware (original Wiki):
https://code.google.com/p/arducam-osd/wiki/How_to_start_minim
Hardware Features:
- ATMEGA328P Microcontroller
- MAX7456-EUI monochrome on-screen display
- 5V/500mA DC/DC regulator for MAX7456-EUI
- Operating voltage: 5V(FTDI connector) and 12V(Video I/O connector)
- Supported NTSC & PAL
- FTDI connector
Software features:
- Full MAVLink protocol support
- Graphical configurator tool
Other
- Dimension: 19mmx39mm(no include connector)
- Weight: 5g/6g(include cable)
Package content
- MAVLink-OSD x 1
- UART 4Pin cable 150mm x1
