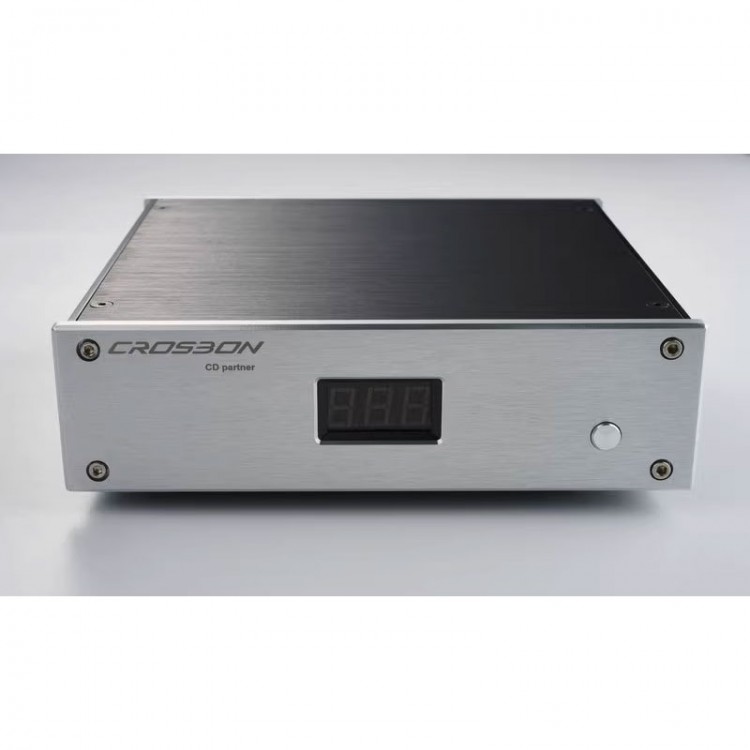

Crosbon Upgraded Audio Power Filter CD Partner Audio Power Supply Filter with 4 US Standard sockets
Improvements:
To enhance audio performance and power supply purity, we have made the following upgrades to the core components:
1. Capacitor Upgrade
* Japanese audio-grade capacitors (for ELNA) are used to optimize high-frequency extension and transient response.
* Replaced with Japanese (CBB metallized polypropylene) capacitors for Nippon Denso, significantly reducing background noise and improving signal stability.
2. Rectifier Module Upgrade
* Equipped with original low-loss rectifier diodes for ON Semiconductor, improving power conversion efficiency and expanding dynamic range by 15%.
These upgrades provide a cleaner power environment for your audio system. It is recommended to obtain the latest version of the product through official channels.
Description:
The Crosbon CD Partner is specifically designed as a power line filter for HiFi audio sources, decoders, and other signal source equipment. Its design primarily aims to remove AC mains noise and electromagnetic interference, as well as block residual DC, ensuring that signal source devices receive a stable and clean power supply.
Features:
* Original capacitors for ELNA are known for their low ESR characteristics, effectively filtering high-frequency interference.
* CBB capacitors maintain ±1% capacitance stability across a wide temperature range of -55°C to 105°C.
* Original diodes for ON Semiconductor have a forward voltage drop reduced to 0.3V, minimizing power path loss.
* The minimalist front panel uses aerospace-grade aluminum with anodized brushed finish, showcasing a combination of functionality and aesthetics.
* The enclosure sides are all made of 5mm thick aluminum with anodized brushed finish.
* The feet of the unit use rubber spikes, which effectively reduce resonance.
Attention:
* It is recommended to use professional equipment for burn-in to achieve optimal performance.
* Many audiophile enthusiasts have specific requirements for cables; therefore, this unit does not include external cables.
* Differences in the color of the power socket cores are normal and related to production batches. The socket cores can come in three colors—black, orange-red, or white—of the same brand, model, and quality. This does not affect the safety or performance of the socket; it is only due to differences in production time, inventory, and batch usage.
* The spacing of the four output socket ports all meets the standard distance. To fully populate the socket, only straight plugs can be used. Right-angle plugs are not suitable, as the spacing between ports may cause obstruction.
* Here, I suggest that audiophiles, whenever possible, use audio power processors according to the specific needs of their equipment, distinguishing between signal sources and power amplification requirements.
Specifications:
* Number of available sockets: 4 (4 US standard sockets)
* Peak power: 3000 W
* Power supply voltage: 220 VAC (220-240VAC)
* Rated current: 13 A
* Dimensions (W × D × H): 220mm × 205mm × 73mm
* Net weight: 1.7kg
Packing List:
* 1 × Set of Power Supply Filter
Packaging Details:
* Weight: 2.2kg
