Description:

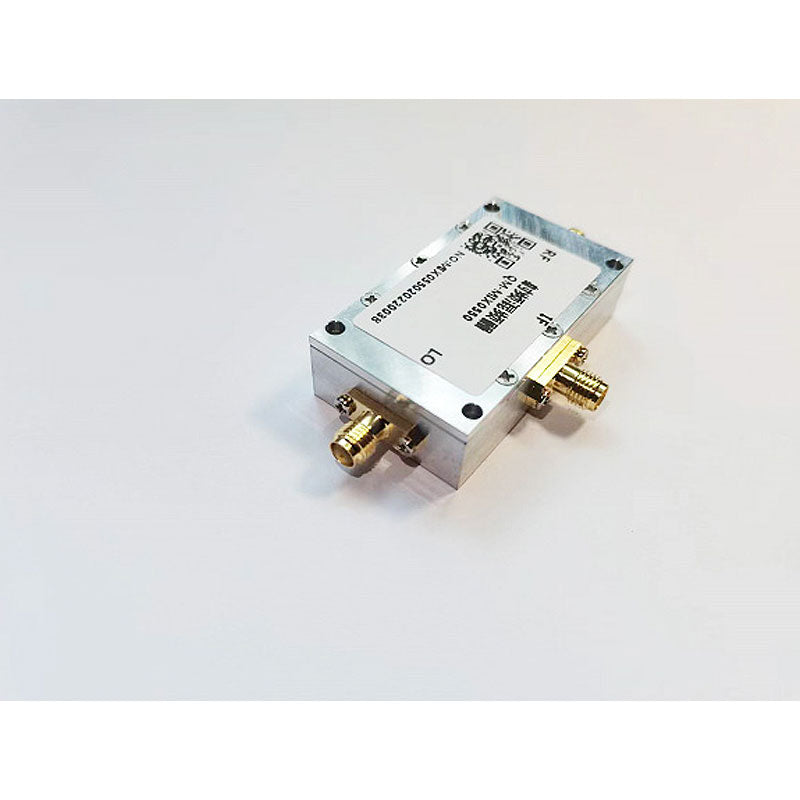

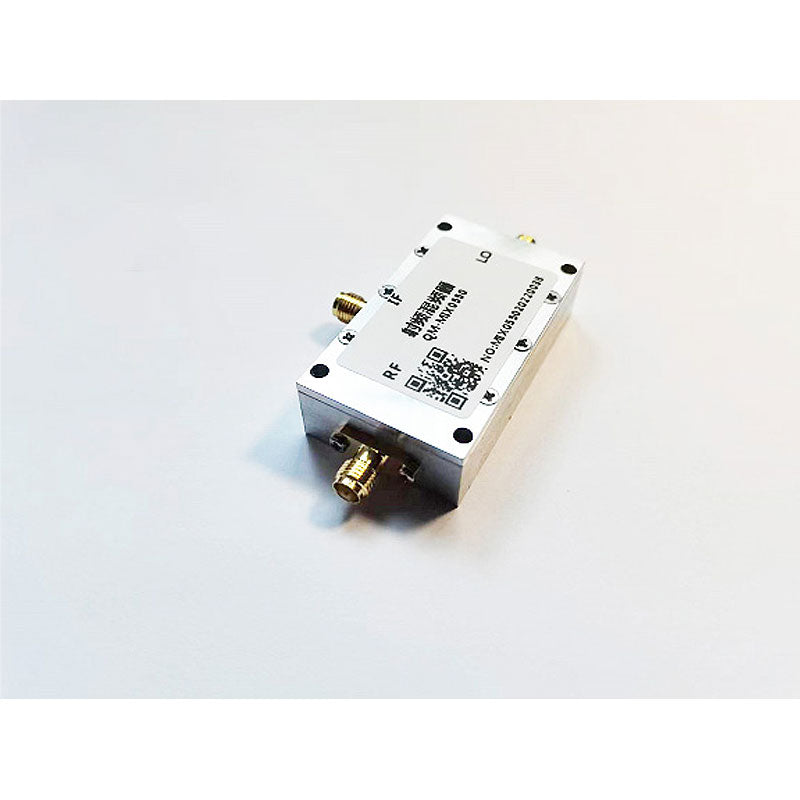

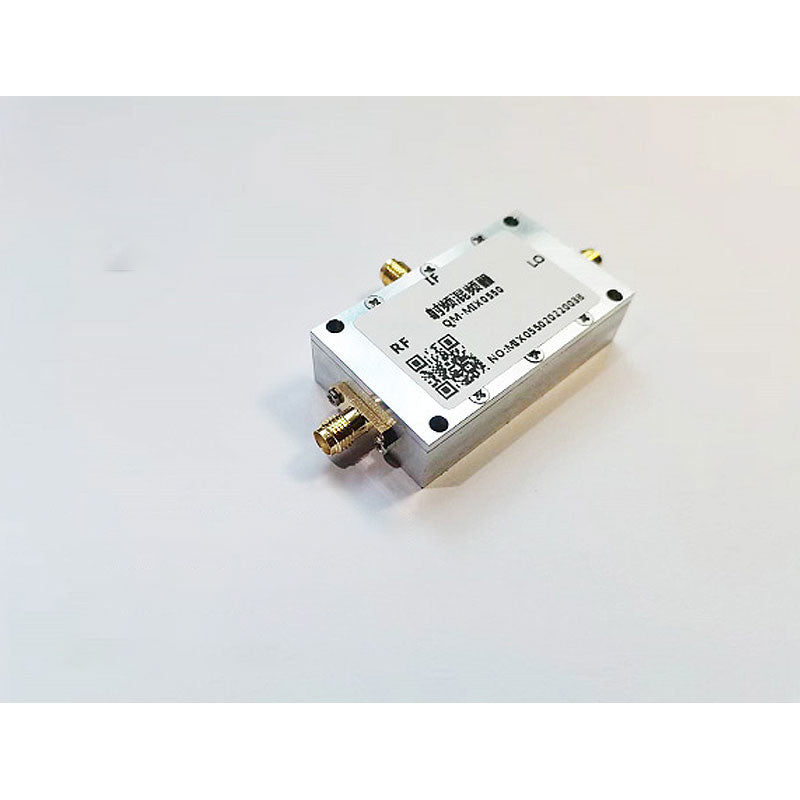

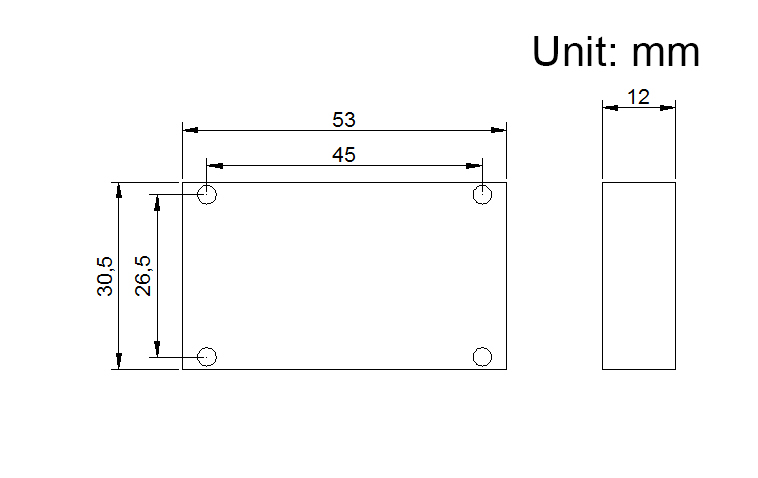

Frequency mixing is the process of converting a signal from one frequency to another. This process is actually the process of spectral linear shift. This is a circuit whose output signal frequency is equal to the sum, difference, or other combination of the two input signal frequencies. The mixer is often located after the low noise amplifier (LNA) and directly processes the RF signal amplified by the LNA. In order to realize the mixing function, the mixer also needs to receive the local oscillator (LO) signal from the voltage-controlled oscillator, and its circuit works completely in the radio frequency band. Using CNC structure shell, this module has good electromagnetic shielding performance. Its working range is 500K-500MHz, covering IF related frequency bands. Its small structure makes it easy to install and use.

Specifications:
- Model: QM-MIX0550
- RF/LO operating frequency: 0.5-500MHz
- IF working frequency: DC-500MHz
- Conversion loss: better than 5.5dB
- Isolation: LO-RF: 55dB (typical)
- Local oscillator (LO) input: +7dBm
- High input IP3: +15dBm
- Input and output interface: SMA-K
- RF maximum input: 17dBm

Package Included:
- 1 x Module

Instructions for use:
- RF input: RF port
- Local oscillator input: LO port
- IF output: IF port
