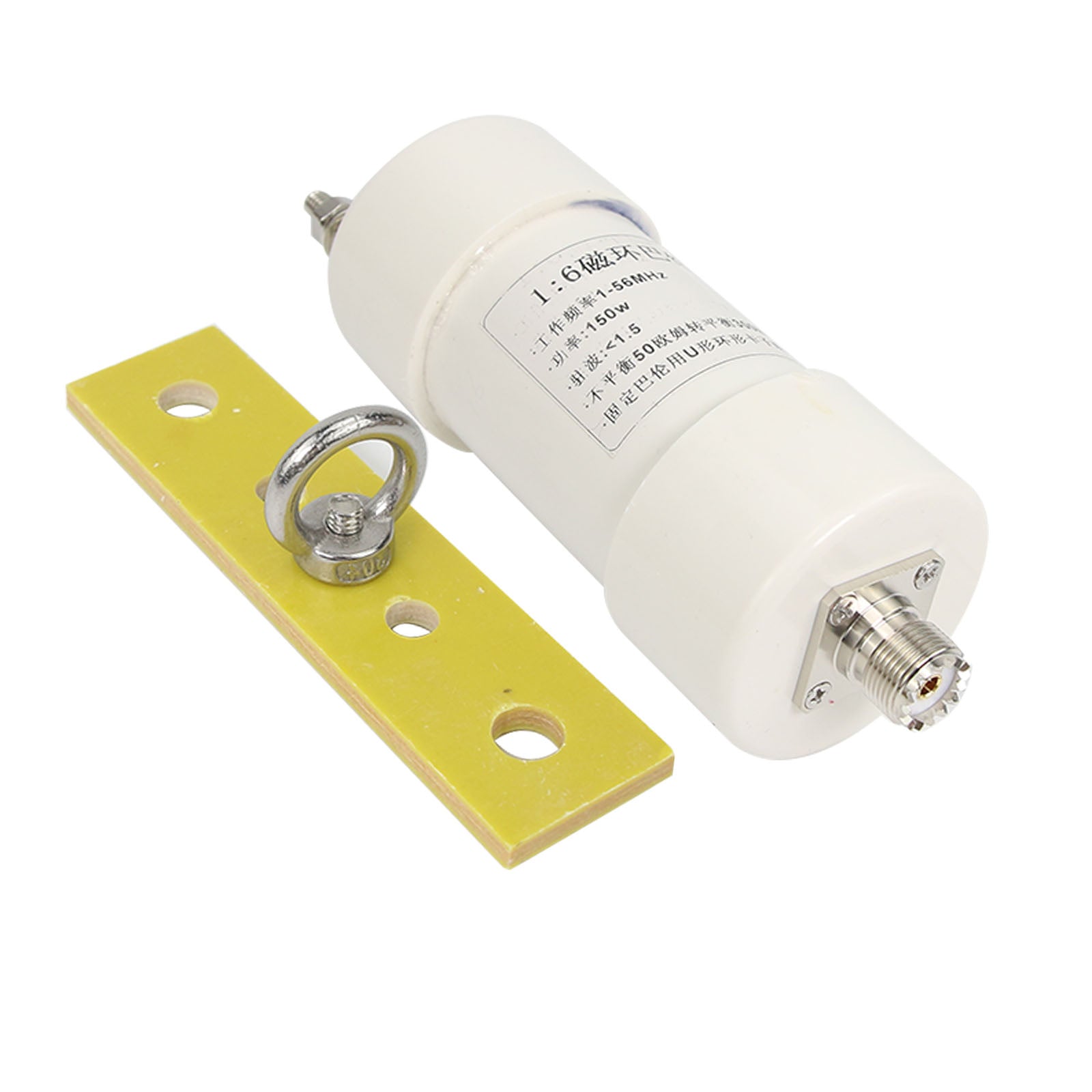

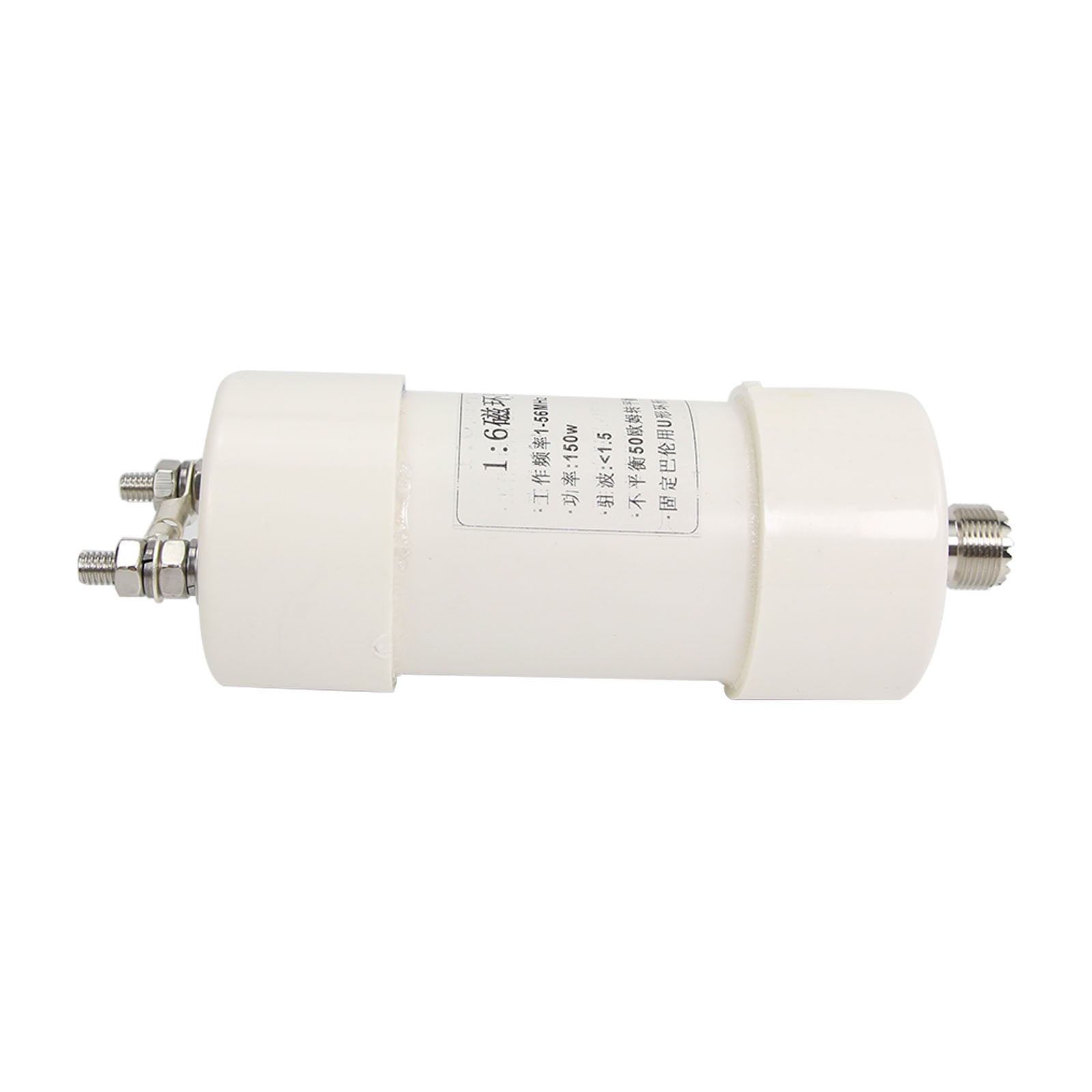

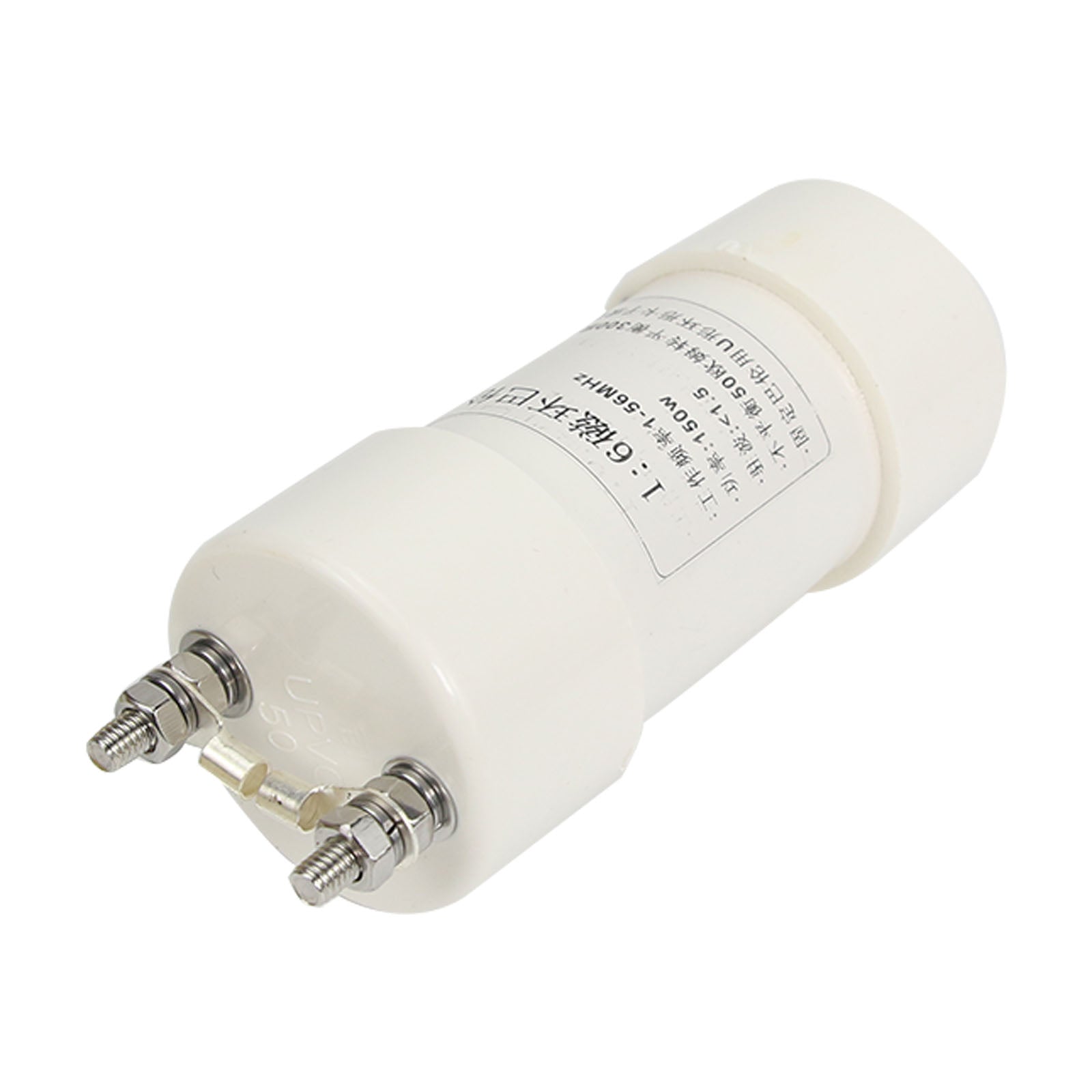

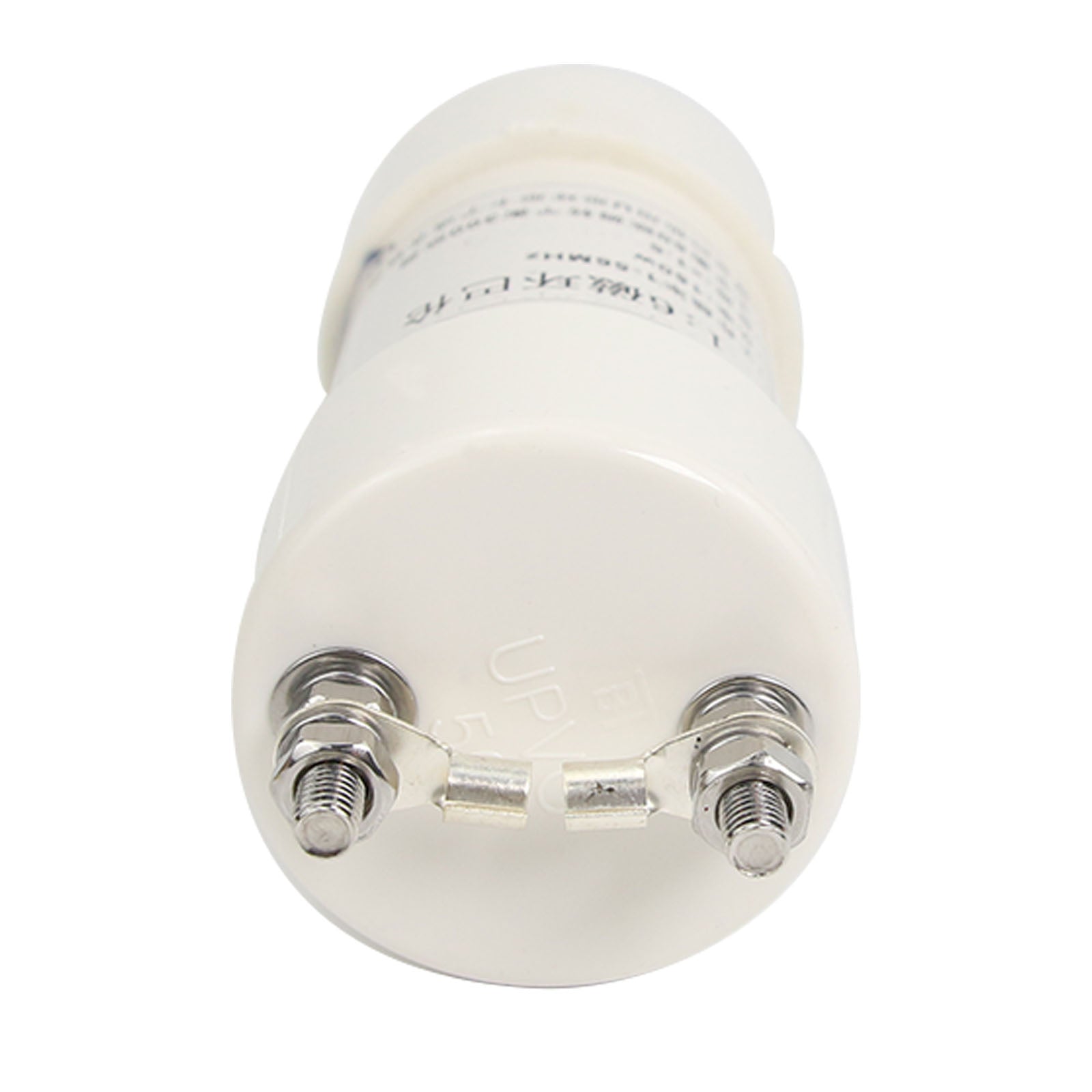

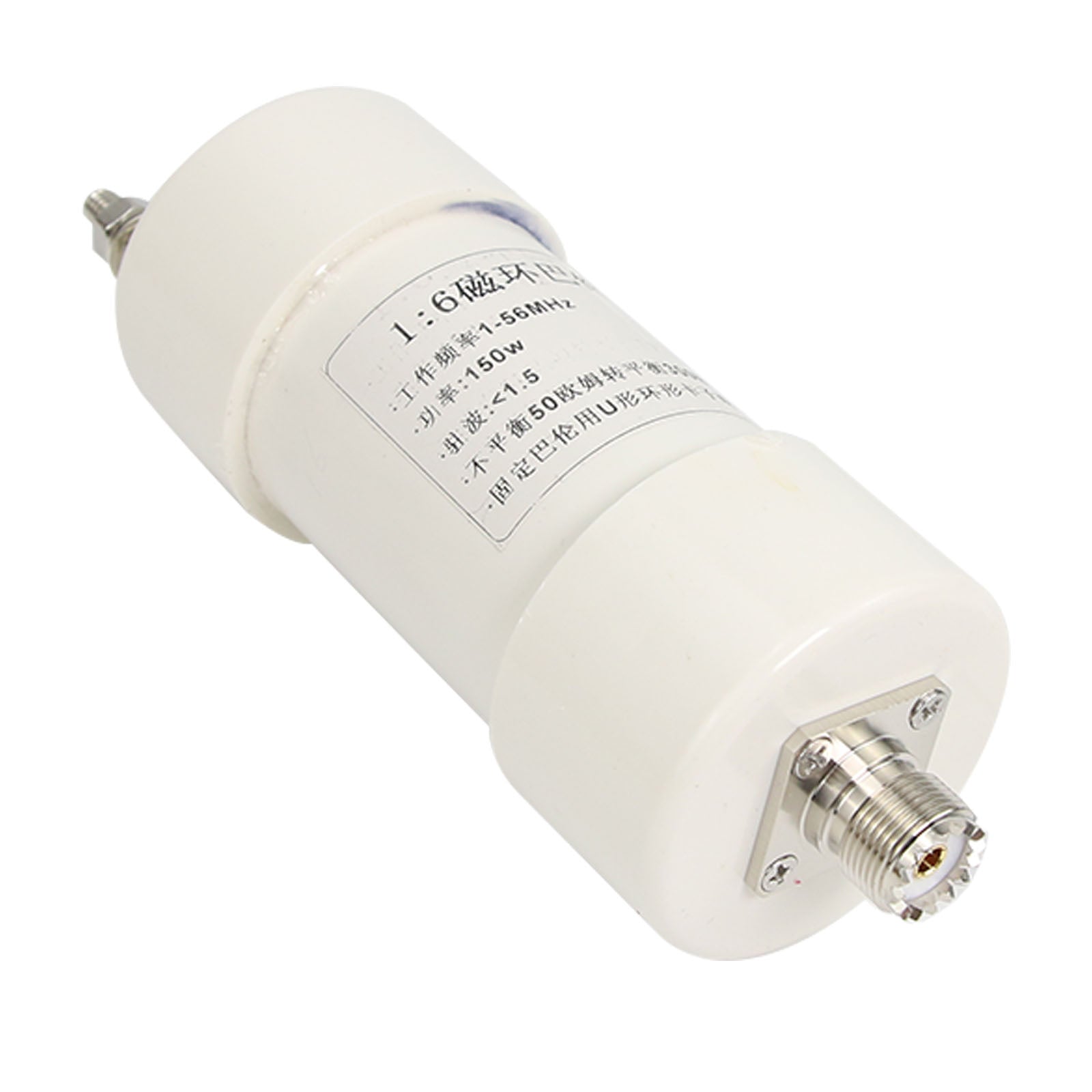

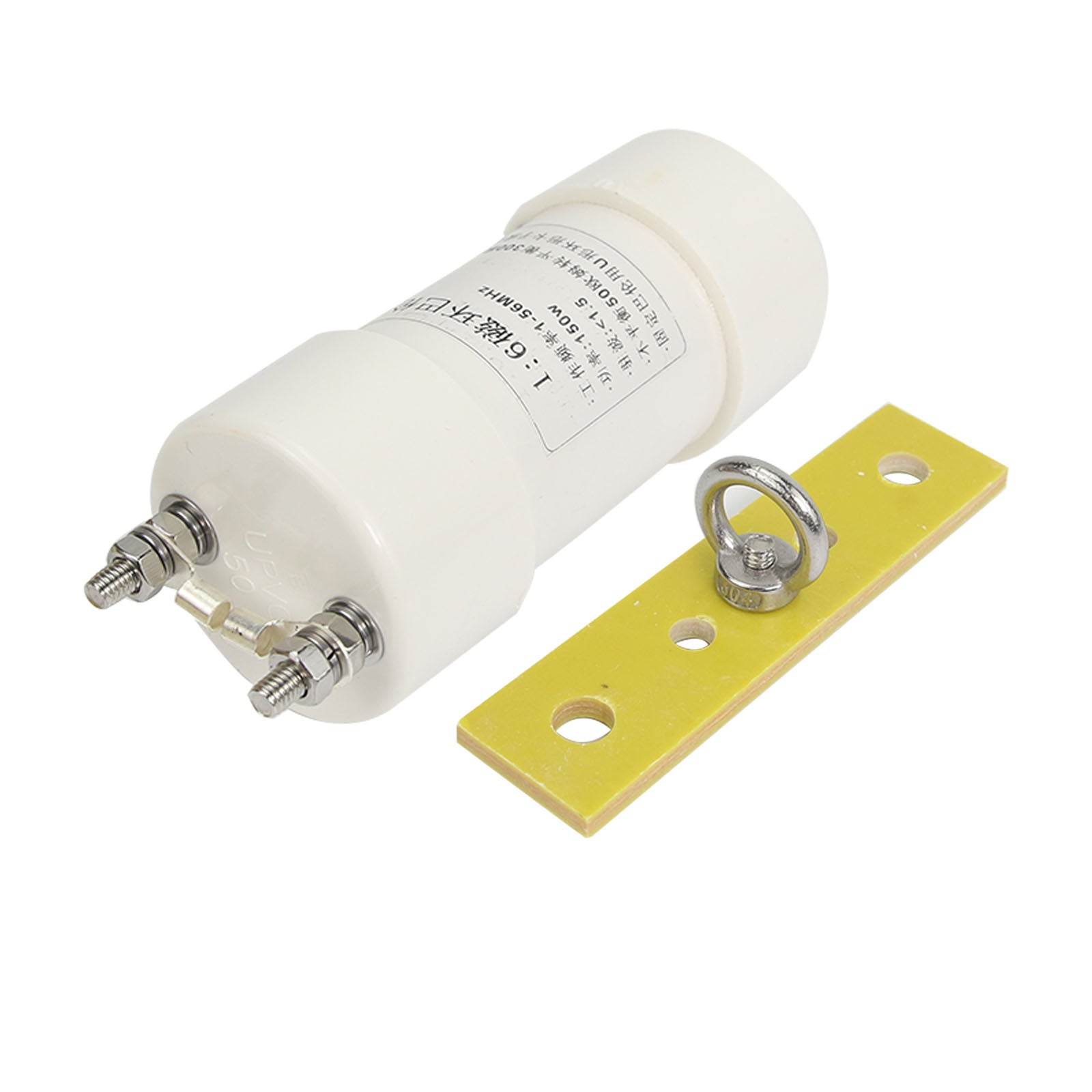

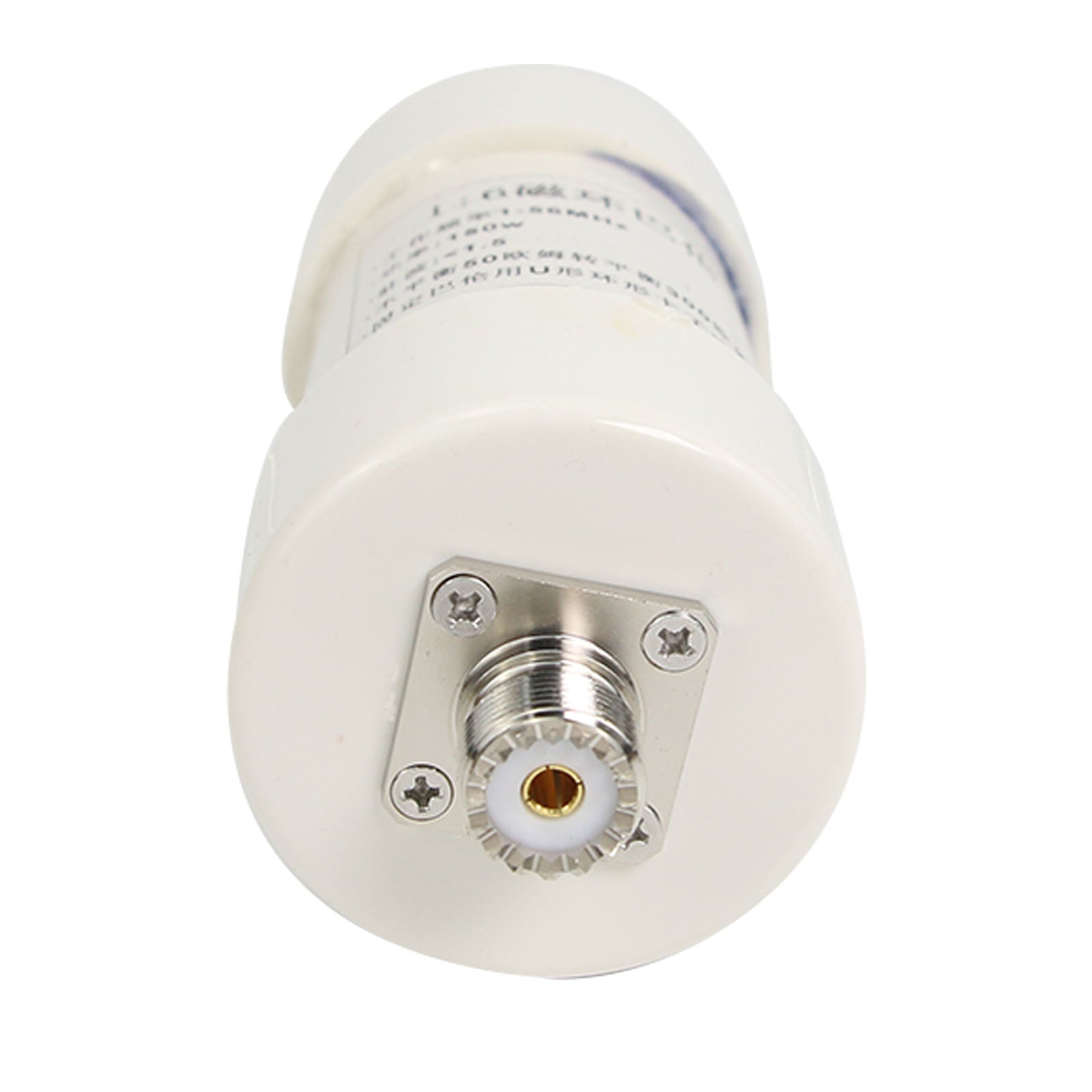

1:6 Balun 150W 1-56MHz Antenna Balun Unbalanced 50Ω To Balanced 300Ω For Shortwave Antennas
Specifications:
- Conversion Ratio: 1:6
- Input Impedance: 50Ω(unbalanced)
- Output Impedance: 300Ω(balanced)
- Frequency Range: 1-56MHz
- Standing Wave: Less than 1.5
- Withstanding Power: 150W
- Dimensions: Outer Diameter 50 x 130mm
- Weight: 350g
User-Friendly Design:
- With epoxy resin plate, 304 stainless steel ring and copper holes for connecting to 2pcs oscillators
Package Included:
- 1 x 1:6 Balun
Note: If customization service for larger powers and other conversion ratios is needed, please contact us for prices and more details.
