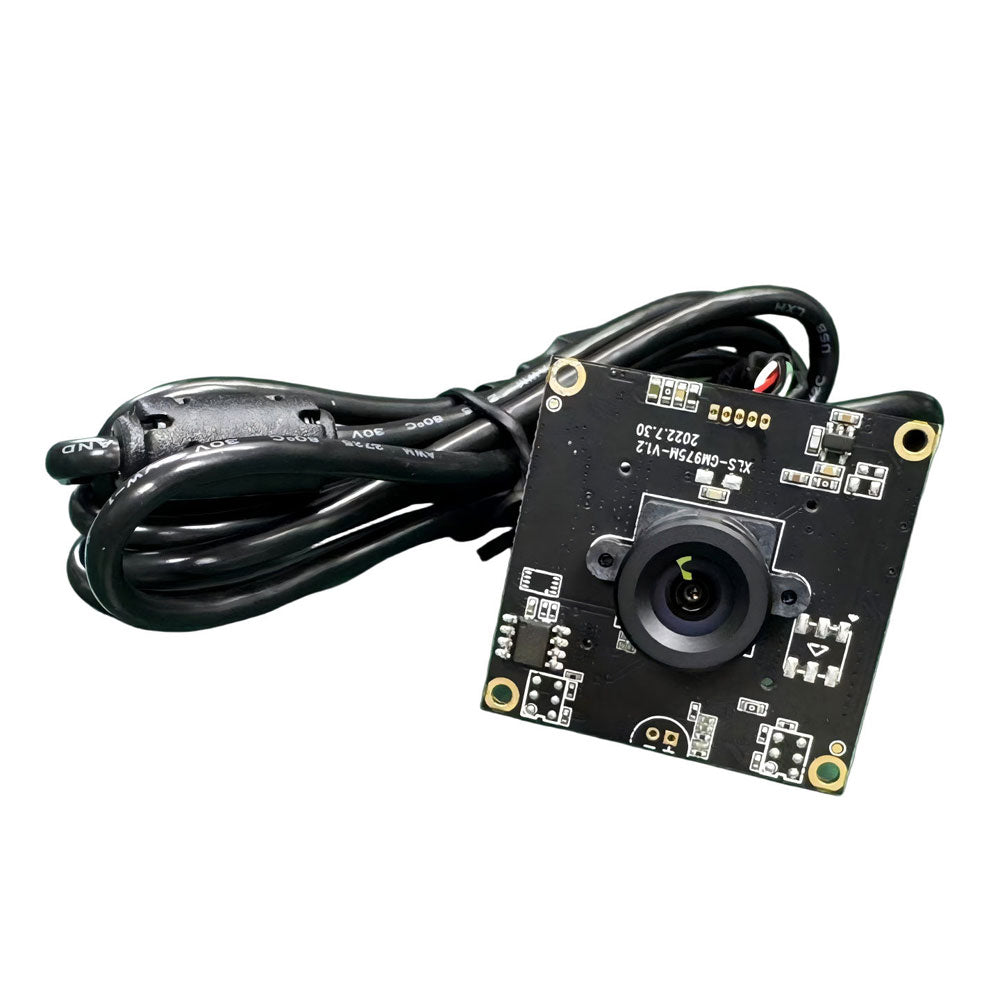

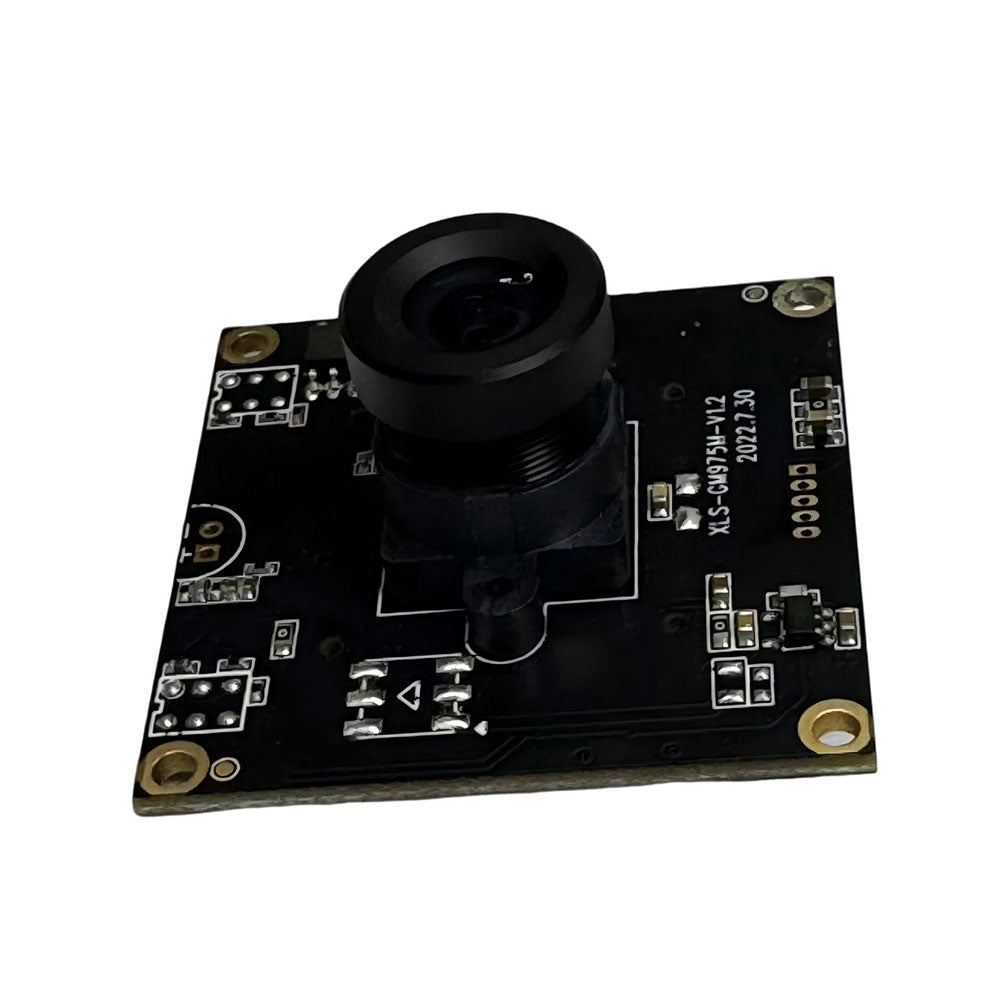

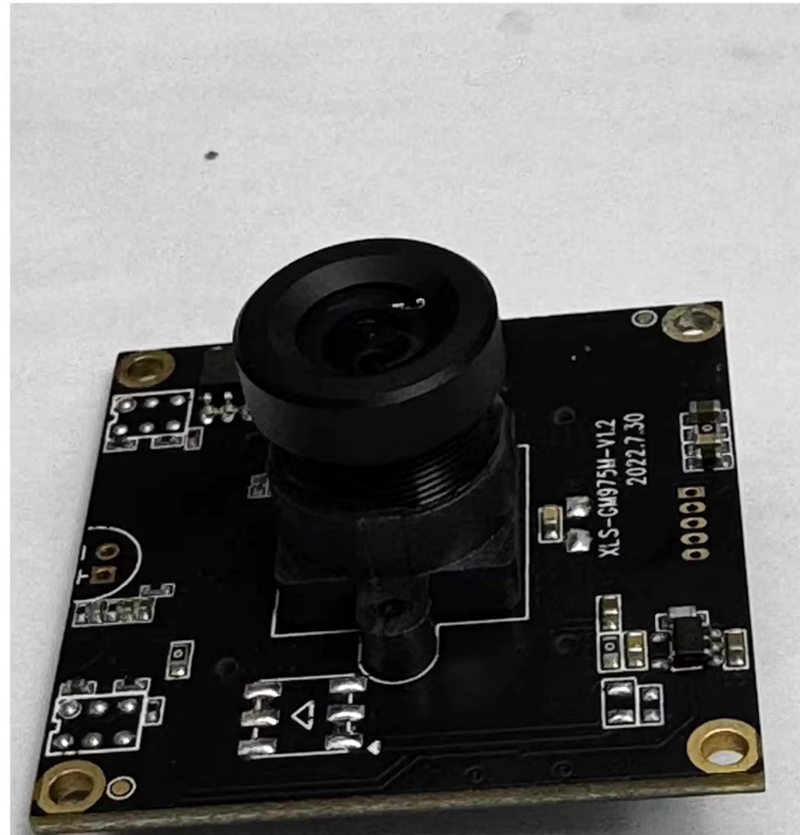

XLS-GM975M-V1.2 OG02B10 USB Camera Module Global Shutter 2MP 60FPS Industrial Machine Vision Camera

* OG02B10 Monochrome Global Shutter (Black & White)

* OG02B10 Color Global Shutter

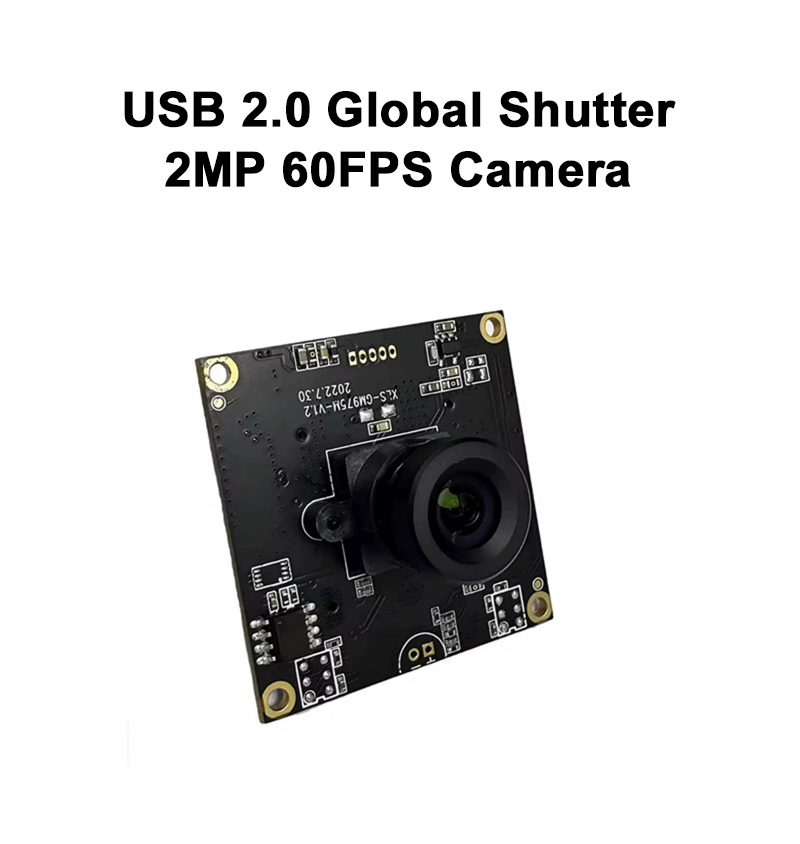

USB 2.0 Global Shutter 60FPS Camera

* 2MP HD

* OG02B10 Chip

* 60FPS/120FPS

* Imaging: Monochrome/Color

* UVC Protocol Driver-Free

Driver-Free Multi-System Compatibility

* Compatible with 99% of operating systems on the market. For Android, Linux, Ubuntu, Windows Vista, Windows 10, Windows 8, Mac OS X, Raspberry Pi, Windows 7, and Windows XP.

Applicable Devices

* Industrial equipment, media systems, video conferencing devices, surveillance systems, POS terminals, medical devices, smart home applications, presentation systems, information kiosks, self-service terminals, all-in-one PCs, smart TV boxes, network set-top boxes, Android devices, digital signage displays, industrial computers, ATM machines, robotics systems, smart vehicles, and many other embedded applications.

Successful Compatibility Cases for Industrial Control Equipment

* Applied to various industrial, automation, smart, self-service, and terminal devices, including industrial all-in-one PCs, facial recognition attendance machines, advertising displays, self-service terminals, robots, smart refrigerators, laptops, and other intelligent devices.

Application Cases

* Applicable To: Industrial cameras, document scanners, security inspection gates, computer webcams, facial recognition equipment, ordering terminals, financial terminals, and self-service lockers.

* Pixel Size: 3.0µm x 3.0µm

* Effective Pixels: 1600(H) x 1200(V)

* Video Output: YUV2/MJPG

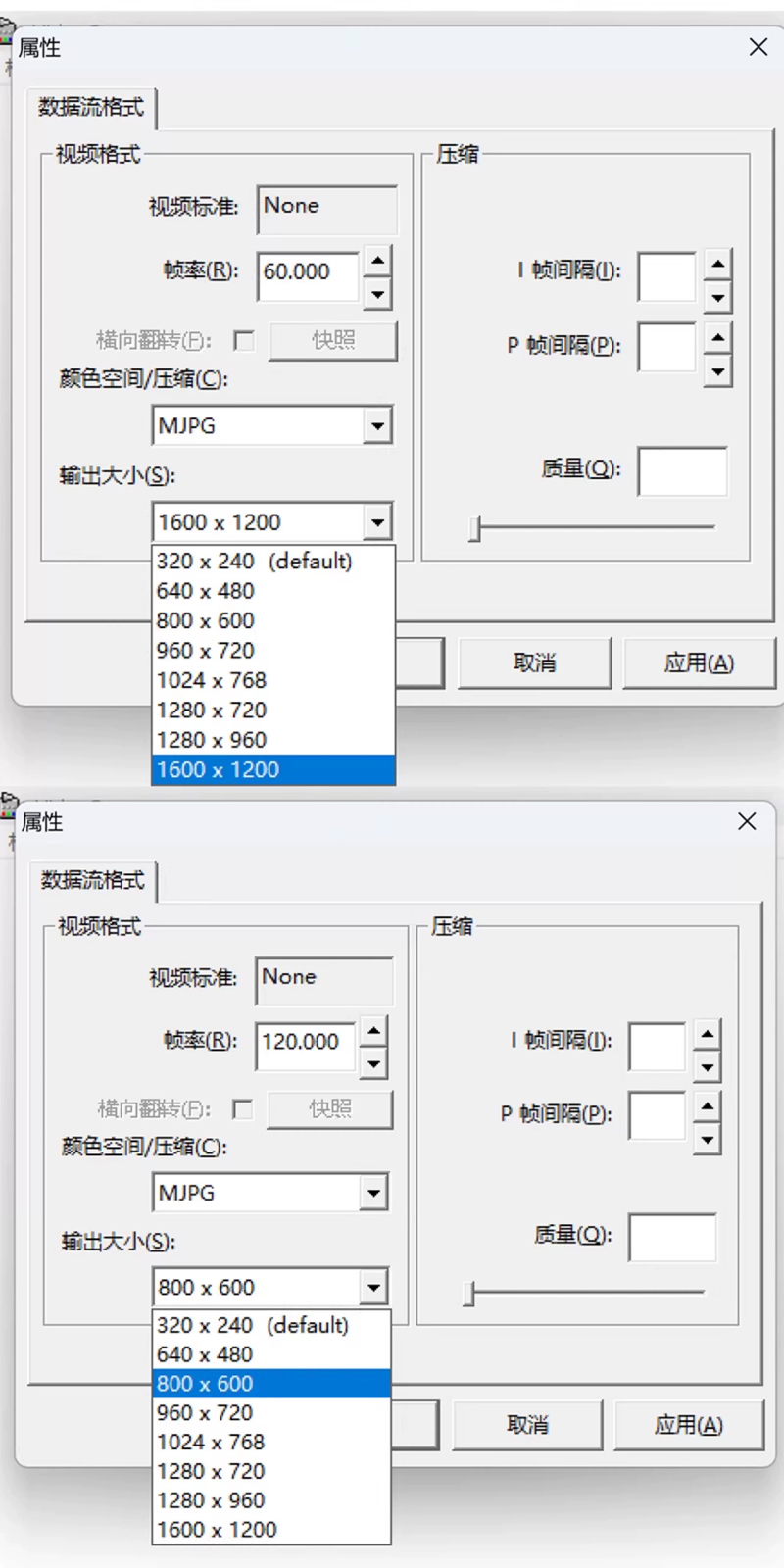

* Resolution & Frame Rate: 1600x1200 at 60fps, 1280x960 at 60fps, 1280x720 at 60fps, 800x600 at 120fps, 640x480 at 120fps, 320x240 at 120fps

* Image Sensor: 1/2.9" OG02B10

* SNR Max: TBD dB

* Dynamic Range: 68dB

* OTG Protocol Support: USB2.0 OTG

* Driver-Free Protocol Support: USB Video Class (UVC)

* Automatic Exposure Control (AEC): Supported

* Automatic White Balance (AEB): Supported

* Automatic Gain Control (AGC): Supported

* Adjustable Parameters: Brightness, Contrast, Color Saturation, Hue, Definition, Gamma, White Balance, Backlight Contrast, Exposure

* Lens View: FOV 95°, F/N (Optional Aperture)

* Night Vision Function: Optional

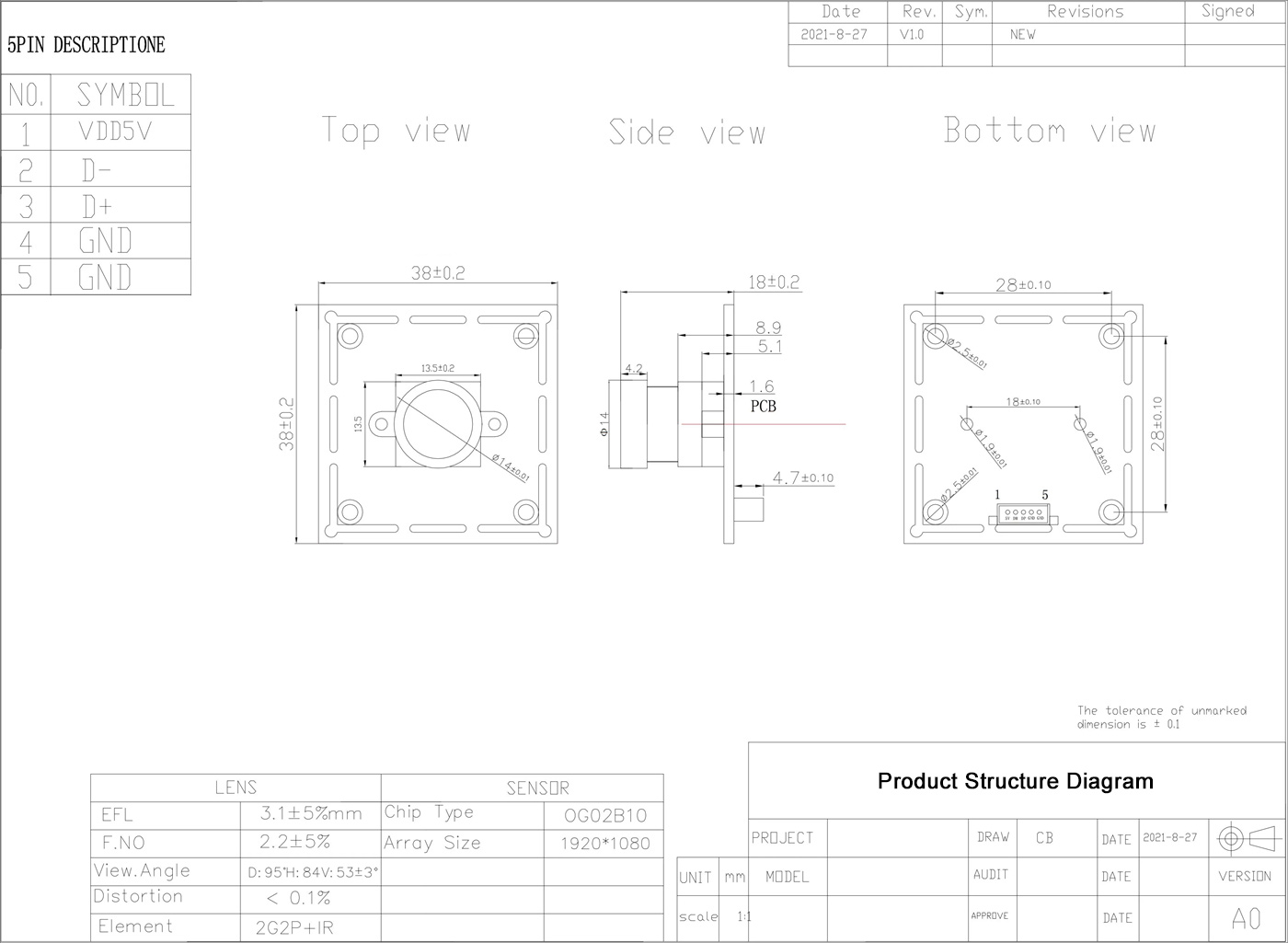

* Interface Type: USB BUS POWER 5P-1.25mm

* Operating Voltage: DC 5V

* Operating Current: 150mA-180mA

* Operating Temperature: 0°C to 60°C

* Storage Temperature: -20°C to 85°C

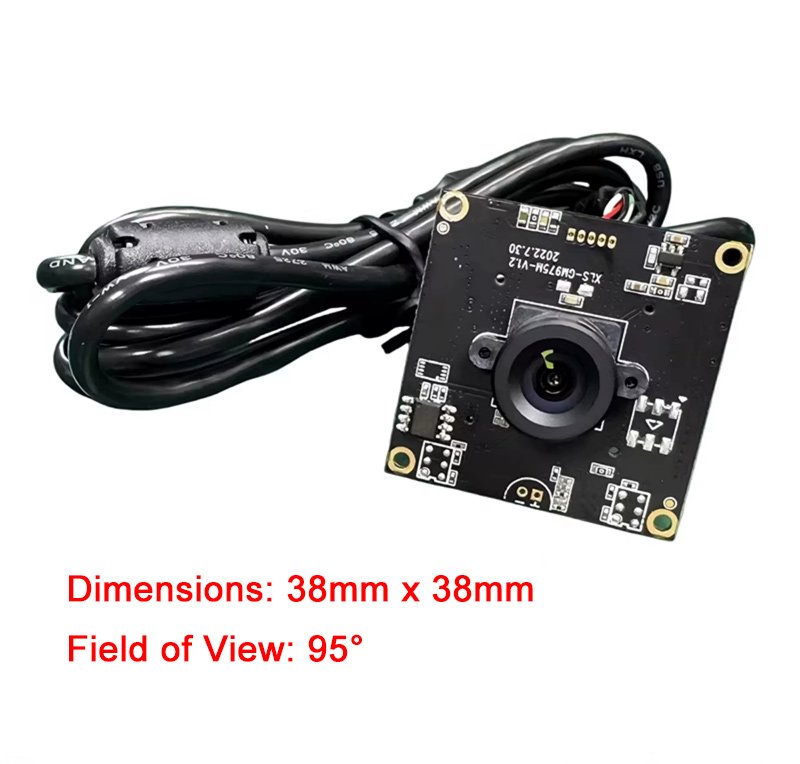

* Board Size: 38mm x 38mm

* Supported Systems: WinXP/Vista/Win7/Win8/Win10, Linux with UVC (above linux-2.6.26), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or above with UVC

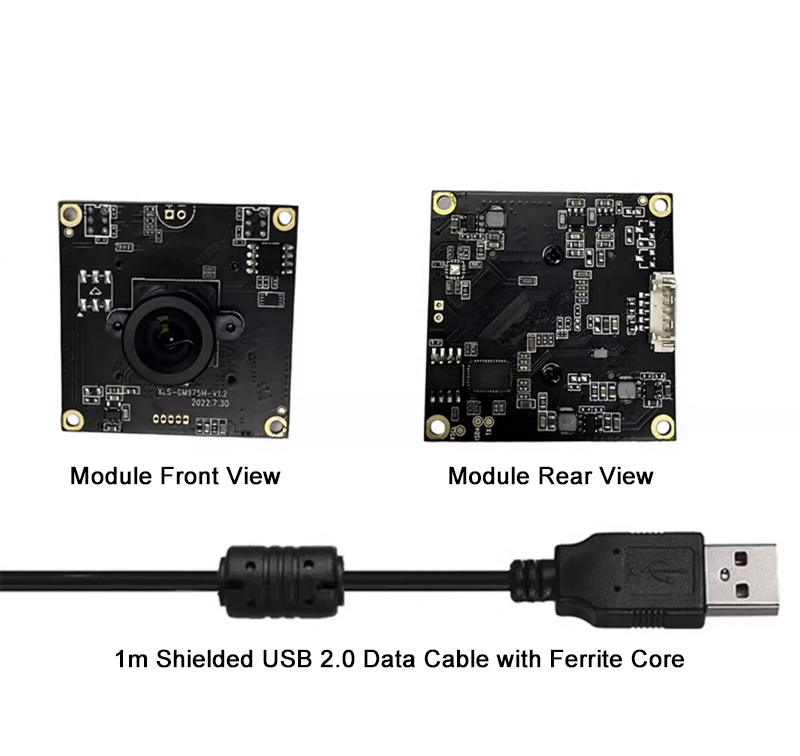

* 1 x Camera Module

* 1 x 1m USB Cable

* Package weight: 0.15kg
