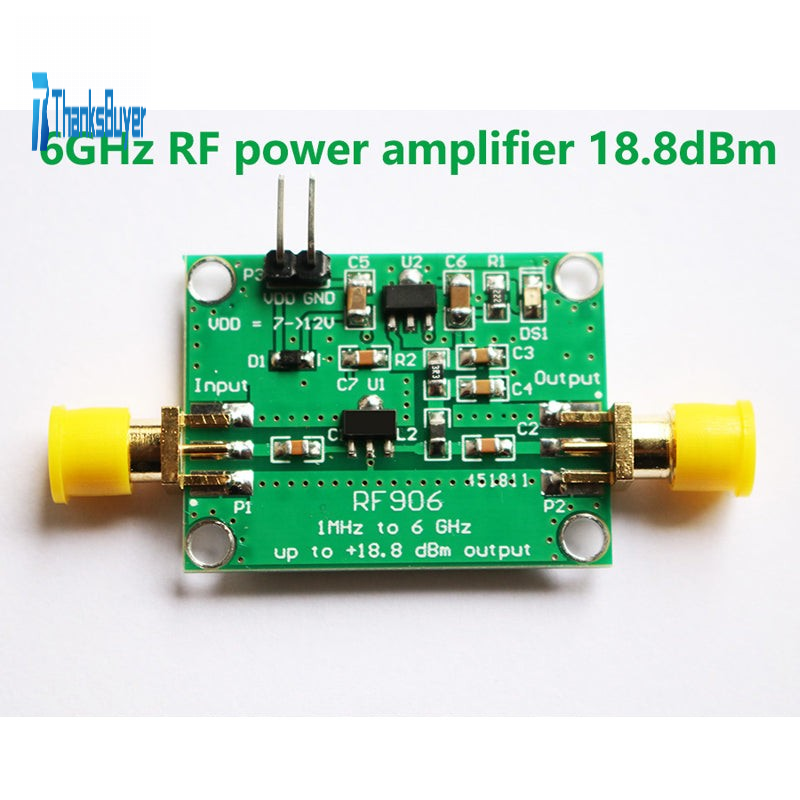

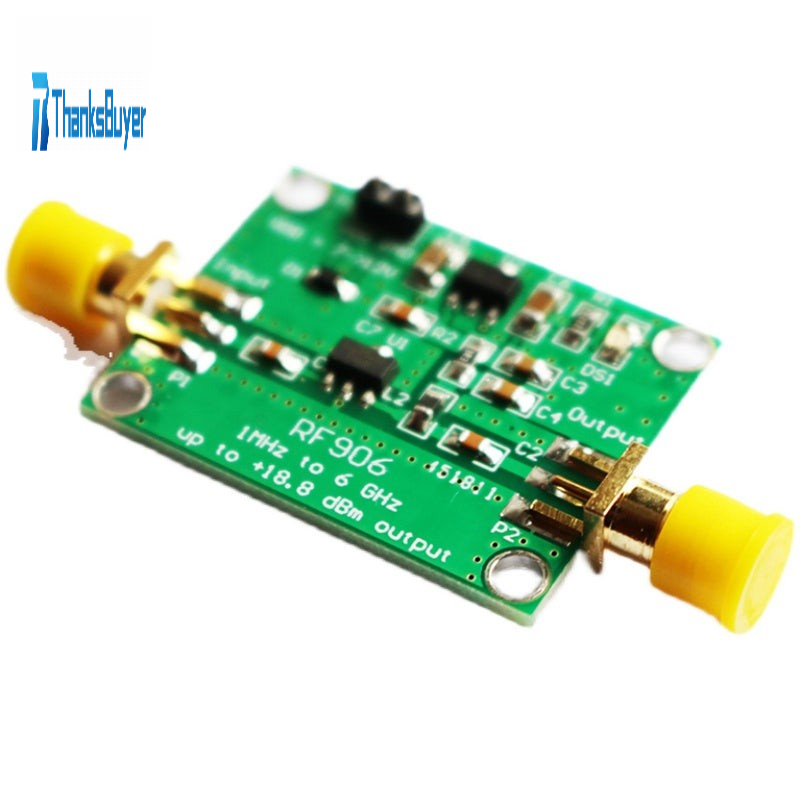

1Mhz-6GHZ RF Signal Amplifier RF Power Amplifier Module Max 18.8dBm Output

Specification:
- Input frequency range : 1~6000 MHz
- Maximum output amplitude :<18.8dBm   dBm
- Working voltage : 7~12 V
- Size:35*26mm


P3 interface: VDD: positive power supply;
                        GND: negative pole of power supply;

      P1 interface: input signal. (RP SMA KE KHD outer screw inner needle inner hole)

      P2 interface: output signal.
