2.4GHz Directional Antenna with RP-SMA-K Connector High Gain 8 Units Directional Antenna for Remote Extended Range

2.4GHz Directional Antenna with RP-SMA-K Connector High Gain 8 Units Directional Antenna for Remote Extended Range

Application:
- It is applicable to the range extension of remote control, drone, aircraft model, image transmission, WiFi, Bluetooth, and other types of signal transmission.

Technical parameter:
- Frequency range: 2400 - 2483MHz
- Central frequency: 2450MHz
- Input impedance: 50ohm
- Gain: 13.5dBi

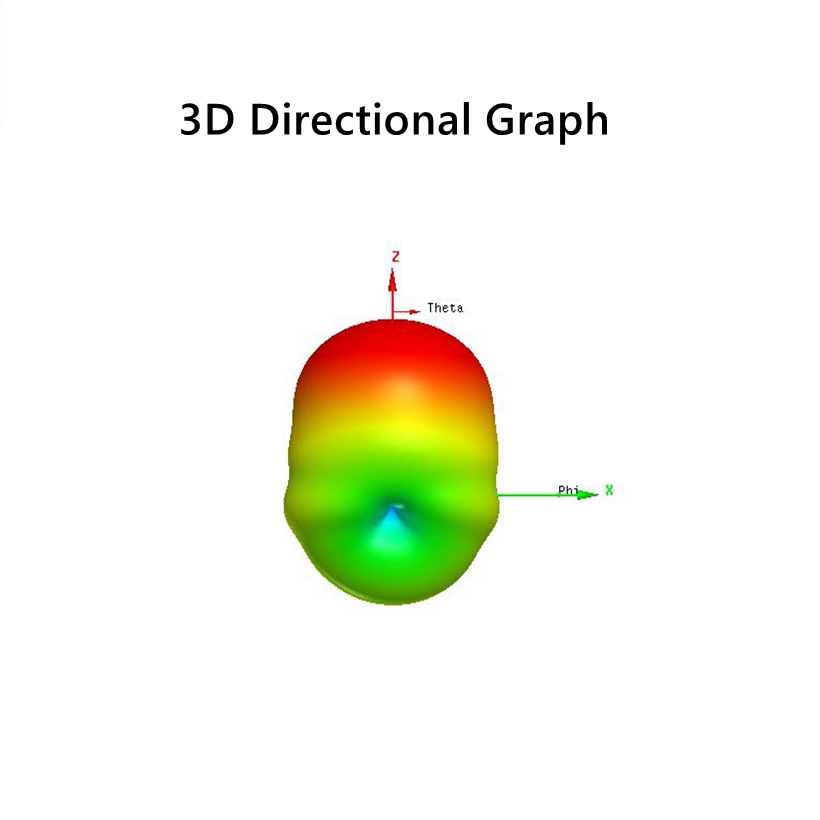

- Radiation angle: E=51.8°, H=114.6°

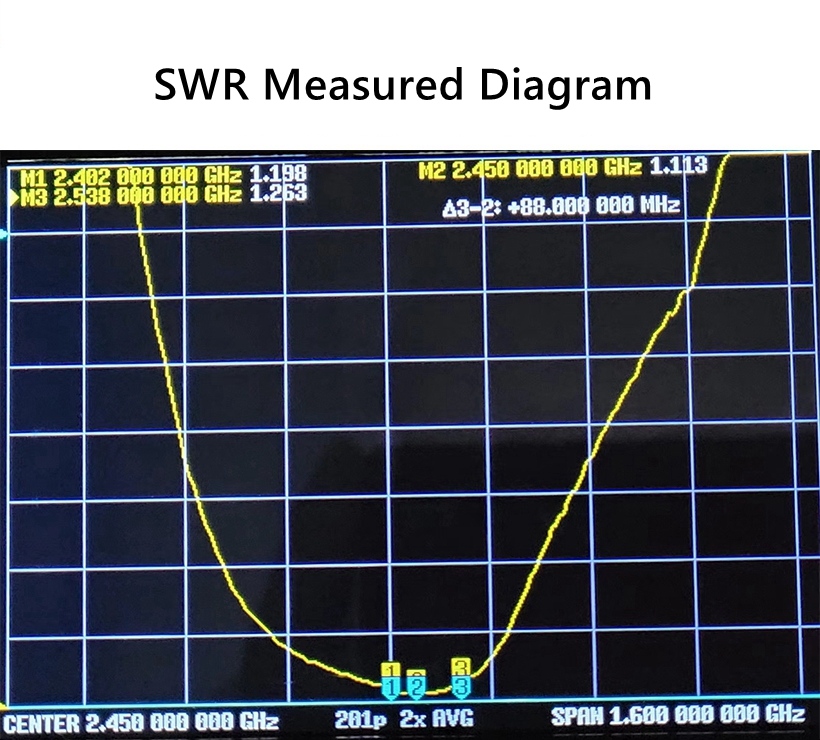

- VSWR: <1.5
- Maximum withstand power: 20W

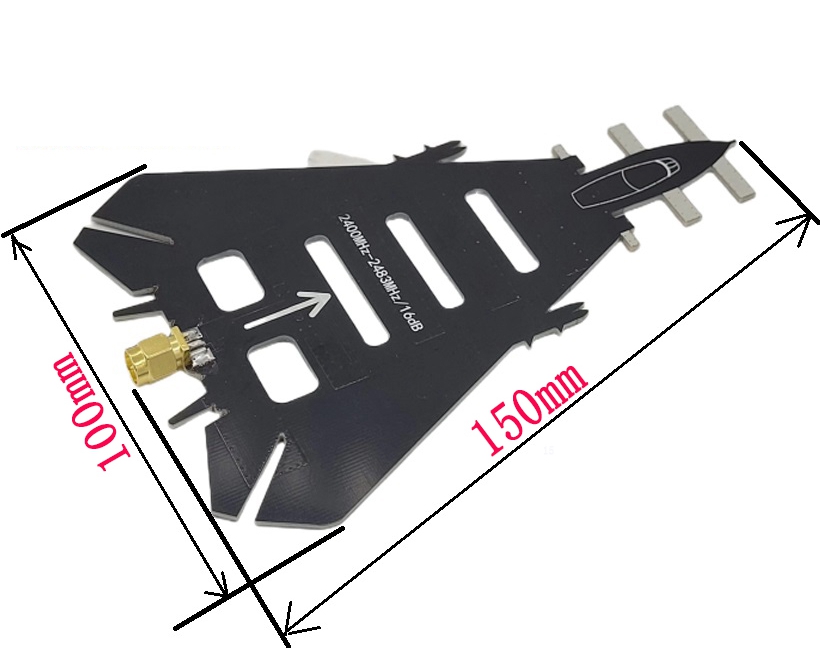

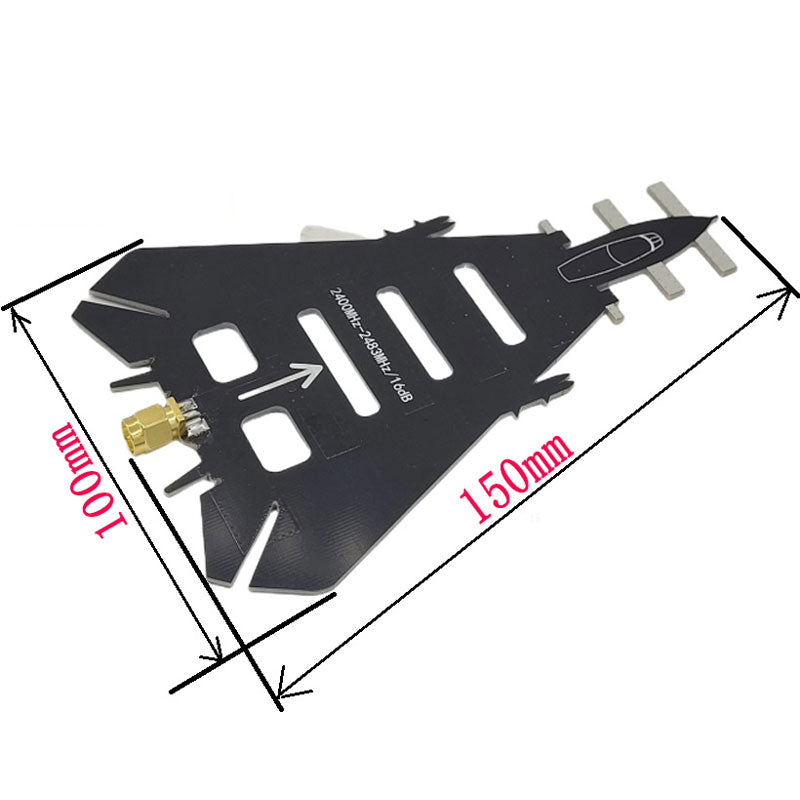

- Size: 150 x 100 x 1.6mm

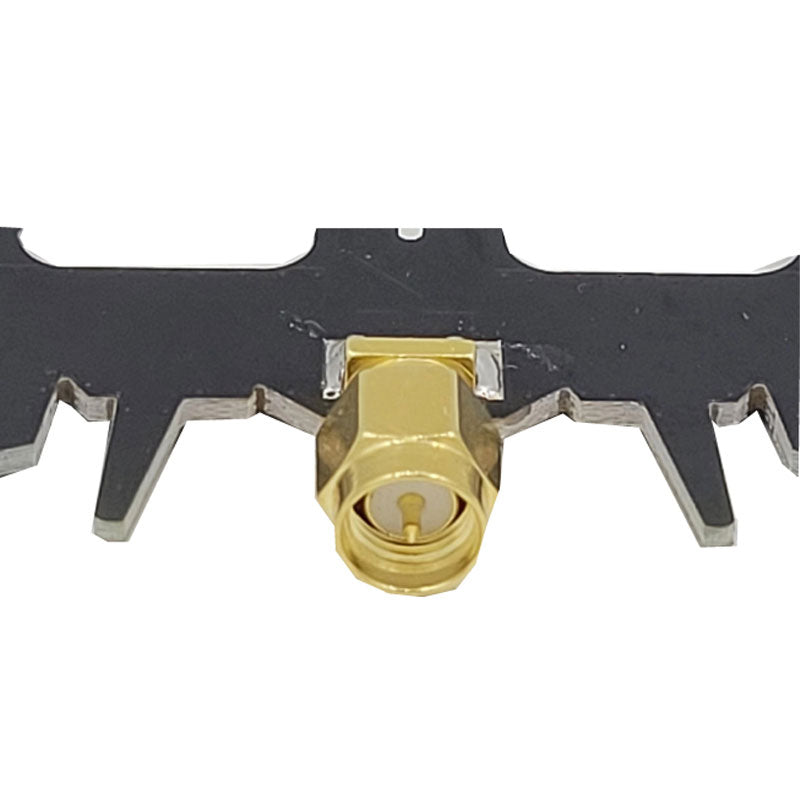

- Connector type: RP-SMA-K

Package Included:
- 1 x Directional Antenna (RP-SMA-K Connector)
