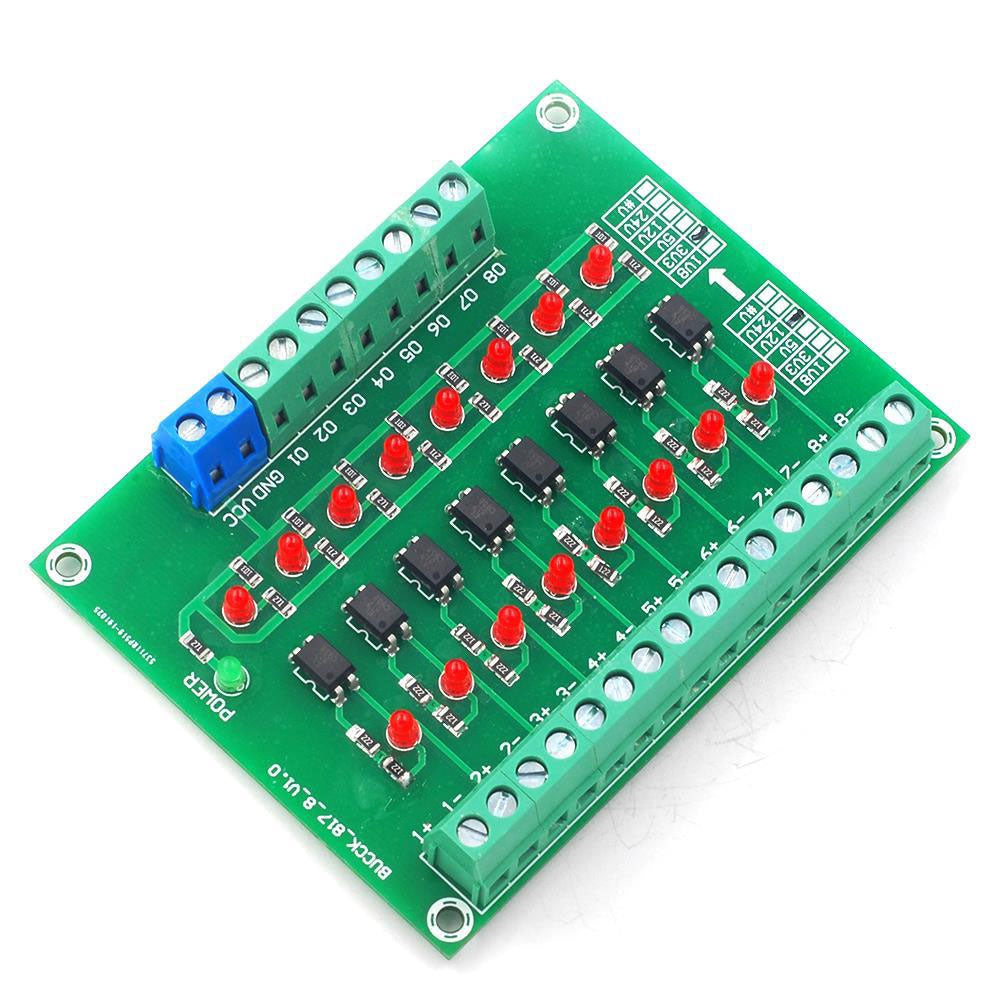

24V to 5V 8-Channel Optocoupler Isolation Module PLC Signal Level Voltage Converter Board NPN Output

24V to 5V 8-Channel Optocoupler Isolation Module PLC Signal Level Voltage Converter Board NPN Output

Description:
The limit conversion frequency of the optocoupler isolation module is 20KHZ. The board can be widely used for level conversion of signals. It can be applied to signal isolation, MCU, PLC, PNP and NPN signal to NPN signal, signal level voltage conversion and the like.

Module dimensions: 85 x 97 x 40mm/3.3 x 3.8 x 1.6" (LxWxH).

Package Included:
- 1 x Optocoupler Isolation Module

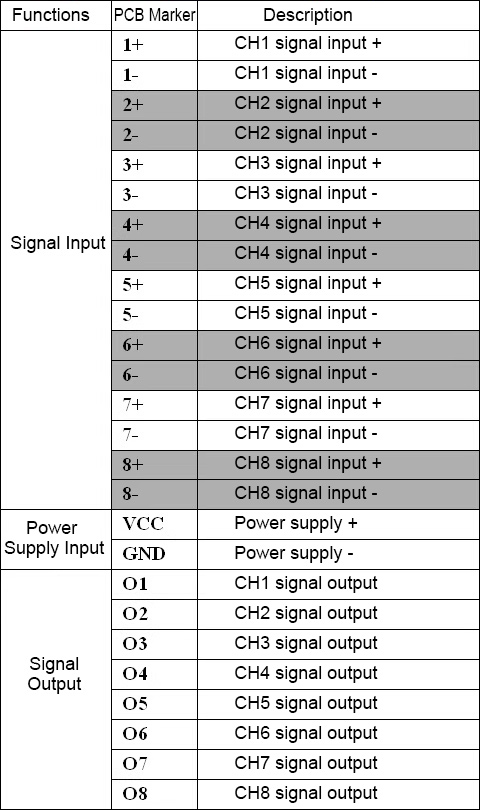

Terminals and Definition:

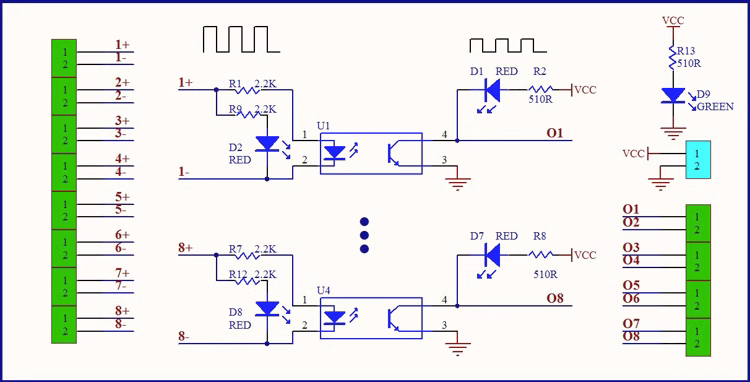

Schematic Diagram of Module Internal Structure:
