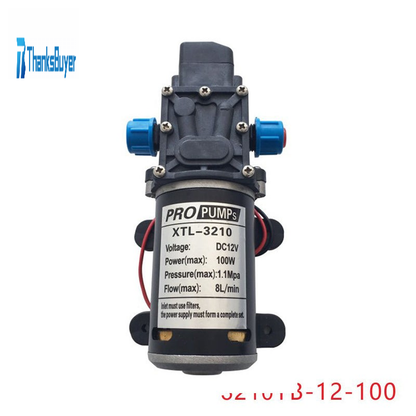

3210YB-12-100 High Pressure Electric Diaphragm Pump Pressure Switch Type B Connector 100W DC 12V

3210YB-12-100 High Pressure Electric Diaphragm Pump Pressure Switch Type B Connector 100W DC 12V

Basic Parameters:
- Name: High-pressure electric diaphragm pump
- Voltage: 12V
- Maximum power: 100W
- Maximum pressure: 11kg
- Working pressure: 7kg
- Opening flow: 8L/Min
- Vertical suction lift: 1.5M
- Head: 70M
- Pump size: 182.8 x 73.1mm
- Hole Spacing: 55.5mm

Package Included:
- 1 x Diaphragm Water Pump

Note:
- DC motor power cord is not divided into positive and negative poles.

Applications:
- Car wash
- Water flowers
- Spray
- Spray fruit tree

Pressure Switch Type:
When the outlet is completely blocked (no water leakage), power supply will be automatically cut off, the motor will stop, and the water outlet will run again after opening. Matching nozzle hole should not be too small, which will damage the pressure switch in the pump, but the nozzle hole should not be too large, and the working pressure will be small. It is best to use a pressure gauge to test the matching nozzle. Without tests, the nozzle hole should be large rather than small.

Adjust Maximum Pressure:
Pressure type pump does not have a pressure adjusting screw, and the maximum pressure has been set at the factory. The maximum pressure cannot be adjusted during use.

Interface Connection Method (Type B):
