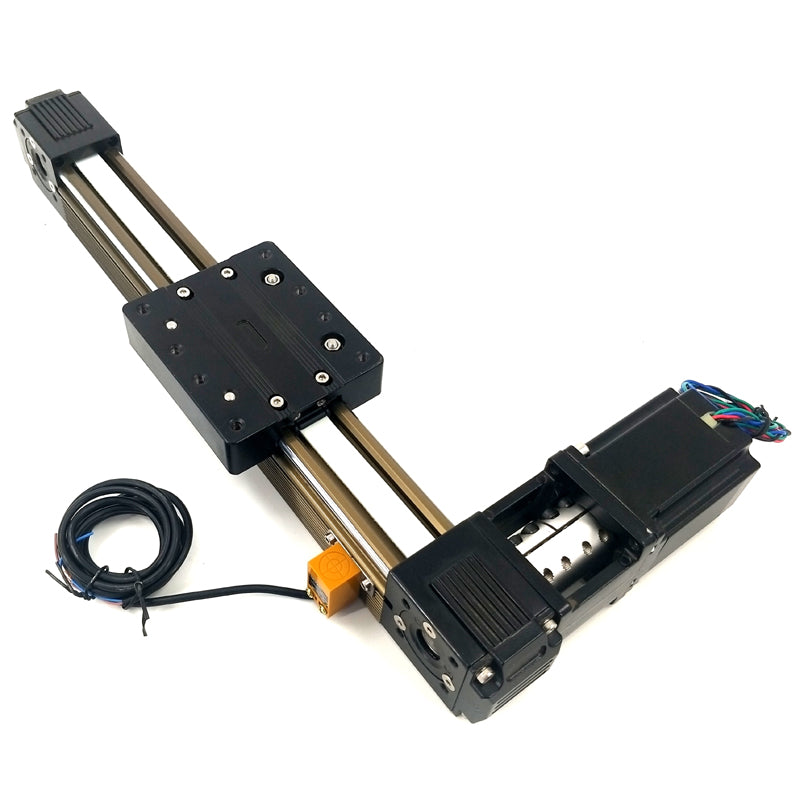

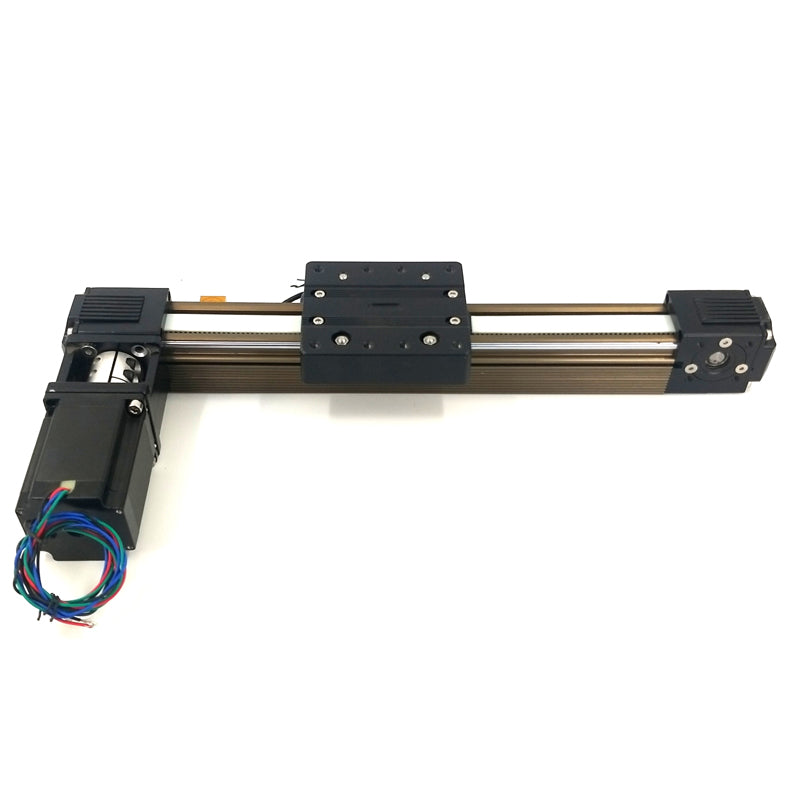

45*45mm CNC Linear Guide Rail 300mm with Module High Speed Mute Profile Cross Laser Cutting Machine

45*45mm CNC Linear Guide Rail 300mm with Module High Speed Mute Profile Cross Laser Cutting Machine

Description:
- Profile: 45mm*45mm
- Material: Anodized Aluminum Housing with a Chrome Steel GCr 15 shaft
- Straightness/ Distortion: ≤0.1mm/300mm
- Loading Capacity: 100N
- Linear Travel Per Shaft Revolution: 72mm
- Pulley Teeth: 24 teeth
- Gear-Teeth Type: HTD3m
- Velocity: 3mm/S
- Weight: 3 KG/m
- Slide type: 105*90
- Vertical Maximum lifting Force: 100N
- Horizontal maximum lifting force: 300N
- Maximum Torque: 20N.M
- Stepper motor: included

Features:
- Customized length
- High precision
- High speed
- Low noise
- Long warranty
- Anti rust and corrosion

Package Included:
- 1 x CNC Linear Rail 300mm with Stepper Motor
