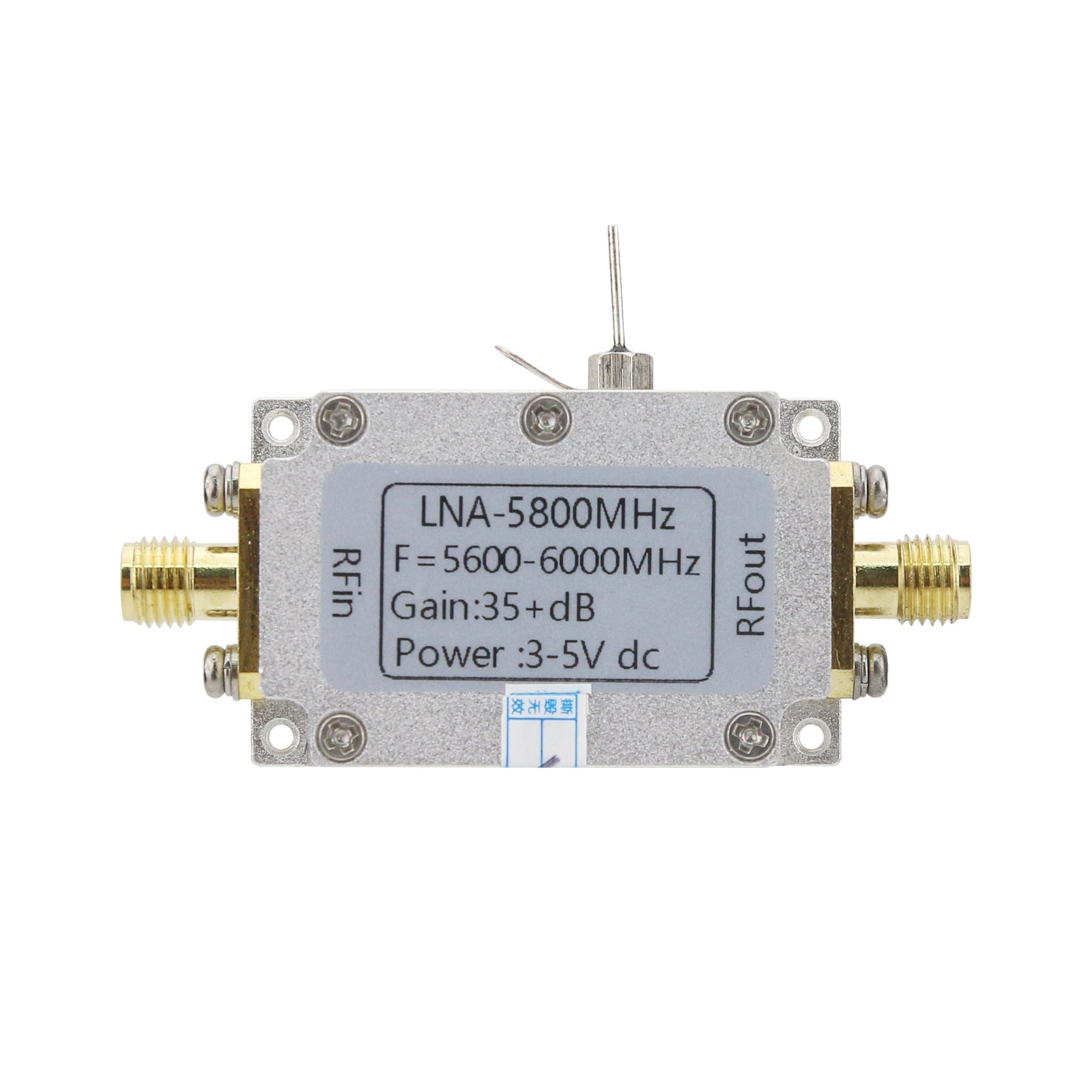

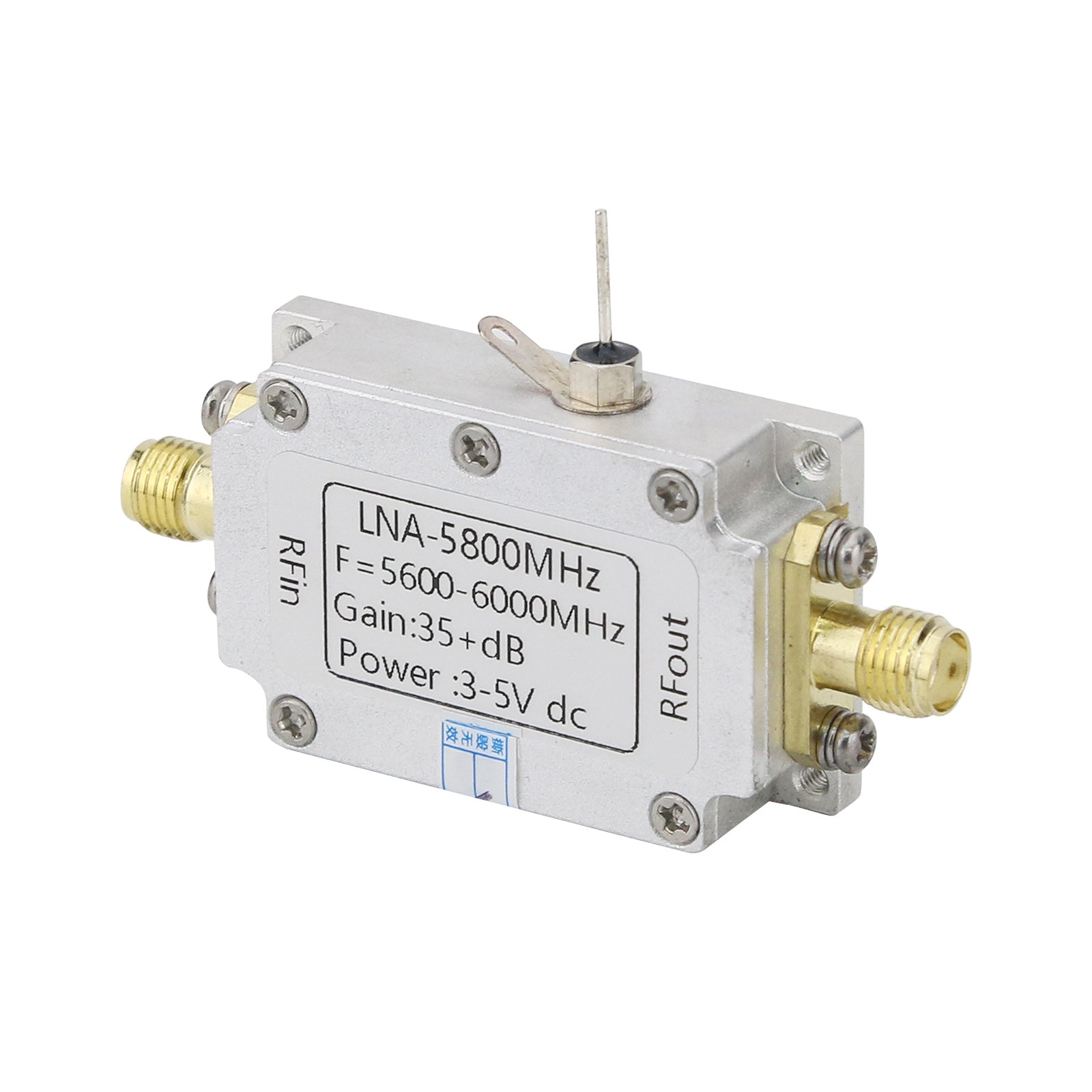

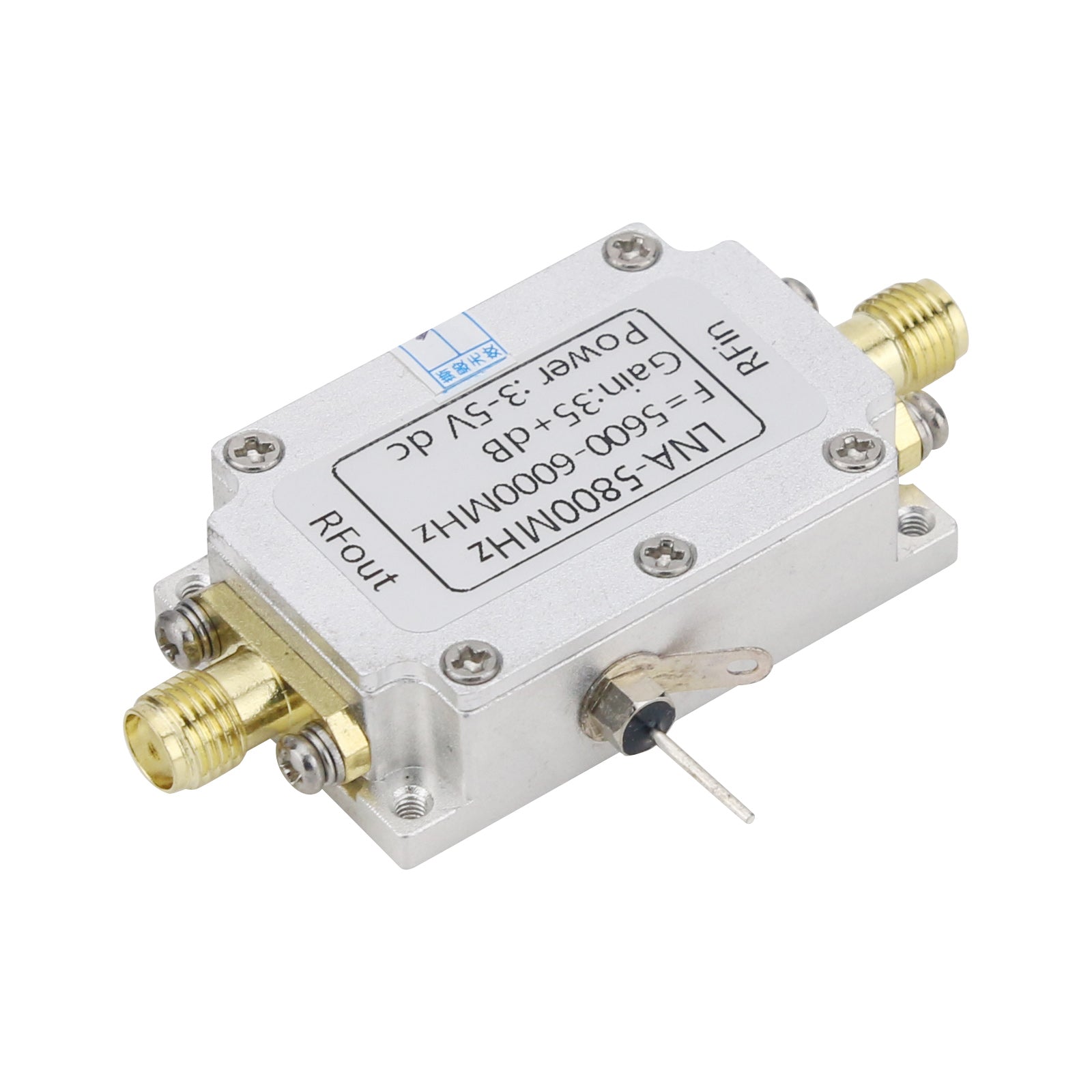

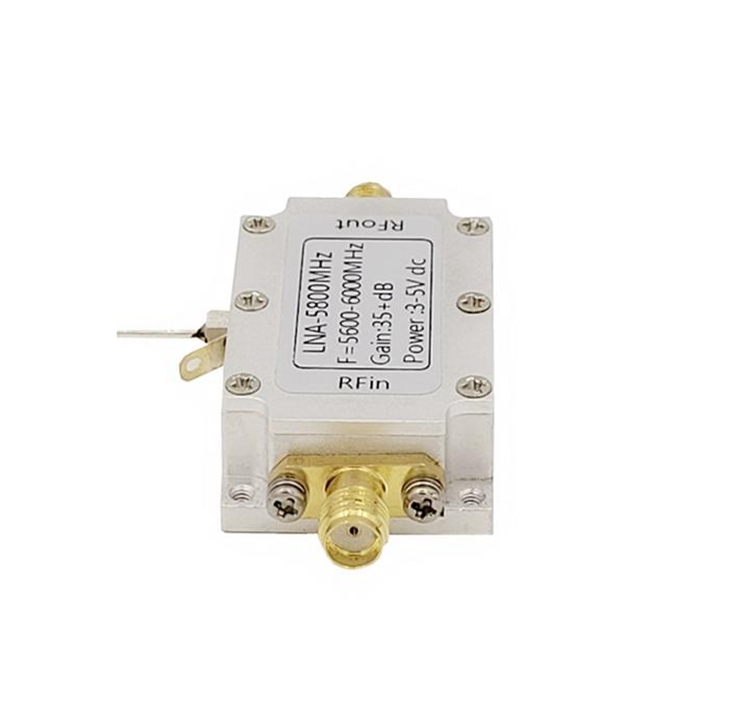

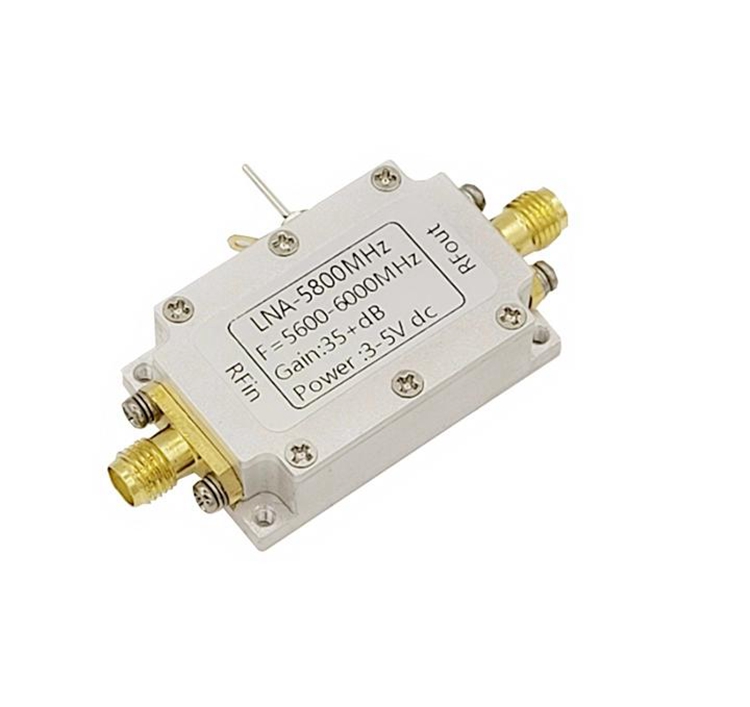

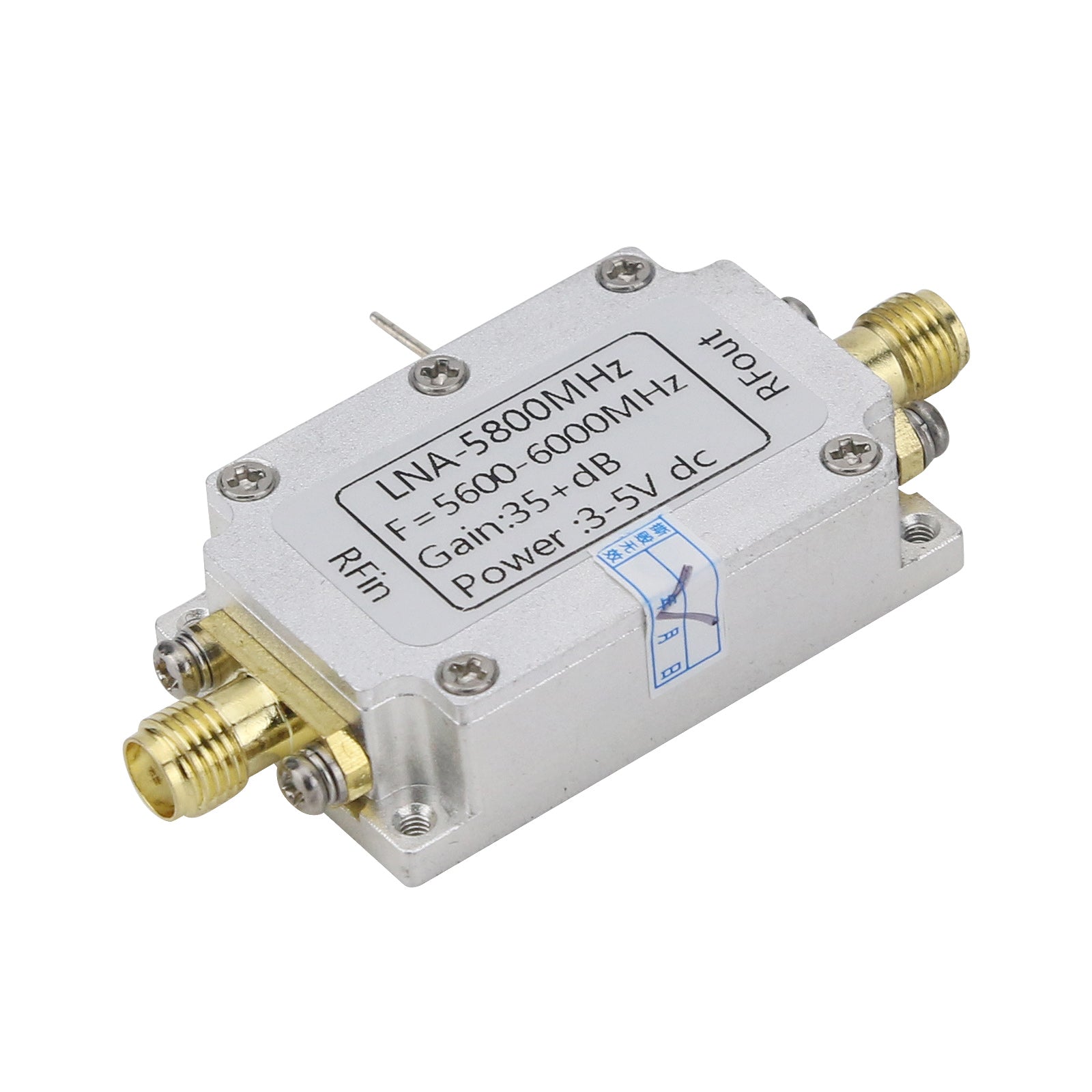

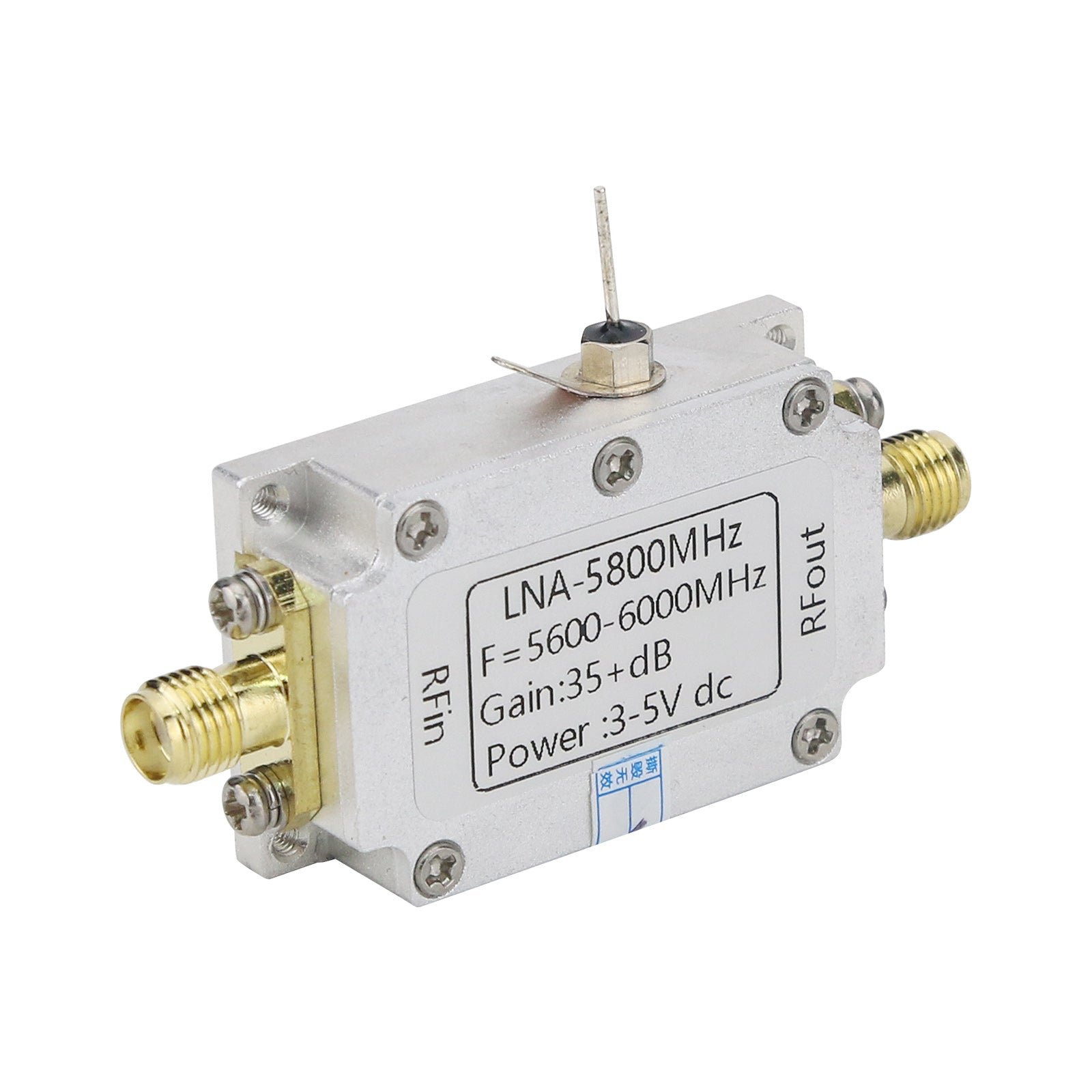

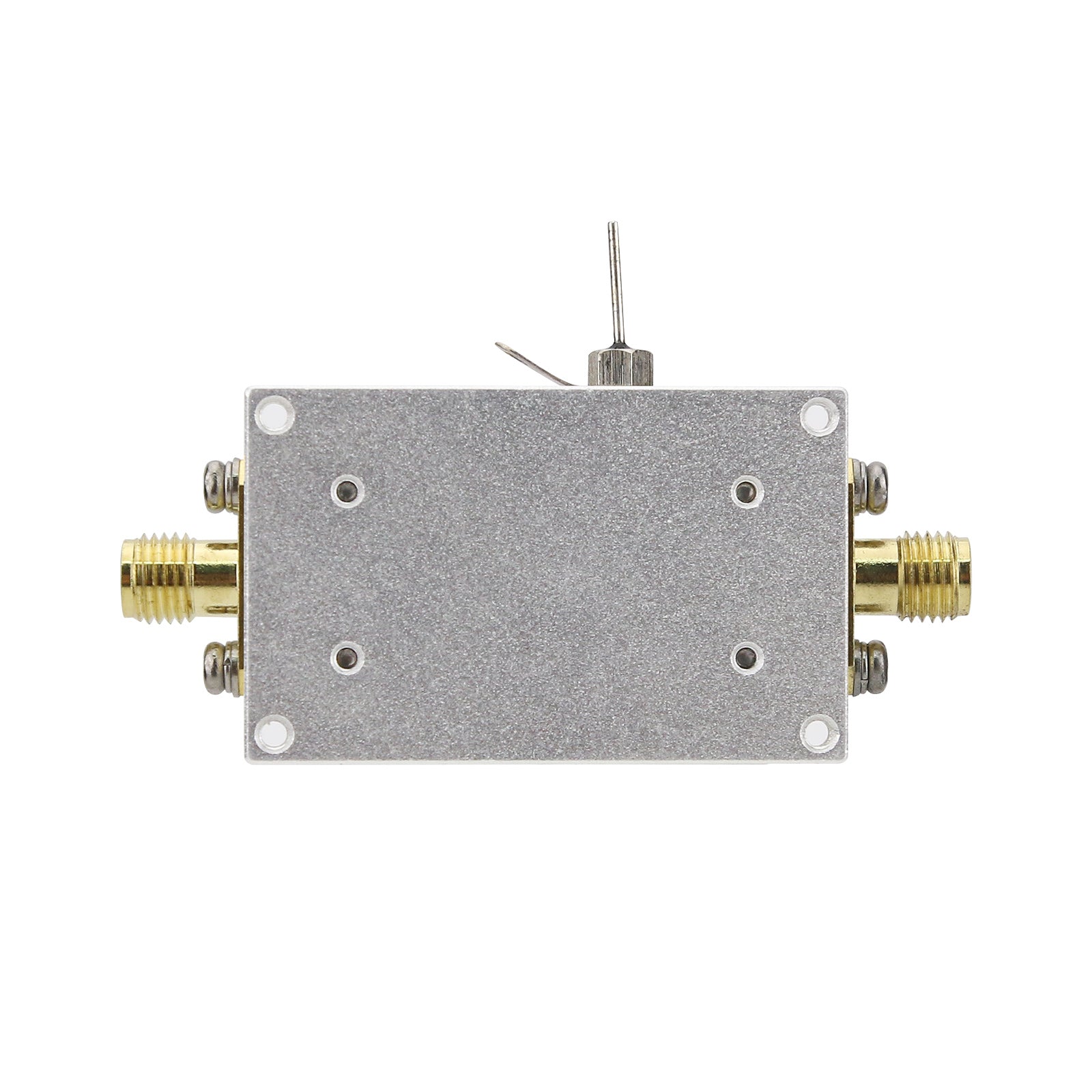

5.6 - 6GHz LNA Low Noise Amplifier 5800MHz Image Transmission 2.4GHz RF Amplifier with SMA Female Connector

5.6 - 6GHz LNA Low Noise Amplifier 5800MHz Image Transmission 2.4GHz RF Amplifier with SMA Female Connector

Description:
- This amplifier is a RF low noise amplifier designed for image transmission, 5.8GHz flight control, and flight control inversion front-end, with high gain filtering, low noise, interference suppression of -39dB at 2.4GHz, and in band flatness less than 1.5dB.

Specification:
- Bandwidth: 5.6GHz - 6GHz
- Input and output impedance: 50ohms

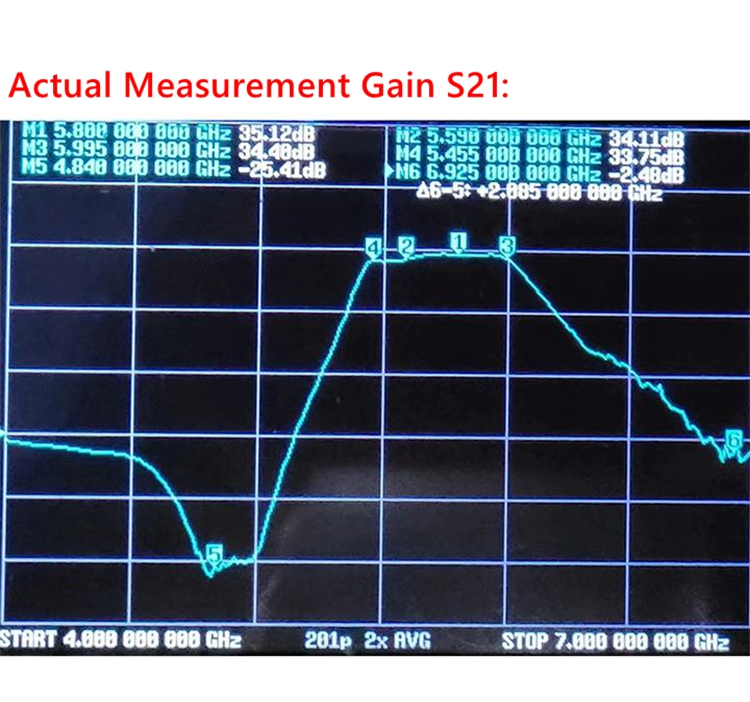

- Gain: 35+dB
- DC power supply: 3- 5V DC; current: 100mA
- Noise ratio: NF<0.8dB
- Maximum output power: 20dBm (100mW)
- Case material: CNC processed aviation aluminum (corrosion preventive)

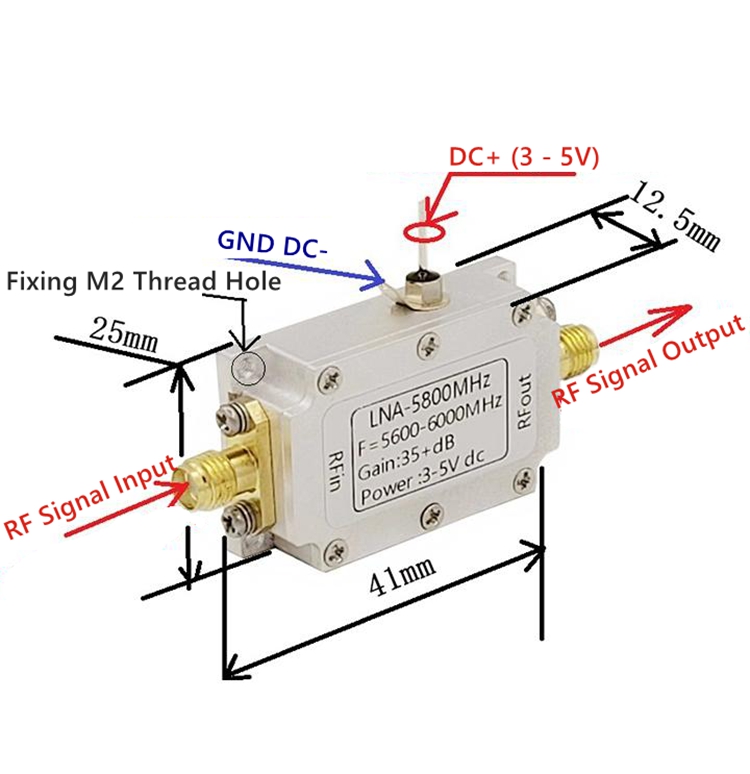

- Connector type: SMA female connector

Precaution:
- The amplifier operates at 3V with a gain of 30dB as the voltage rises to 5V and a gain of 35dB.
- The gain can be controlled by 30dB - 35+dB with a voltage of 3-5V. And 5V output with maximum gain.
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected. The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.

Package Included:
- 1 x Low Noise Amplifier
