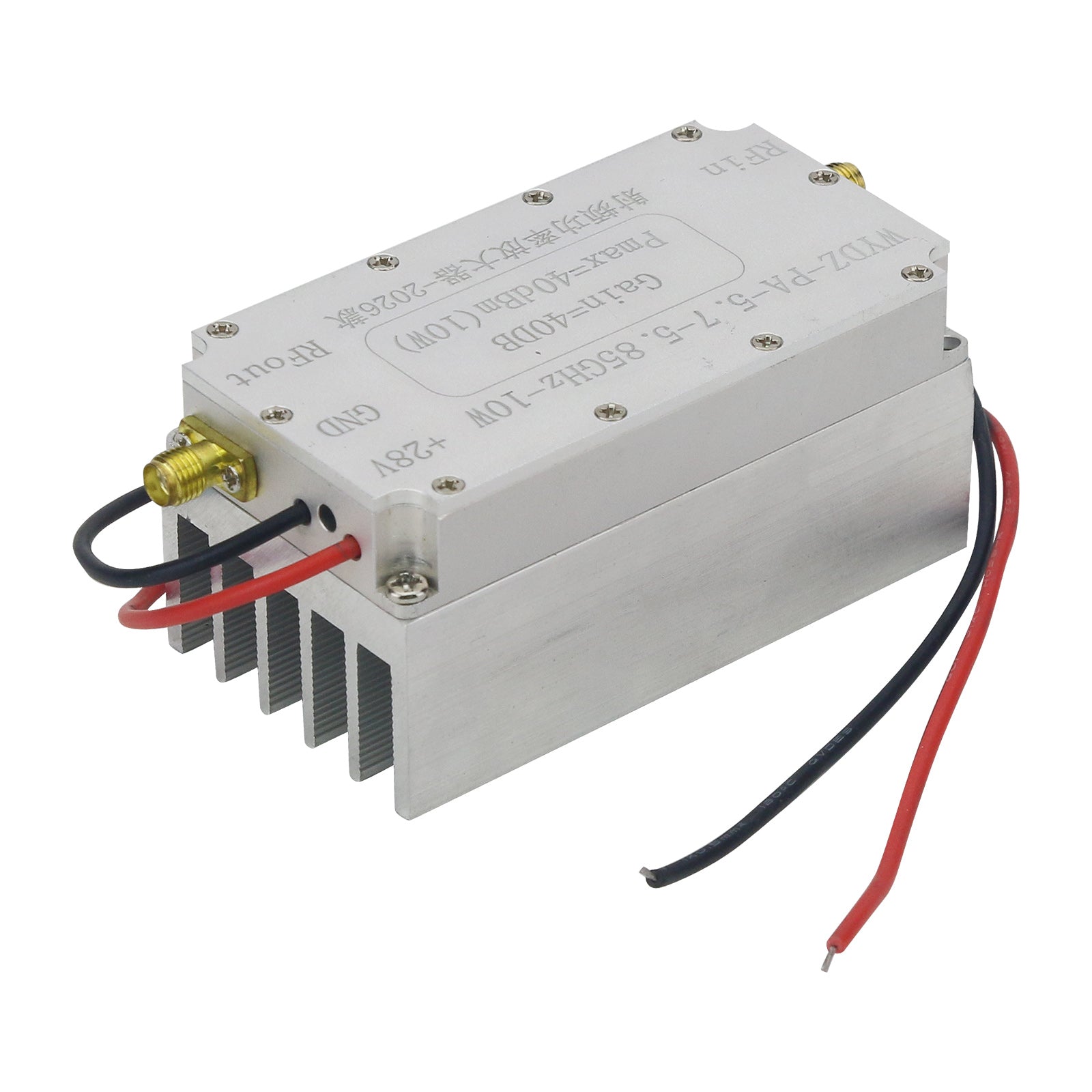

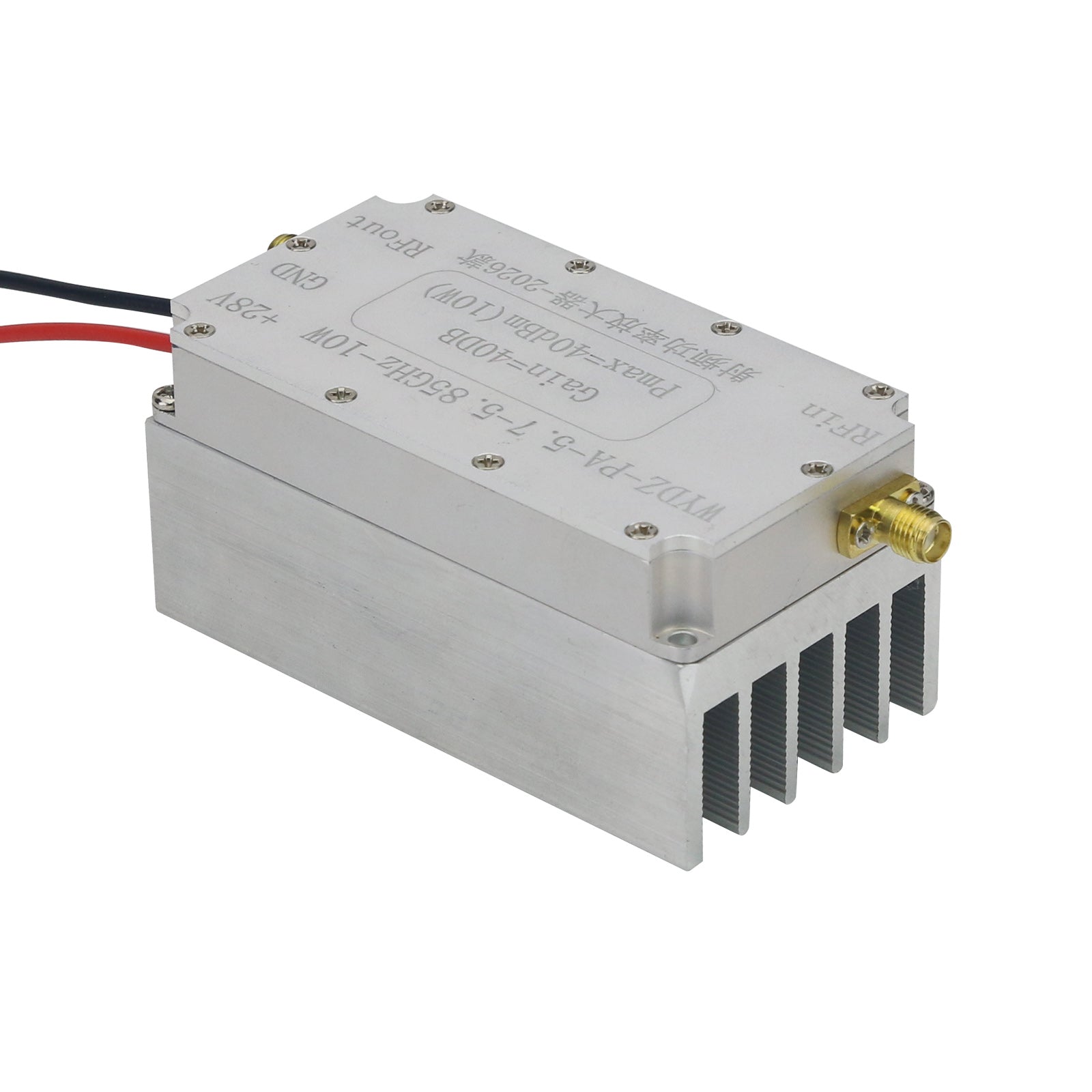

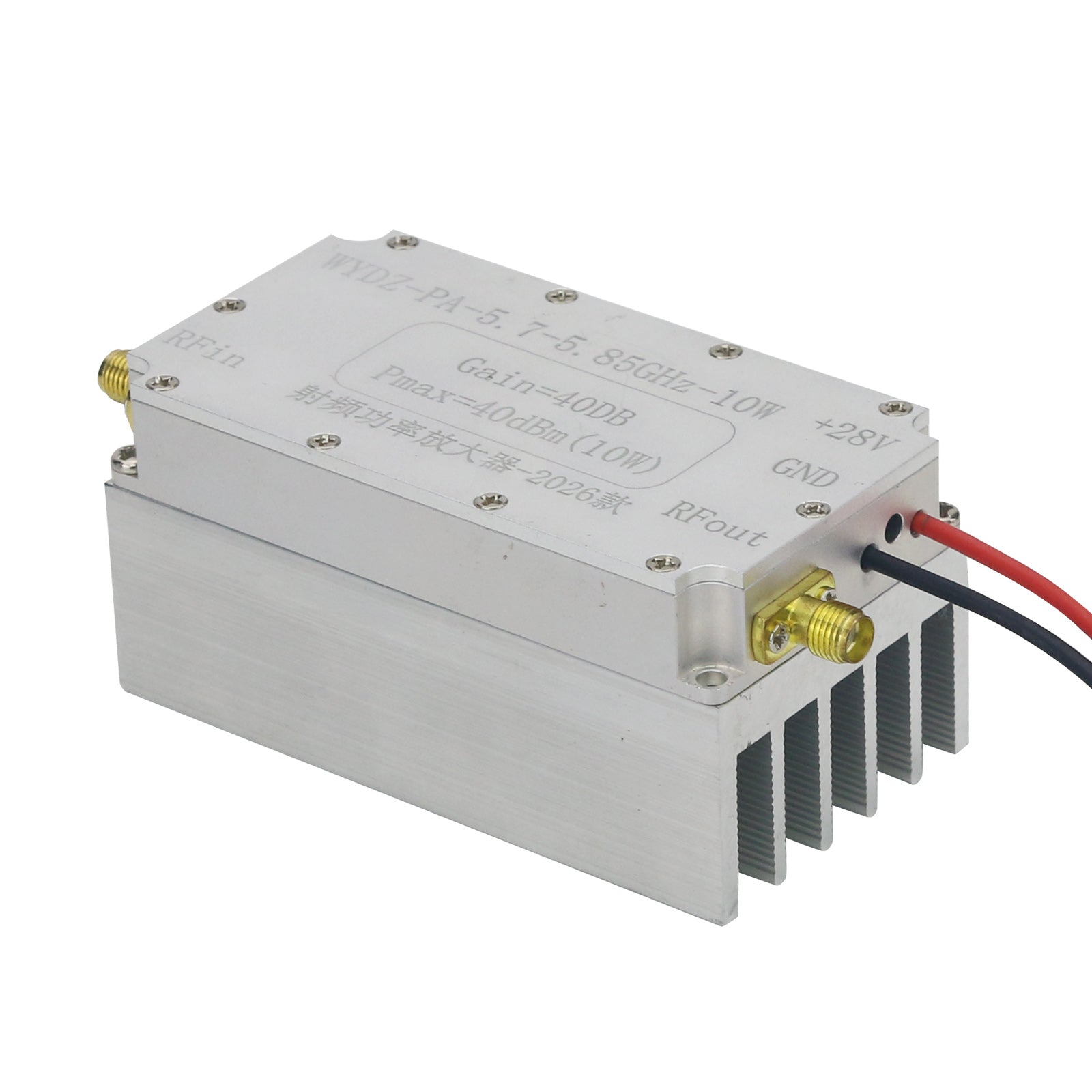

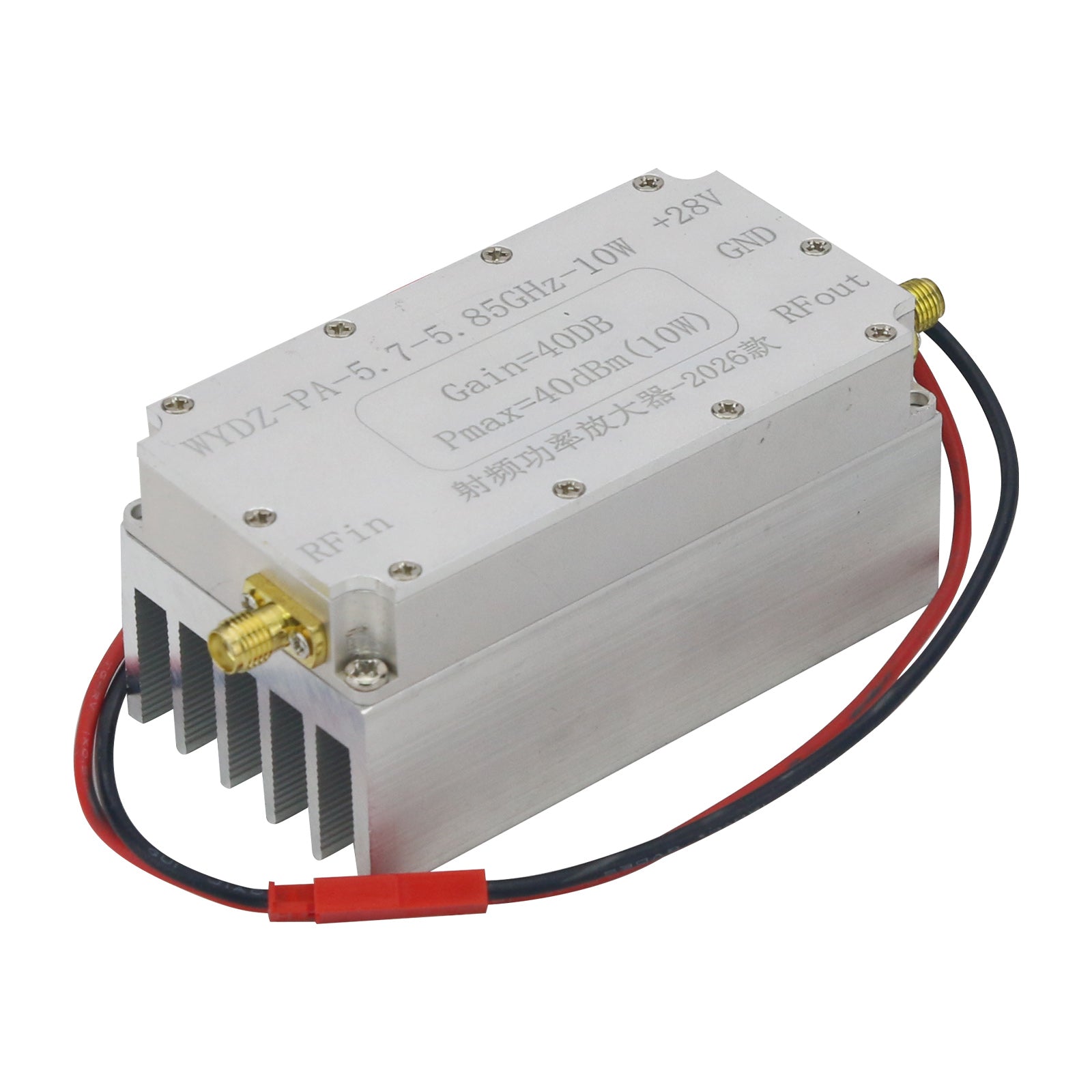

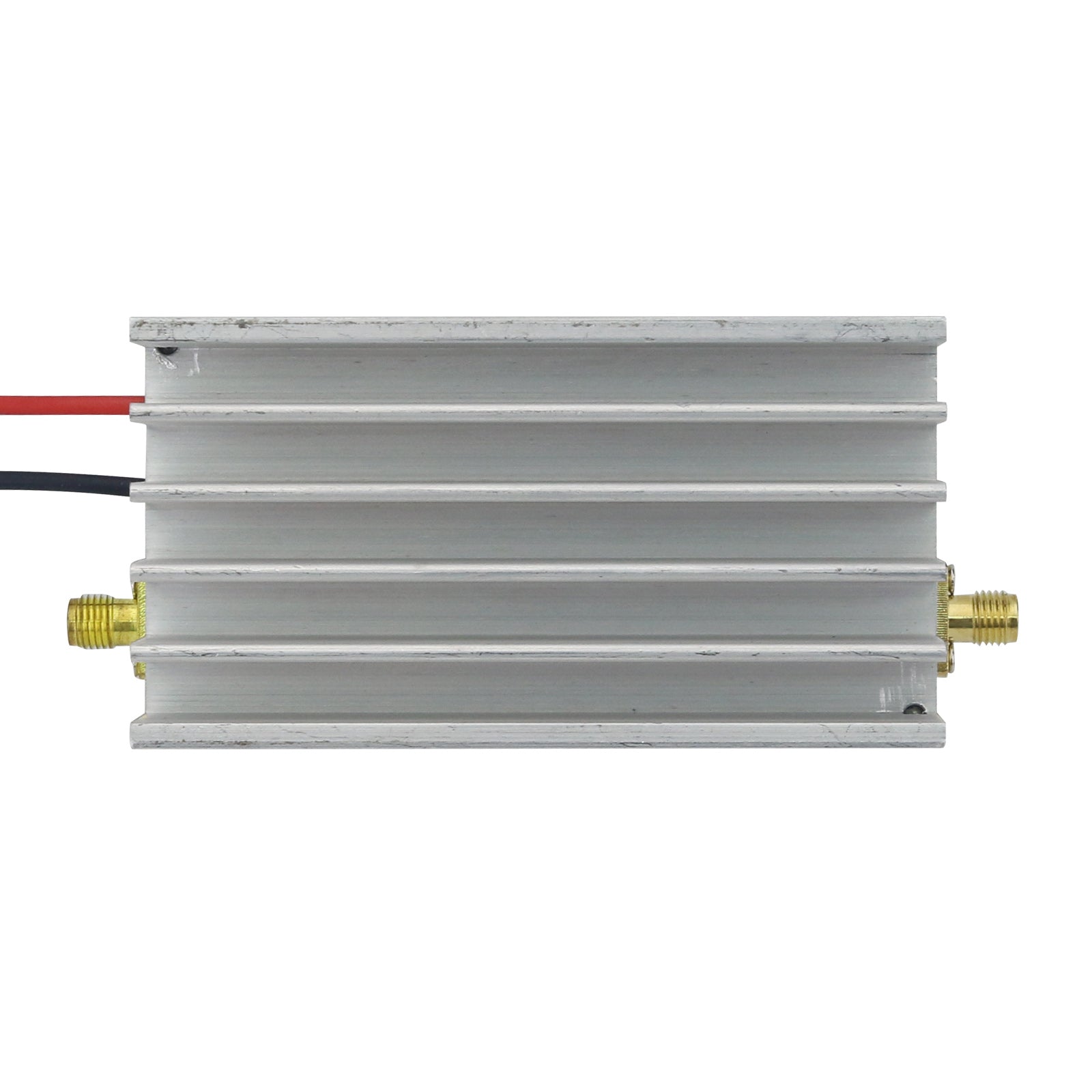

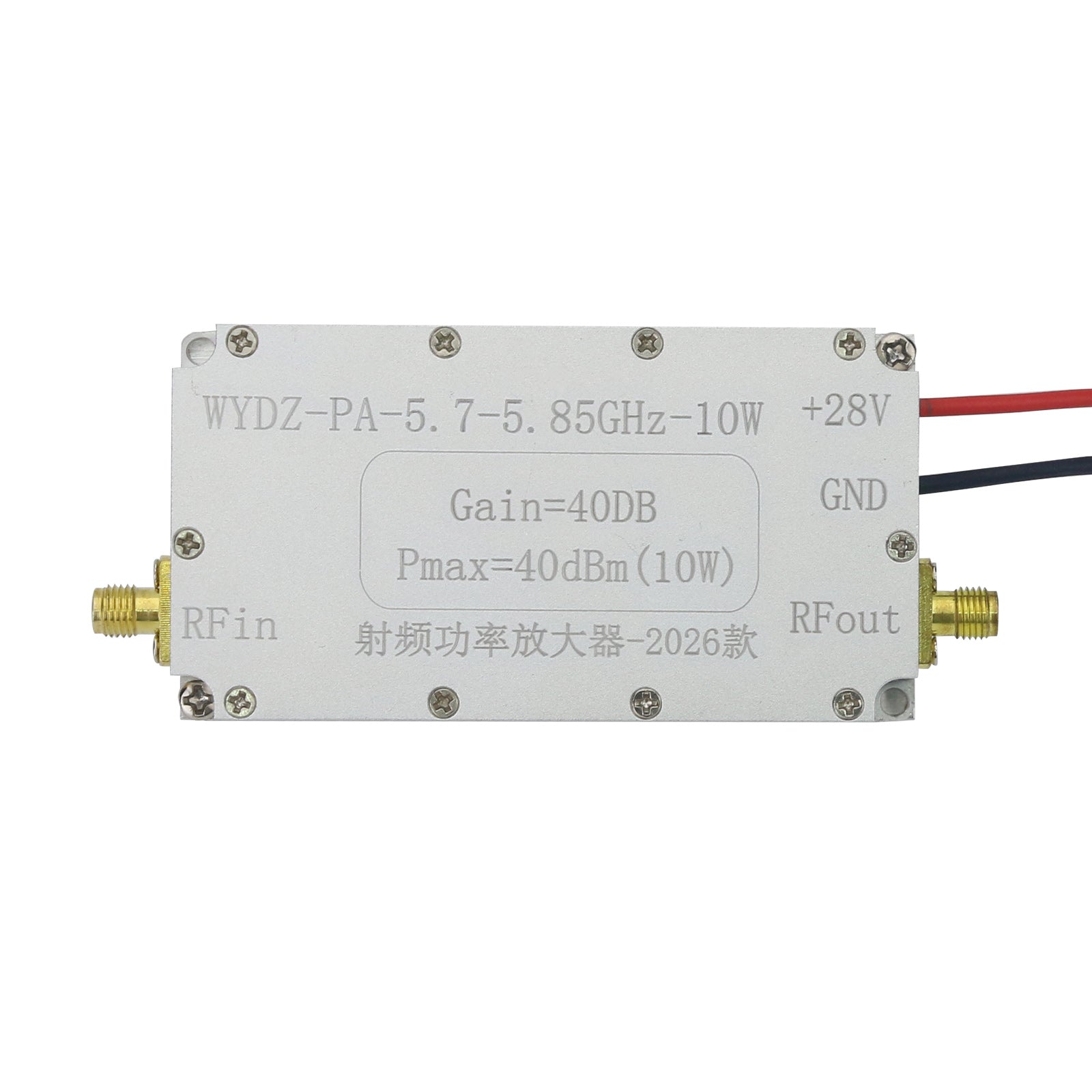

5.7-5.85GHz 10W RF Power Amplifier Module 40dB High Gain Amplifier SMA Female Connector with Heatsink

Specification:
- Frequency range: 5.7 - 5.85GHz
- Input and output interface: 50ohms, SMA female connector
- Power supply: +28V (1A)
- Output maximum power: 40dBm (10W)
- Gain: 40DB
- Input maximum signal amplitude: 0dBm
- Product size: 85 x 45 x 41mm (excluding the connector length)
- Net weight: 250g (with heatsink)

Package Included:
- 1 x RF Power Amplifier Module
- 1 x Heatsink

Note:
- Do not power on when the output is unloaded.
