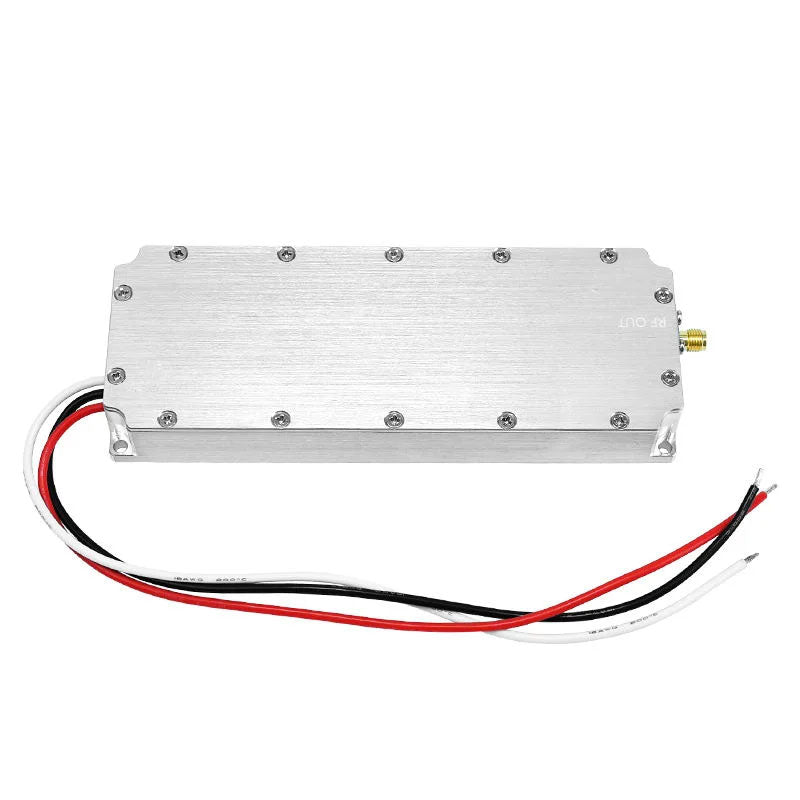

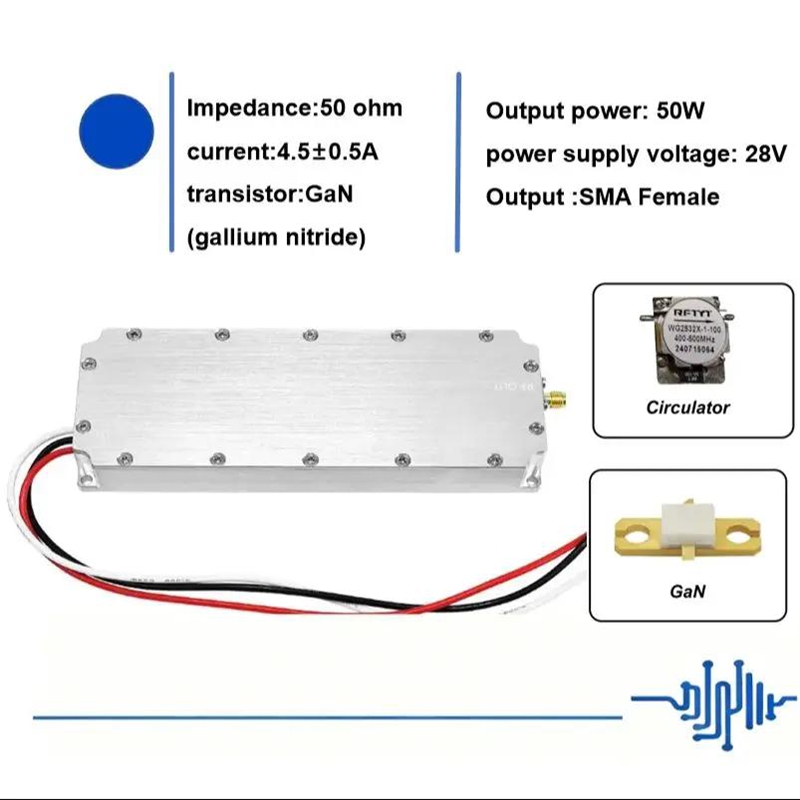

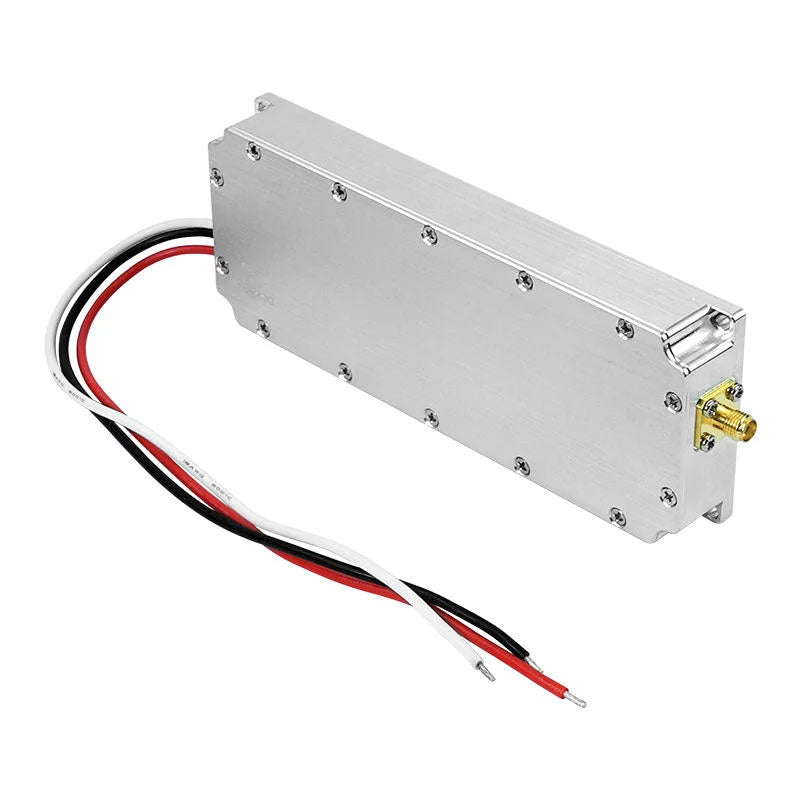

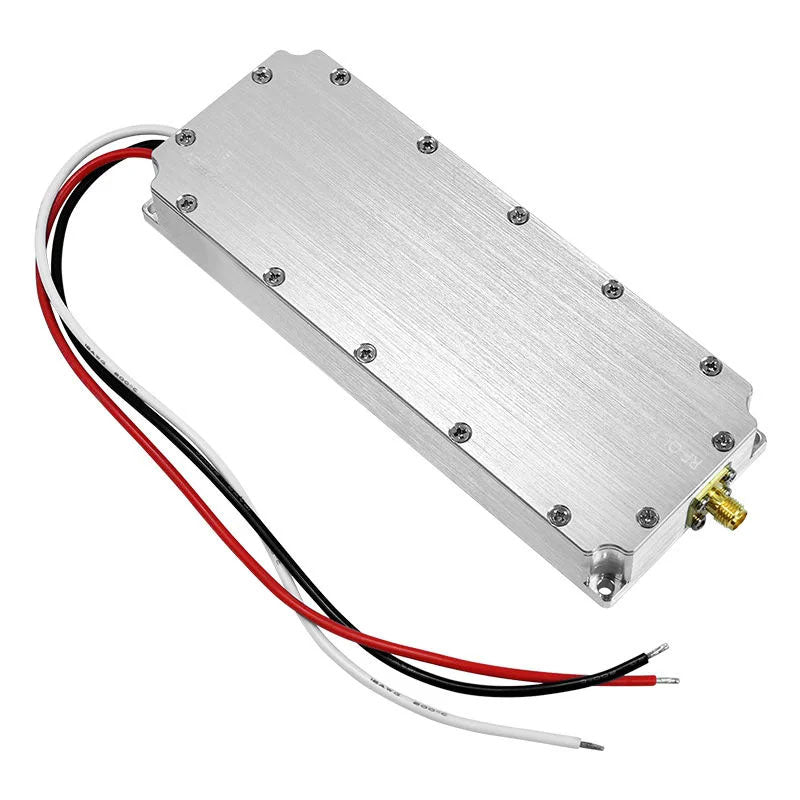

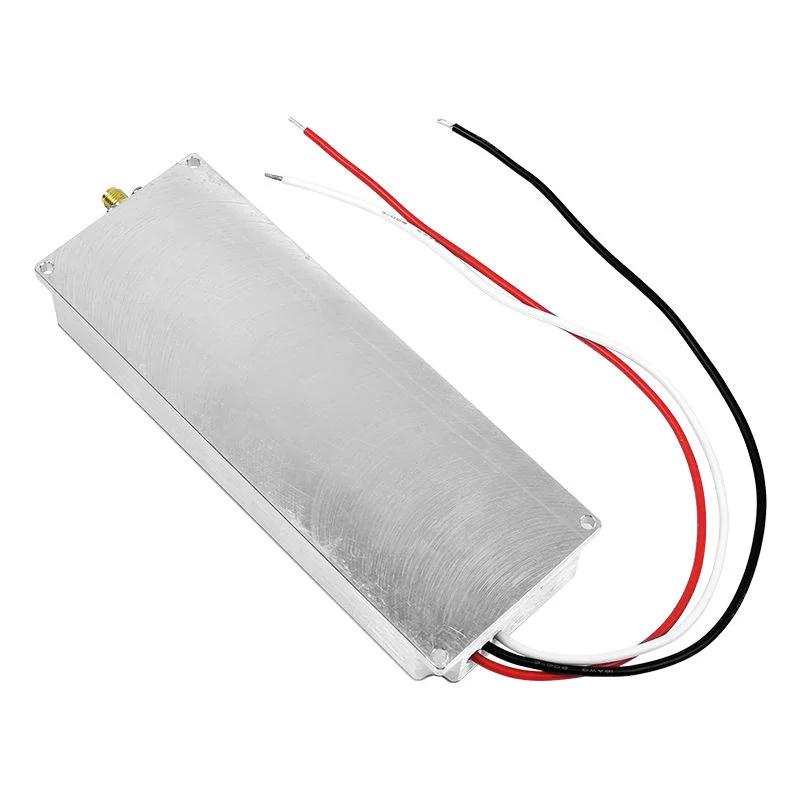

50W 300-5850MHz RF Power Amplifier Module GaN with Circulator SMA Female Connector Low Insertion Loss RF PA

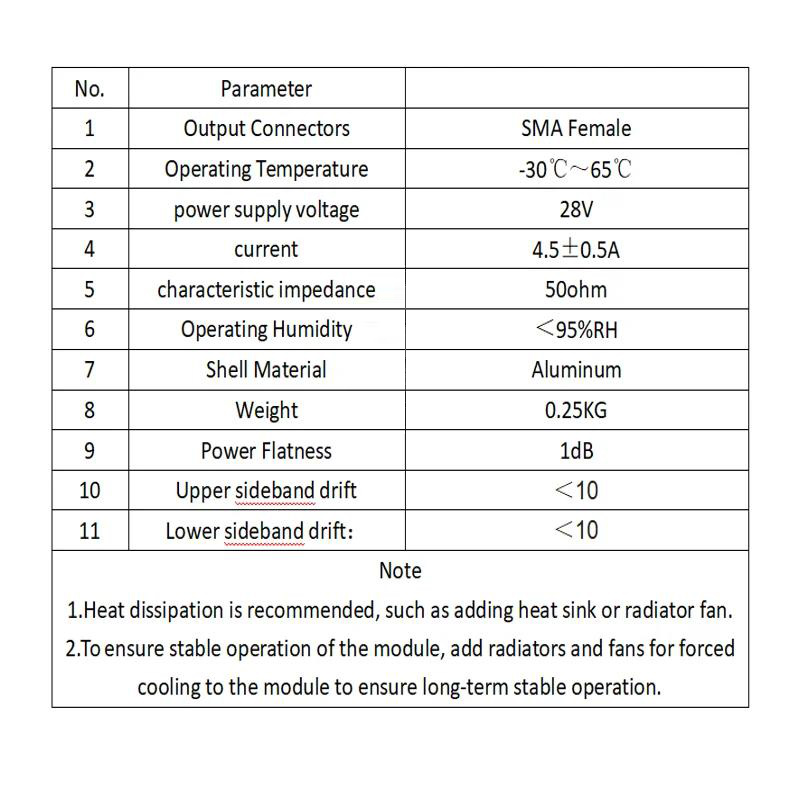

Specifications:
- Output connectors: SMA female
- Operating temperature: -30℃ to 65℃
- Power supply voltage: 28V
- Current: 4.5±0.5A
- Characteristic impedance: 50 ohm
- Operating humidity: < 95%RH
- Shell material: aluminum
- Net weight: 0.25kg
- Power flatness: 1dB
- Upper side-band drift: <10
- Lower side-band drift: <10

Package Included:
- 1 x RF Power Amplifier Module
