Description:

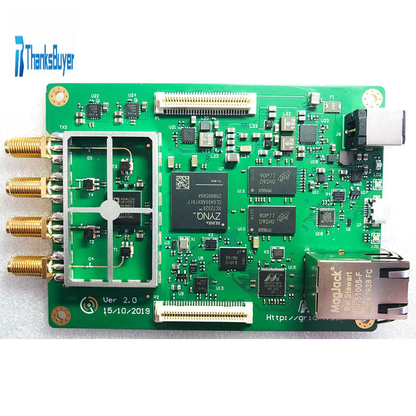

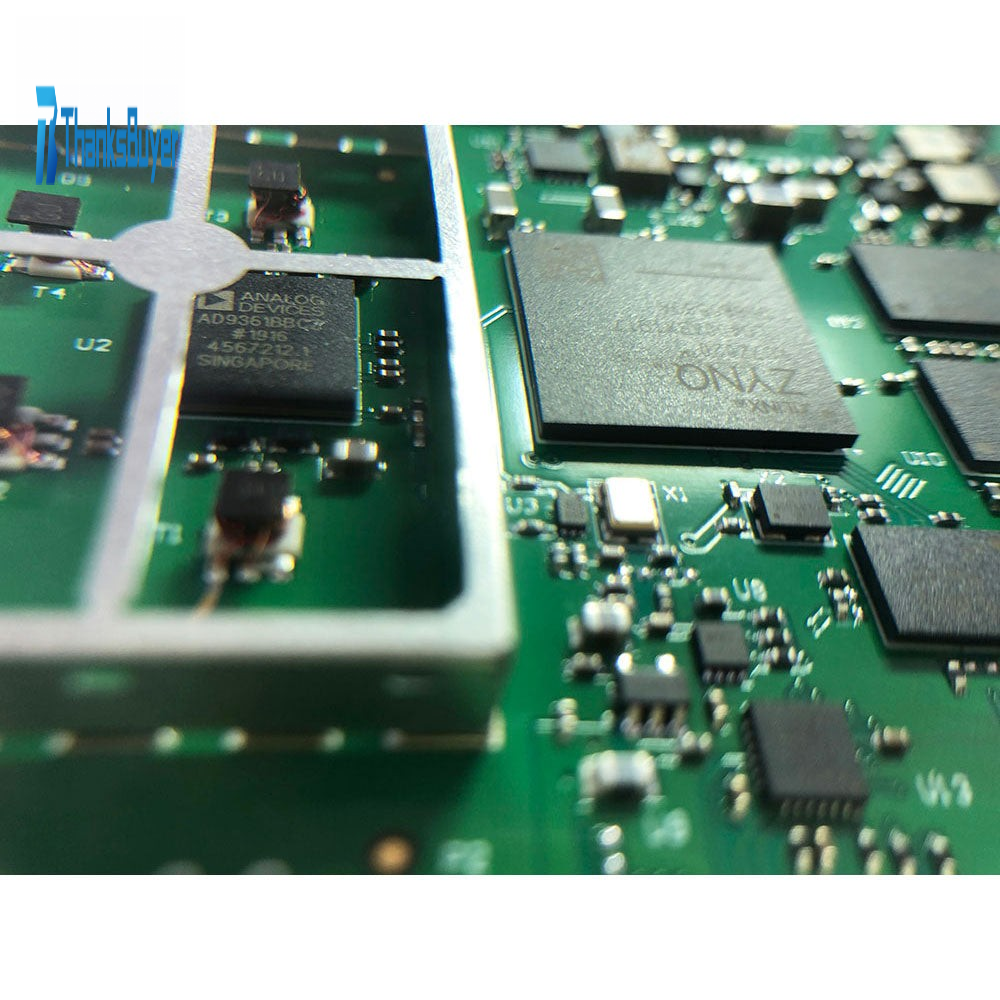

NH7020 is designed with AD9361 and ZYNQ7020 chip solutions. All software and hardware schematics are open source.

AD9361 is a professional software radio transceiver. Based on the original materials, we have developed a high-performance platform that combines practicality and entertainment.

Performance Parameters:
- Frequency Range: 70MHZ-6GHZ
- Transceiving Mode: 2R2T
- Clock Accuracy: 200ppb (no GPS synchronization), 2ppb (GPS synchronization)
- Operating System: Support for Linux
- Memory: 1GB
- FLASH: 32MB
- CD Card: Support
- FPGA: 70K
- Network: 1000MBit
- USB: 2.0 HIGH SPEED
- 4 Antenna Ports: 2 for receiving & 2 for transmitting
- Power Supply: 5.0V
- Extended Support: USB serial port, HDMI, sound card, LCD HD screen, GPS synchronization, JTAG.

Wireless Parameters:
- Transmitting Power: <3 db (70MHZ-6GHZ)
- Receiving Sensitivity: -110db

Applications:
- For LTE Femtocell
- GPS Simulator
- ODFM Image Transmission System
- Encrypted Digital Communications
- Digital Radar

Schematic Diagram:
http://gridrf.com/Uploads/Download/nh7020_schematics.pdf

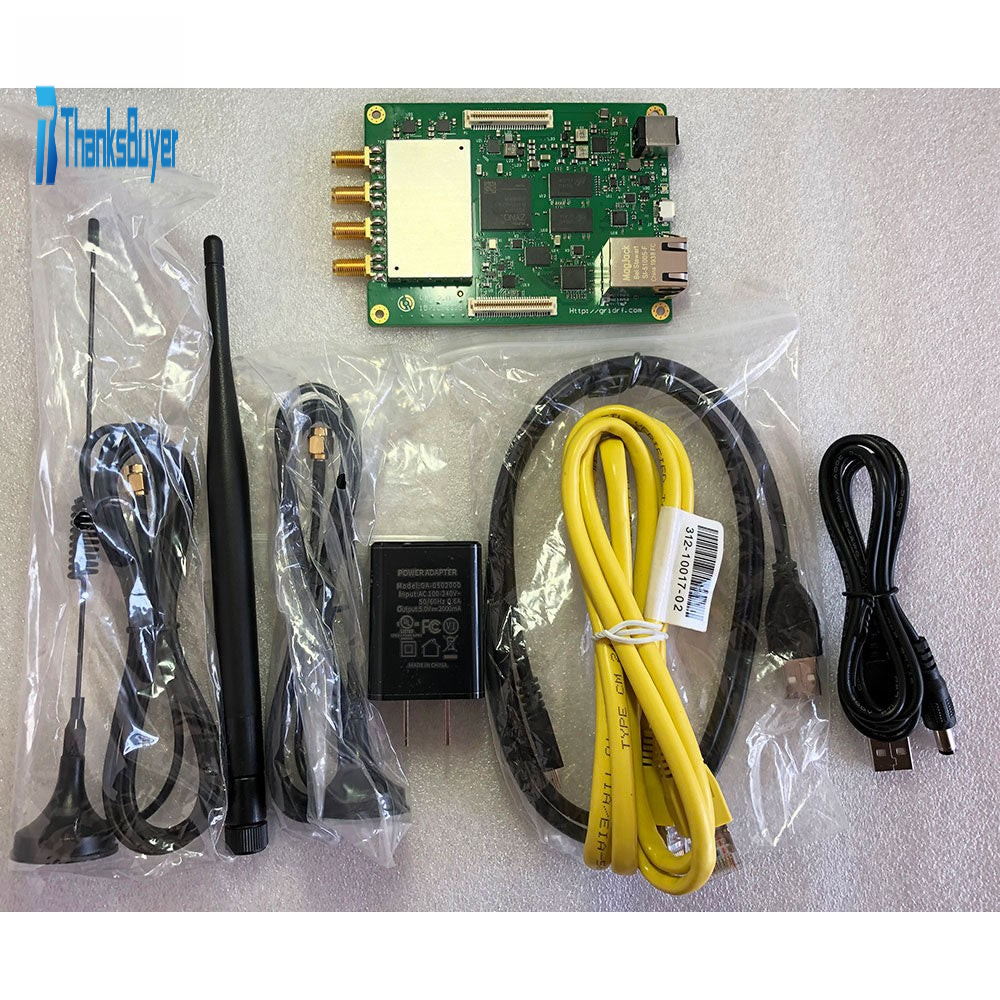

Package Included:

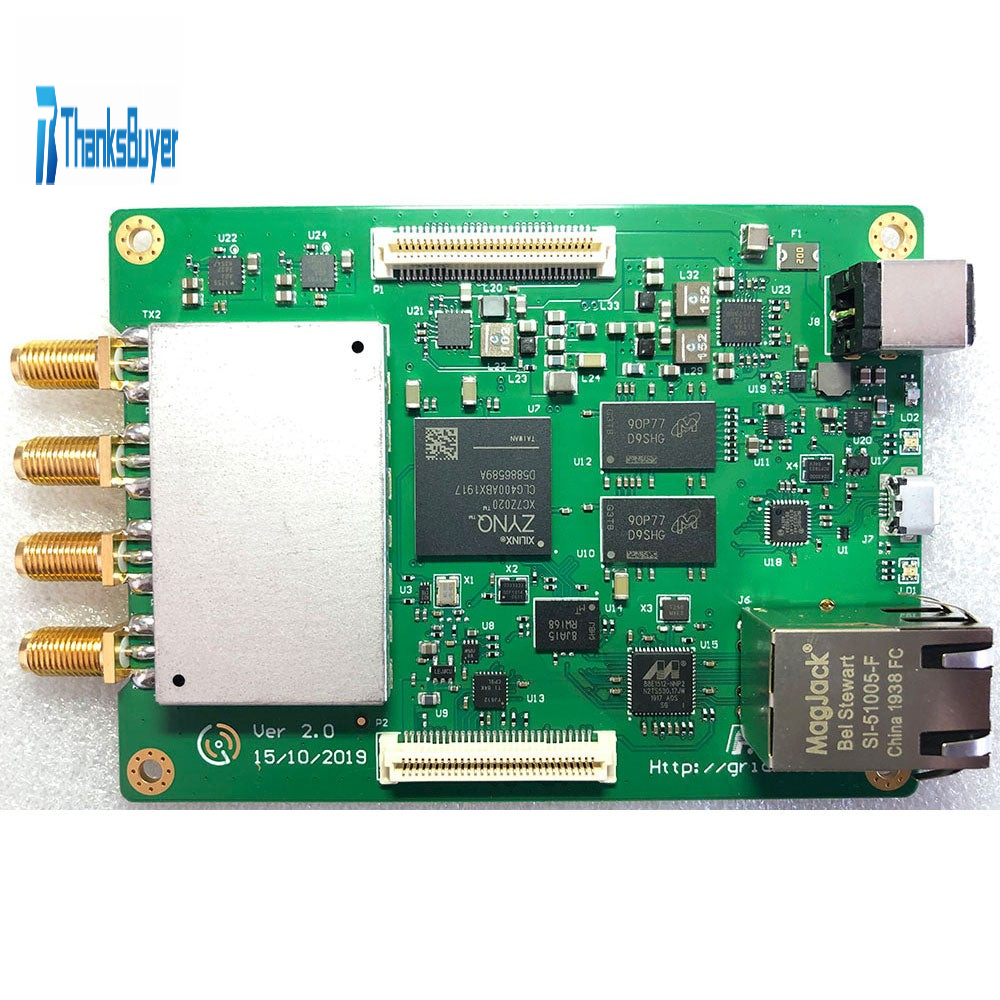

- 1 x Main Board
- 1 x USB Power Cable
- 1 x USB 2A Plug
- 1 x USB Cable
- 1 x Ethernet Cable
- 3 x Antennas (GPS, LTE, UP 3G)
