Binocular Camera for Underwater Robot ROV Underwater Starlight Vision Camera Underwater Monitoring Camera

Deep Water Pressure Resistance & Wide Application Range

* Supports Max Rated Underwater Depth Of 300 Meters, Stable Working Temperature From -4°C To 40°C, Perfectly Matches ROV Underwater Inspection, Underwater Monitoring And Marine Exploration Scenarios.

High Definition Binocular Imaging With Low Light Starlight Performance

* Equipped With OV9750 1/3INCH Sensor, Max Resolution 2560×960, Multiple Optional 60fps Output Formats; Minimum Illumination Reaches 0.1LUX, Delivers Clear Imaging In Dim Underwater Environments.

70-Degree Distortion-Free Wide-Angle Lens

* Adopts Custom 70-Degree Distortion-Free Lens, Eliminates Image Edge Distortion, Captures Complete Underwater Field Of View Without Visual Deformation For Accurate Observation.

Plug-And-Play USB2.0 UVC Driver-Free Connection

* Standard USB2.0 Interface Compliant With UVC Driver-Free Protocol, No Extra Driver Installation Required; Comes With 800mm Long Professional Underwater Cable (2x24AWG+2x26AWG) With Clear Standard Wiring Definition For Easy Wiring Assembly.

Flexible Universal Mounting Structure

* Designed With 2 Standard 1/4 Interfaces And 8 M3 Threaded Holes, Compatible With Most ROV Equipment, Underwater Bracket And Robot Mounts For Quick Installation And Position Adjustment.

* Item Name: Binocular Camera

* Max Rated Depth: 300 Meters

* Rated Water Temperature: -4 to 40°C / 32 to 104°F

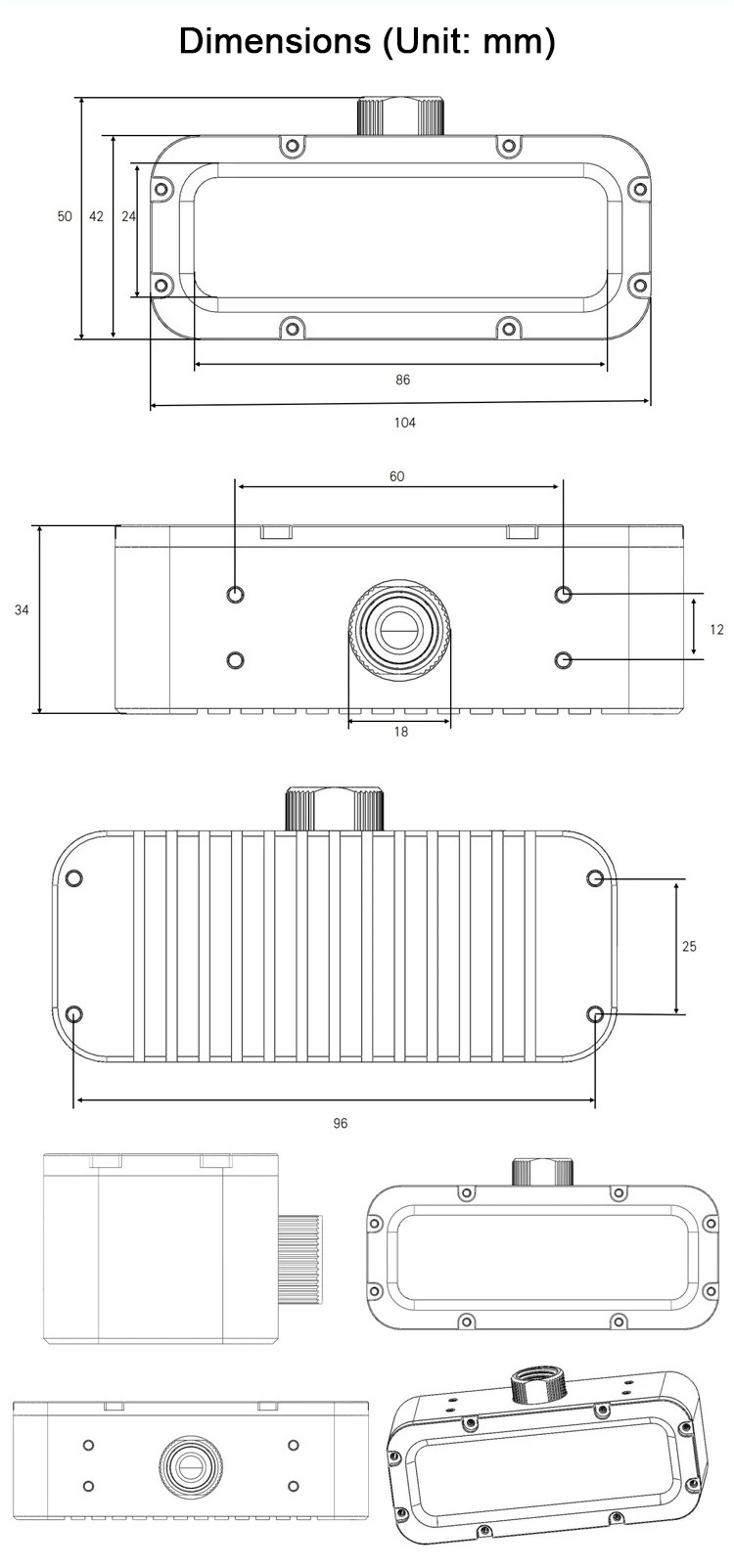

* Mounting Interface: 2 Pieces of 1/4 Interfaces and 8 M3 Threaded Holes

* Sensor Model: OV9750 1/3INCH

* Pixel Size: 3.75μm x 3.75μm

* Pixel: 2560 x 960

* Image Area: 4860μm x 3660μm

* Output Image Format: MJPEG

* Supported Resolution/Frame Rate: 640x240 at 60fps, 1280x480 at 60fps, 2560x720 at 60fps, 2560x960 at 60fps

* Minimum Illumination: 0.1LUX

* Interface Type: USB2.0

* Driver-Free Protocol: UVC

* Lens: 70-Degree Distortion-Free

* Operating Voltage: 5V

* Cable: 2x24AWG+2x26AWG Underwater Cable

* Cable Length: Approximately 800mm

* Wiring Definition: Red: +5VDC, Black: GND, White: DATA-, Green: DATA+

* 1 x Underwater Robot Camera

* Package weight: 0.3kg
