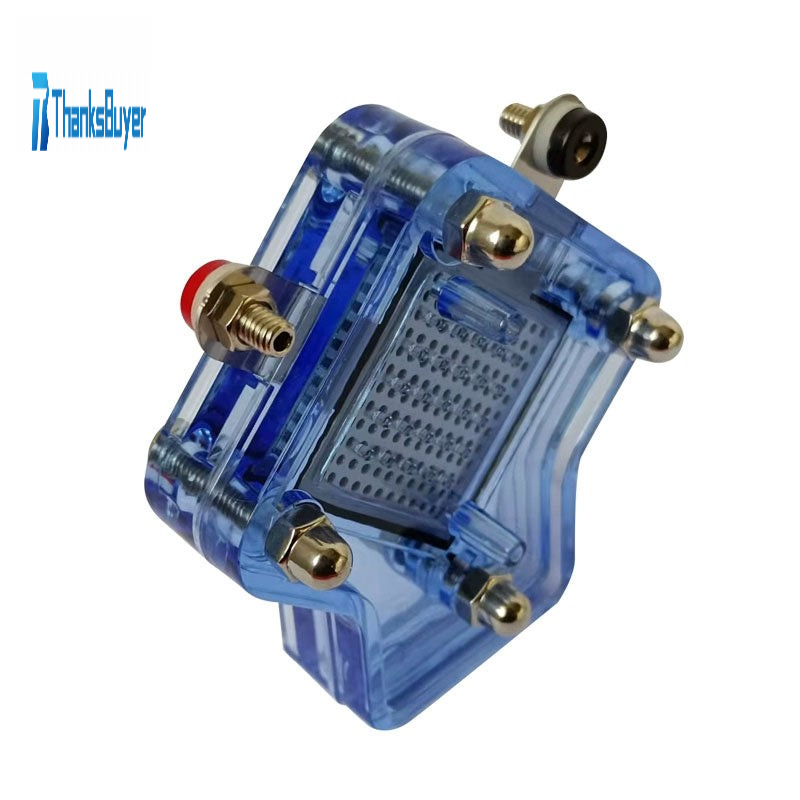

Blue Fuel Cell 0V - 0.9V High Quality Educational Power Generation Module Teaching Instrument

Blue Fuel Cell 0V - 0.9V High Quality Educational Power Generation Module Teaching Instrument

Specification:
- Weight: 62g
- Electrolysis area: 25 x 25mm
- Electrolytic voltage: 0V - 0.9V

Using steps:
- Block the lower air outlets on both sides.
- Using conduits to connect the air outlets on both sides to the gas device.
- Connect the positive and negative electrodes of it to O2 and H2 respectively.
- Open the lower air outlet and plug it to drain the air inside.
- Turn on the load.

Precaution:
- There are two air outlets on both sides.
- The positive electrode is supplied with oxygen, and the negative electrode is supplied with hydrogen.
- Short circuit operation cannot be carried out for a long time.
- Do not apply voltage to its voltage output terminal.
- Store in a self sealing bag after use.

Package Included:
- 1 x Fuel Cell Module
