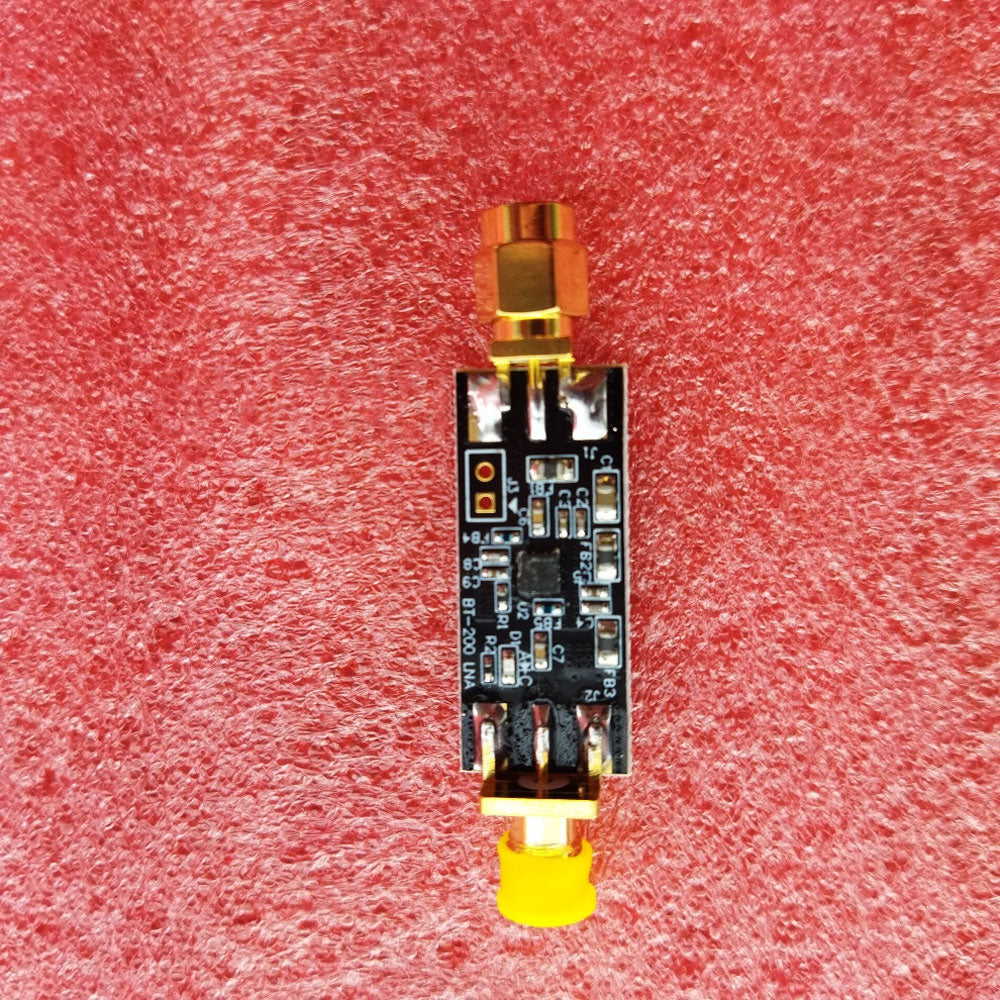

Description:
- The BT-200 is a wideband bias-tee RX Low Noise Amplifier that draws its current from the bladeRF 2.0 micro’s SMA connectors. The BT-200 is a compact LNA solution useful for substantially lowering the noise figure and substantially increasing dynamic range of most applications. bladeRF-cli and the libbladeRF API can be used to enable and disable the bias-tee when it is needed. Care should be taken to avoid overdrawing current when powering the bladeRF 2.0 micro from USB bus power and enabling multiple bias-tee amplifiers simultaneously. In case the power budget (print hardware in bladeRF-cli) is a concern, the bladeRF 2.0 micro can be powered by an external DC power supply (not included).

Key Features:
- Features Mini-Circuits TSS-53LNB+ MMIC Low Noise Amplifier – 0.5GHz to 5GHz MMIC
- Power consumption: 300mW
- Green LED power indicator
- Ultra low Noise Figure
- Typ Gain: +20.2dB at 200MHz, +16dB at 2.4GHz
- LNA enters bypass mode when port is unpowered (4dB IL)

BladeRF-cli Command:
- Enable module: set bias-tee RX on
- Disable module: set bias-tee RX off
- Query system power consumption: print hardware

Package Included:
- 1 x Low Noise Amplifier

Note:
- The BT-200 can only be plugged into the RX ports.

FAQ:
Q: How can I tell if the LNA is enabled?
A: A green light will appear on the BT-200 if the program or tool you are using enables the bias-tee. In addition to the command line commands listed above, add “biastee=rx” to gr-osmosdr source blocks to enable BT-200 from within GNU Radio.

Q: How many BT modules can be added to the bladeRF 2.0 micro?
A: All 4 ports of the bladeRF 2.0 micro are powered, so any and all RF ports can have a bias-tee module installed and powered.
