Ditron D80M-2V 2-Axis Digital Readout with 7-inch True Color Screen Support Preview Drawing for Magnetic Linear Scales

Features:
- 7" true color LCD screen, easy to recognizing. Saving the drawing function, the DRO allows to save the drawings into the system which makes the machining to be much more convenient.
- Special previewing the drawing function, after setting well the parameters, the DRO will display the machined well effect which makes the operating be more visual.
- Displaying the tool's current position function, during the machining, the system will display the tool's current position according to the drawing which makes the machining be much more easier. Help function, during the machining, if there is any doubt, pressing the help button will help you to solve.
- Custom settings for the shortcut keys, operator can set the shortcut keys according to his operating habit.
- Industrial quality, highly accurate, straightforward to use, very well engineered throughout.
- 9 different language choices: Chinese, English, German, Spanish, Portuguese, Italian, Polish, Swedish, Dutch.

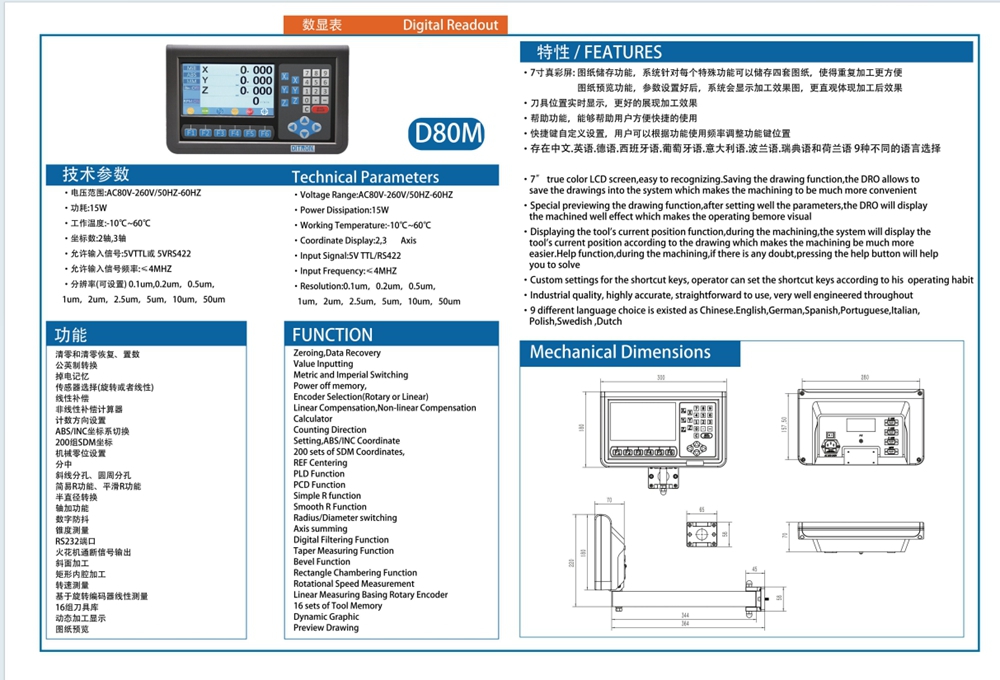

Technical Parameters:
- Voltage range: AC80V - 260V/50-60Hz
- Power consumption: 15W
- Working temperature: -10℃ to 60℃
- Coordinate display: 2/3 axis (optional)
- Input signal: 5V TTL/RS422
- Input frequency: ≤4MHz
- Resolution (can be set): 0.1um, 0.2um, 0.5um, 1um, 2um, 2.5um, 5um, 10um, 50um.

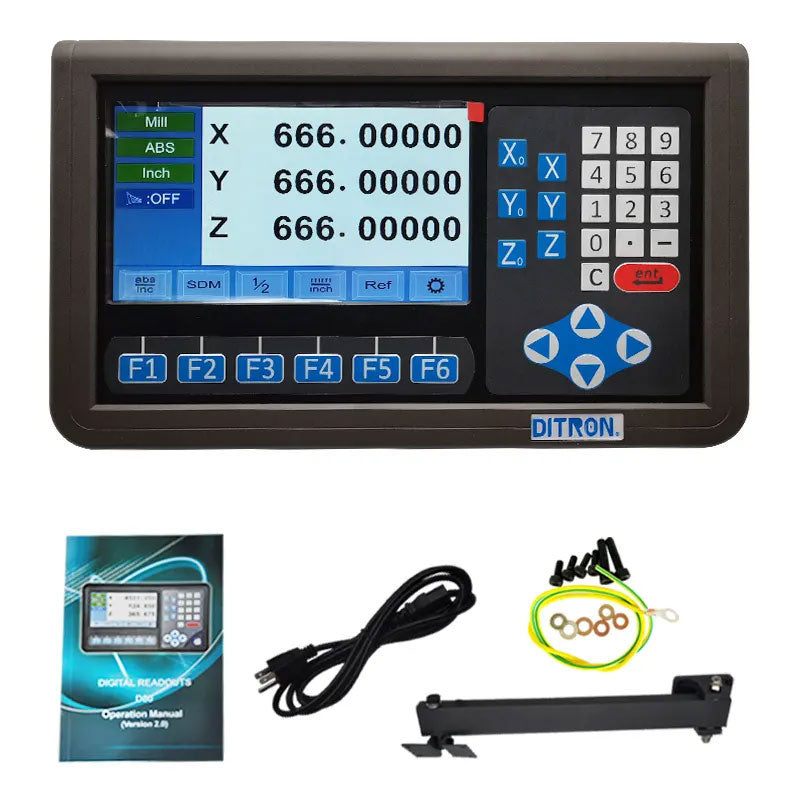

Package Included:
- 1 x Set of Digital Readout
