DMX to RS485 Controller and RS485 to DMX Controller with USB Adapter for Stage Lighting Equipment

DMX to RS485 Controller and RS485 to DMX Controller with USB Adapter for Stage Lighting Equipment

Description:
Two-Way Conversion
The controller supports bidirectional conversion, that is, RS485 to DMX512 and DMX512 to RS485.

Custom Mode
Customizable 30 bytes.

Four Working Modes
- Mode 1: DMX512 to RS485 command (for example, using DMX console to control one of the channels to control the lifting and lowering of the projector screen with RS485 interface);
- Mode 2: RS485 instruction to DMX512 signal (for example, the central control sends a few hexadecimal numbers, you can let the module output the corresponding channel value to achieve dimming, color grading, etc., and maintain these settings);
- Mode 3: DMX512 continuously outputs RS485 signal in batches (you can set how many channels can be output from a certain channel, and send a signal every 50ms);
- Mode 4: DMX512 to SPI function to control light strip signal [currently controllable single-line strip light models include: common 800K and 400K single-wire strip light such as WS2812, 2811, 2813, 2815, 16703 and 1903]

Power Supply
The module's DC power supply supports DC5V power supply, and it can also be connected to the terminal block from 9 to 24V power supply. It is flexible to use.

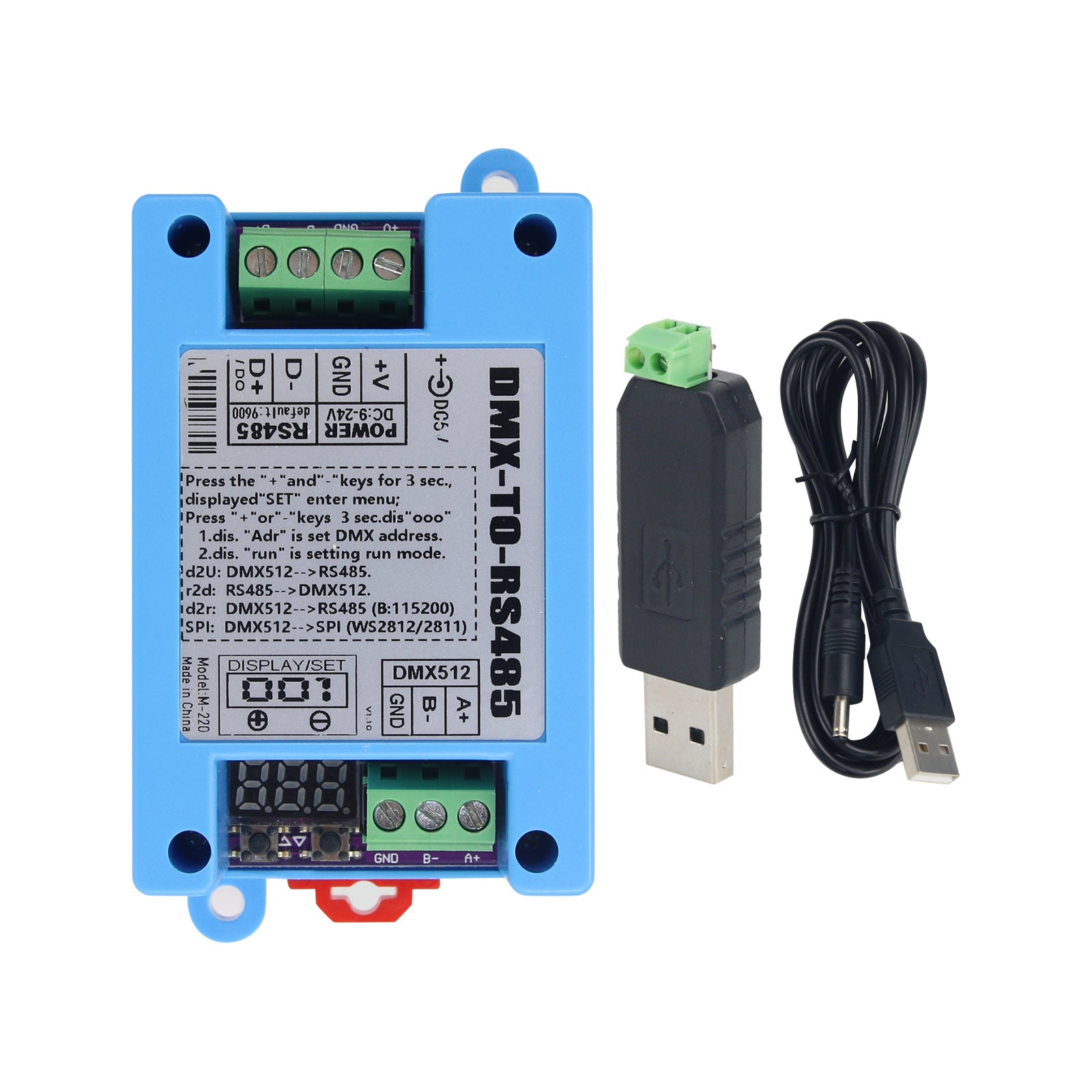

Package Included:

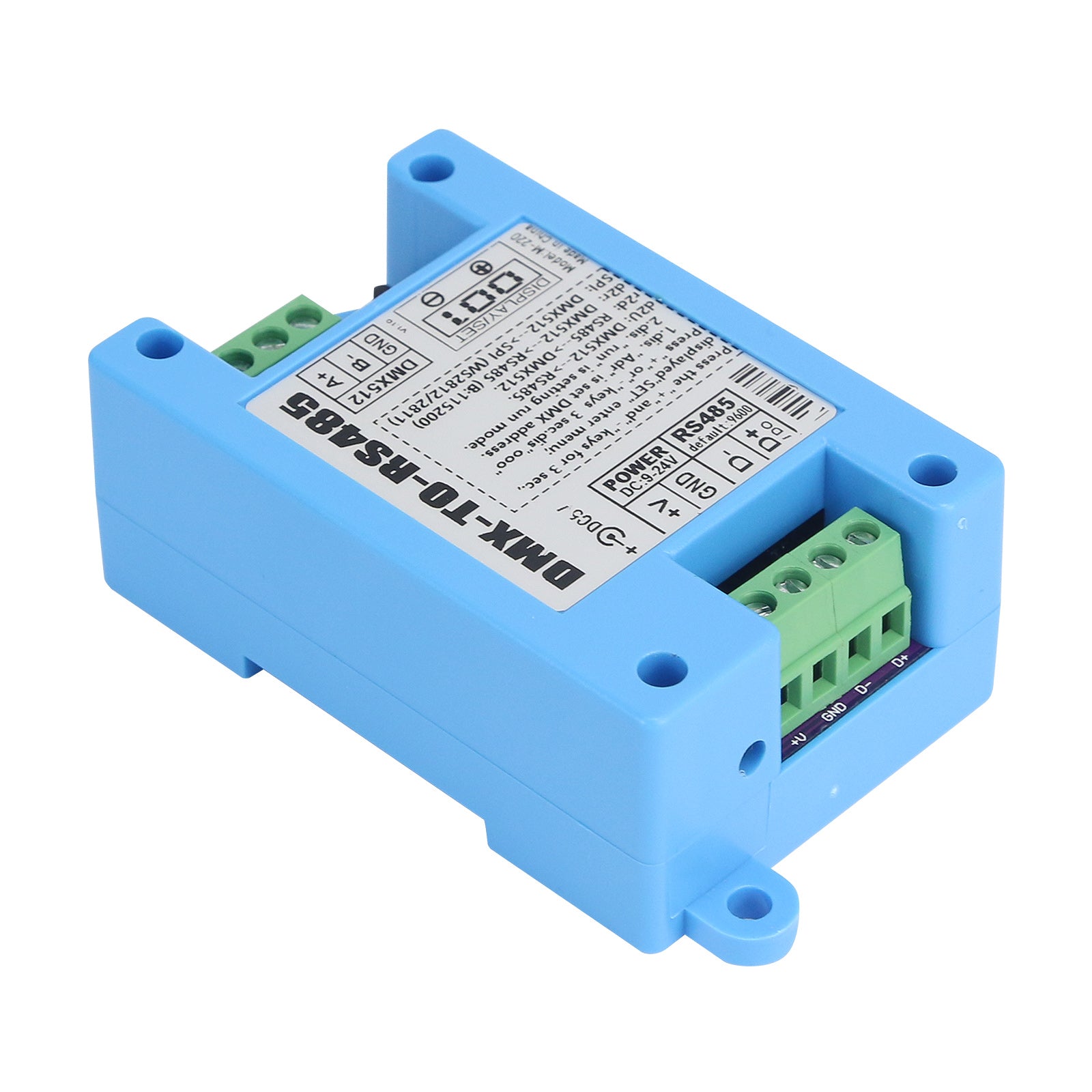

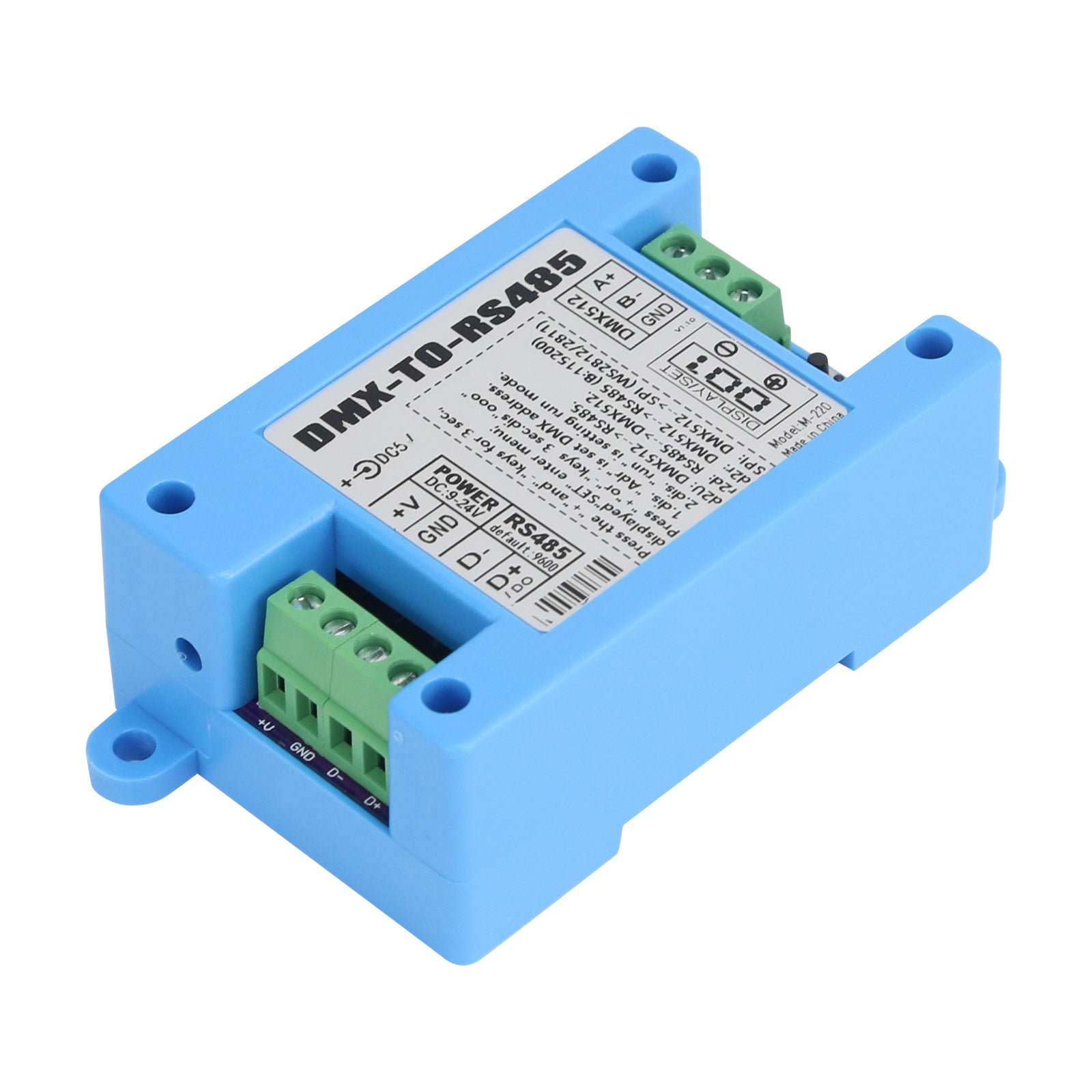

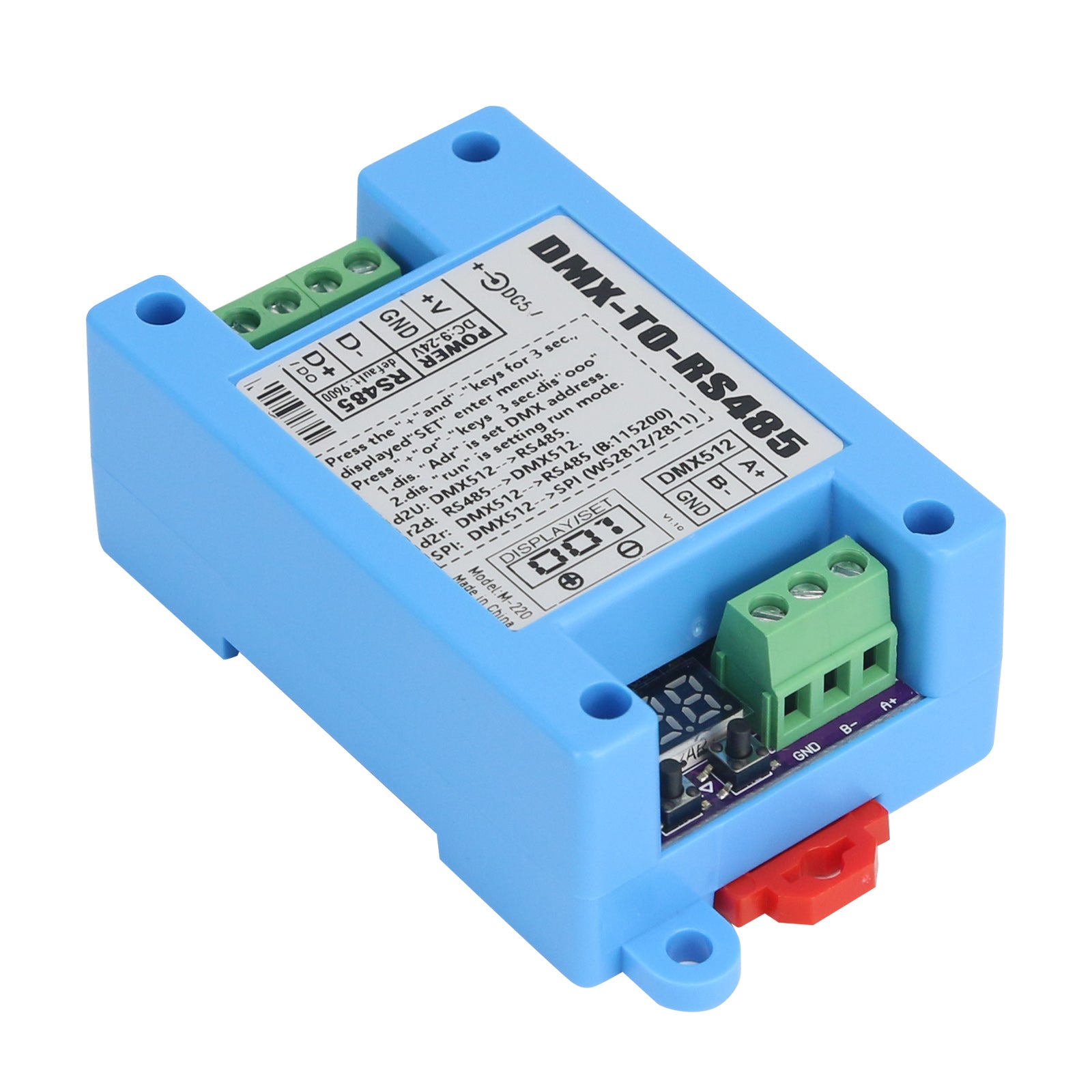

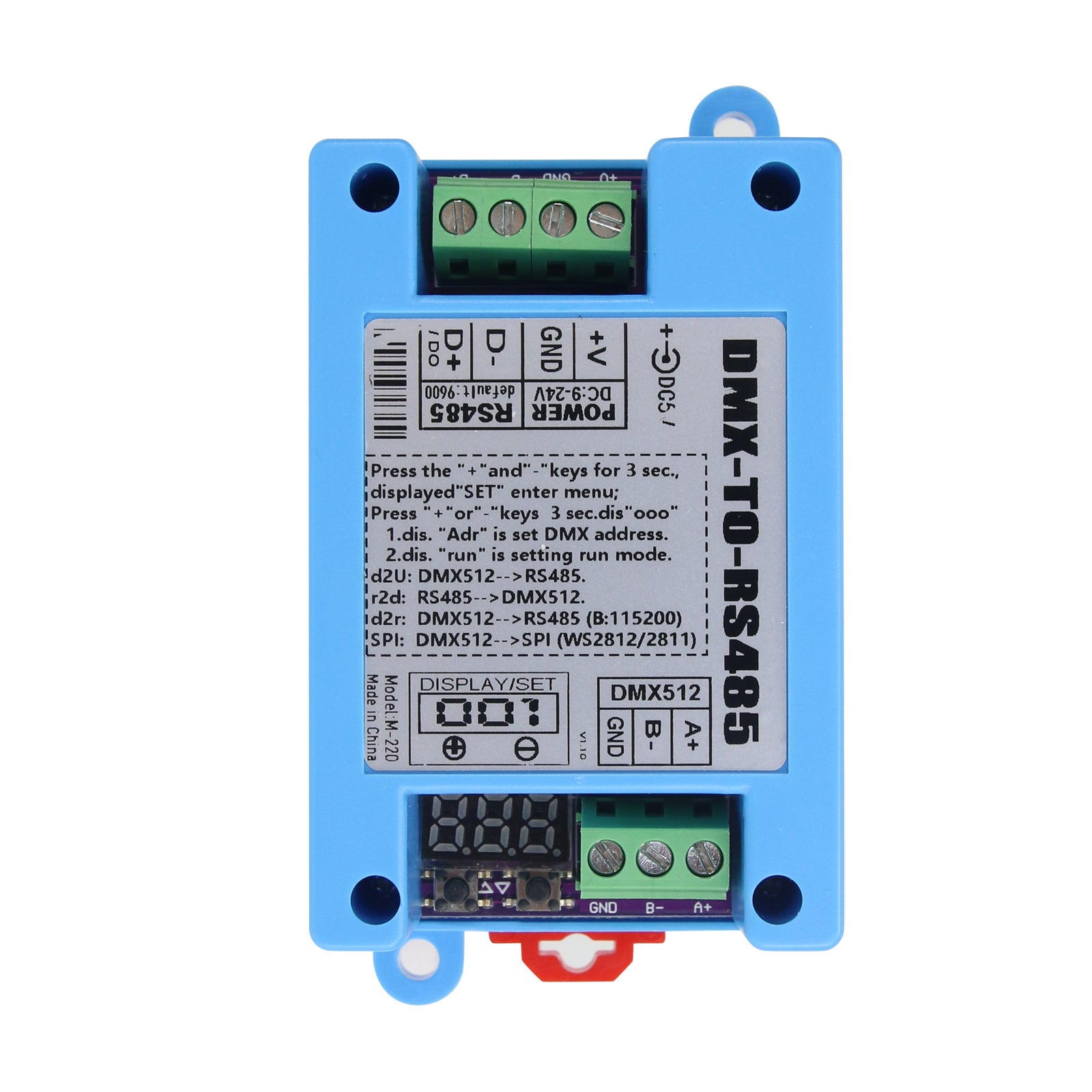

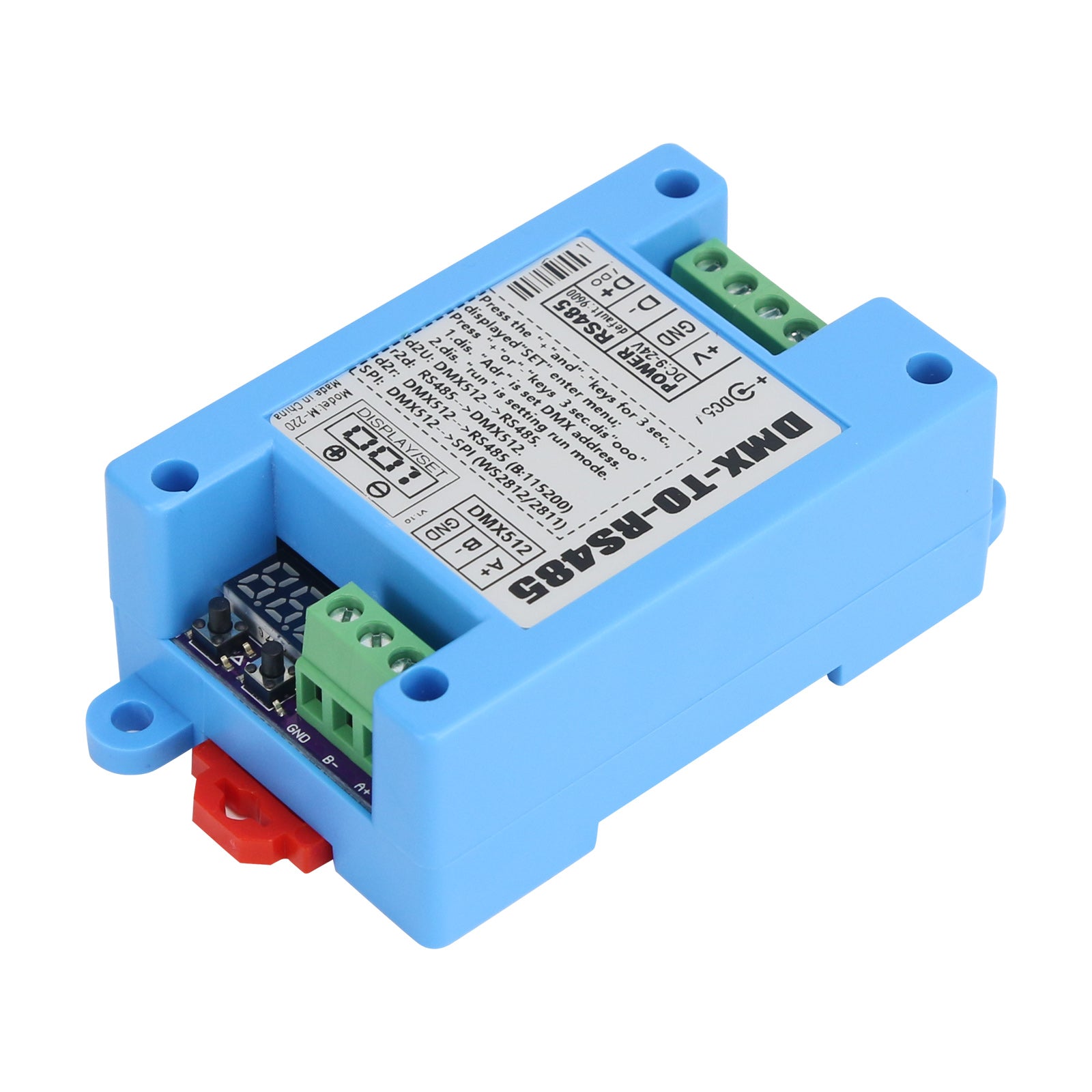

- 1 x DMX-TO-RS485 Module
- 1 x USB Adapter
