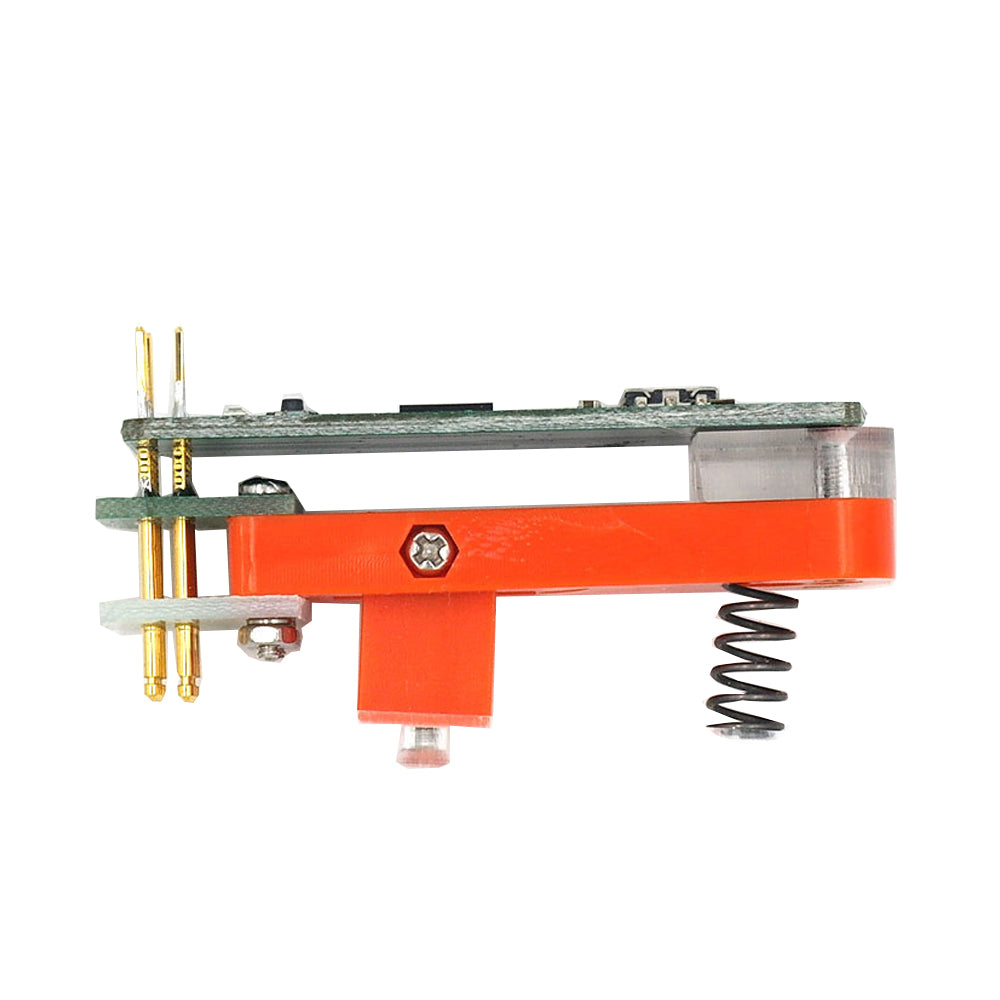

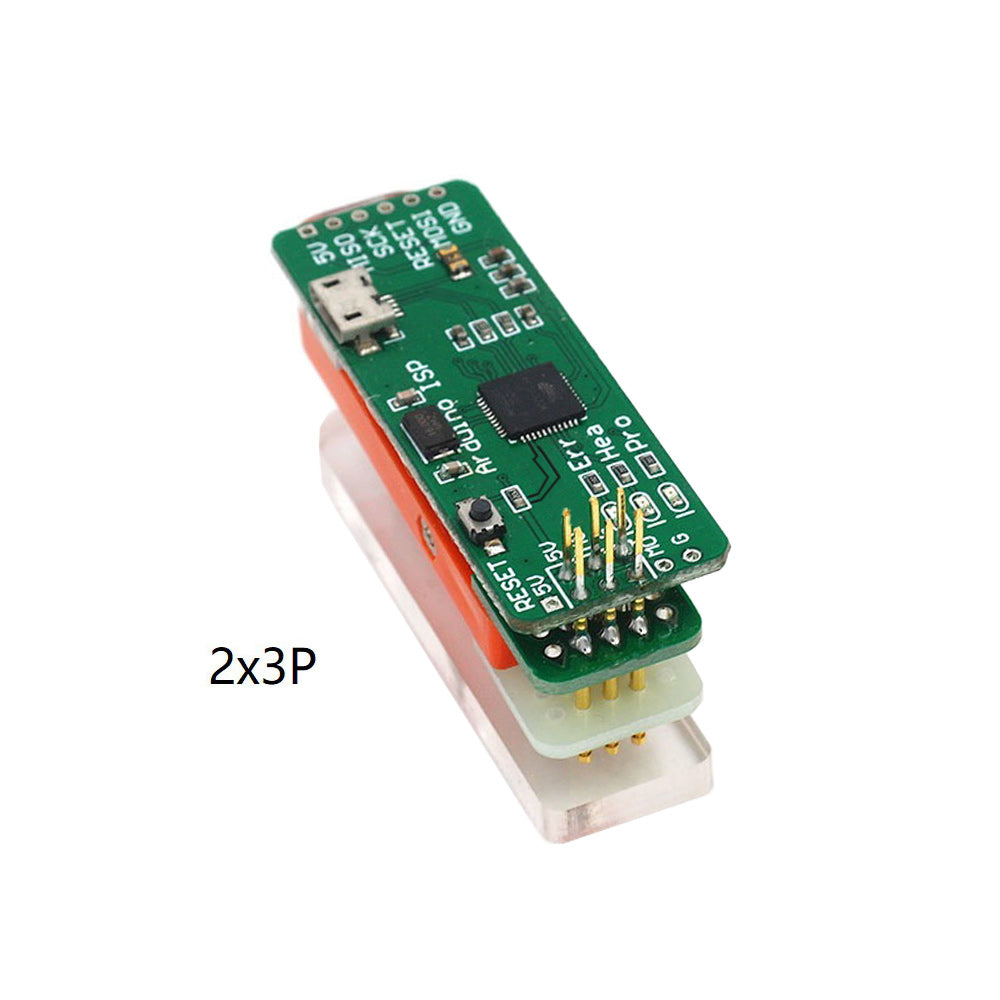

DSTIKE Bootloader Flash Tool (2x3P) For Arduino ISP Arduino Bootloader Development Programmer

DSTIKE Bootloader Flash Tool (2x3P) For Arduino ISP Arduino Bootloader Development Programmer

What is it?
It is a bootloader flash tool for Arduino products. If you do not understand what is bootloader, I suggest you have a look this:
* Bootloader Development
* For Arduino as ISP and Bootloaders for Arduino

Why did you make it?
Now I have some products for Arduino like Wifi Duck. Bootloader is a problem during develop process for Arduino. I want to share my experience for those Arduino developers. Now I only use it for Arduino Leonardo as my target but theoretically other target is also OK.

What makes it special?
It is pre-flashed with ISP software for Arduino
* Connect Flash Tool and computer via a Micro-USB cable.

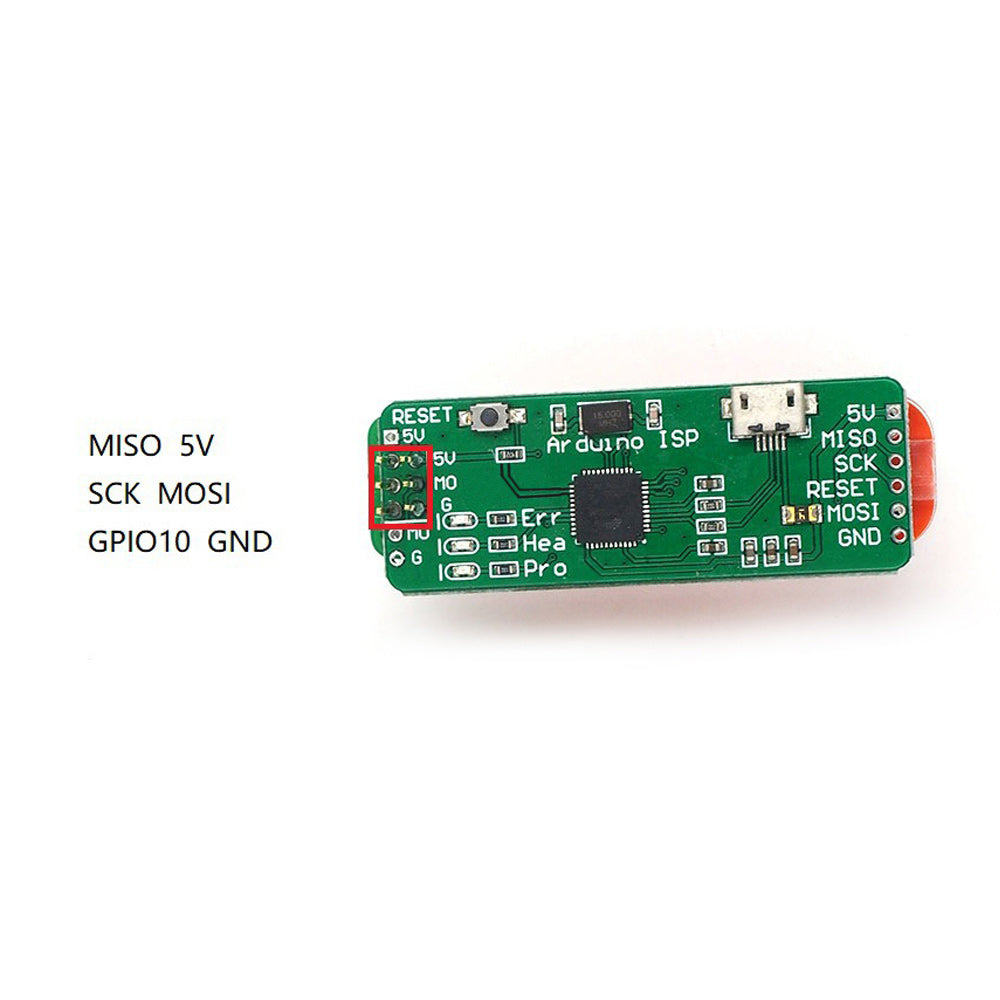

* Connect Flash Tool to the target board.
* Indicate LED will turn off for about 10 seconds.
* Wait until LED turn up.
* Open IDE for Arduino and select the item in the Tools->Board menu that corresponds to the board on which you want to burn the bootloader (For Arduino Uno, Nano, Leonardo...).
* Select Port COMXX (For Arduino, Leonardo).
* Selection for Arduino as ISP (Atmega32u4) in the Tools>Programmer menu.
* Use the Burn Bootloader command.
* You will see Indicate LED is twinkling when burning process start.
* Twinkling LED will be off and software says Finish at the same time when burning process finish.

Package Included:
- 1 x Set of Bootloader Flash Tool
