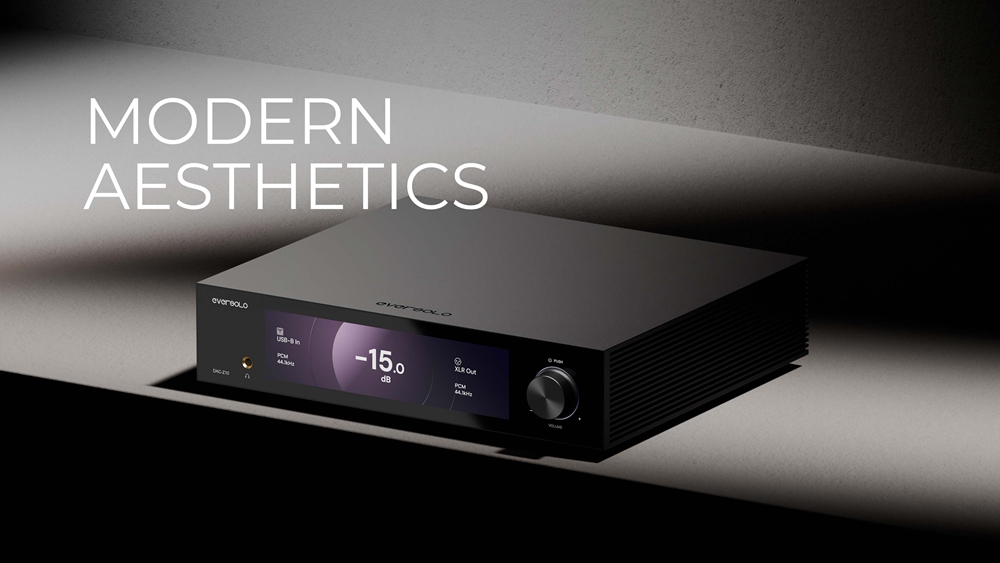

EVERSOLO DAC-Z10 Audio Decoder AK4191+AK4499 DAC OPA1612 Headphone Amplifier with 8.8-Inch IPS Screen

Basic Parameters:
- Model: Eversolo DAC-Z10

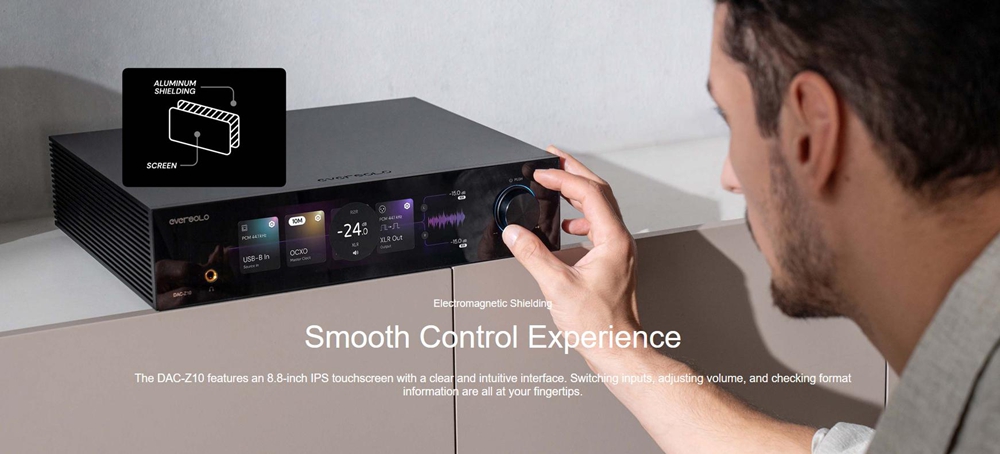

- Display: 8.8-inch IPS

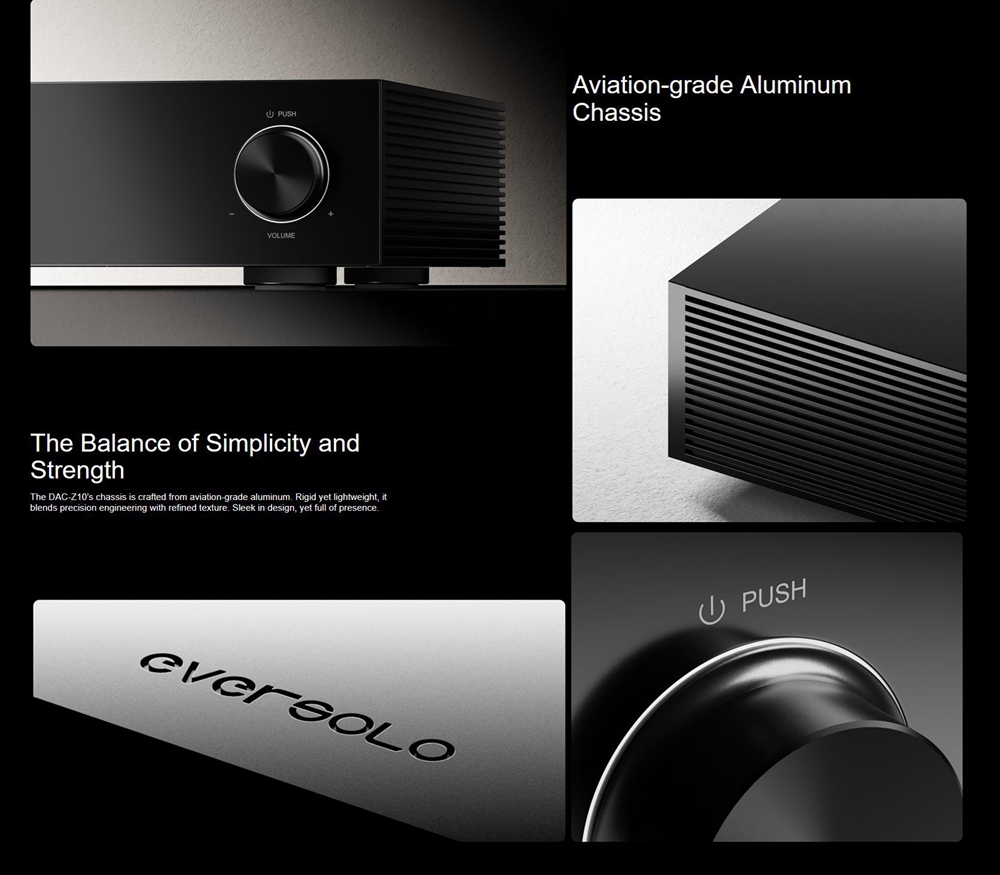

- Chassis material: aluminum alloy
- Main processor: DCP8568

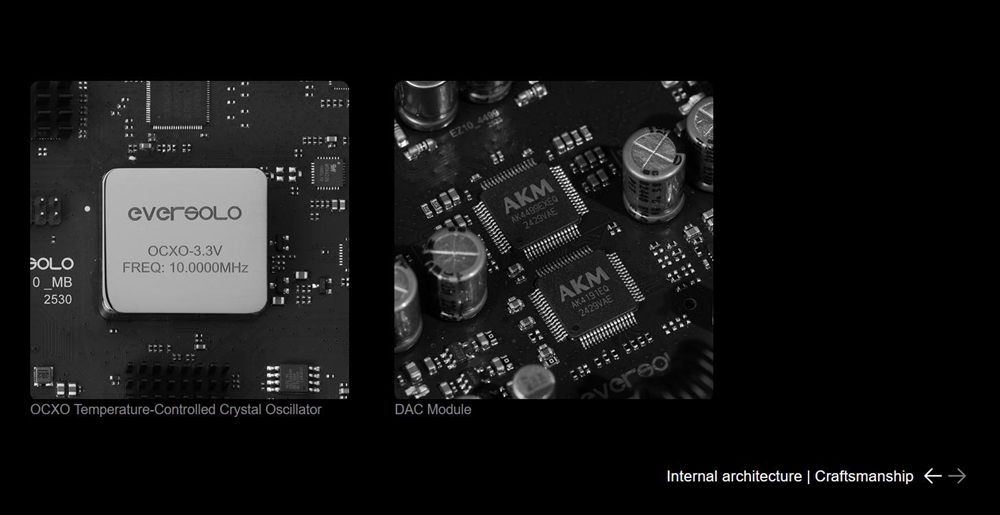

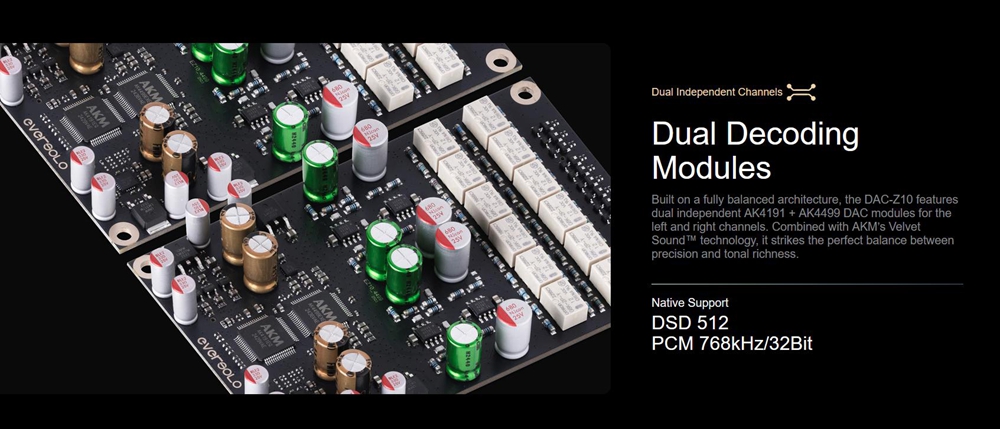

- DAC:
  Left channel: AK4191+AK4499
  Right channel: AK4191+AK4499

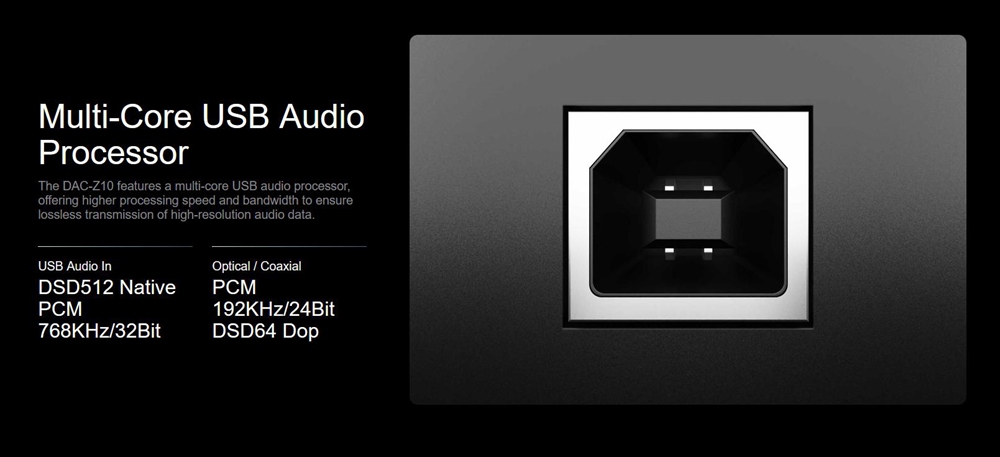

- Audio processor: multi-core USB audio processor
- OPA chip: OPA1612

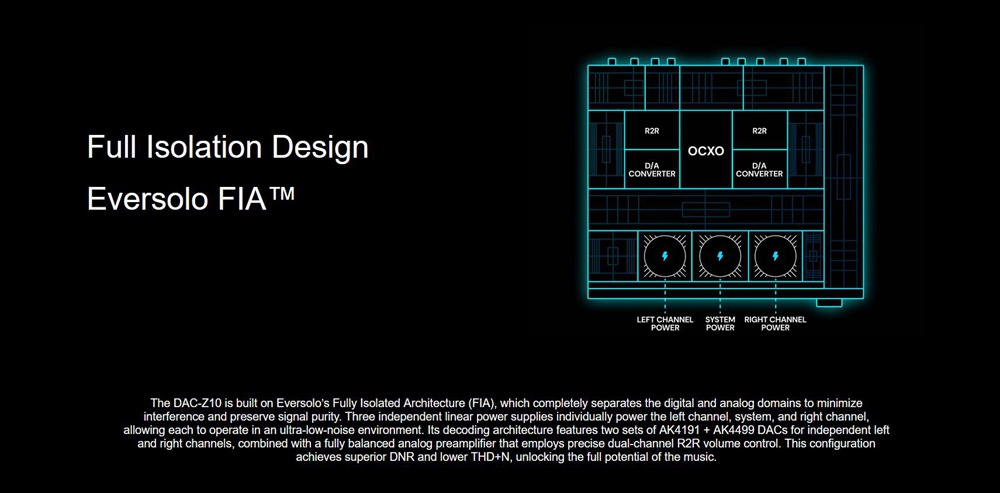

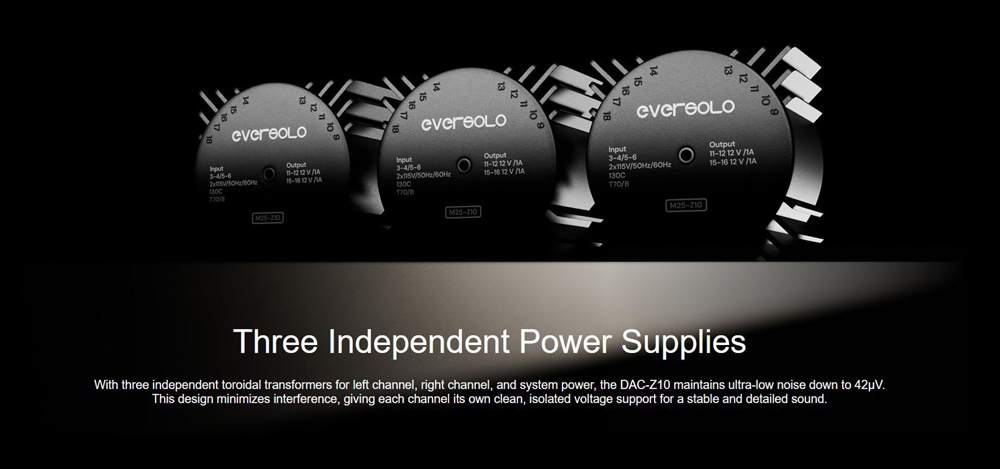

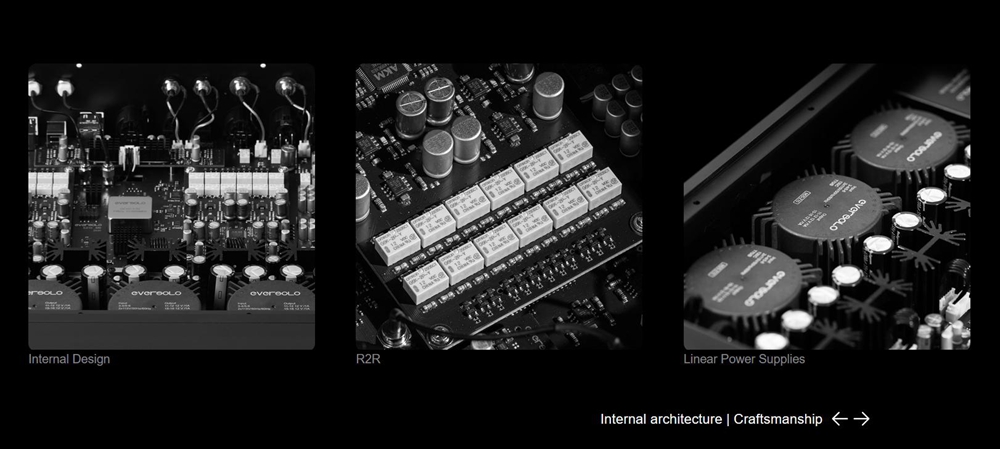

- Power: triple ultra-low noise linear power supplies

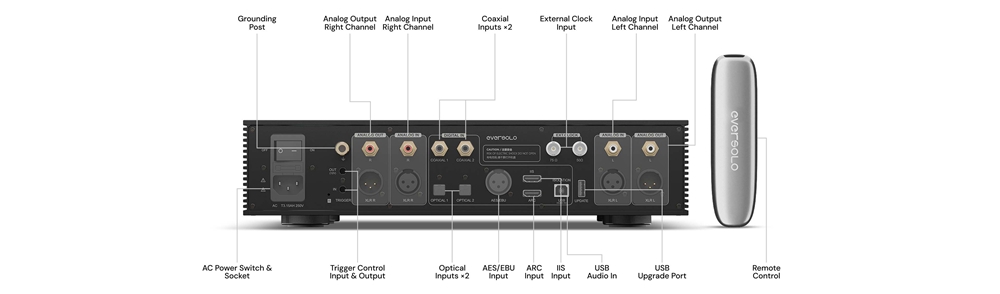

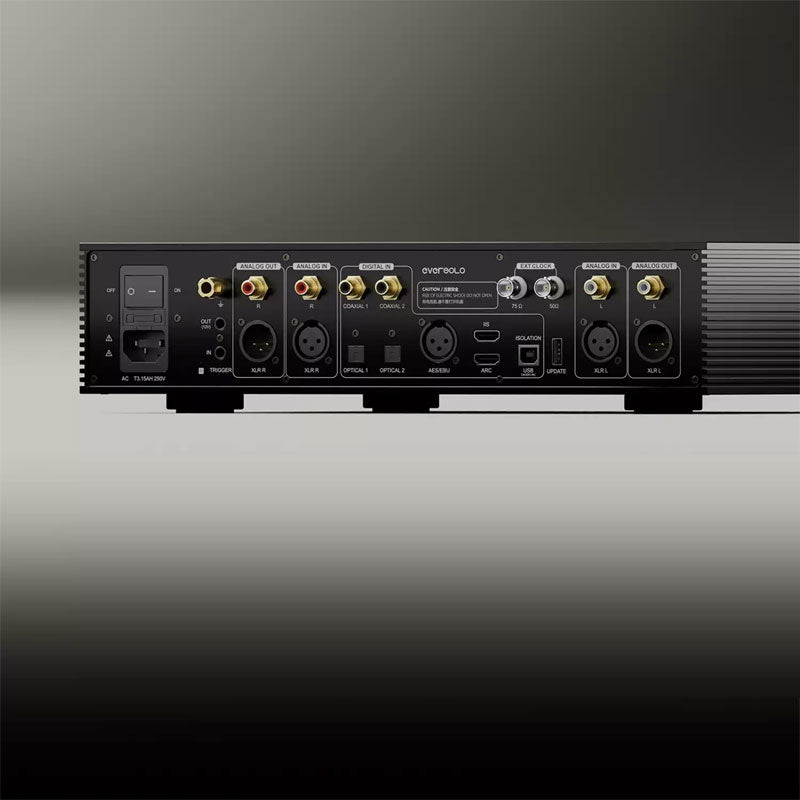

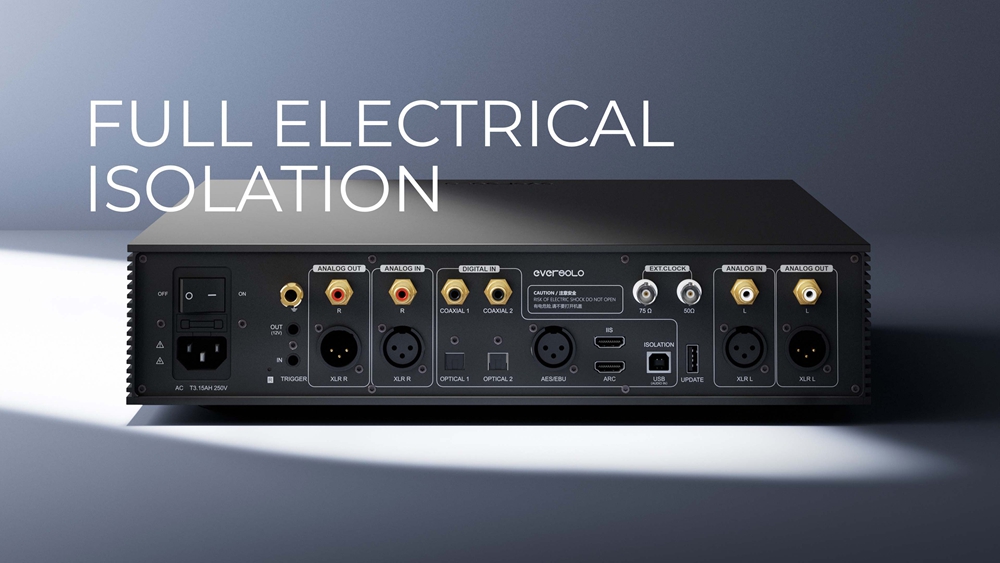

Audio Inputs and Outputs:

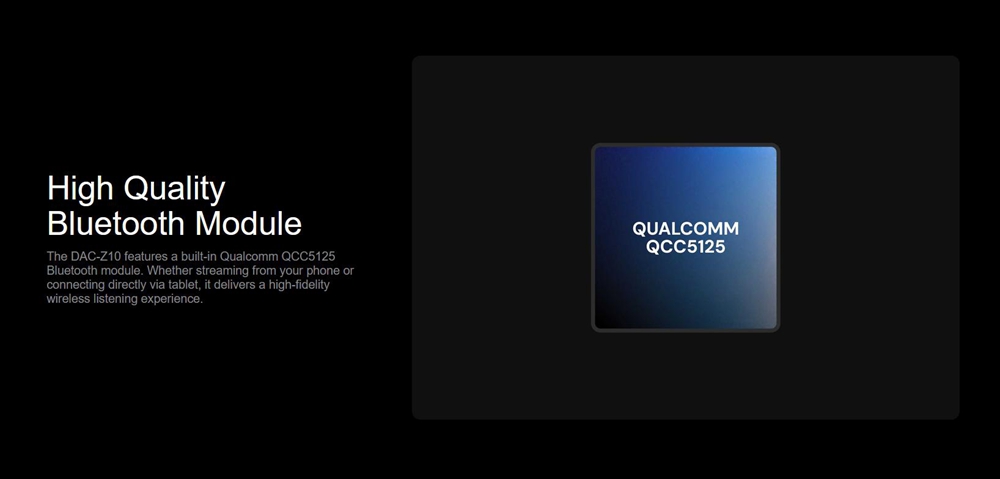

- Bluetooth audio input: for Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

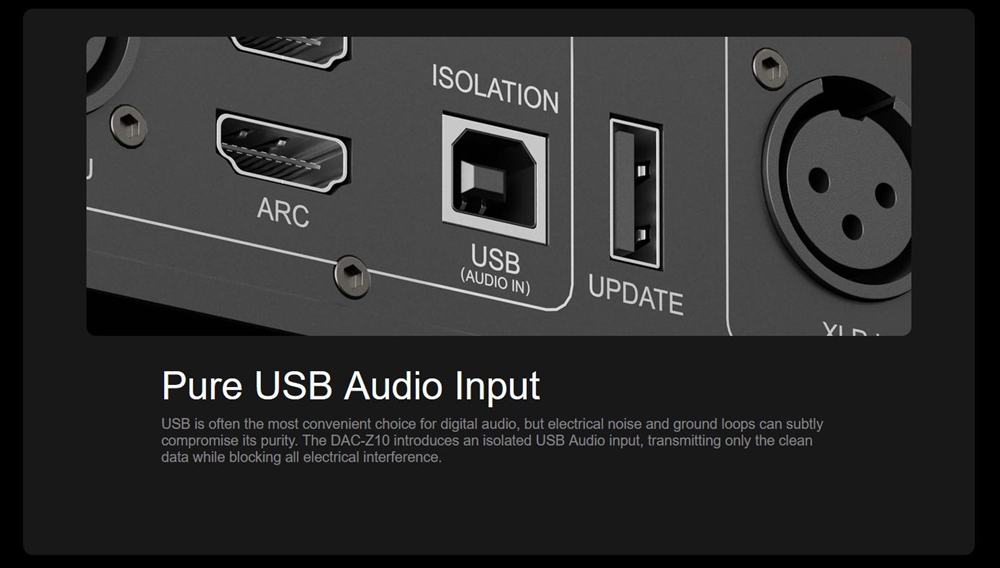

- USB-B audio input: compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

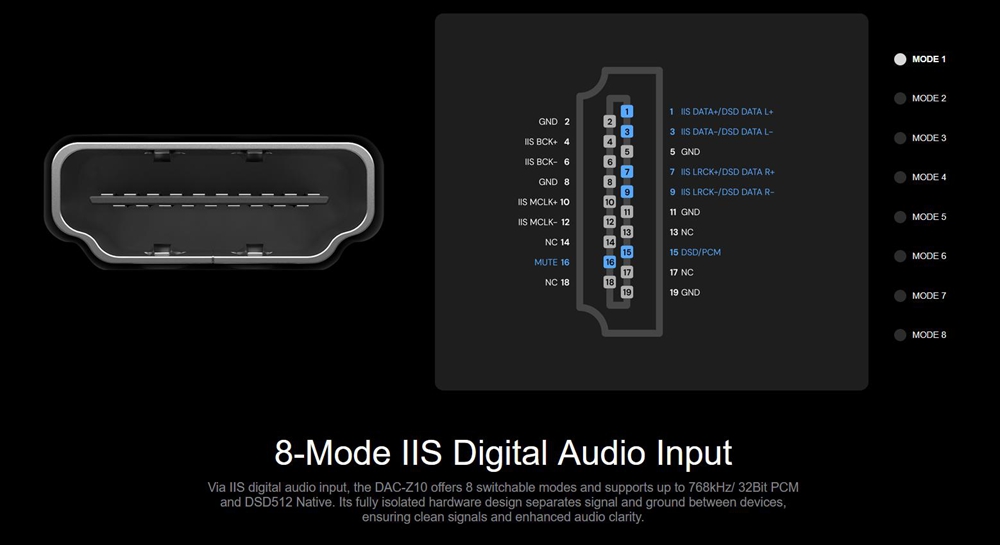

- IIS Input: supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

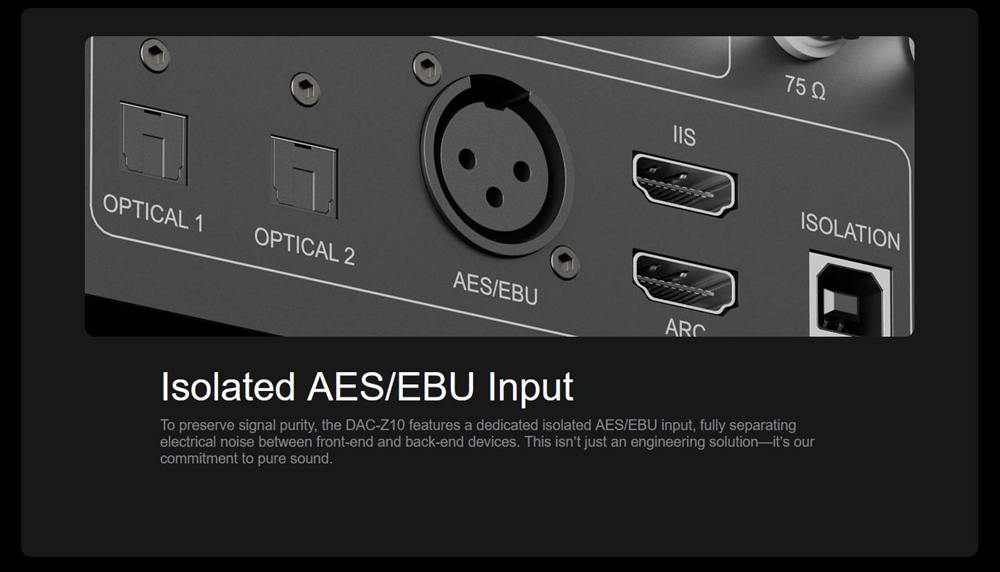

- AES/EBU input: up to Stereo PCM 192KHz/24Bit / DSD64 DoP

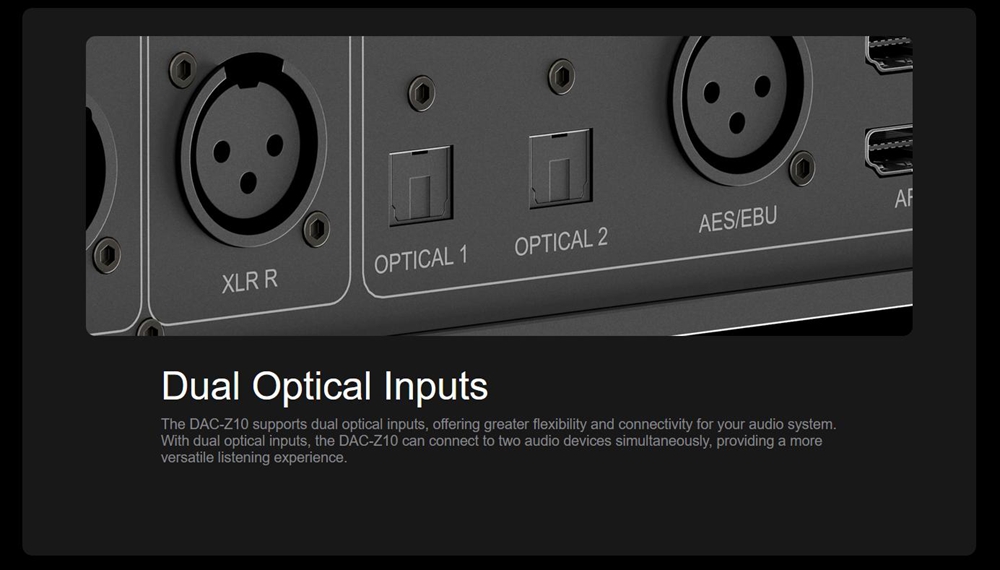

- Optical audio inputs *2: up to Stereo PCM 192KHz/24Bit / DSD64 DoP

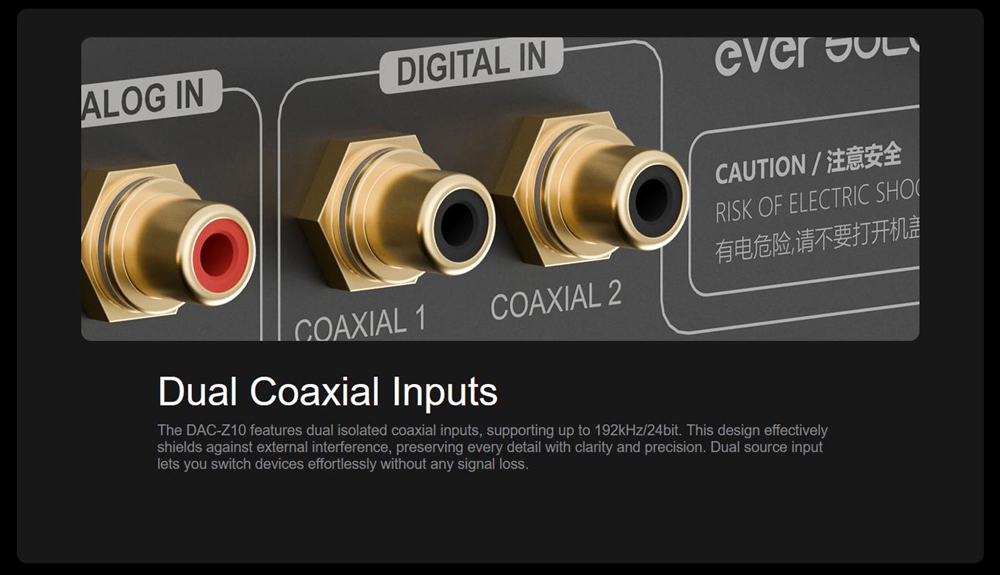

- Coaxial audio inputs *2: up to Stereo PCM 192KHz/24Bit / DSD64 DoP

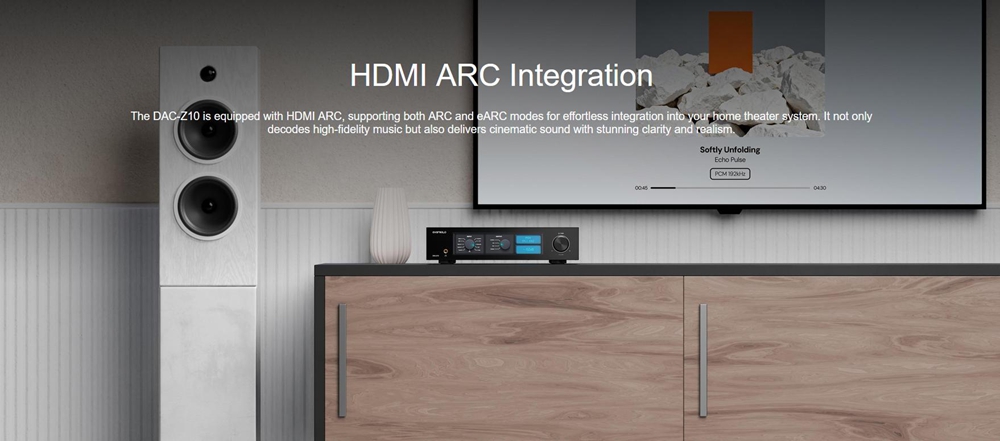

- ARC input: up to Stereo PCM 192KHz/24Bit

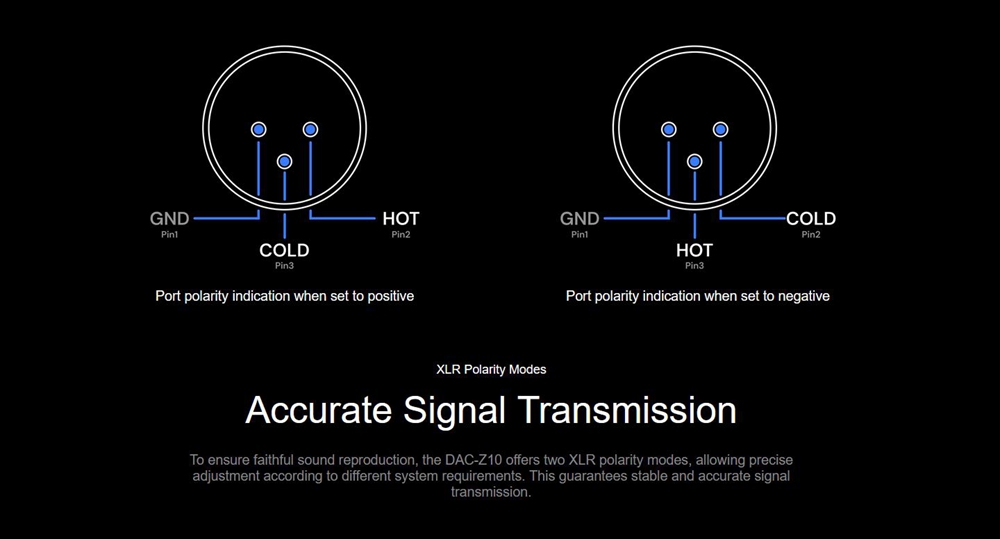

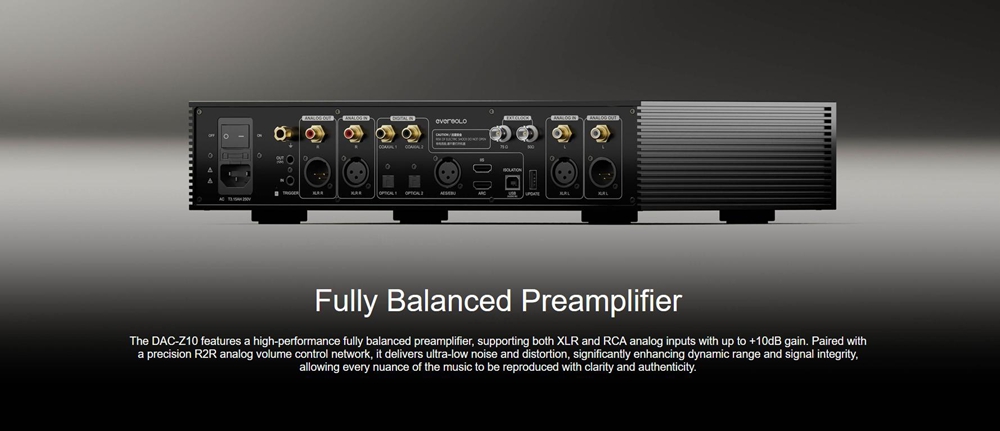

- Analog audio inputs: XLR (Balanced), RCA

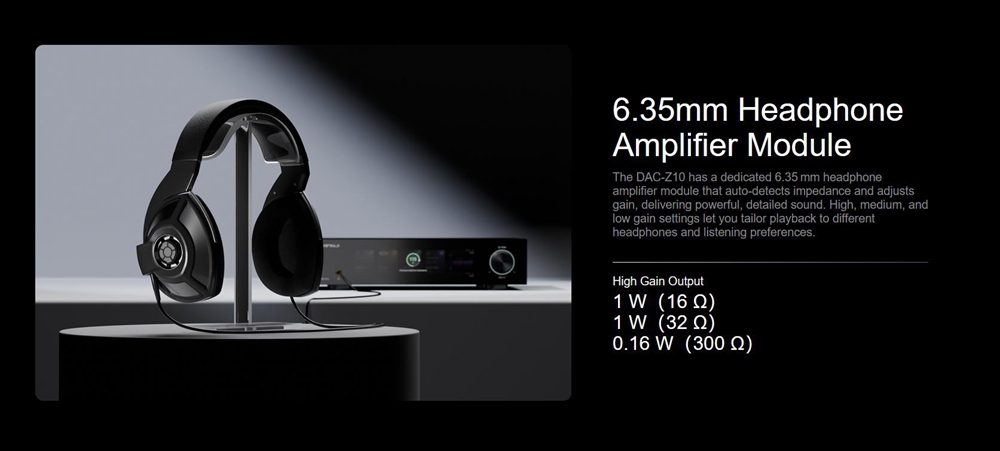

- Analog audio outputs: Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

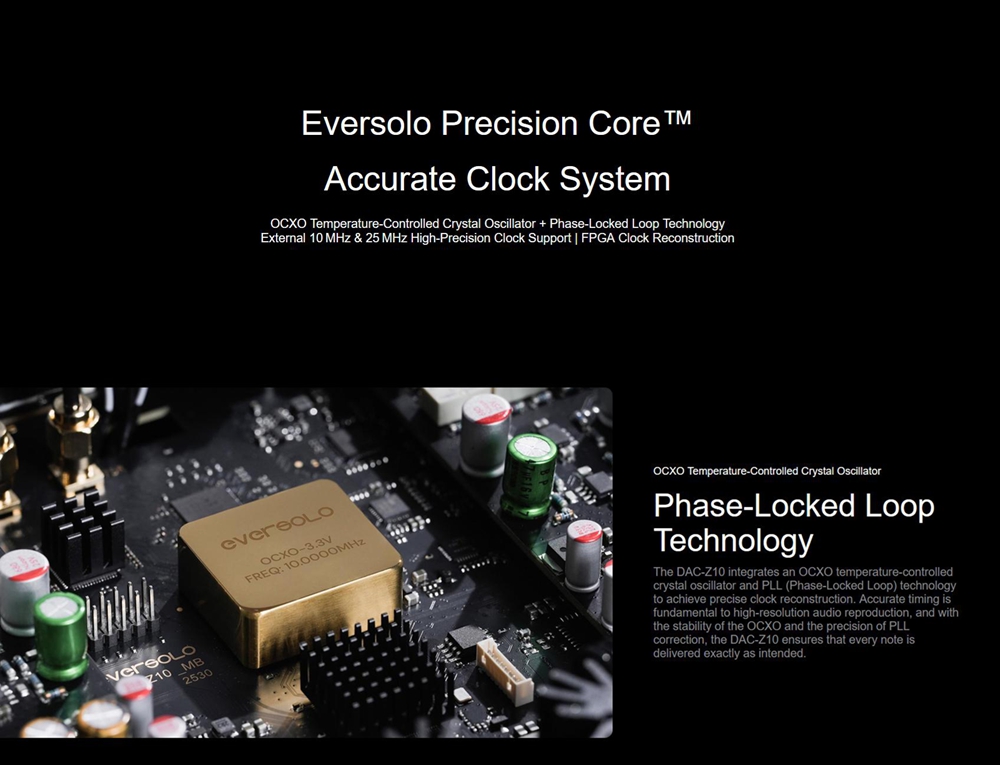

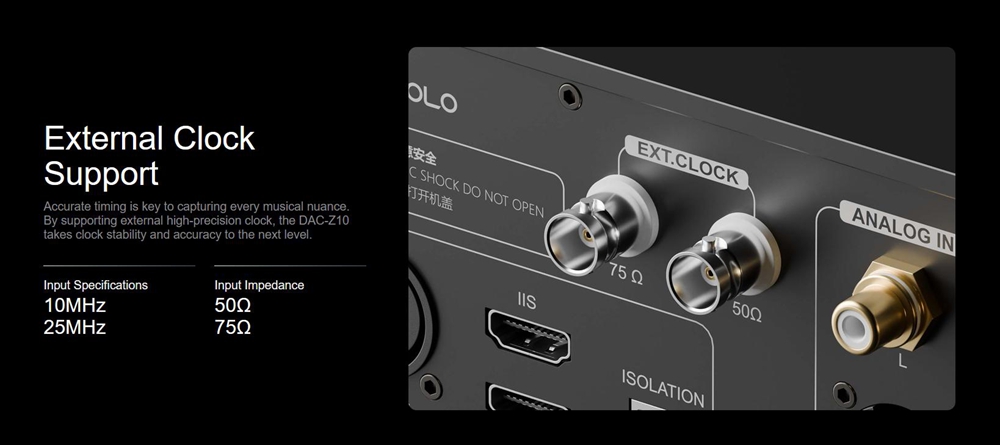

- External clock input: supports 10M/25M clock inputs with 50Ω or 75Ω impedance
- Recommended headphone impedance: 16-300Ω (Low Gain: 16-32Ω / High Gain: 32-300Ω)

Audio Characteristics:
XLR Output Audio Characteristics:
- Output level (Vrms): 5Vrms @ 0dBFS

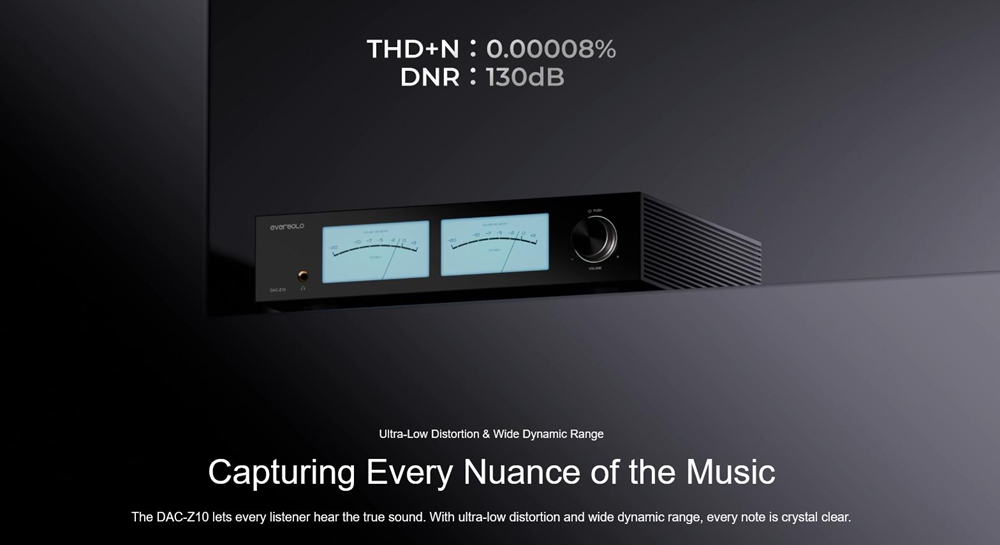

- THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
- Noise @ No-wt: <1.2uVrms
- SNR @ A-wt: 130dB
- Frequency response: 20Hz-20kHz (±0.1dB)
- Crosstalk: -130dB
- DNR @ A-wt: 130dB

RCA Output Audio Characteristics:
- Output level (Vrms): 2.5Vrms @ 0dBFS
- THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
- Noise @ No-wt: <1.5uVrms
- SNR @ A-wt: 128dB
- Frequency response: 20Hz-20kHz (±0.1dB)
- Crosstalk: -123dB
- DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode):
- Output Level (Vrms): 4Vrms @ 0dBFS
- THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
- Noise @ No-wt: <2.5uVrms
- SNR @ A-wt: 124dB
- Frequency response: 20Hz-20kHz (±0.1dB)
- DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode):
- Output Level (Vrms): 5.6Vrms @ 0dBFS
- THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
- Noise @ No-wt: <2.5uVrms
- SNR @ A-wt: 126dB
- Frequency response: 20Hz-20kHz (±0.1dB)
- DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode):
- Output Level (Vrms): 7Vrms @ 0dBFS
- THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
- Noise @ No-wt: <2.5uVrms
- SNR @ A-wt: 127dB
- Frequency response: 20Hz-20kHz (±0.1dB)
- DNR @ A-wt: 127dB

Other Information:
- Power supply: AC 110~240V 50/60Hz
- USB port: USB2.0*1 (only for firmware upgrade)

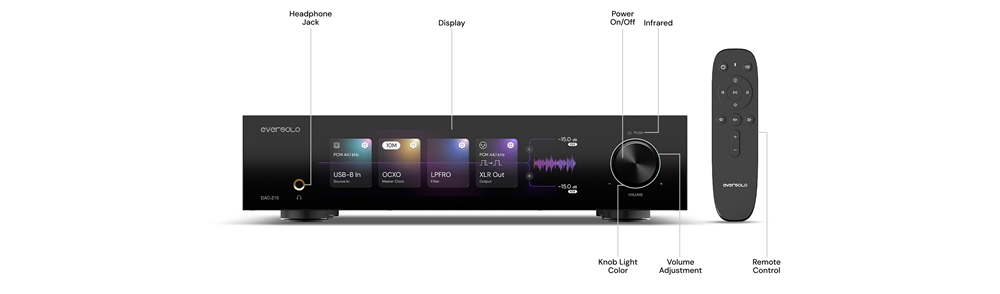

- Control methods: touchscreen control, remote control, mobile App control
- Rated power consumption: 32W
- Dimensions: 365mm (L) x 310mm (W) x 88mm (H) (including foot pads) / 78mm (excluding the foot pads)

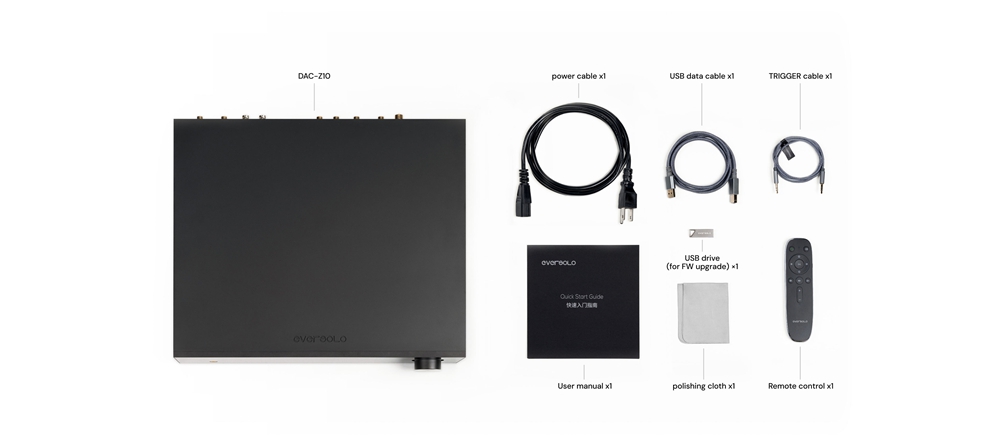

Package Included:
- 1 x Main Unit
- 1 x Remote Control
- 1 x Power Cable
- 1 x USB Data Cable
- 1 x USB Drive (for FW upgrade)

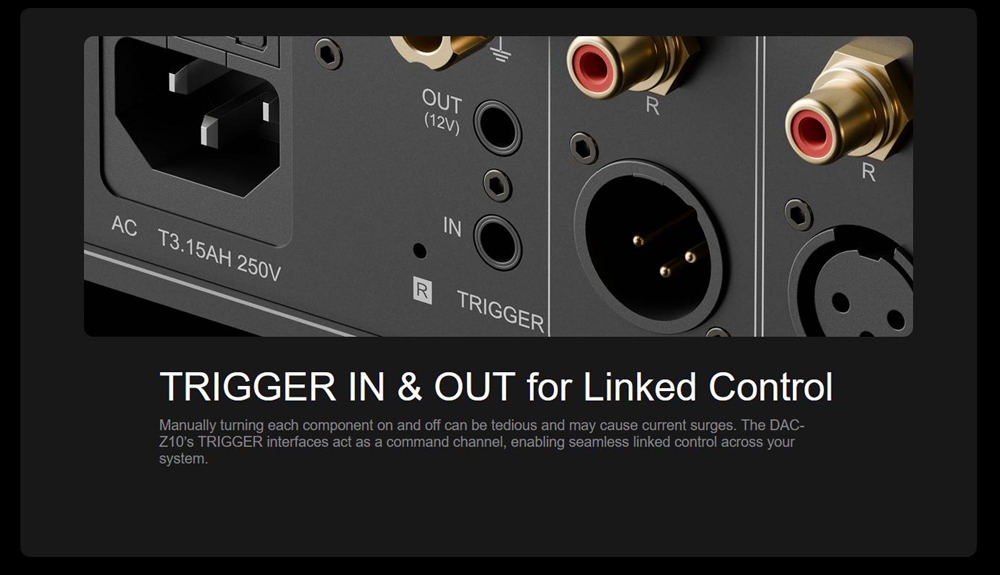

- 1 x Trigger Cable
- 1 x Polishing Cloth
- 1 x User Manual
