For National Instruments NI PXI-8331 Interface Card Interface Module Acquisition Card Module

For National Instruments NI PXI-8331 Interface Card Interface Module Acquisition Card Module

Description:

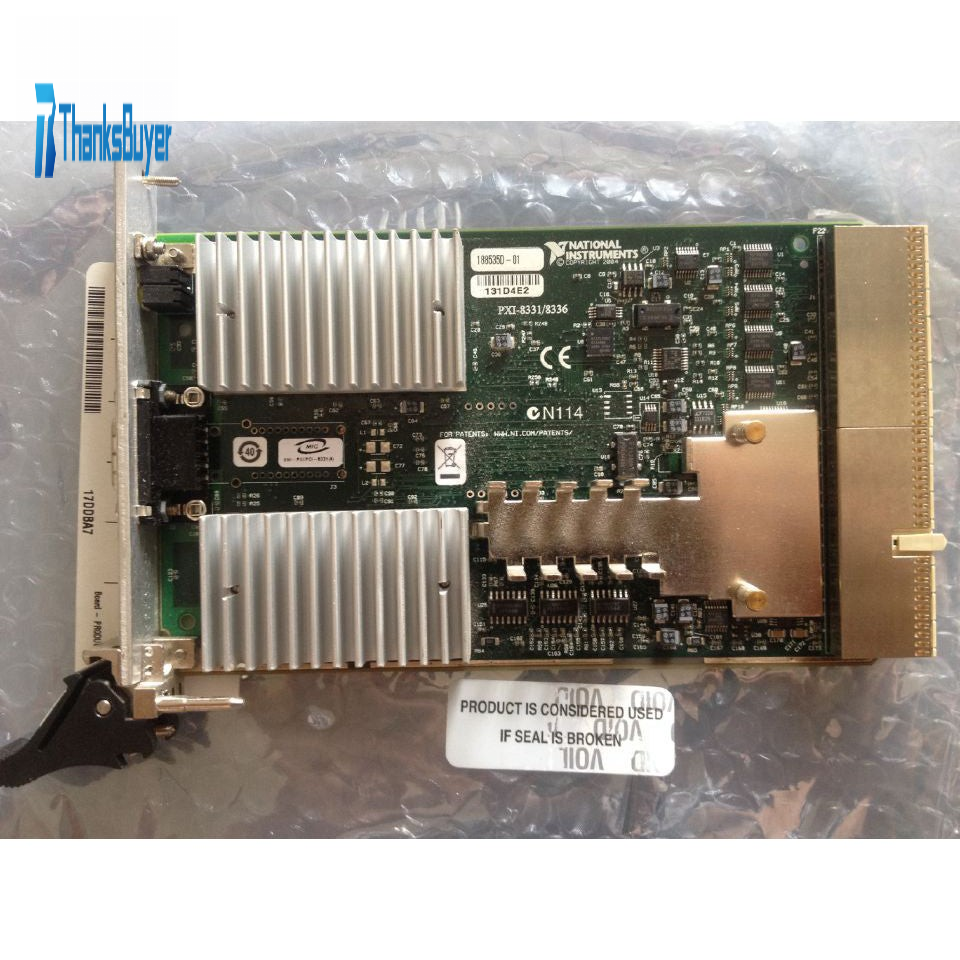

-National Instruments PXI-8331 MXI-4 interface card for controlling a PXI system remotely.
-No software or other accessories are included. Necessary software drivers are available for download from NI as a part of DAQmx and certain other NI software packages.

Features:
MXI-4 is a PCI master/slave system implementing the PCI-PCI bridge register set. It couples two physically separate buses with either a copper or fiber-optic data link capable of 1.5 Gbit/s serial data rates. With the MXI-4 pair, you can do the following:
• Control a PXI/CompactPCI backplane with either a PCI or PXI/CompactPCI host system;
• Increase the available number CompactPCI or PXI slots for your application;
• Physically separate the measurement or automation system from the host PC;
• Combine PCI, CompactPCI, and PXI devices in the same system.

Package List:
1 x NI PXI-8331 Interface Card
