HamGeek 70MHz–6GHz B210 SDR Software Defined Radio with High Bandwidth and Compatible with UHD, AD9361 PlutoSDR
Běžná cena
$377.86
Běžná cena
Výprodejová cena
$377.86
Jednotková cena
za
Včetně daní.
Poštovné se vypočítá na pokladně.
Dostupnost vyzvednutí nebylo možné načíst
Availability:
2000 skladem
SKU:
100402
Collections:
Běžná cena
$377.86
Běžná cena
Výprodejová cena
$377.86
Advantages:
* HamGeek B210 is an SDR development kit compatible with USRP B210

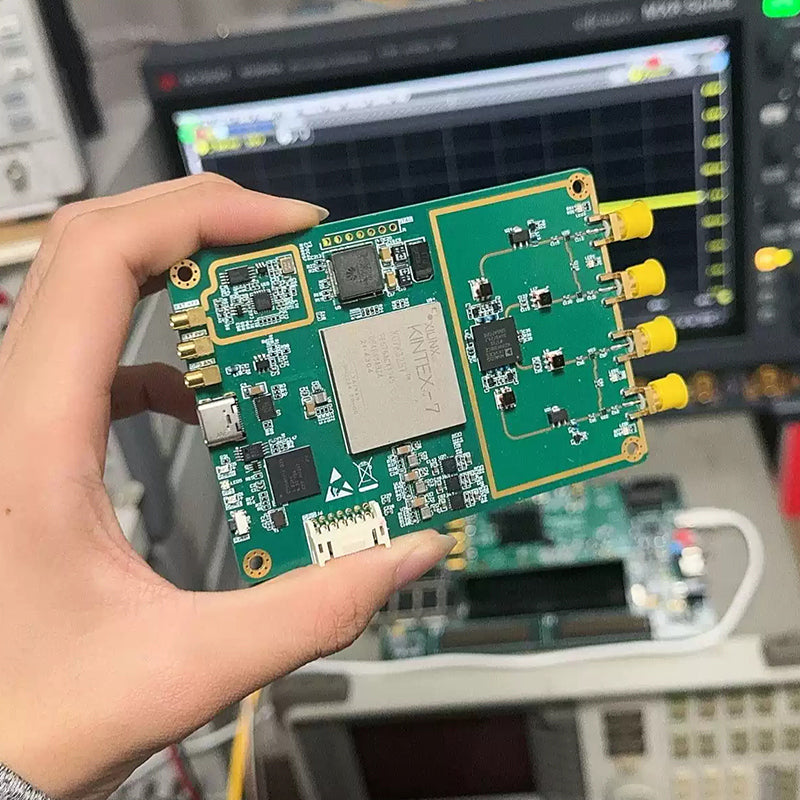

* Uses the K325T (325) main control FPGA
* Equipped with the AD9361 baseband transceiver for signal sampling
* Supports development with Vivado (not the legacy ISE)
* Compatible with MATLAB for algorithm development
* Supports GNU Radio
* Supports srsRAN, enabling 4G network deployment

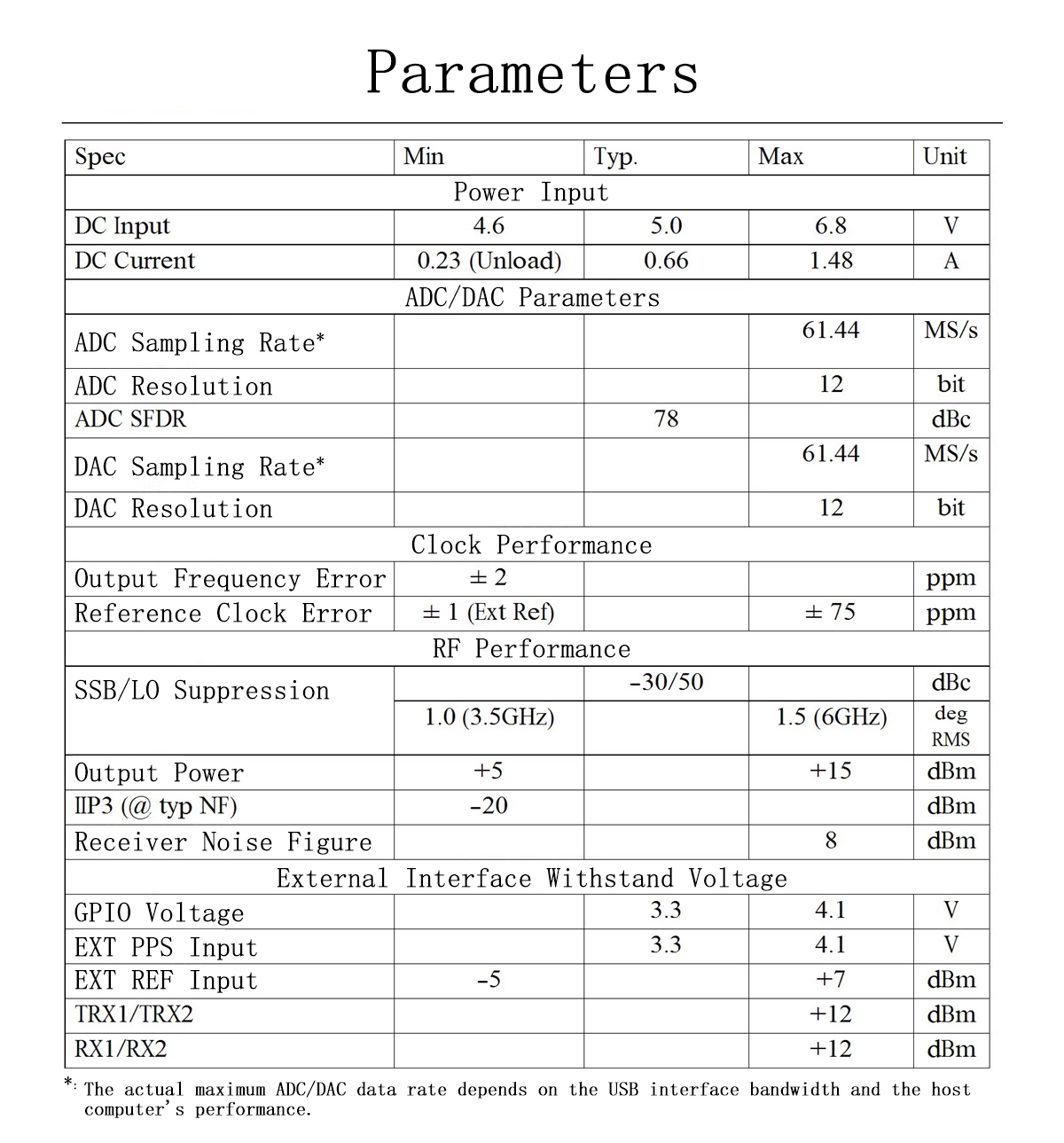

Key Features:
* RF frequency range: 70MHz–6GHz
* Fully compatible with the original UHD driver; supports GNU Radio, C++, and Python APIs
* High-speed USB 3.0 interface with Type-C connector
* 12-bit, variable-rate, high-precision RF ADC/DAC
* Core processor: XC7K325T
* 2 TX & 2 RX, supports half-duplex and full-duplex operation, with 2×2 MIMO support
* Maximum bandwidth of 56MHz in 1×1 mode
* 8 external GPIOs
* Integrated GPS synchronization; also supports external 10MHz reference clock and 1PPS synchronization input
Packing List:

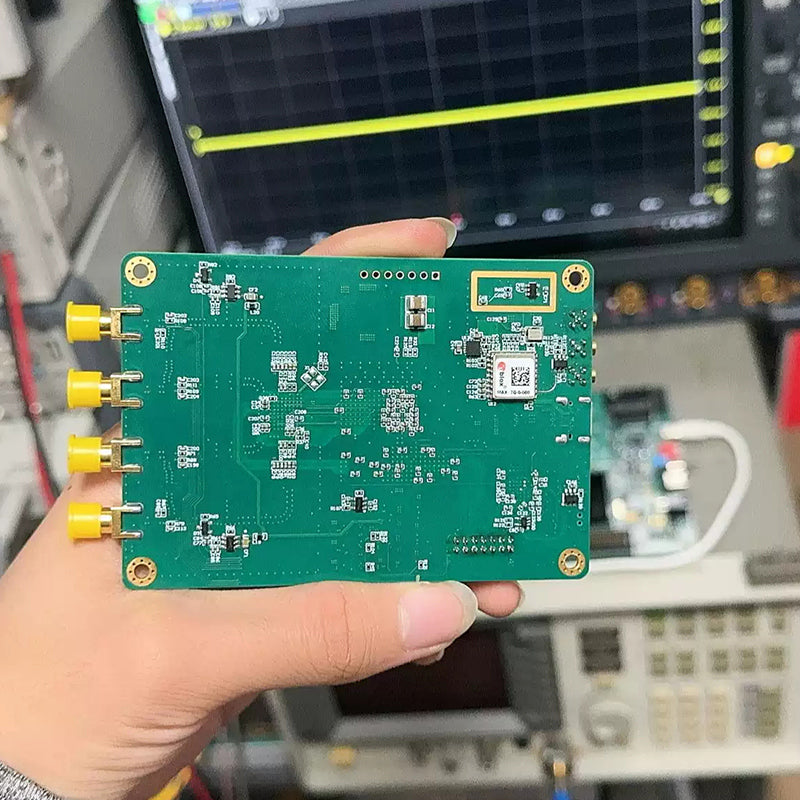

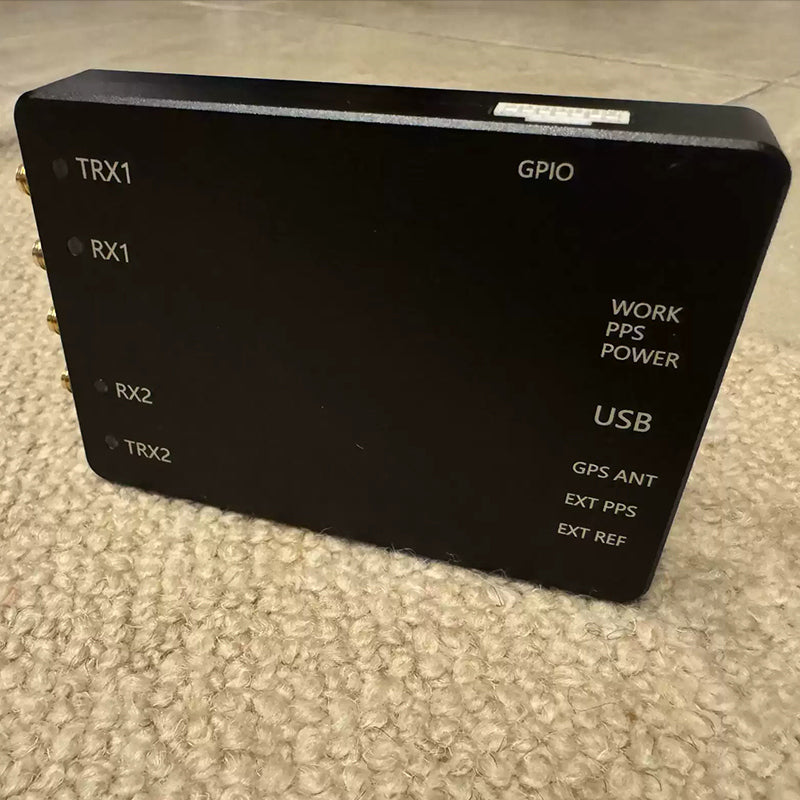

* 1 × Set of HamGeek SDR (with PCB + CNC Shell + USB3.0 Data Cable)
Packaging Details:
* Weight: 0.35kg
