HM1310 Industrial USB3.0 Optical Fiber Extender 1310NM 4xUSB3.0 Dual-fiber LC Single Mode High Speed Transmission

Description:
- USB3.0 fiber extender, also known as USB3.0 optical transceiver, extends the high-speed signal transmission distance of up to 5Gbps USB3.0 SuperSpeed to 100 meters through dual fibers. The USB3.0 fiber extender uses a dedicated USB3.0 PHY to meet the requirements of the USB3.0 protocol, and utilizes SFP+ to complete optoelectronic conversion, achieving stable transmission of USB3.0 SuperSpeed high-speed signals.

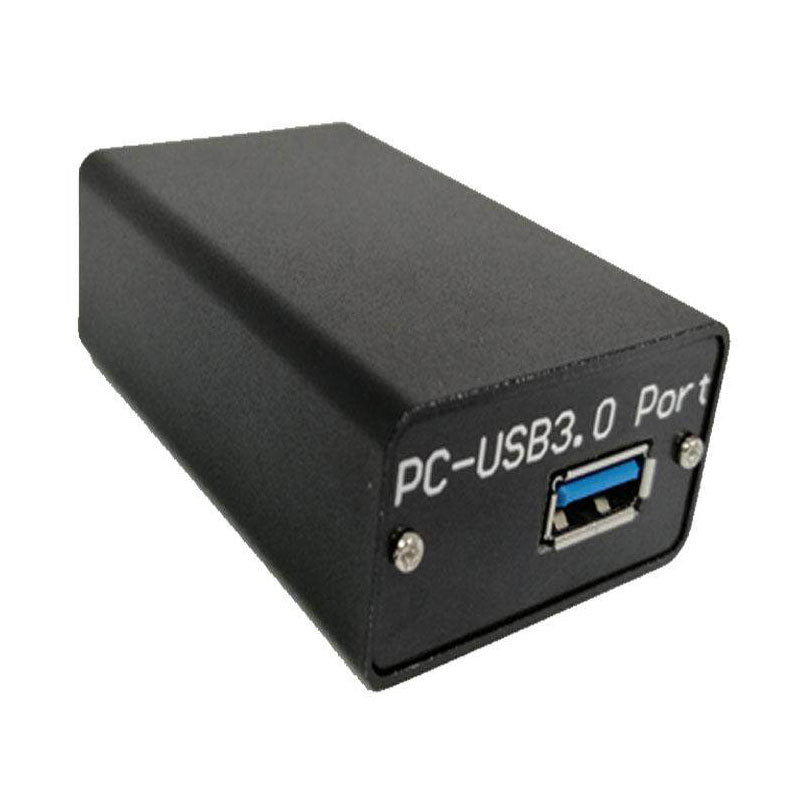

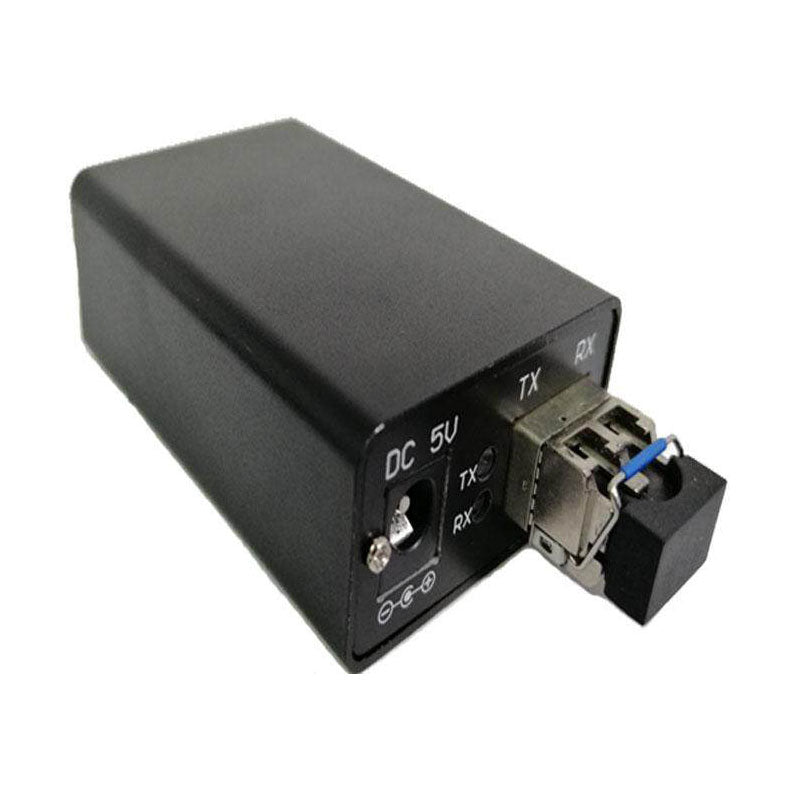

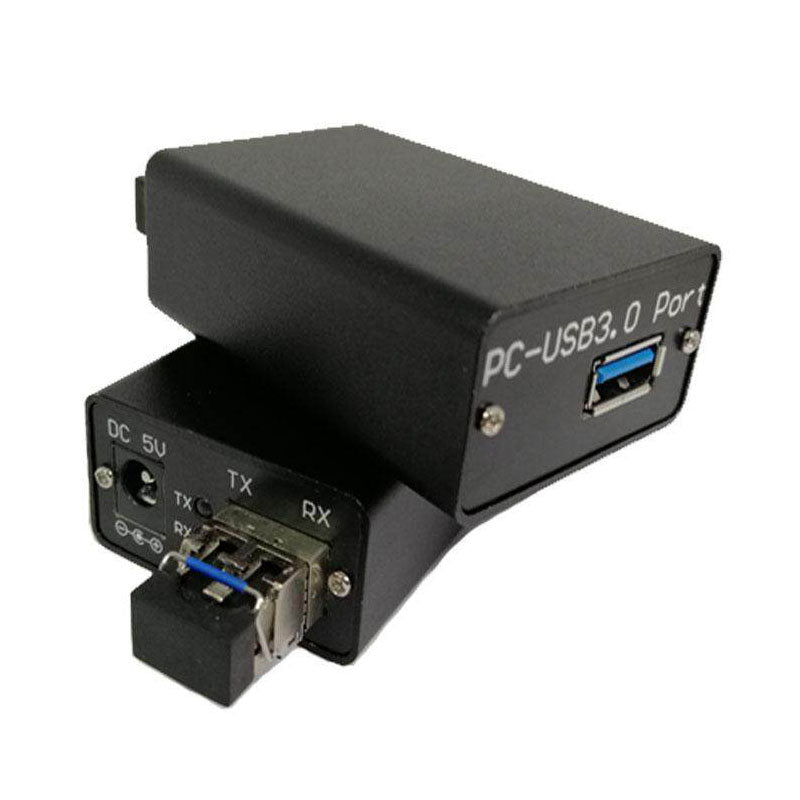

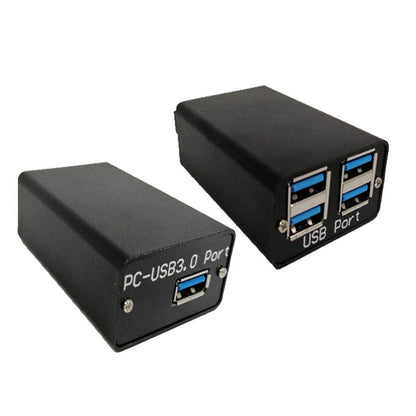

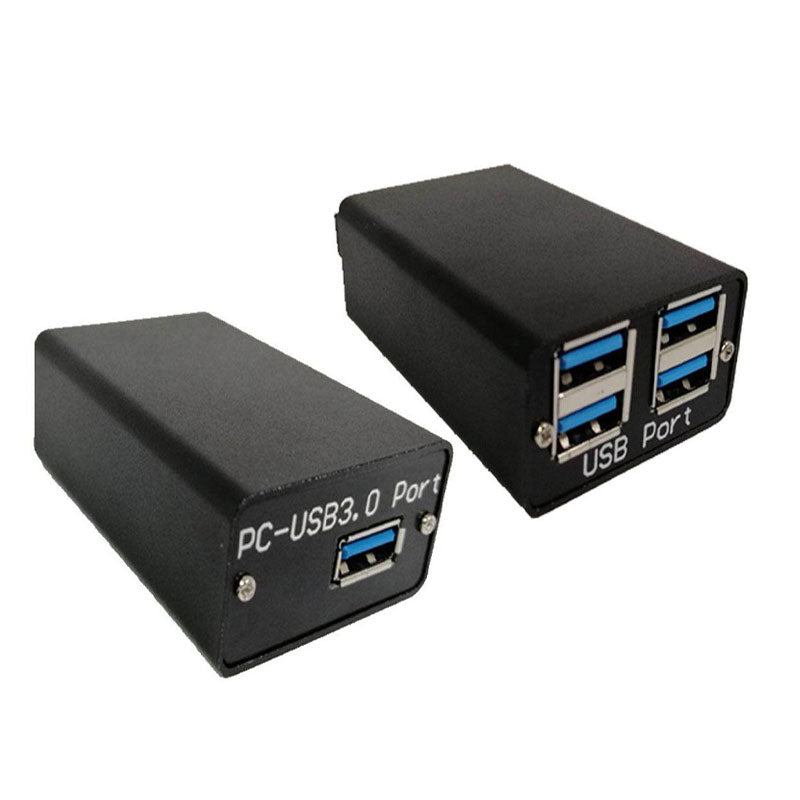

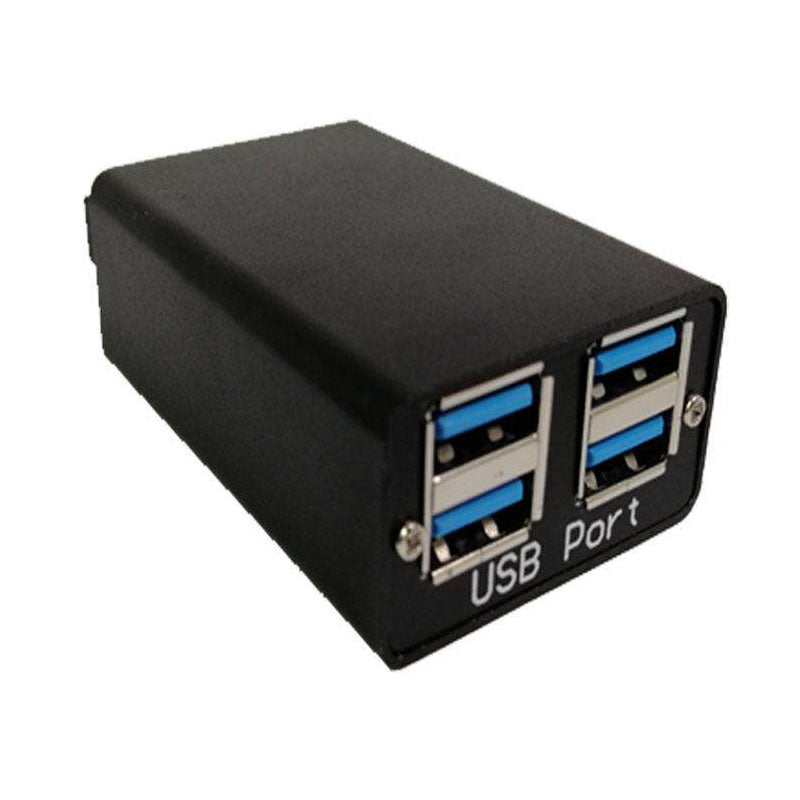

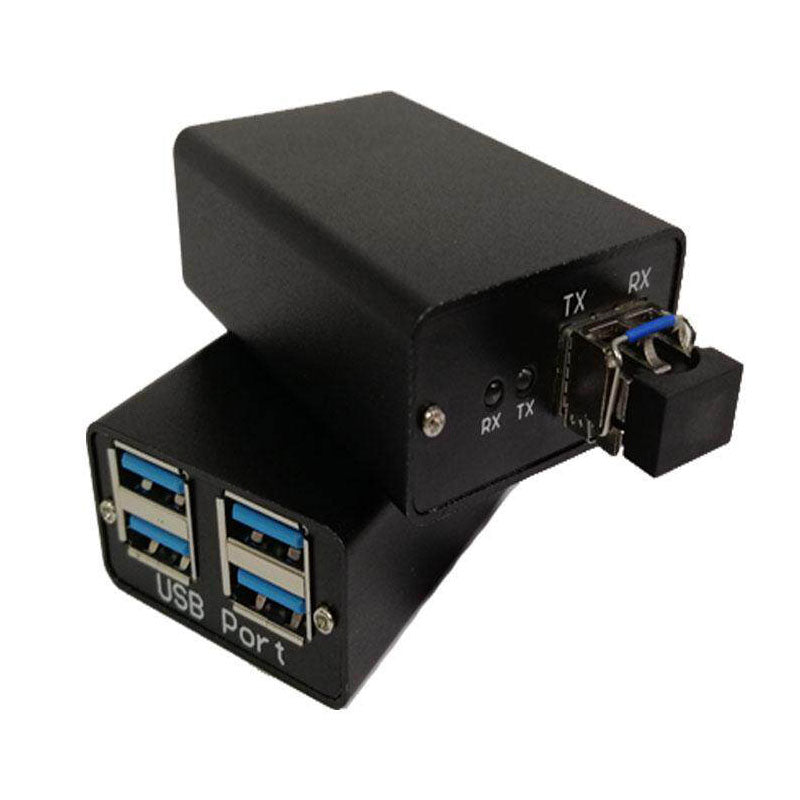

- The USB3.0 fiber extender consists of a receiver and a transmitter. The transmitter is powered by USB3.0 A, while the receiver is powered by an external power source and provides power to USB3.0 devices through USB3.0 A connectors.
- The product can be applied in video conferencing, multimedia information dissemination, government departments, medical systems, commercial displays, multimedia function halls, security monitoring, public utilities and other fields.

Applications:
- Industrial video transmission
- Machine vision system
- High definition video surveillance system
- High speed data acquisition system
- Remote storage
- Digital signage and TV wall
- Industrial printer system

Features:
- USB3.0 SuperSpeed high-speed signal transmission distance extended to 100 meters (single-mode fiber)
- Satisfy the 5Gbps bandwidth of USB3.0
- Supports all self powered USB3.0 devices
- Plug and play, no need for driver software
- Adapt to all operating systems
- USB3.0 A-type interface
- Dual fiber LC optical interface
- Not compatible with USB1.1 and USB2.0

Specification:
- Optical fiber interface: dual fiber LC
- Optical wavelength: 1310nm
- Product size: 78 x 44 x 23mm
- Shell: aluminum alloy
- USB interface: 4 x USB3.0
- Power supply voltage: DC5V
- Transmitter power: 1.5W
- Receiver power: 2W (no-load)
- Data transmission distance: 100 meters
- Working temperature: 0℃ to 50℃
- Storage temperature: -40℃ to 85℃
- Humidity: 0 - 95% (non-condensing)

Connection with PC:
- After the USB3.0 fiber extender (computer > transmitter > receiver > power supply) is successfully connected, you can check whether the USB3.0 hub is displayed in (My Computer > Device Manager > Universal Serial Bus Controller). If it is displayed, the USB3.0 fiber extender can be used normally.

Package Included:
- 1 x USB3.0 Optical Fiber Transmitter
- 1 x USB3.0 Optical Fiber Receiver
- 1 x USB3.0 Male to Male Adapter Cable
- 1 x DC5V Power Adapter
- 1 x Dual-fiber LC Jumper

Note:
- It is not compatible with USB1.1 and USB2.0.
