iFlight BLITZ F7 PRO Professional Flight Controller 512MB Flight Recorder 216MHz MCU for FPV RC Drones

iFlight BLITZ F7 PRO Professional Flight Controller 512MB Flight Recorder 216MHz MCU for FPV RC Drones

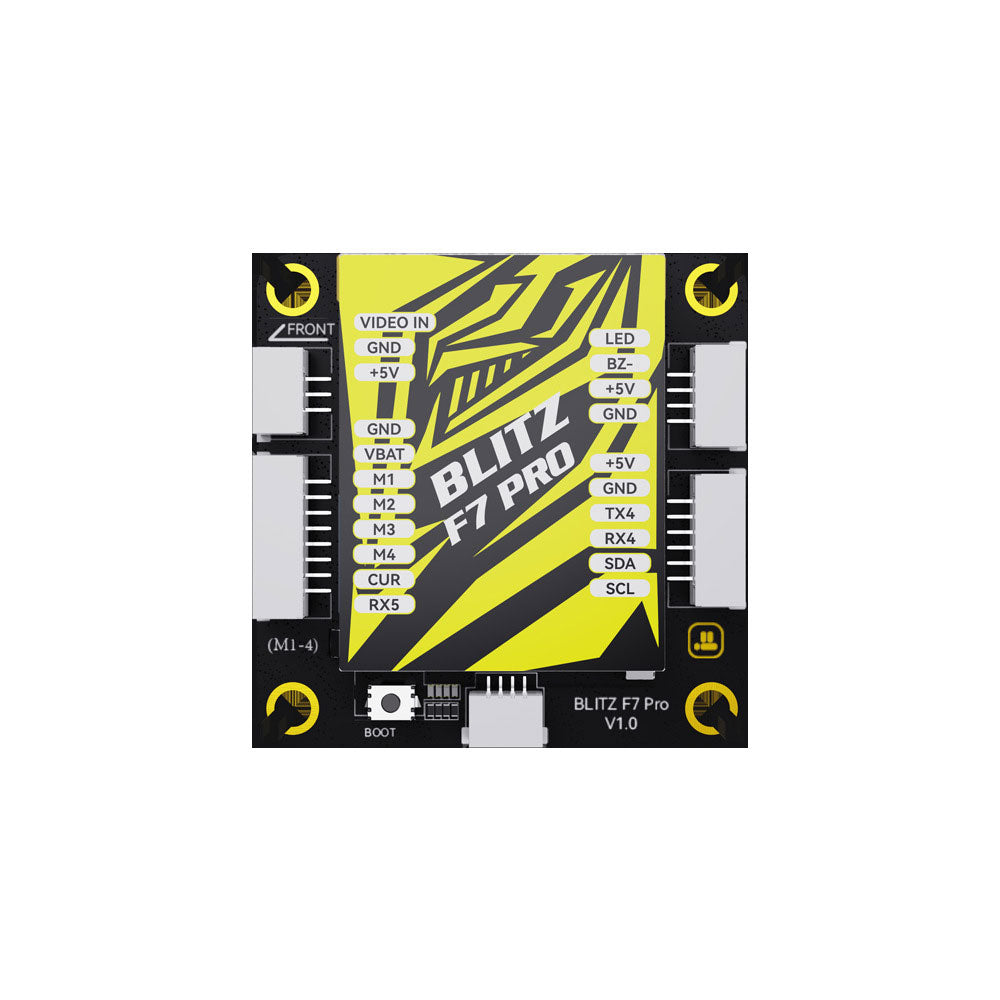

Flight Controller:
Features:
- Improved circuit design, better components, and lower electrical noise!
- For DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- 512MB Black Box
- With LC filter

Specification:
- Mount pattern: 35 x 35mm / 4mm PCB hole diameter
- For Smartaudio / IRC Tramp VTX protocol supported
- Firmware target: IFLIGHT_BLITZ_F7_PRO
- Input Voltage: 14.8V-34V (4S-8S LIPO)
- Motor outputs: 4x (SH1.25 connector)
- Flash: 512MB (Black box flash)
- I2C serial: SDA / SLA pads
- Dimensions: 41 x 41.5mm
- Barometer: DPS310
- OSD Chip: AT7456E
- LED controller: Yes
- MCU: STM32 F722
- Weight: 17g (±2)
- Beeper pad: Yes
- Gyro: BMI270
- UARTS: 4

Wiring Suggestion:
- UART1 for VTX HD/Analog
- UART2 for  Receiver
- UART4 for GPS
- UART5 for ESC Telemetry
- 8xDshot/PWM outputs
- 1xI2C for GPS Mag

Tips:
- F722 MCU has an inner inverter.
- SBUS, CRSF, ELRS, IBUS, DSM ETC... can be connected to any unused UART_RX, we suggest you connect to Uart_RX2.
- For Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1.
- F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2.
- Wiring diagram: https://drive.google.com/drive/folders/17Uf67I6ER_z-otviR0I7tSqO31W7S553

E80 4-IN-1 ESC:
Description:
- The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.
- The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed.

Features:
- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection.
- G071 MCU, 48mHz maximum clock speed.
- TDK MLCC Low ESR ceramic capacitors.
- Top grade PSMN1R0-40YLD MOSFET.
- 8 layers double-sided PCB board.

Specification:
- Product Name: BLITZ E80 4-IN-1 ESC
- Input Voltage: 2-8S
- Max. Continuous Current: 80A
- Max. Burst Current: 100A
- MCU: G071
- BEC: No
- Firmware: BLHeli32
- Current Sensor: Yes
- Telemetry: Supported
- Target: IFLIGHT_BLITZ_G2
- Mounting Dimensions: 35 x 35mm/Φ4mm
- Dimensions: 35 x 42mm
- Weight: 65g (±10)
- Protocol: Supports for DShot DShot150/300/600/MultiShot/OneShot, etc.

Package Included:
- 1 x Flight Controller

BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases
