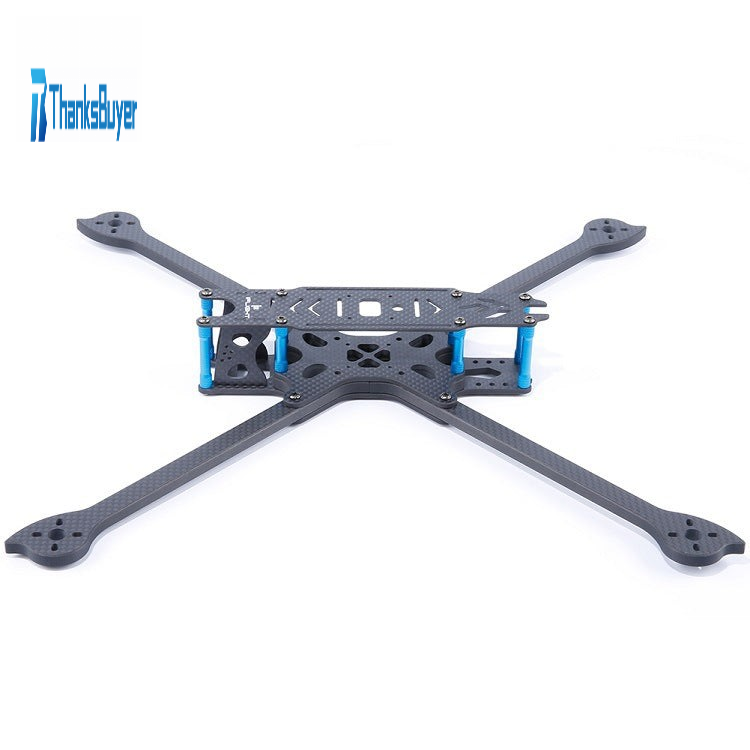

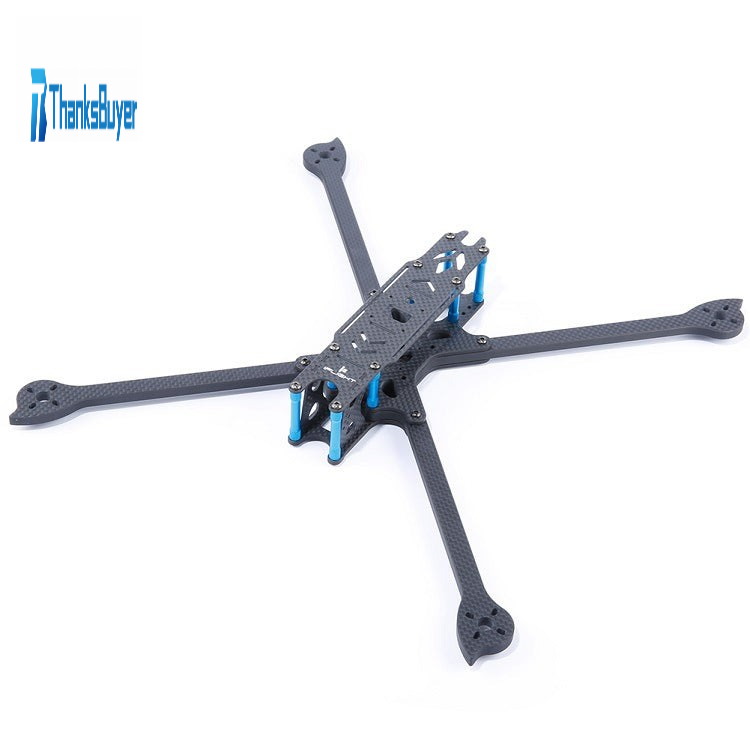

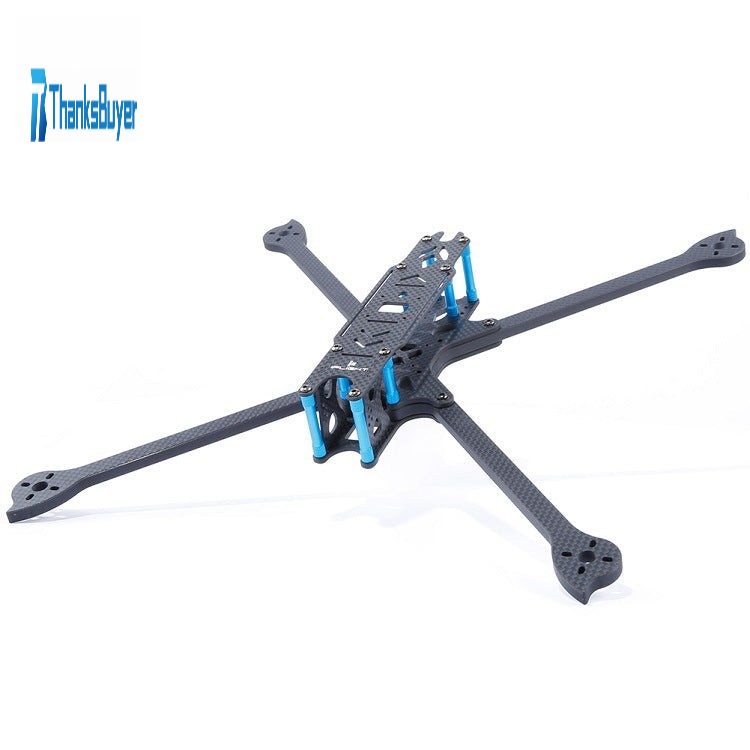

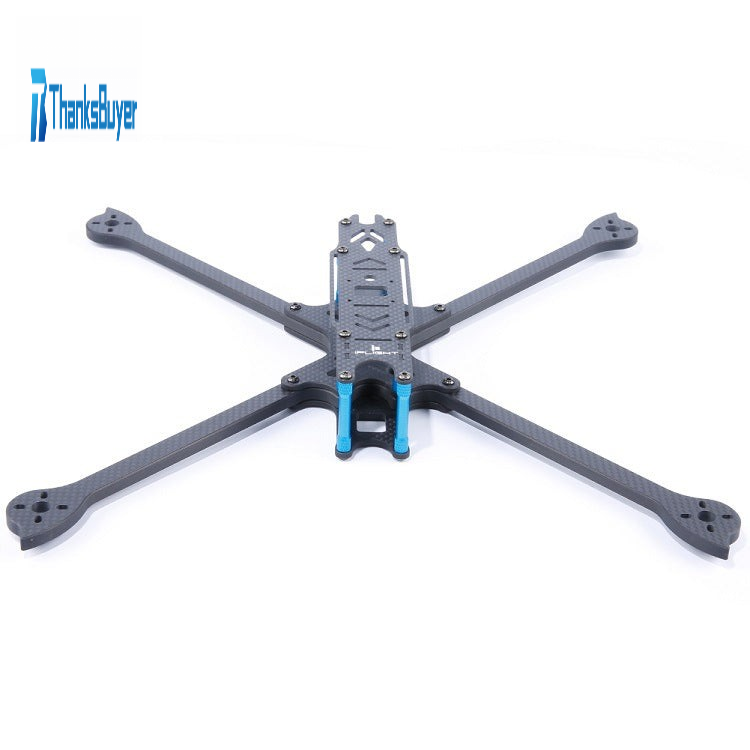

iFlight XL10 V4 FPV Frame 382mm 10 Inch Long Range FPV Racing Drone Frame Unassembled

iFlight XL10 V4 FPV Frame 382mm 10 Inch Long Range FPV Racing Drone Frame Unassembled

Features:
1. Careful appearance and reasonable design
2. Made with imported 3K pure carbon fiber
3. Reasonable installation location makes wiring more reasonable

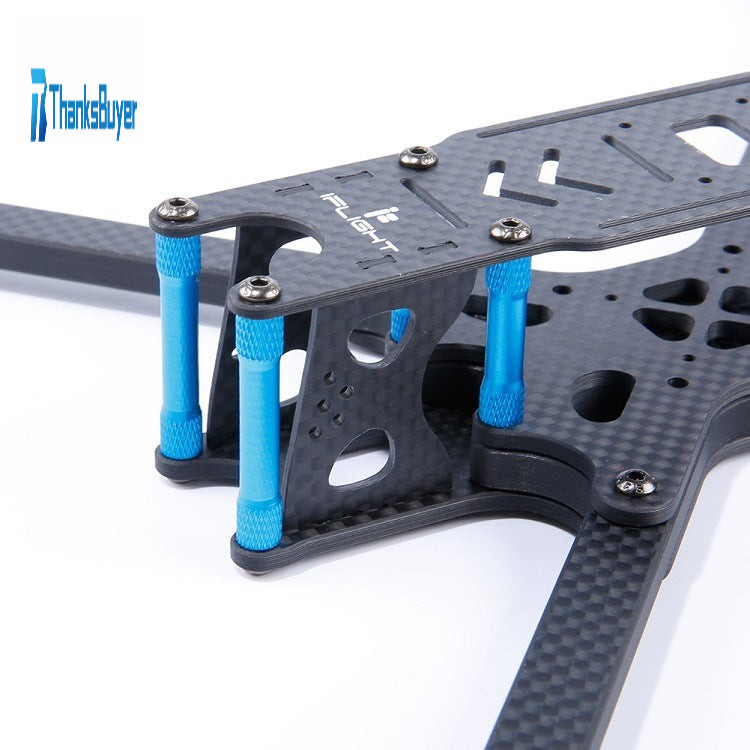

4. Adopt 30mm aluminum column, sufficient internal space
5. Camera side panel protection
6. Lengthened plate for your motor bottom, and it is not easy to hit the motor during impact

Technical Parameters:
- Diagonal wheelbase: 382mm
- Overall frame size: 270*270mm
- Net weight: 200g
- Bottom plate thickness: 3mm
- Top plate thickness: 2mm
- Arm thickness: 7.5mm
- Arm width: 11.3mm
- Electronic equipment installation height: 25mm (aluminum column height 25mm)
- Flight control hole distance: 30.5*30.5mm/20mm*20mm
- Motor circlip hole position: 8mm
- Supported motor: Series 28
- Camera spacing: 19mm/22mm

Package Included:
- 1 x Set of FPV Frame

Note:
- Assembling is needed.
- Only frame kit is included, other items are not included.
