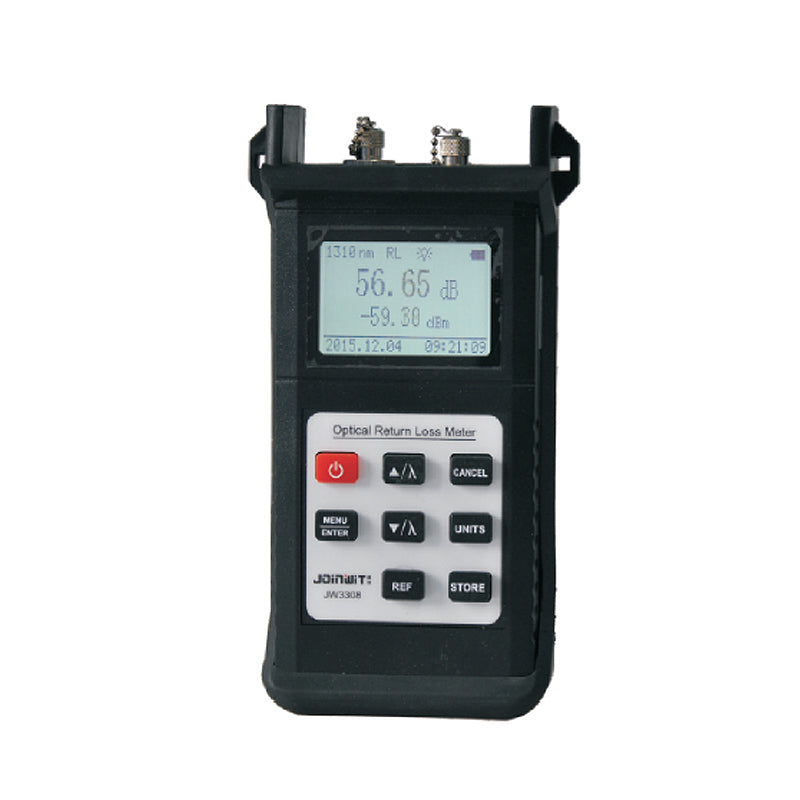

JW3308A (JW3308) OLTS Tester Optical Return Loss Meter Test Modes RL + IL + OPM + IL & RL + OLS

JW3308A (JW3308) OLTS Tester Optical Return Loss Meter Test Modes RL + IL + OPM + IL & RL + OLS

Description:
JW3308A optical return loss tester is designed to measure the reflection loss of various optical devices and optical links, and to control the quality of optical fiber joints. It is the most optimized solution applied in the field. It can be used as an optical return loss tester, insertion loss tester, optical power meter and light source, with data storage function.

Features:
1. Multiple functional test modes (RL, IL, OPM, IL & RL and OLS)
2. Test data has the function of storing and uploading
3. Can be powered via an USB port
4. The interface is simple and easy to operate

Technical Parameters:
Optical Return Loss Test:
- Test wavelength: 1310/1550nm (±20)
- Spectral width: <5nm
- Output power: ≥ -1dBm
- Stability: ±0.05dB/30min
- Measuring range: 0~70dB
- Accuracy: ±0.5dB
- Resolution: 0.01dB
- Interface type: FC/APC

Optical Insertion Loss (Power Meter) Mode:
- Wavelength range: 800~1700nm
- Calibration wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
- Display unit: dBm, dB, xW
- Measuring range: +6 to -80dBm at 1310/1550nm; +6 to -75dBm at other wavelengths
- Uncertainty: ±0.25dB
- Display: LCD
- Communication interface: USB
- Working temperature: -10 to +60℃
- Storage temperature: -25 to +70℃
- Relative humidity: 0~85% (non-condensing)
- Appearance size: 180 x 90 x 36.5mm/7.1 x 3.5 x 1.4" (LxWxH)
- N.W.: 380g/0.84 lb

Package Included:
- 1 x Set of OLTS Tester

Note:
- It can be powered by 3pcs 1.5V AA batteries (not included) or via an USB port.
