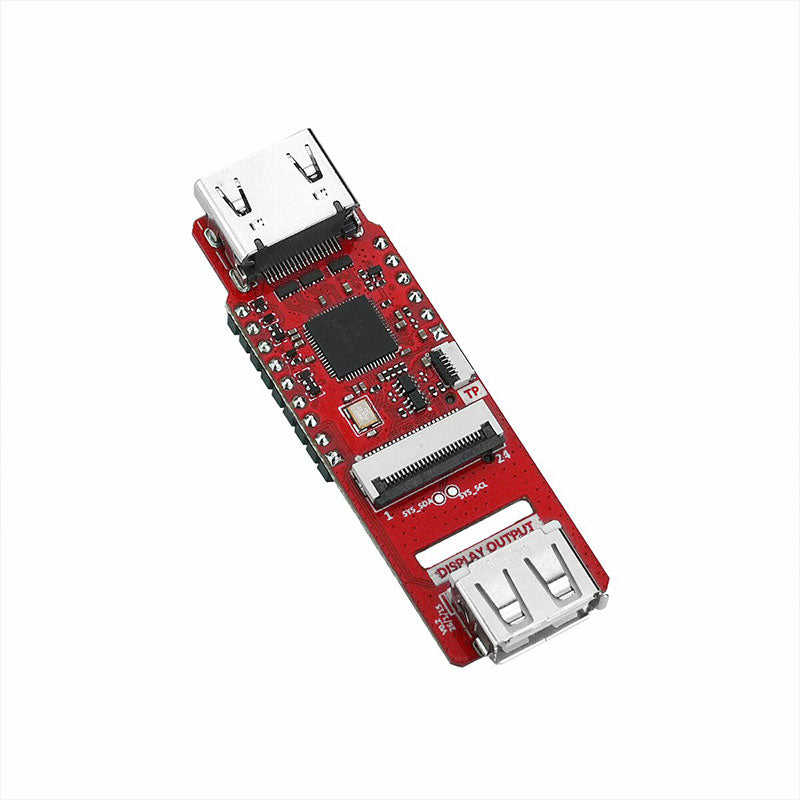

M5Stack AddOn Display Out for PoE-P4 Display Output Expansion Module LT8912B MIPI DSI to HDMI-compatible

Introduction:

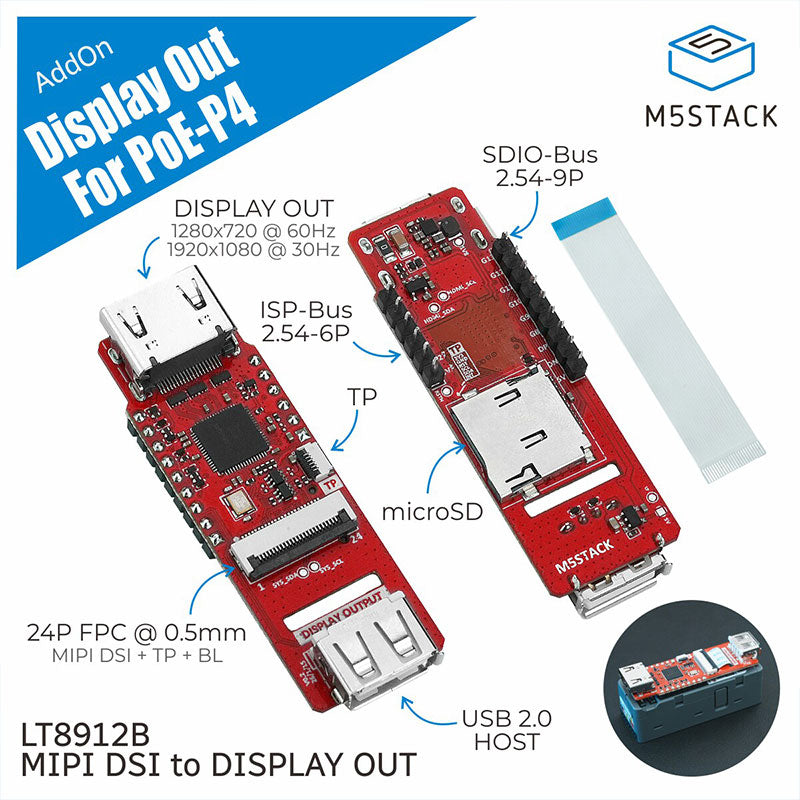

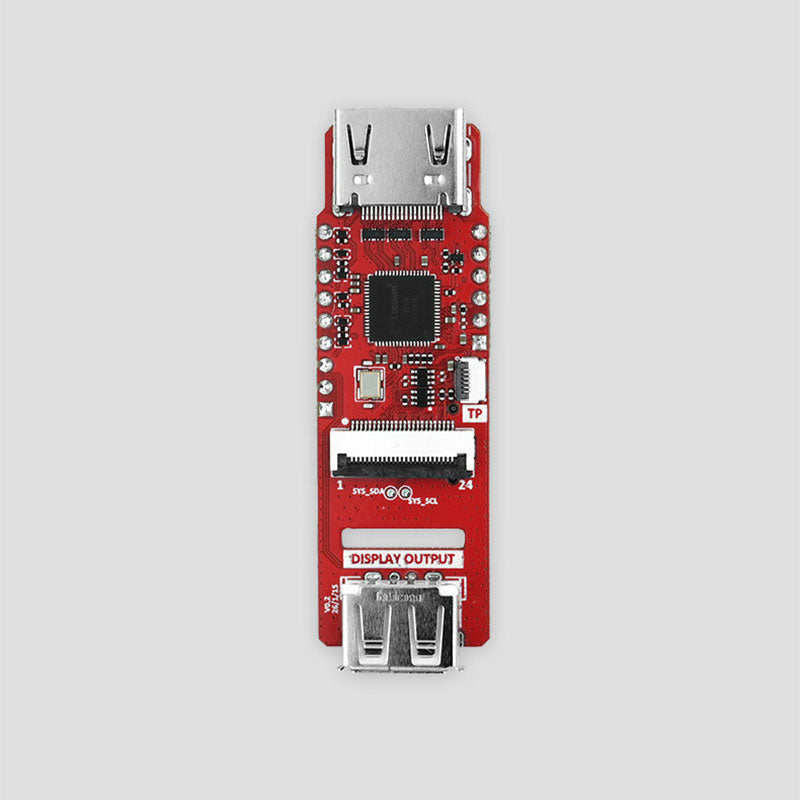

- Adopting the LT8912B chip driver scheme, MIPI DSI display signals are converted into HDMI-compatible outputs for easy visualization on external displays.
- Equipped with standard HDMI-compatible Type-A interface, current accompanying driver library supports the 1280x720 at 60Hz and 1920x1080 at 30Hz two types of display output timing.
- Touch expansion: Onboard 6P Touch interface, providing I2C communication, reset, and interrupt signals required for touch, supporting touch input and interface interaction expansion.
- Storage expansion: Onboard micro SD slot, connected to the main control SDIO bus, supports local storage of data such as images, interface resources, and configuration files.
- USB external connection: Comes with a standard USB Type-A interface, supports quick access to peripherals such as mice and keyboards, and supports the construction of an integrated display solution that links display, touch, and storage.
- The main input interface adopts 24P FPC (with a spacing of 0.5mm), including MIPI DSI, I2C, USB, SDIO, and control/power signals.

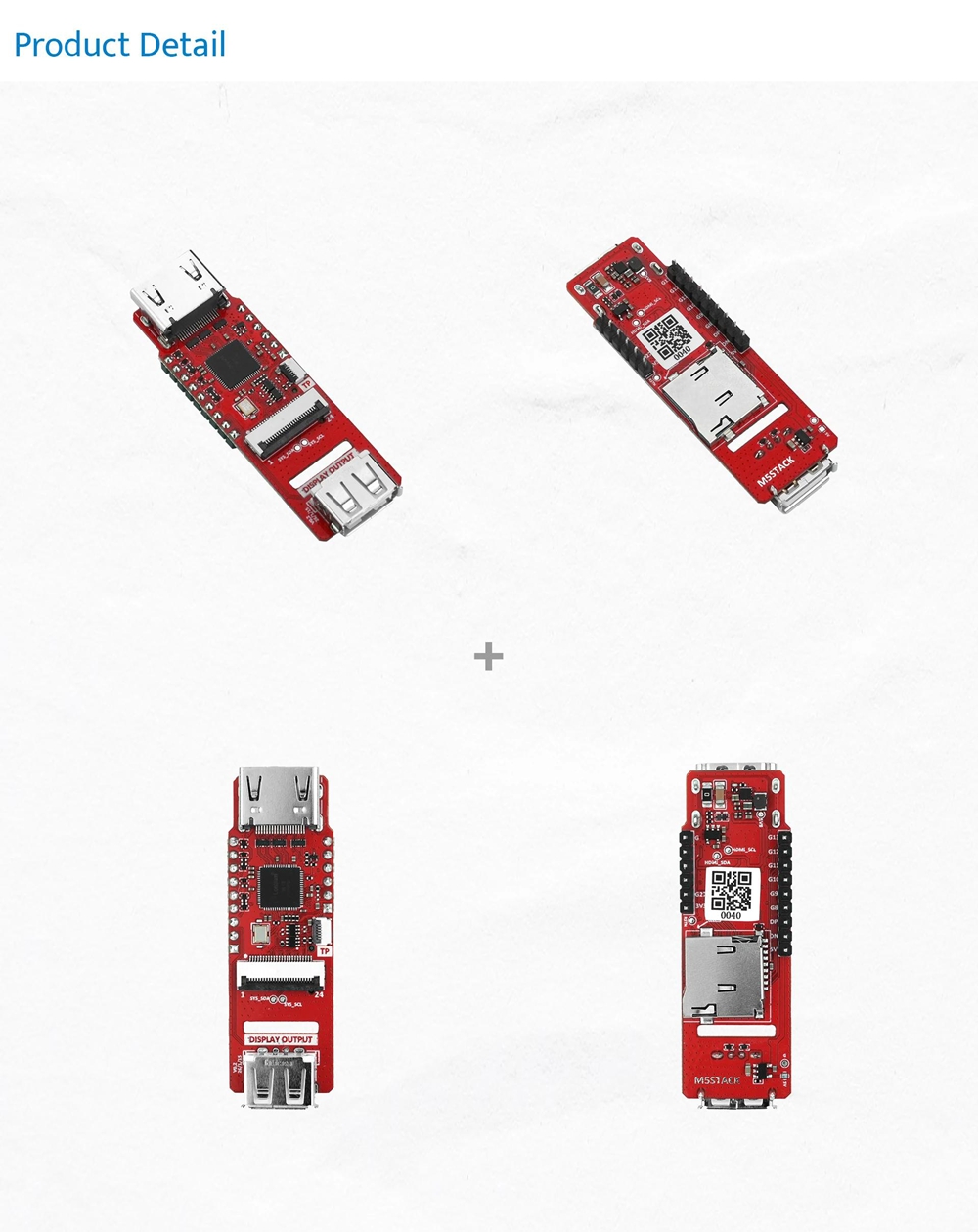

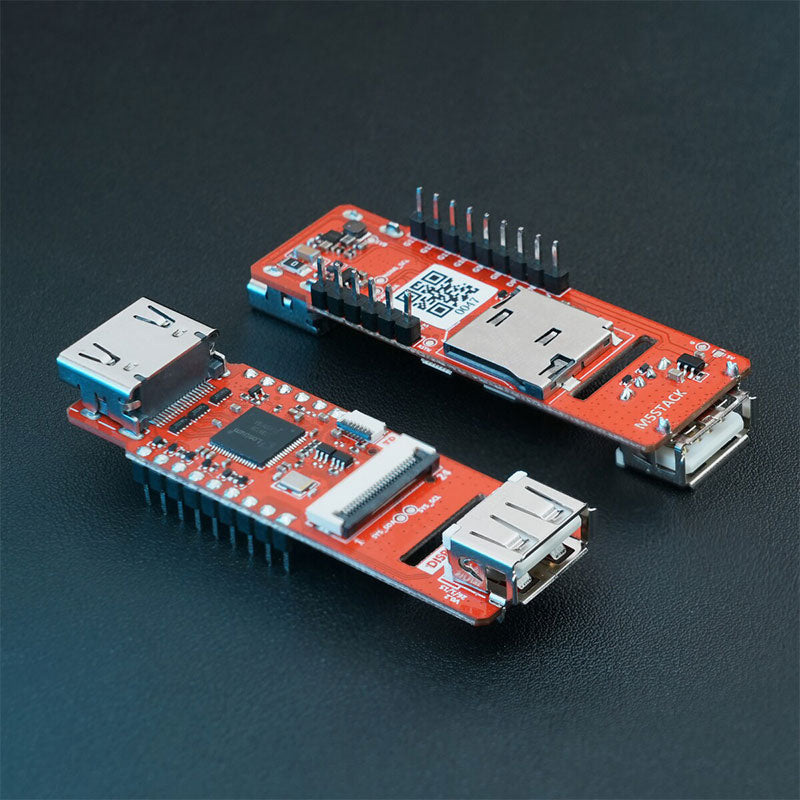

- Adapt to the extended interface power supply and communication of Unit PoE-P4.
- Specification parameters: power input DC5V (powered by Unit PoE-P4); standby power consumption is 74.55mA; the working power consumption is 186.83mA for 1080P at 30Hz.

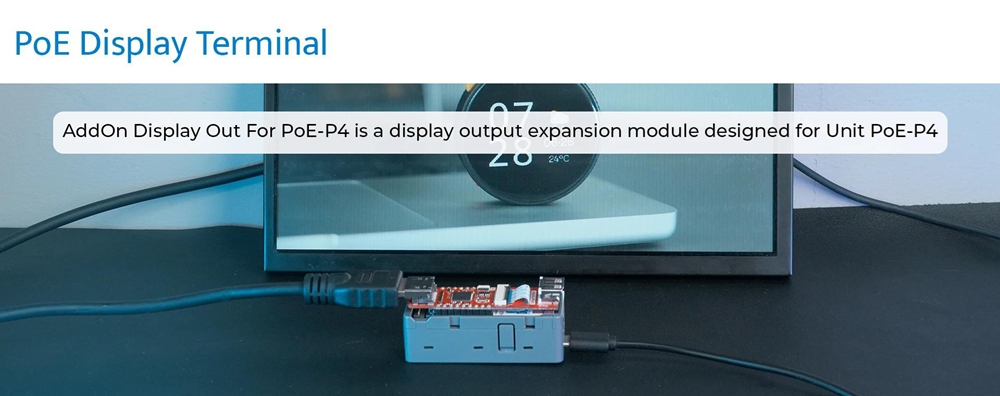

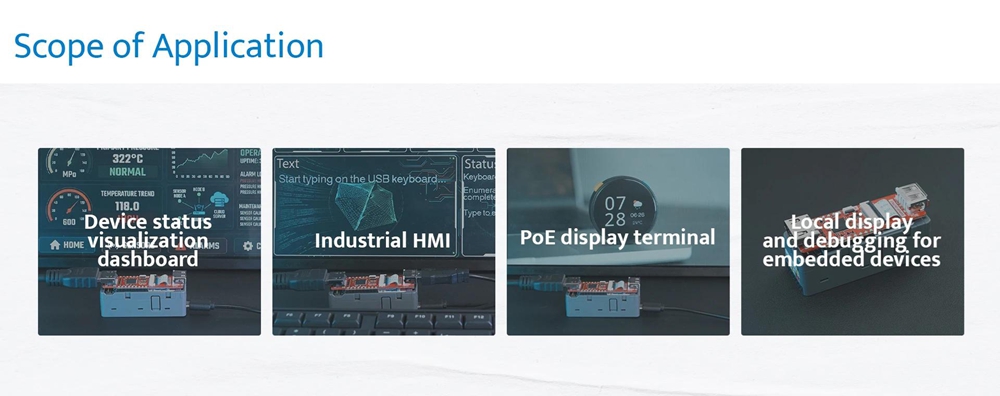

- Application scenarios: Suitable for POE display terminals, industrial HMI, device status visualization dashboards, human-machine interaction control panels with touch displays, and local display and debugging of embedded devices.

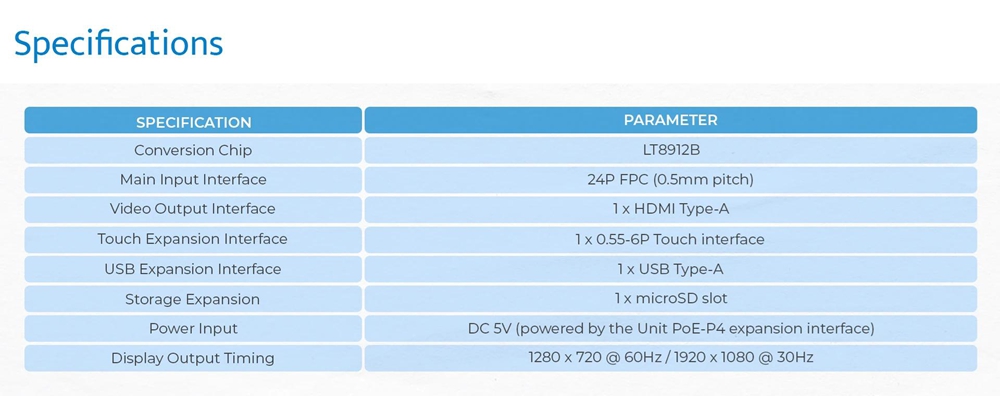

Specifications:
- Conversion chip: LT8912B

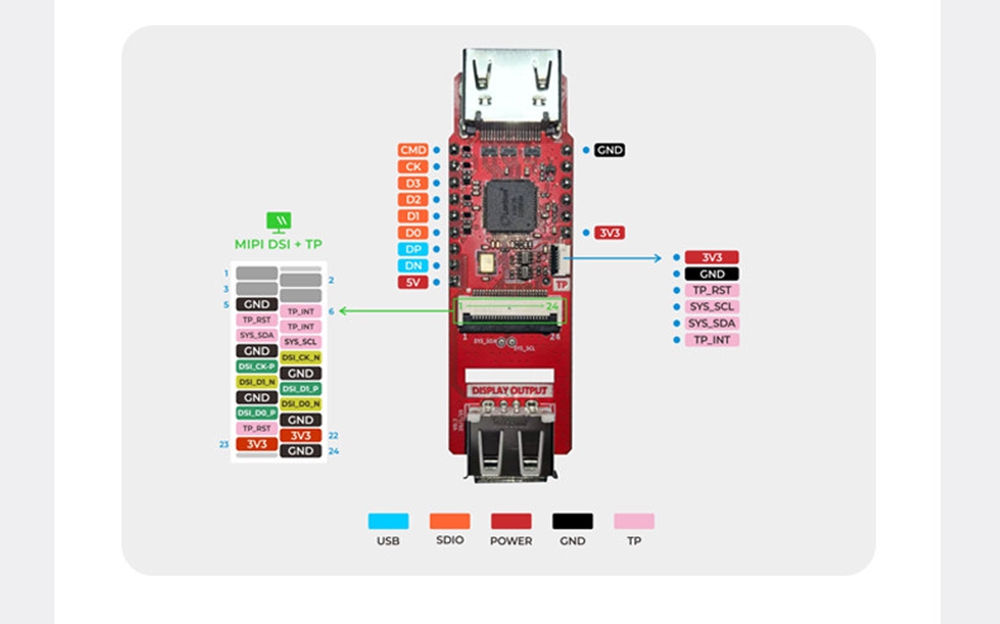

- Main input interface: MIPI DSI 2-Lane / SYS SDA / SYS SCL / TP_INT / TP_RST / USB1_DP / USB1_DN / SDIO / RESET_N
- Video output interface: 1 x HDMI-compatible Type-A
- Touch expansion interface: 1 x 0.55-6P Touch interface
- USB expansion interface: 1 x USB Type-A
- Storage expansion: 1 x Micro SD slot
- Power supply input: DC 5V (powered by Unit PoE-P4 expansion interface)
- Display output timing sequence: 1280 x 720 at 60Hz / 1920 x 1080 at 30Hz
- Standby power consumption: DC 5V at 74.55mA
- Working power consumption: DC 5V at 186.83mA

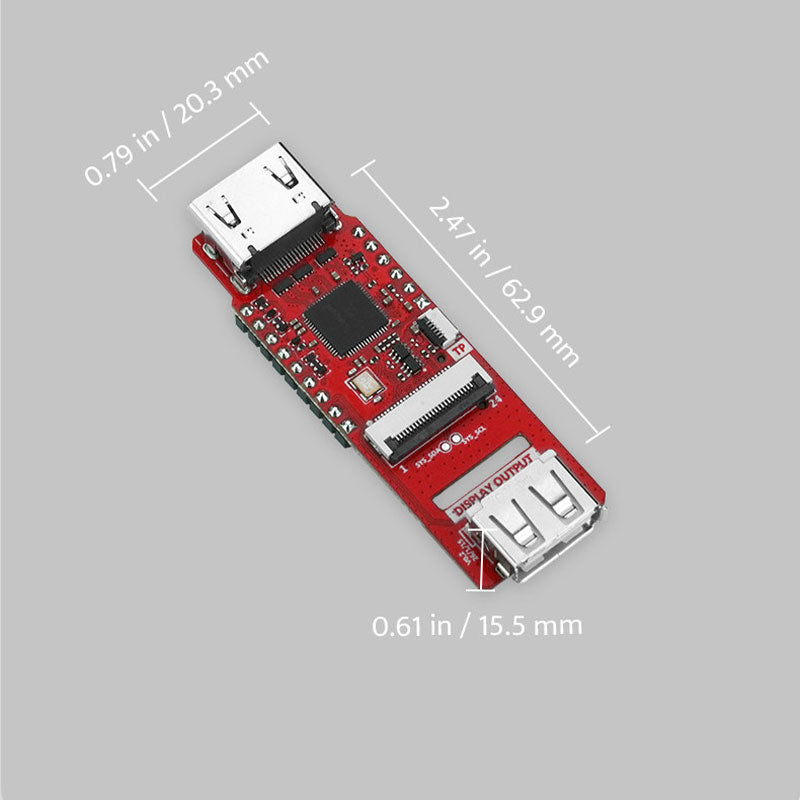

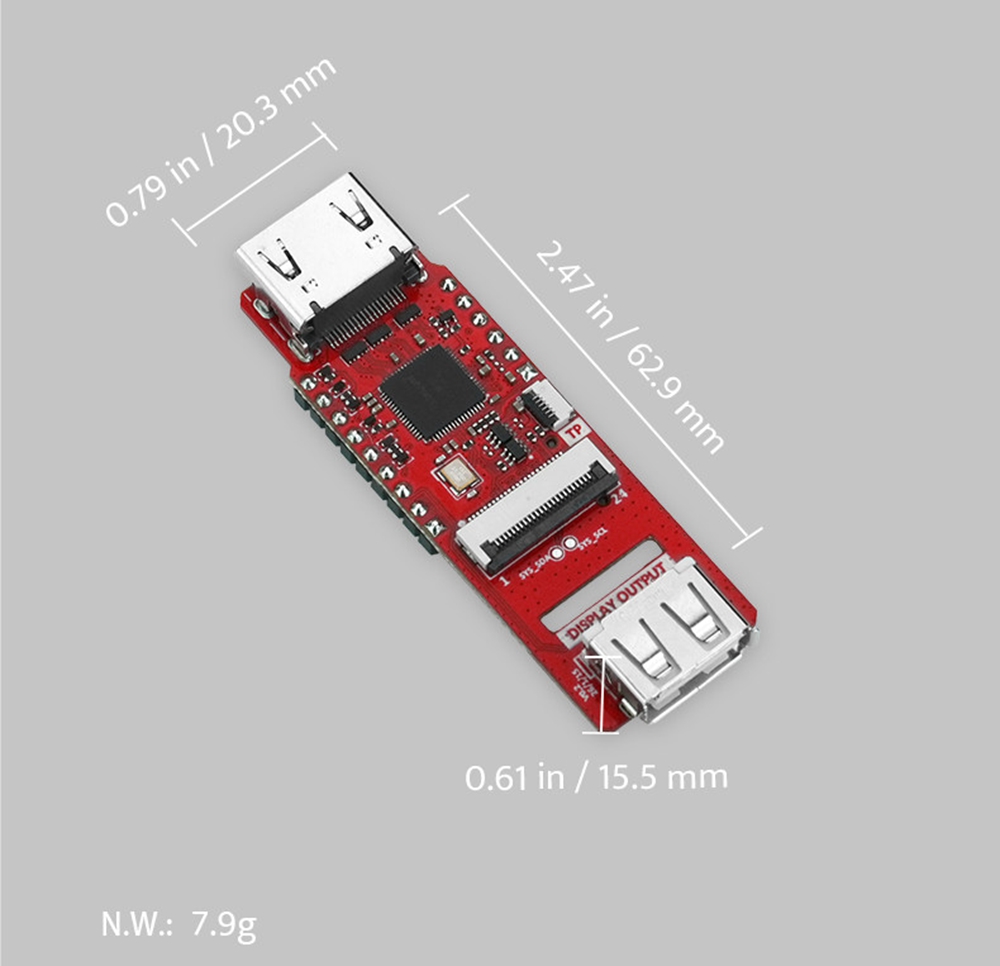

- Product size: 20.3 x 62.9 x 15.5mm
- Net weight: 7.9g

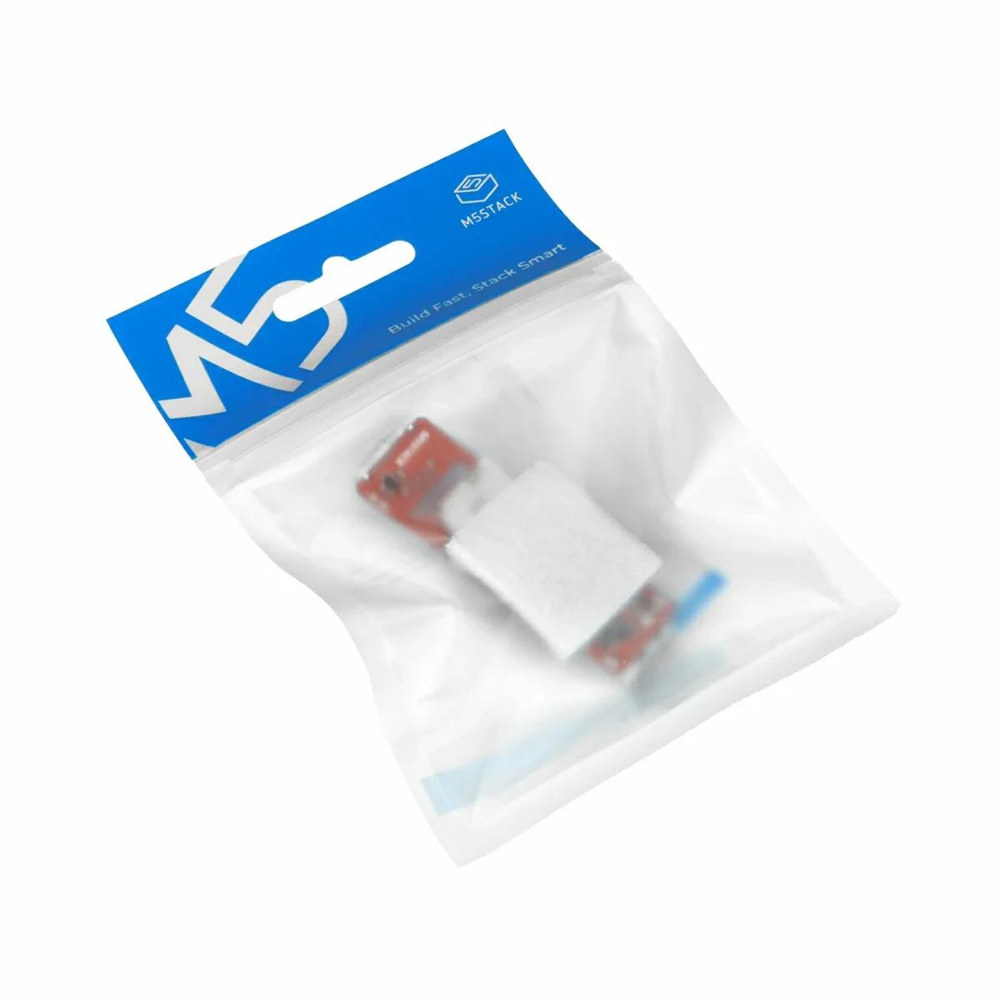

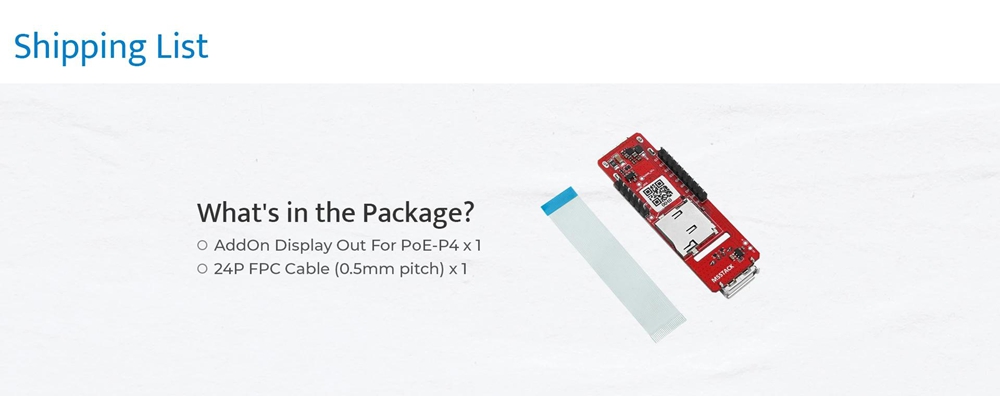

Package Included:
- 1 x AddOn Display Out
