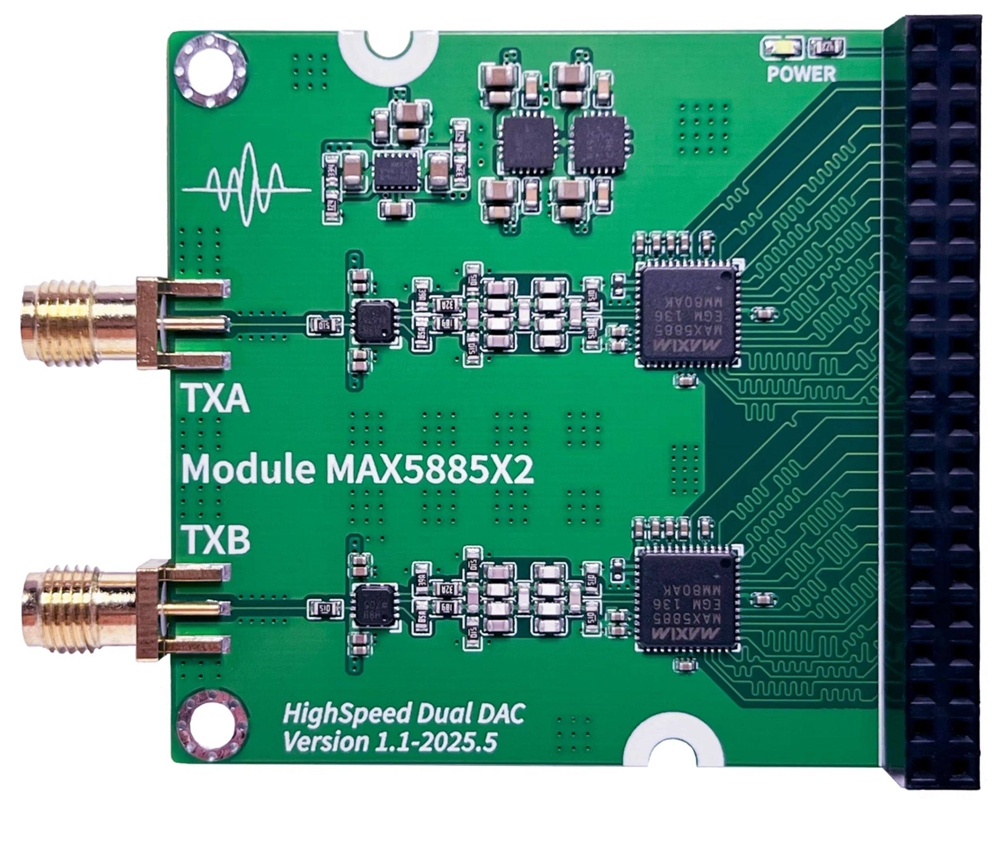

MAX5885 Dual Channel 16Bit High Speed DAC Module Arbitrary Wave Generator DDS Development Board for RIGUKE/ALINX/MEYESEMI FPGA

Specification:
- Model: MAX5885
- Channel number: dual channel
- Bit: 16-bit
- Maximum sampling rate: 200Msps
- Analog input range: 500mVpp at 50 ohm
- Input filter bandwidth: 60MHz
- Input port impedance: 50 ohm
- Power supply voltage: 5V

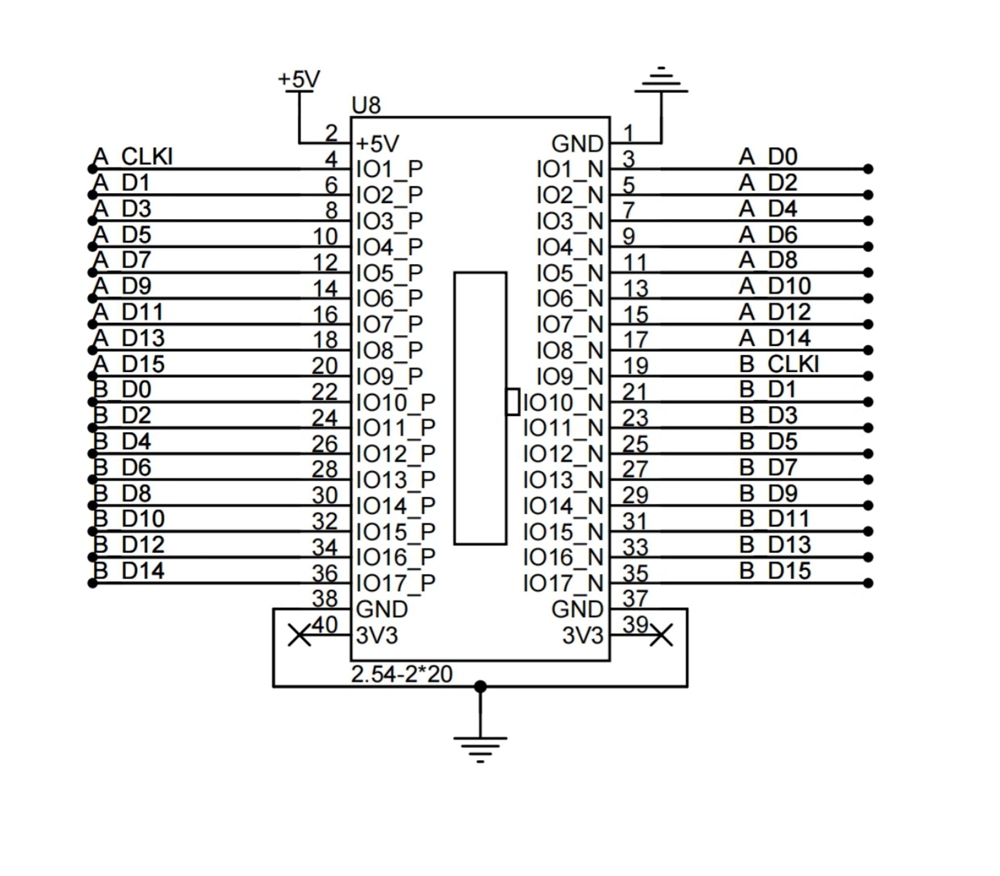

- Connector type: 40 Pin (compatible with ALINX)

Package Included:
- 1 x DAC Module
