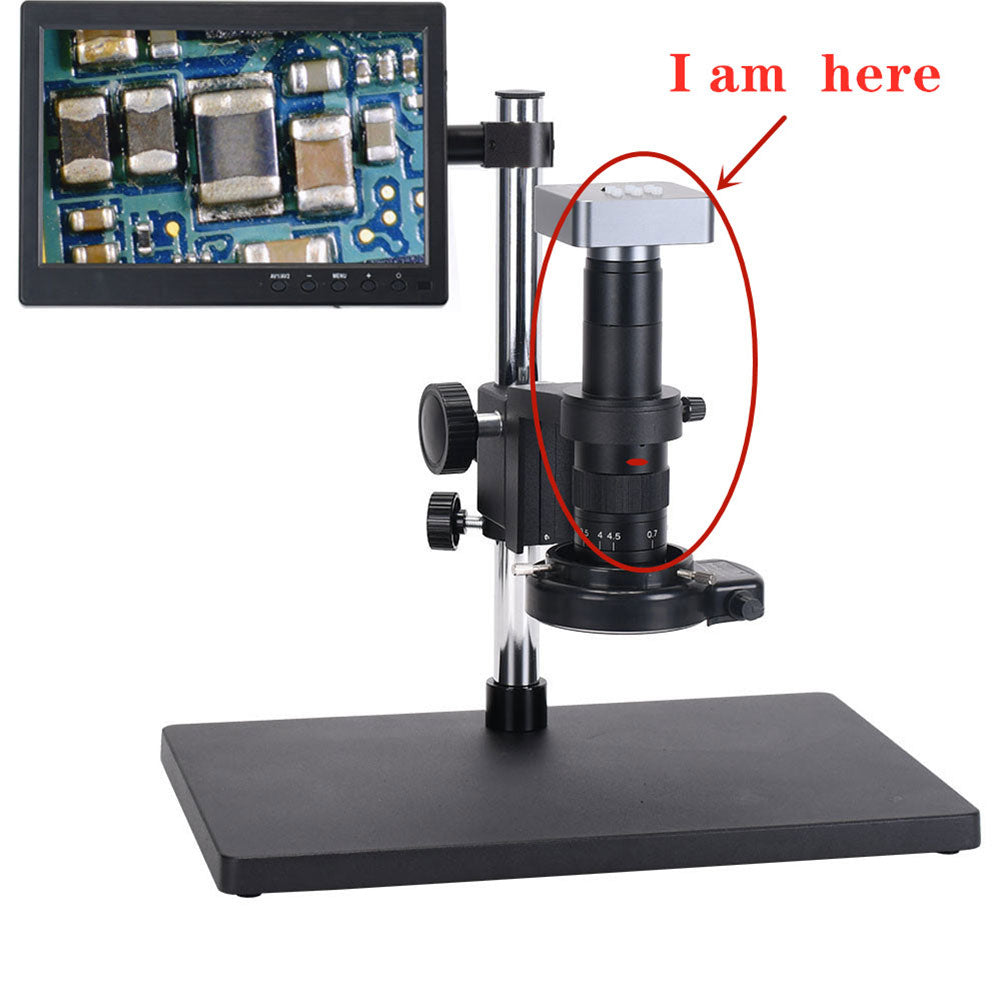

Microscope Video Camera USB Camera 48MP FHD Camera V8 180X C Mount Lens For Phone PCB Soldering

Microscope Video Camera USB Camera 48MP FHD Camera V8 180X C Mount Lens For Phone PCB Soldering

Specifications:
- Module: 1135
- Sensor Panasonic: 48 million pixels for CMOS
- Optical format: 1/2.3 inch
- Pixel size: 1.335μm x 1.335μm

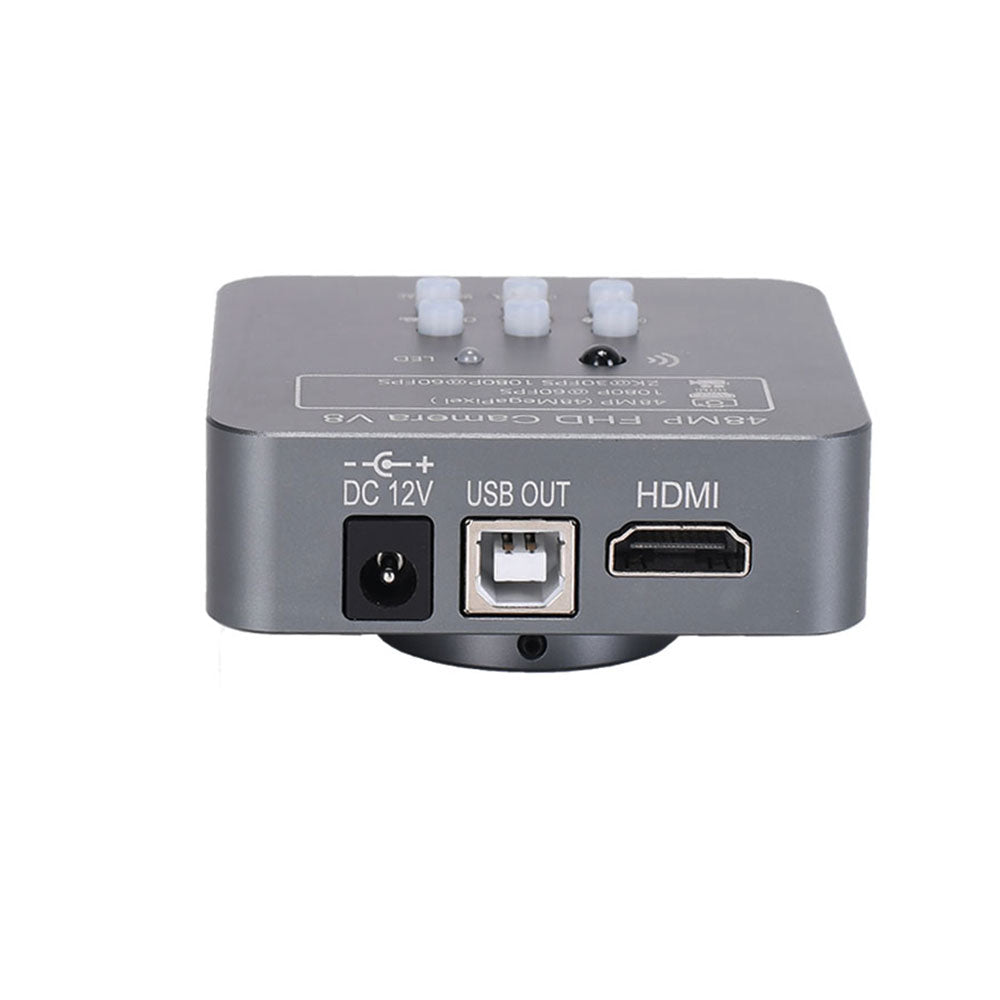

- Interface: HDMI (Type A). USB (Type B). TF Card
- HDMI Image resolution: 48MP
- Video record resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI resolution: 1920*1080p, 60FPS
- Can output with USB at the same time
- HDMI scale: Support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive free): 1920*1080 at 30FPS; 1280*720 at 30FPS; 640*480 at 30FPS
- TF card: MAX. 128GB
- AWB: WB color correction/Automatic/Manual
- R.G.B value setting independent
- Exposure: Automatic/Manual. AE value can set
- Cross lines: 8 lines. Can set color & width & position
- Scale mark lines: 2 lines
- Dotted lines: 2 lines. Can set color & width & position
- Sharpness Contrast Color gain: Support
- Mono Negative: Support
- Mirror: Horizontal vertical mirror
- Language: English/simplified Chinese
- Digital Zoom: Support
- IR remote control: Support
- Voltage in: DC 12V 55-21mm size
- Power consumption: MAX. 0.15W 12V, 0.12A
- Lens interface: C/CS
- Net weight: 180g
- Camera size: 70*70*35mm

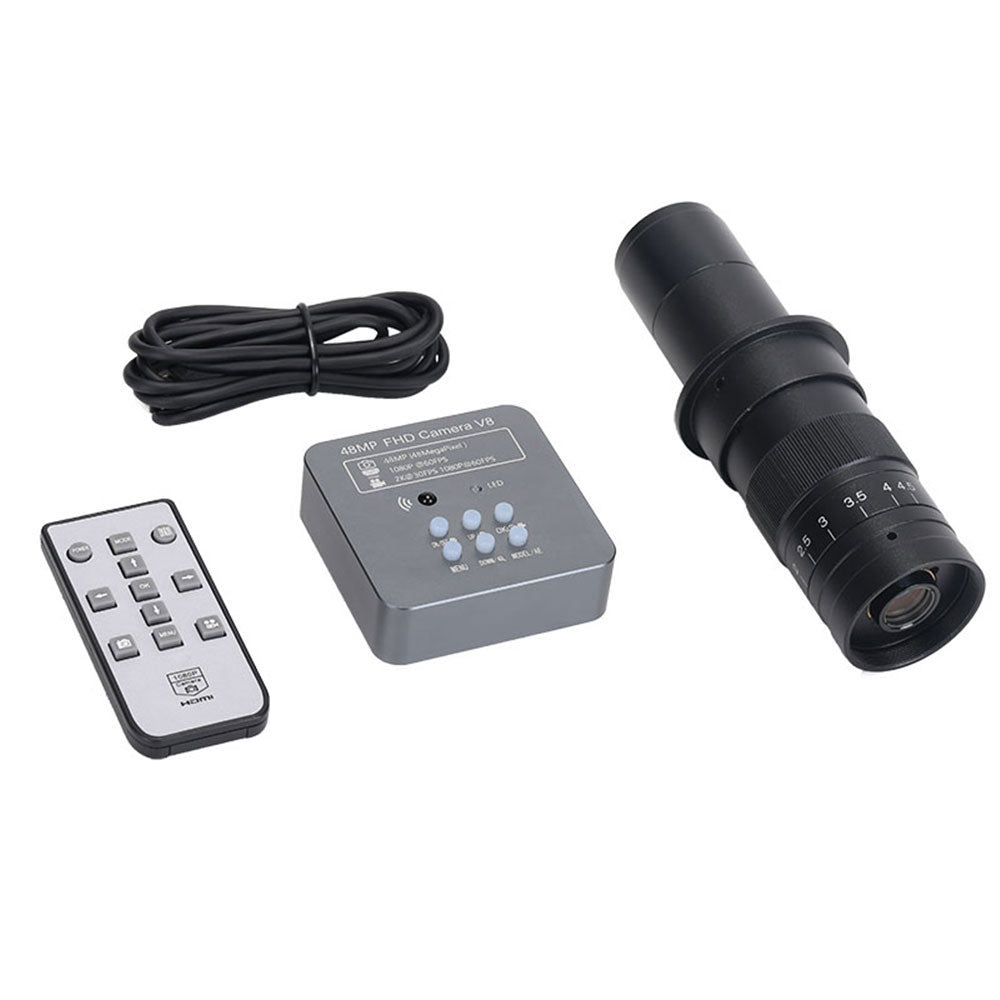

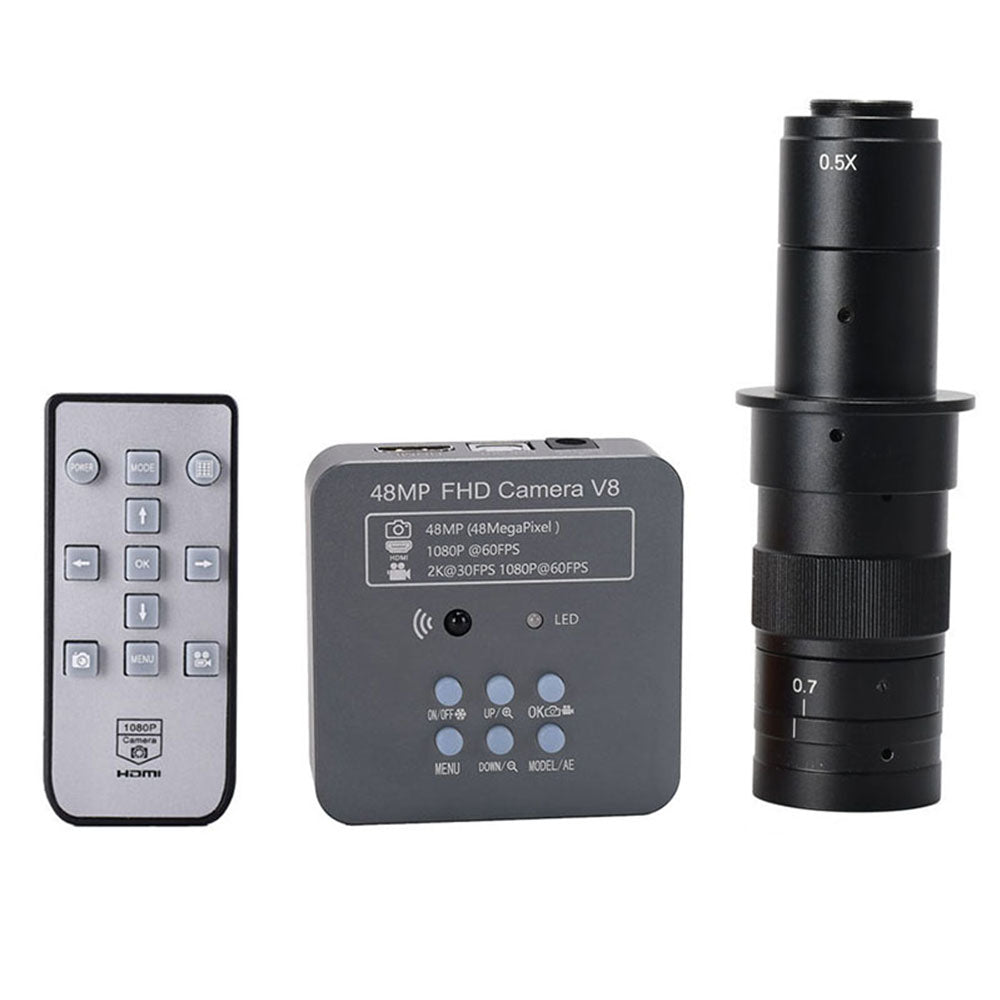

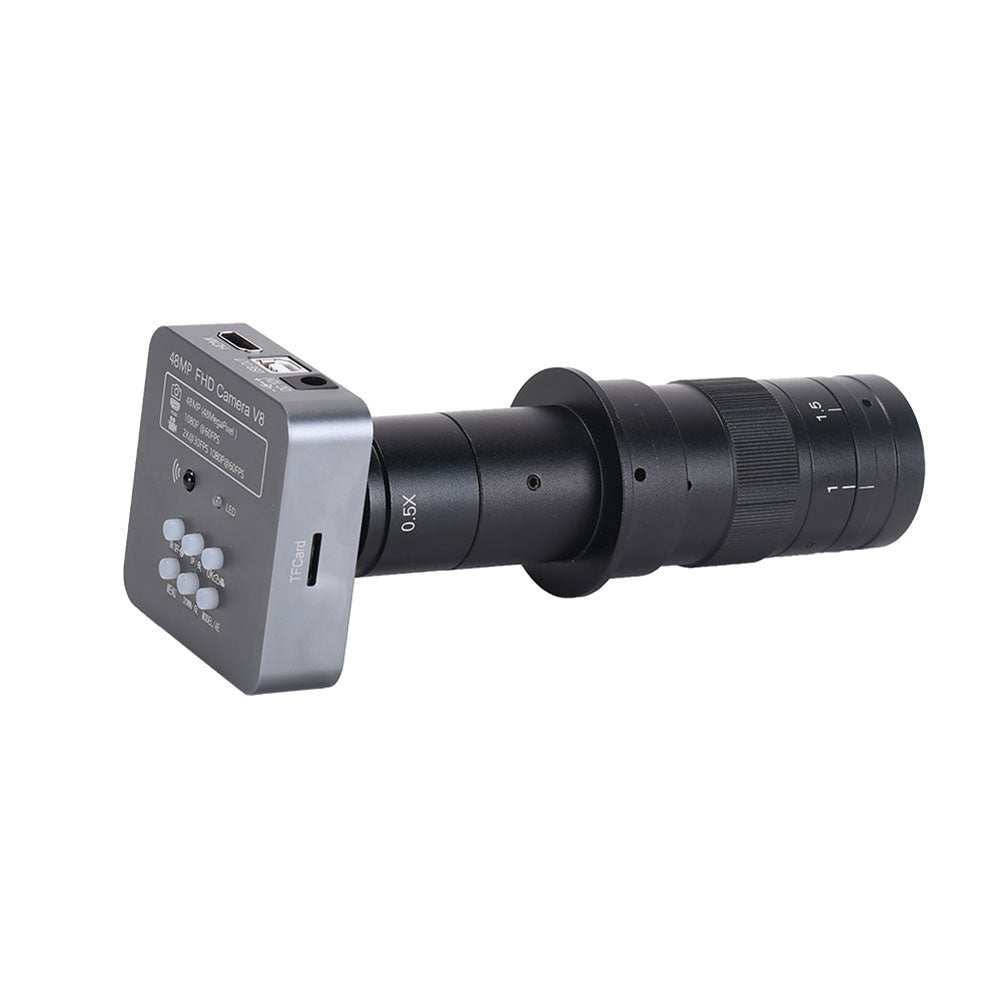

180X C-Mount Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7-4.5X (about 10-180X on the display)
- Size: 180mm (L) * 50mm (DIA.) (180x maximum working distance 11.5CM)

Questions & Solutions:
LCD no video or flicker
1. Check power supply. Check red LED be onlight. Press Power Key to Up it
2. Check lens cover. Increase the lighting

LCD have black bar Image warp
1. Change resolution of LCD
2. Change resolution of camera

Have dirty spot
1. Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

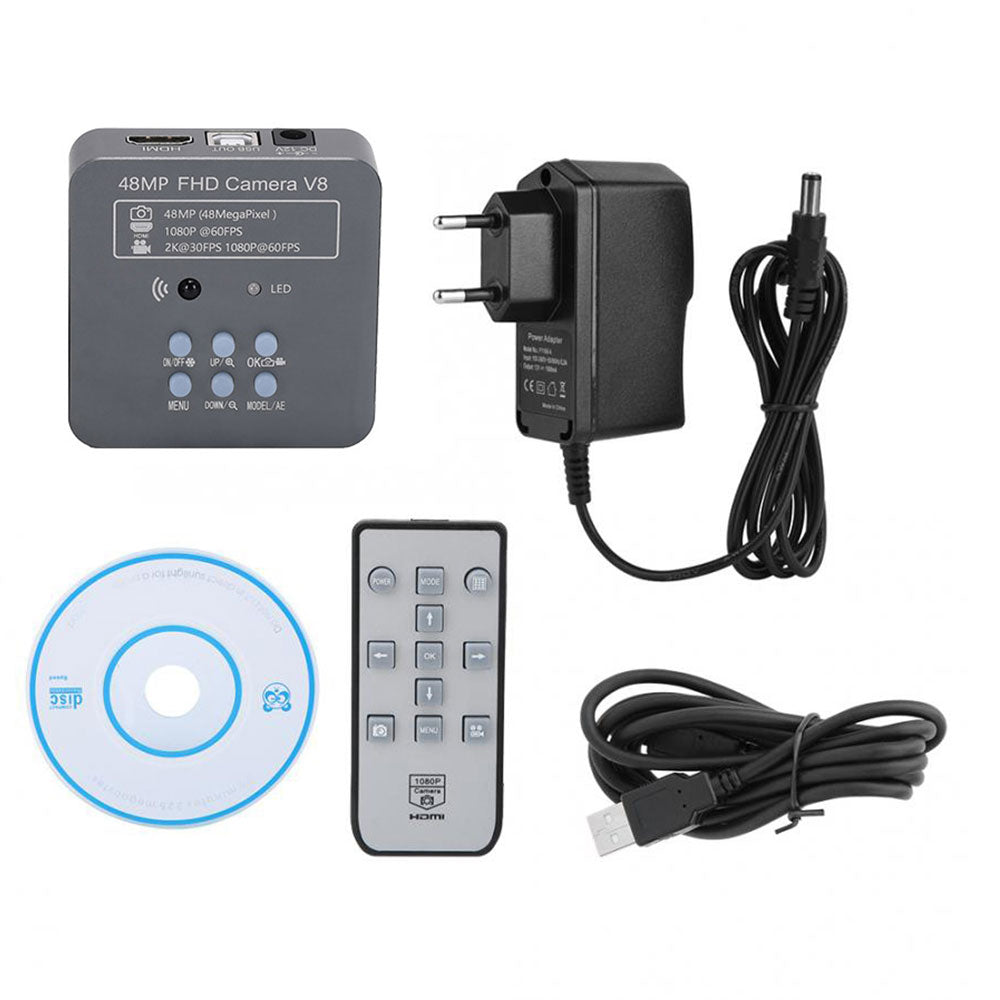

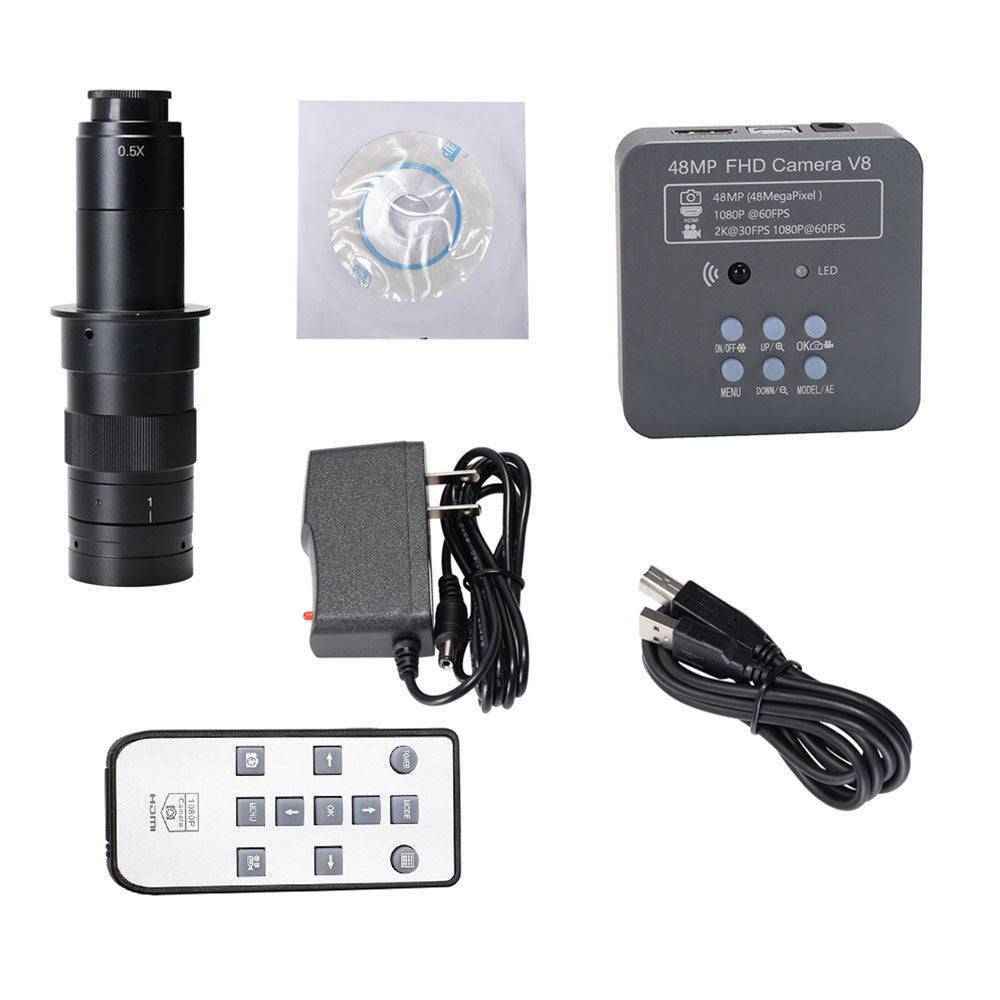

Package Included:
- 1 x 48MP Microscope Camera
- 1 x Software CD
- 1 x 180X C-MOUNT Lens
- 1 x Power Adapter
- 1 x IR Remote Control
- 1 x USB Cable
