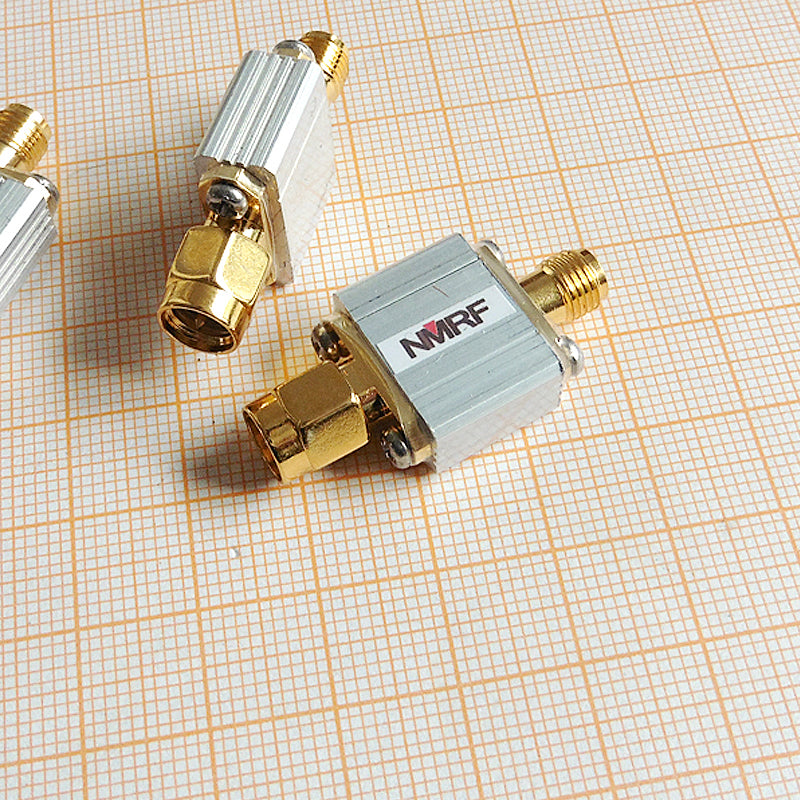

NMRF 2350MHz (2370MHz) RF Coaxial SAW Band Pass Filter FBP-2350s 50MHz Bandwidth SMA Connector

NMRF 2350MHz (2370MHz) RF Coaxial SAW Band Pass Filter FBP-2350s 50MHz Bandwidth SMA Connector

Description:
The filter is a surface acoustic wave filter with a bandwidth of 50MHz and a steep cut-off characteristic. It is used to optimize the performance of 2.4GHz (2350MHz, 2370MHz, etc.) receivers, etc. In addition, it effectively filters out out-of-band signals, reduces noise, and increases dynamic range.

Specifications:
- Model: FBP-2350s
- Impedance: 50 Ohms
- Center frequency: 2345 MHz
- Passband: 2320-2370 MHz
- In-band insertion loss: < 3 dB
- Maximum Carrying Power: 200 mW (23dBm)
- Connector: SMA-M and SMA-F

Package Included:
- 1 x SAW Filter

Frequency Response Chart:
