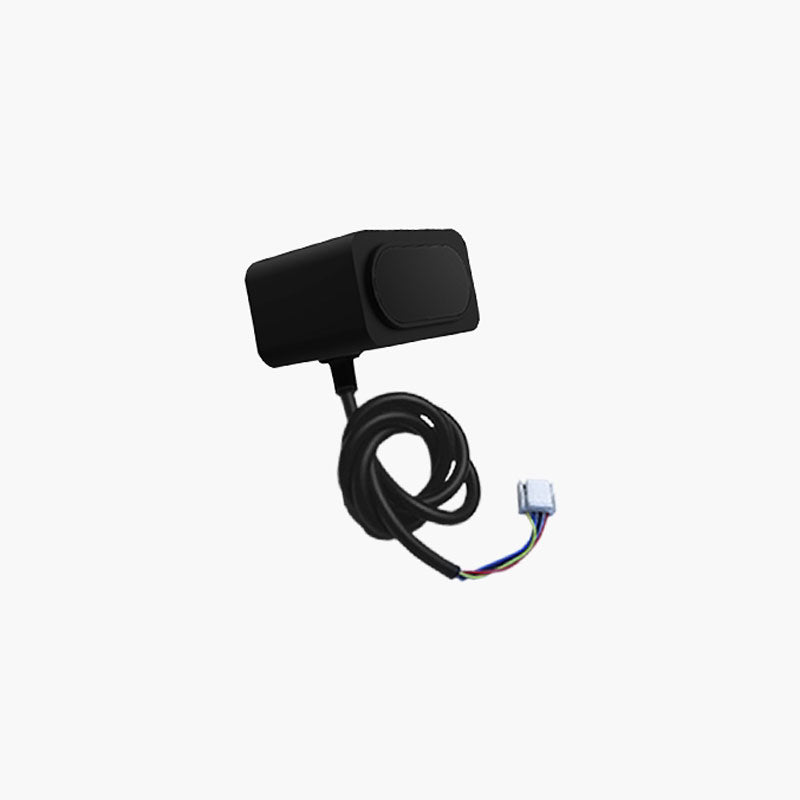

Nooploop TOFSense-F2 PH Laser Ranging Sensor dTOF Anti-glare 40M IP68 Radar Module (with Adapter Kit)

Description:
TOFSense-F2 PH is a single-point laser ranging sensor based on dTOF technology. With an IP68 protection rating, small size, and light weight, it features a ranging range of 0.05m~40m, a data update rate of up to 100Hz, and a 1-2° FOV (field of view). It supports UART, IIC, and IO communication interfaces. Its application scenarios include mobile obstacle avoidance, detection and measurement, and human-computer interaction.

Features:
* High Protection: IP68 Waterproof
* Ultra-Long Distance: up to 40m
* High Precision: 3cm
* Communication Interfaces: UART/IIC/IO
* Strong Light Resistance: 100Klux
* Small Size & Light Weight
* Upper Computer Assistant: The NAssistant upper computer assistant is provided free of charge and can run on Windows and Linux platforms. It enables functions such as sensor configuration, waveform monitoring, data analysis (e.g., standard deviation and mean calculation), data recording, export and playback, and firmware upgrade.

Development Support:
Upper Computer Debugging Assistant
* The NAssistant upper computer debugging assistant supports running on Windows and Linux platforms, enabling functions such as sensor configuration, waveform monitoring, data recording, export and playback, and firmware upgrade.

Rich Development Toolkits
* Provides engineering code for mainstream microcontrollers such as STM32/Ar-duino, and supports platforms like the ROS robot operating system and APM open-source autopilot, significantly shortening your project development cycle.

Solution Cases:
Intelligent Conveyor Detection
* The laser radar installed at a fixed point detects the precise distance of goods on the conveyor line to count the quantity of goods. By measuring multiple distance status indicators with an area array laser radar, the shape and category of goods can be identified, significantly reducing misjudgments caused by environmental interference. Common application scenarios include warehousing logistics and automated production lines.

Hydraulic Material Pile Detection
* The laser radar installed at the top opening detects material level height information downward. The area array laser radar can further measure multiple heights such as the center and edge inside the silo, thereby distinguishing the shape of the material surface (concave, convex, flat). Common application scenarios include intelligent trash bin overflow and opening/closing control, silo grain storage, and mineral pile detection.

Smart Traffic Detection
* The laser radar installed on the road gantry counts the number of passing vehicles. The driving speed can be obtained through ranging from multiple laser radars at different times; when installed on the garage ceiling, it can determine the usage status of parking spaces. Common application scenarios include traffic flow statistics, vehicle speed measurement, and parking space statistics.

Drone Altitude Hold
* Install a laser radar at the bottom of the drone to detect the distance to the ground, thus achieving drone altitude hold. The area array laser radar measures the unevenness of the ground, reducing altitude hold fluctuations caused by non-horizontal ground. Commonly used in agriculture, surveying and mapping, inspection, and consumer-grade drones.

Robot Obstacle Avoidance
* Install one or more laser radars in the robot's detection area. The daisy-chain ranging mode reduces the occupation of communication interface resources, increasing the detection range and safety redundancy. Common application scenarios include automatic obstacle avoidance for commercial cleaning robots, meal delivery robots, and forklift anti-collision.

Smart Life
* Integrate laser radar into various smart hardware devices to realize intelligent functions, such as integrating into sprint timing equipment to monitor athletes' speed, integrating into fitness equipment to monitor fitness data, and integrating into automatic door smart devices to realize automatic opening and closing.

Specifications:
* Product Model: TOFSense-F2 PH
* Product Weight: 12.7g

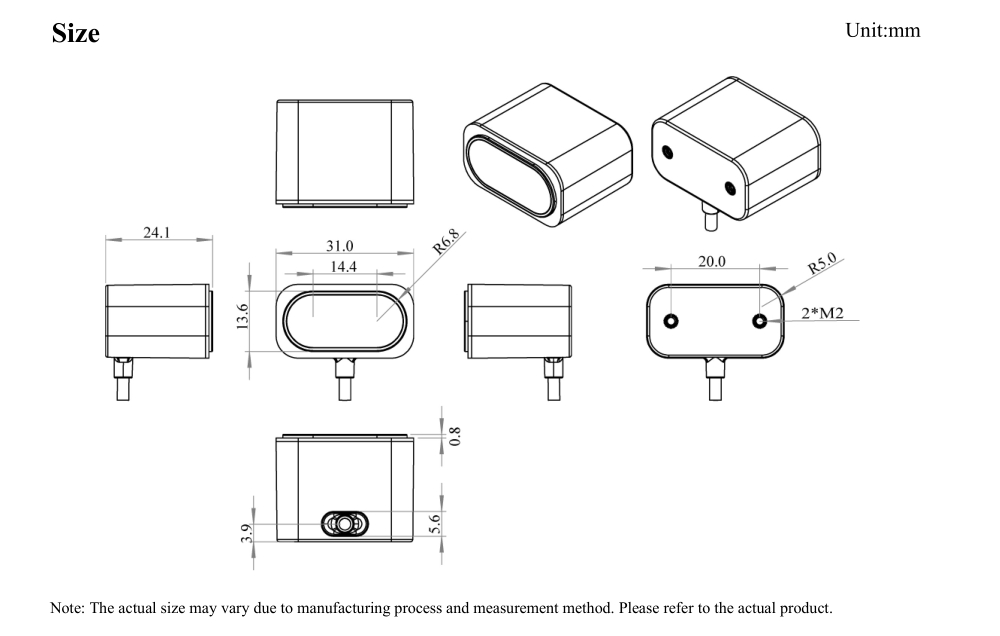

* Product Dimensions: 31.0 x 24.1 x 16.6mm
* Communication Interface: UART/IIC/IO
* IIC Default Slave Address: 0x08
* Refresh Rate: 100Hz
* Typical Ranging Range: 0.05~40m
* Typical Ranging Accuracy:
   ** Standard Deviation: 3mm
   ** Root Mean Square Error: 3cm
* Wavelength: 905nm
* Ambient Light Immunity: approx. 100K LUX illuminance
* Field of View (FOV): 1~2°
* Supply Voltage: 4.3~5.2V
* Power Consumption: 250mW
* Operating Temperature: -10~60℃
* Protection Rating: IP68

Packing List (Depending on Selected Configuration):
Without Adapter Kit:
* 1 x TOFSense-F2 PH

With Adapter Kit:
* 1 x TOFSense-F2 PH
* 1 x NUTT-B
* 1 x GH1.25-DP2.54 DuPont Cable
* 1 x GH1.25 Bidirectional Connector

Packaging Details:
* Package weight: 0.15kg
