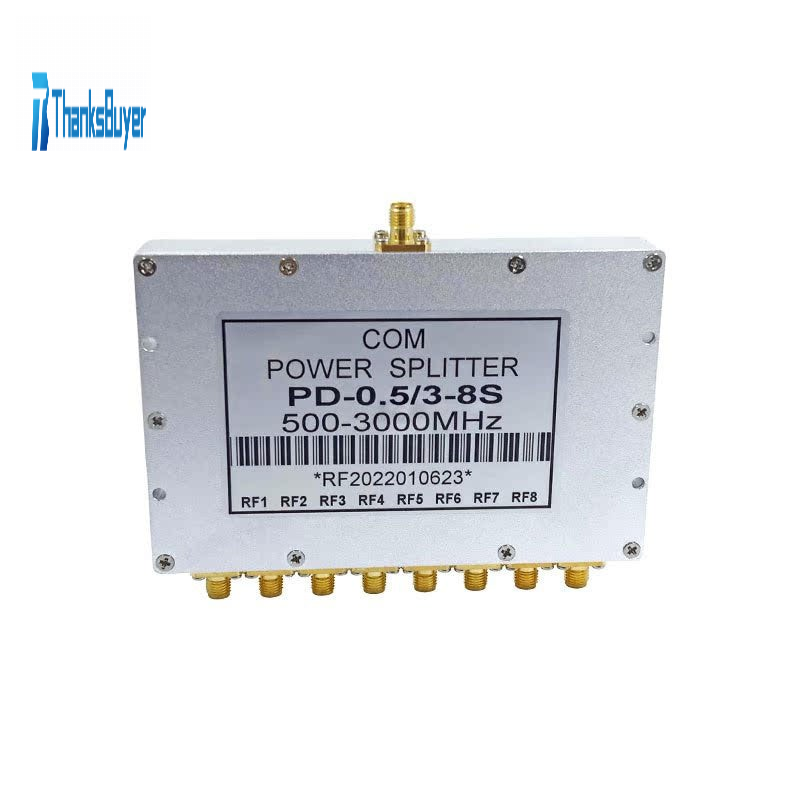

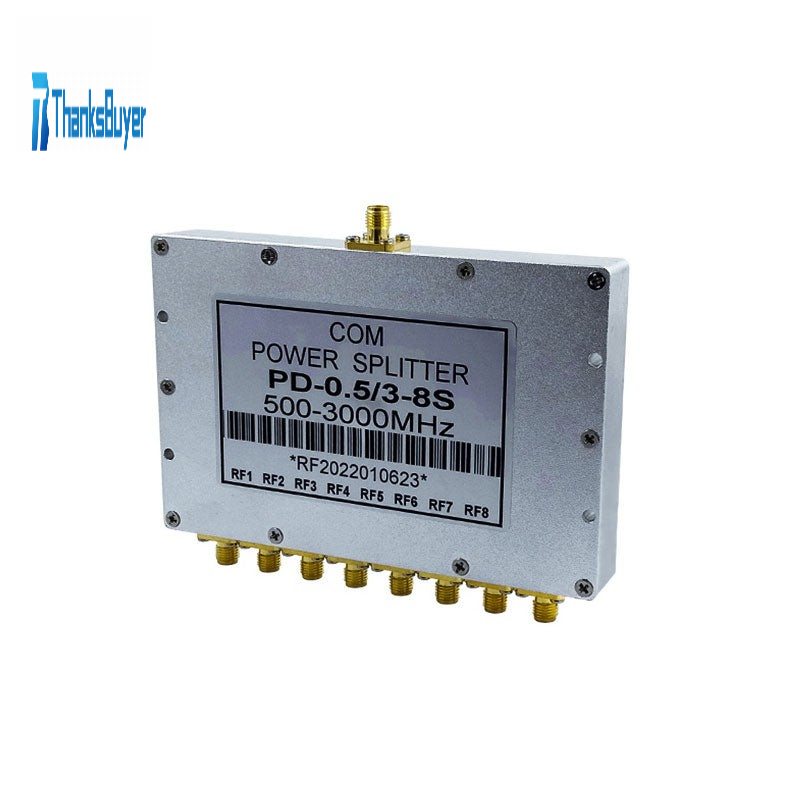

PD-0.5/3-8S 500-3000MHz 8-Way Microstrip Power Divider 2.4G Wifi Power Splitter RF Power Combiner

PD-0.5/3-8S 500-3000MHz 8-Way Microstrip Power Divider 2.4G Wifi Power Splitter RF Power Combiner

Features:
- SMA microstrip power divider with 1 input and 8 outputs
- Frequency: 500-3000MHz
- Fixing holes make it easy and convenient to install
- With SMA-K connectors
- Widely used: It can be applied to CDMA, LTE, WIFI2.4 and L-band (1.0~2.0GHz). And it can be extended to production and testing industries, including GPS, BD and GLONASS civil frequency bands

Specifications:
- Frequency range: 500-3GHz
- Insertion loss (including distribution ratio): ≤10.2dB
- Isolation: ≥14dB at 500-700MHz; ≥20dB at 700-3000MHz
- Input VSWR: ≤1.35
- Output VSWR: ≤1.3
- Phase balance: ±5°
- Impedance: 50Ω
- Interface type: SMA-K
- Operating temperature (°C): -30°C to +70°C
- Dimensions: 118mm x 77mm x 16.25mm/4.6" x 3" x 0.6"

Package Included:
- 1 x Power Divider

Packaging Details:
- Weight: 0.35kg
