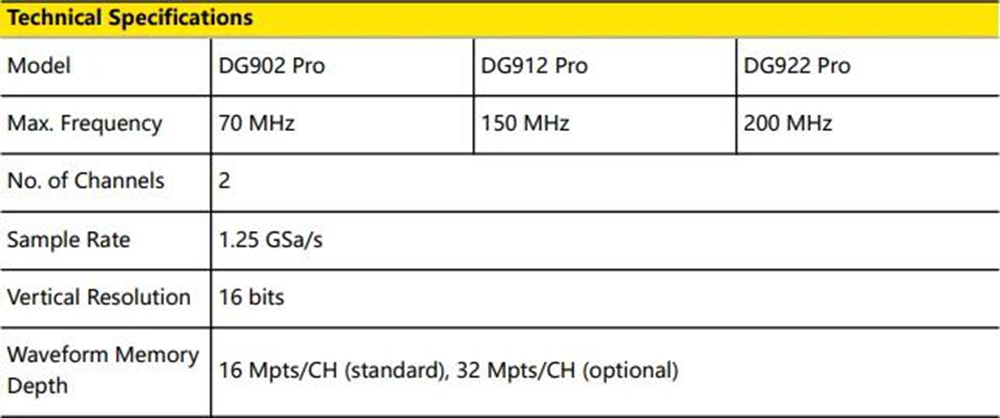

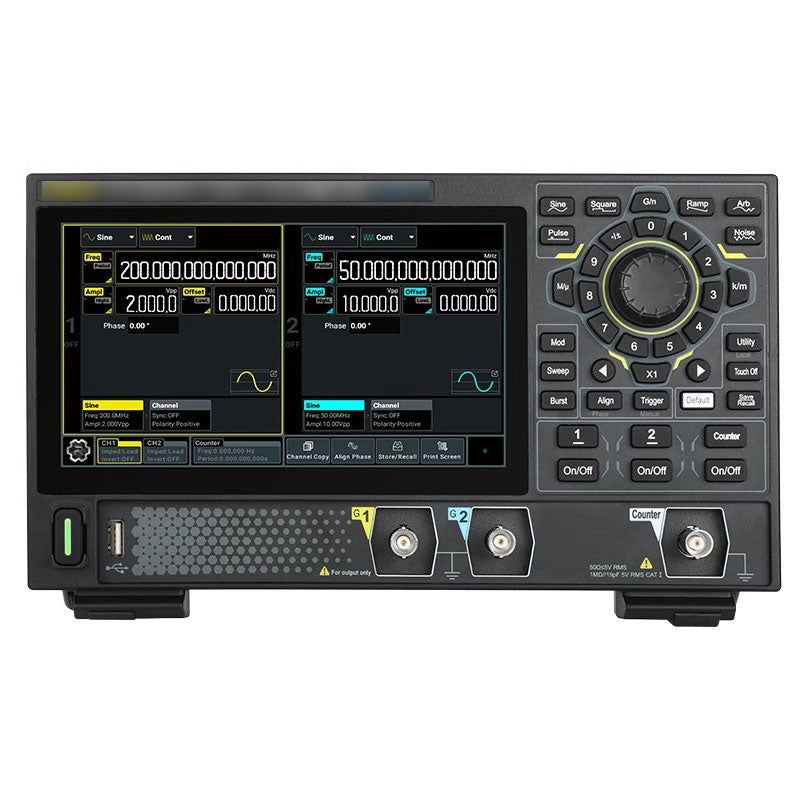

RIGOL DG902 Pro DG912 Pro DG922 Pro 1.25GSa/s 16Bit Portable Function Arbitrary Waveform Generator 7-Inch Touch Screen

Introduction:
- DG900 Pro series function/arbitrary waveform generator is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience.

Key Features:
- Outstanding precision: 1.25GSa/s sampling rate, 16-bit vertical resolution, easy to create high fidelity signals.

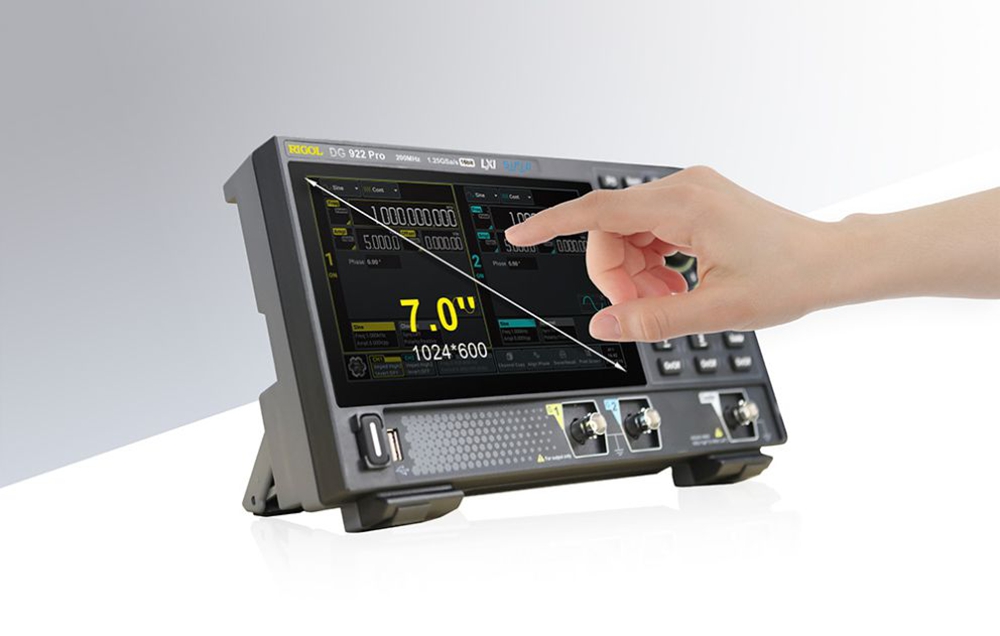

- 7-inch color touch screen: convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

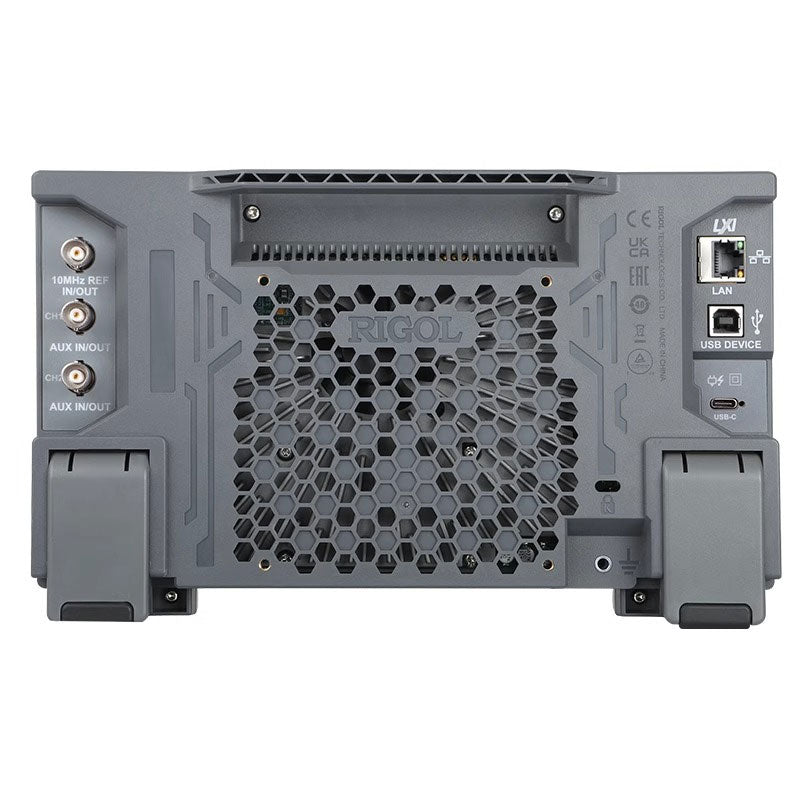

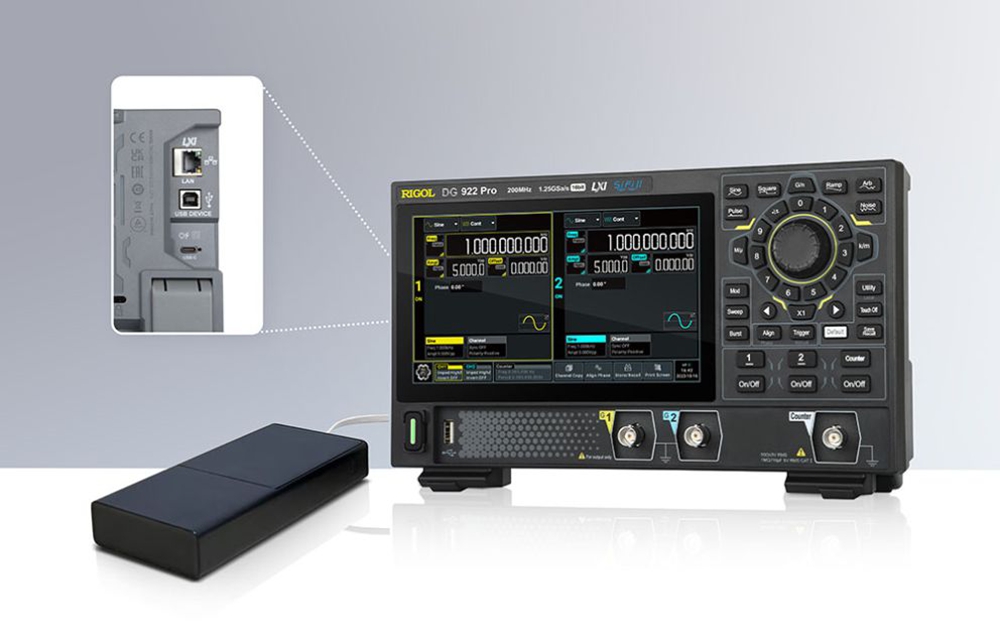

- Support Type-C power supply: Type-C power interface, supports mobile power supply, can cope with on-site testing.

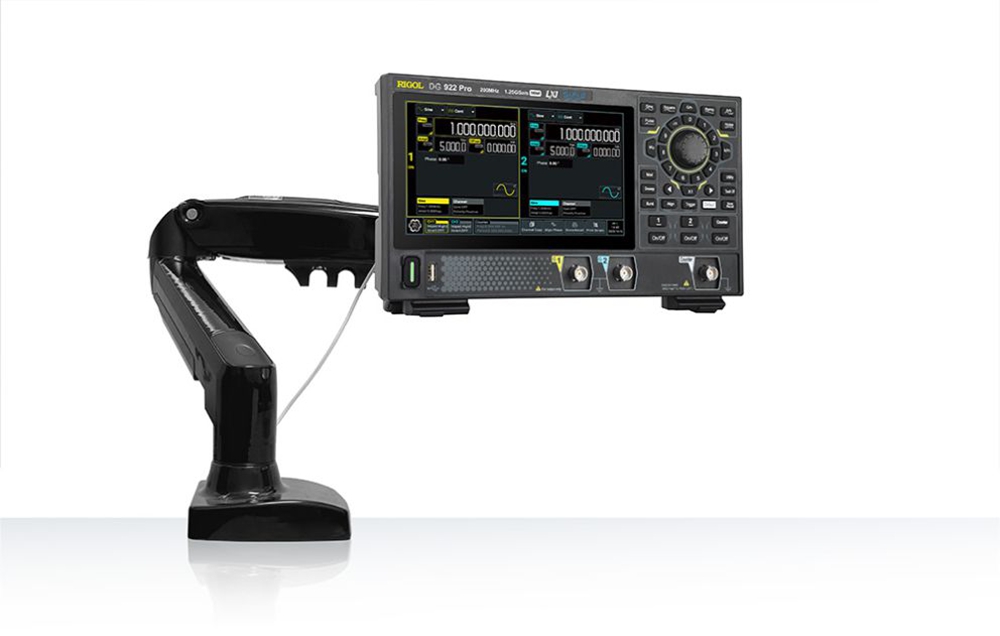

- Smart appearance: 266mm (width) x 165mm (height) x 63mm (depth); DG900 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

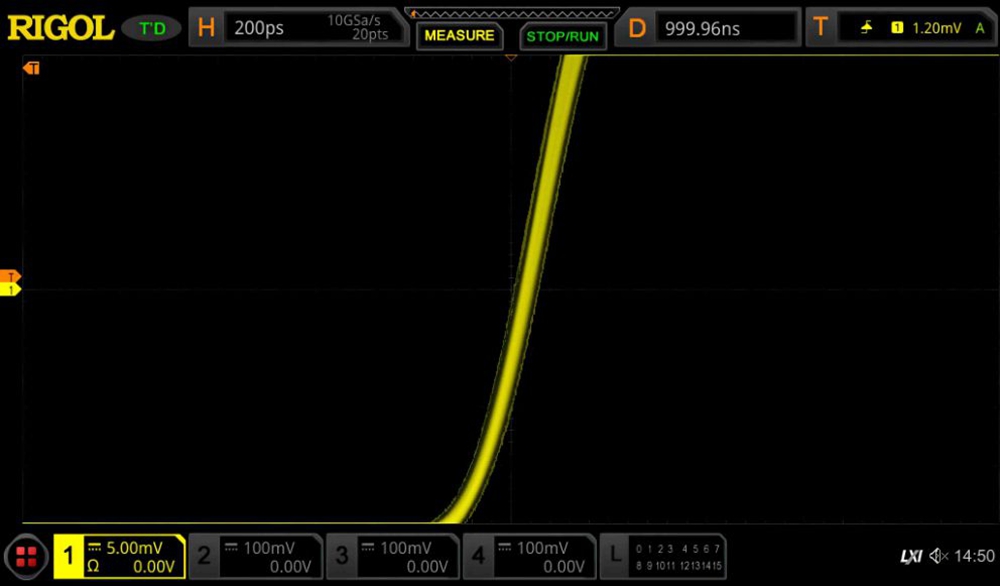

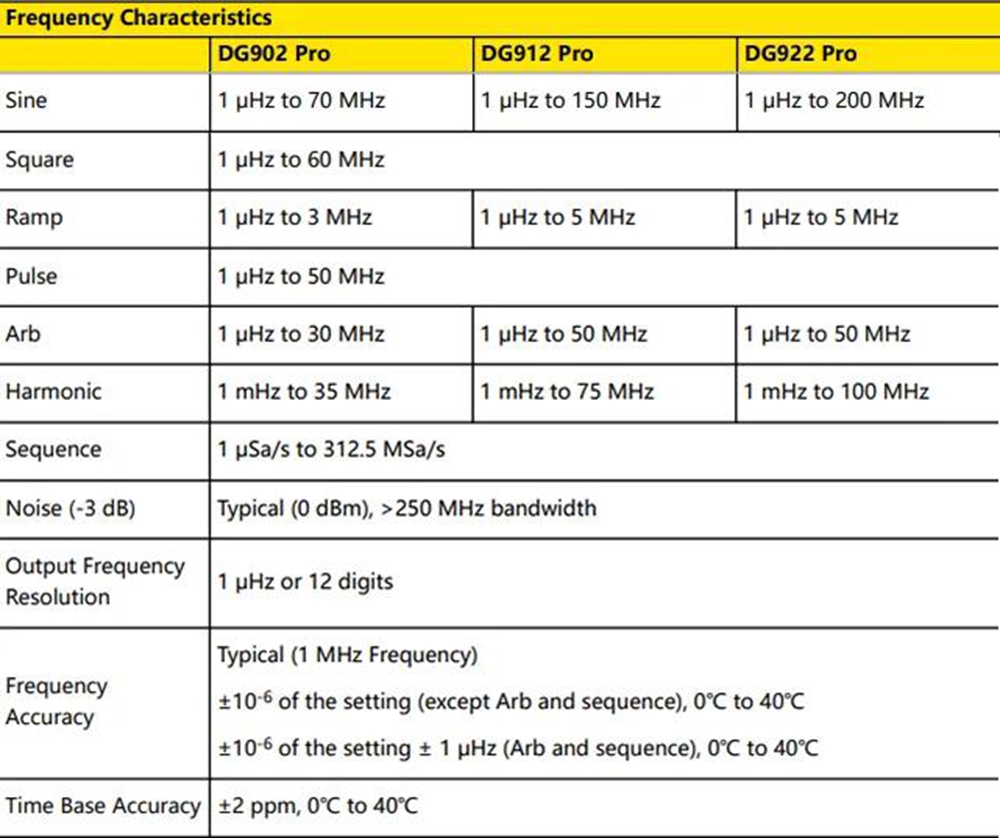

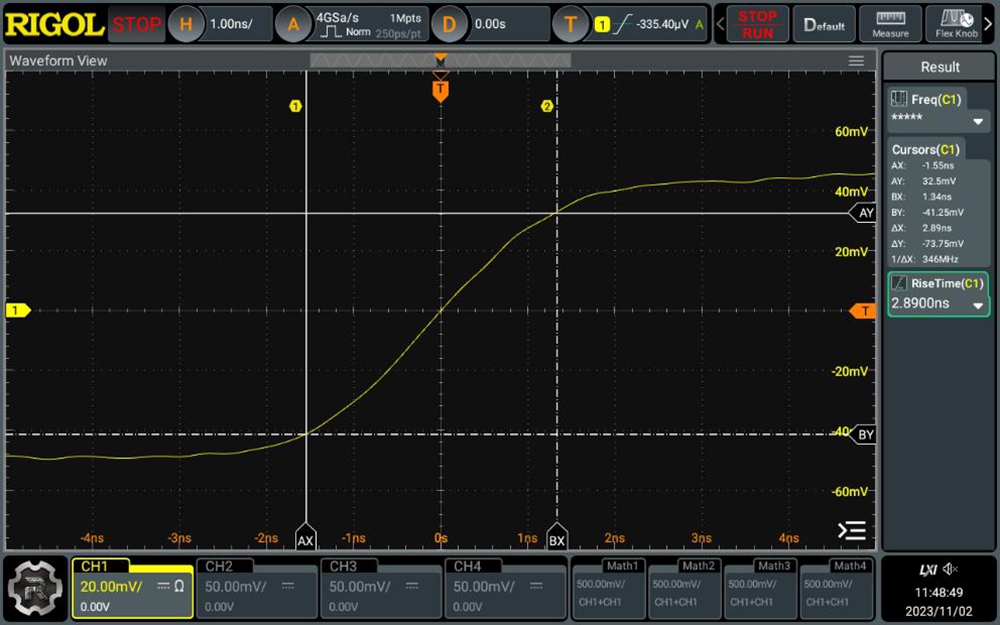

- Fast rising edge: 60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

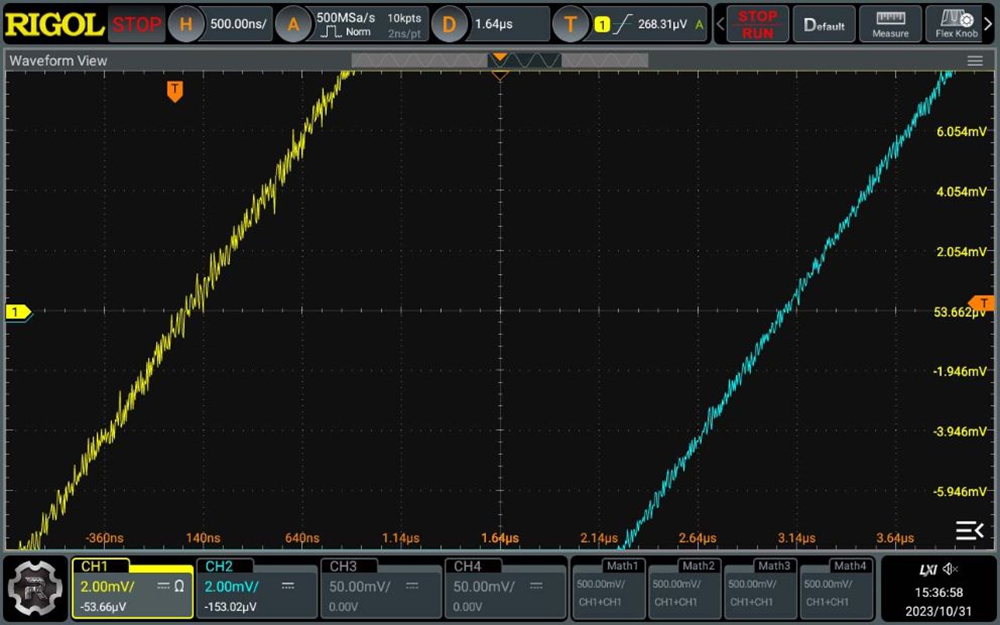

- Ultra low signal jitter: Based on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

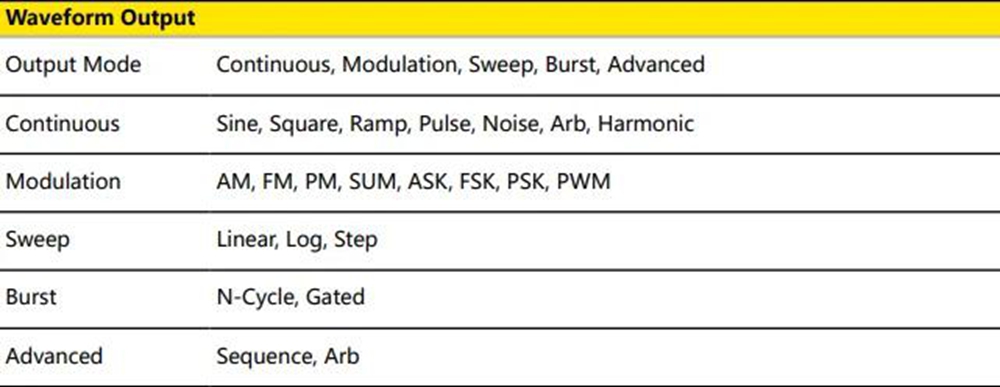

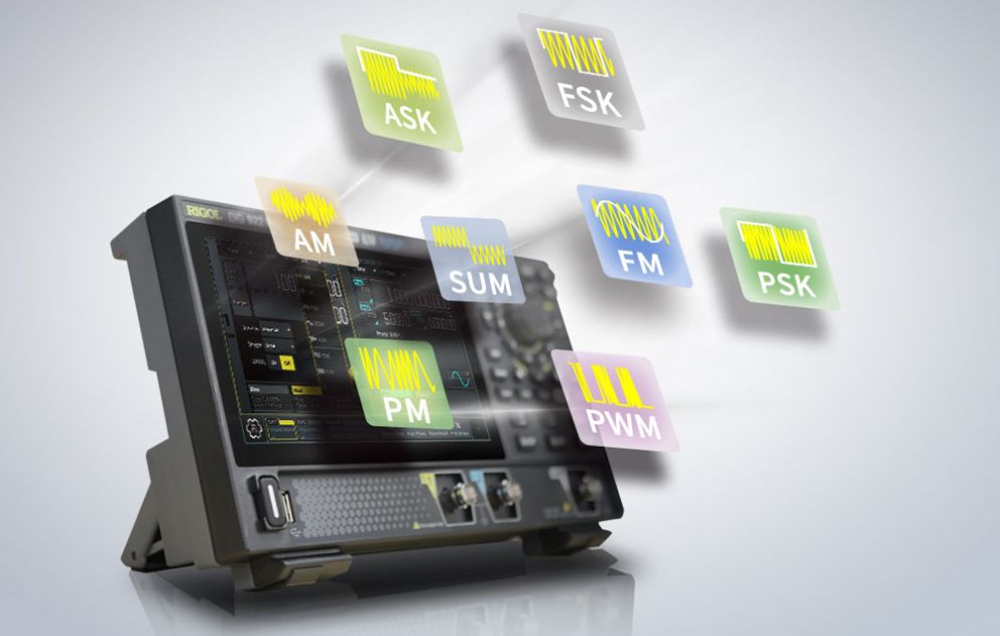

- Rich modulation functions: Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

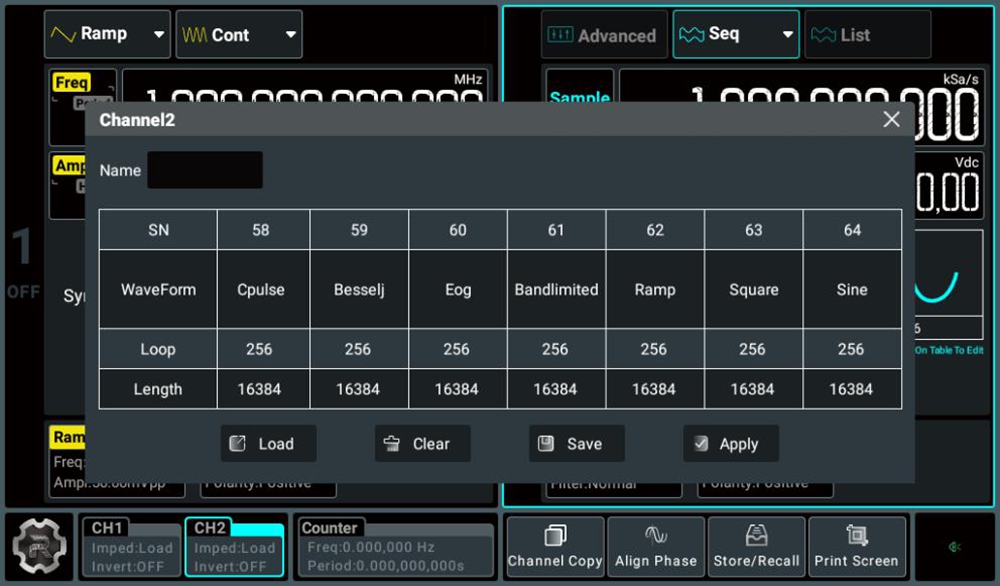

- Sequence function: Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

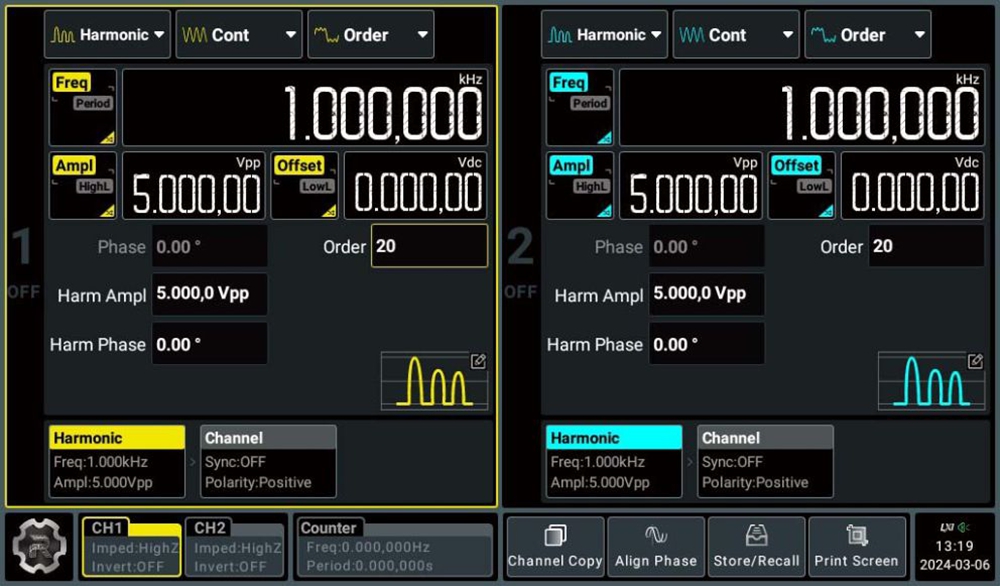

- Maximum 20th harmonic generation function: Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices.

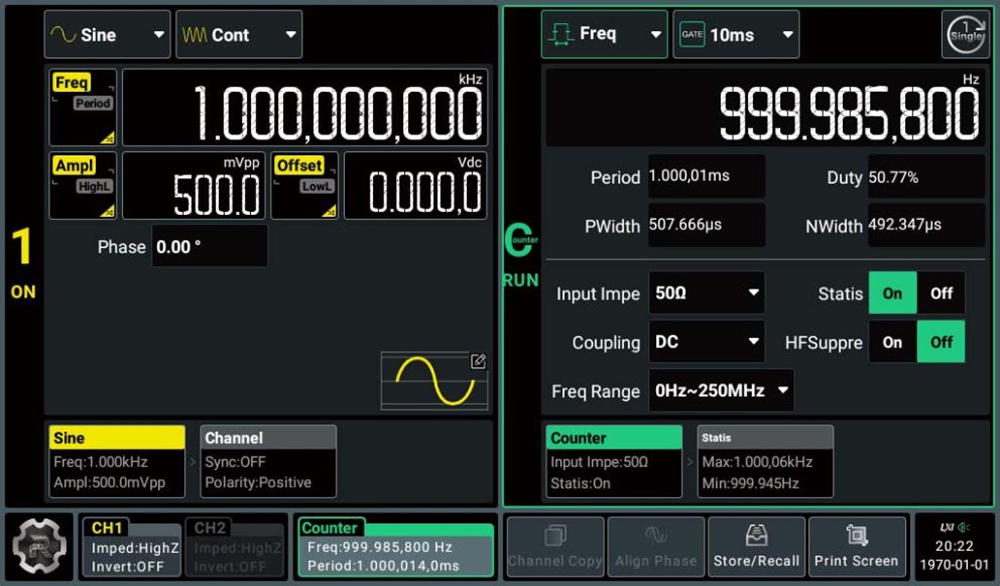

- High resolution frequency meter: A 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging.

Package Included:
- 1 x Waveform Generator
