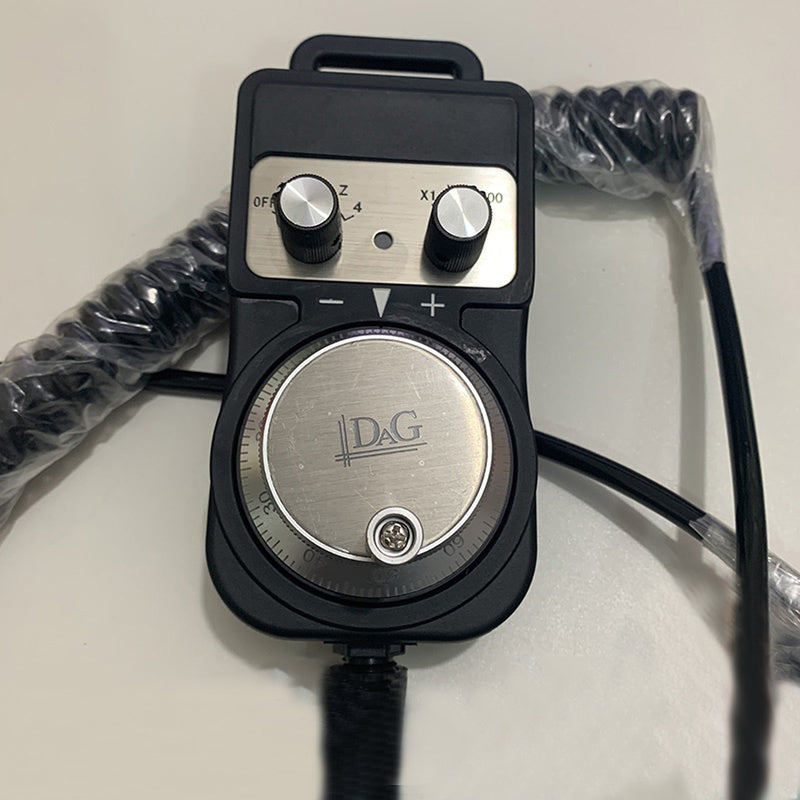

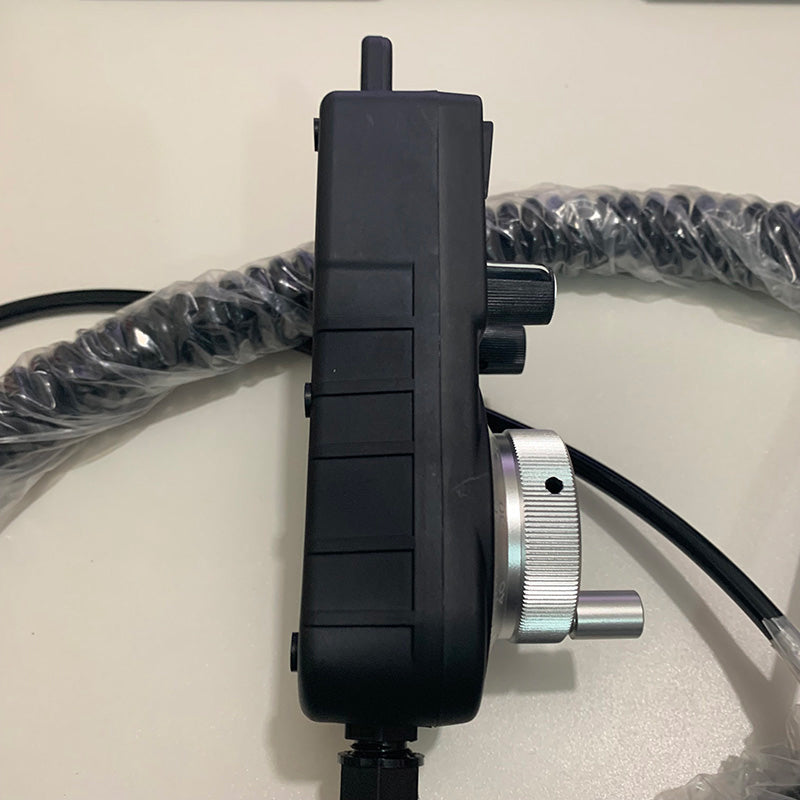

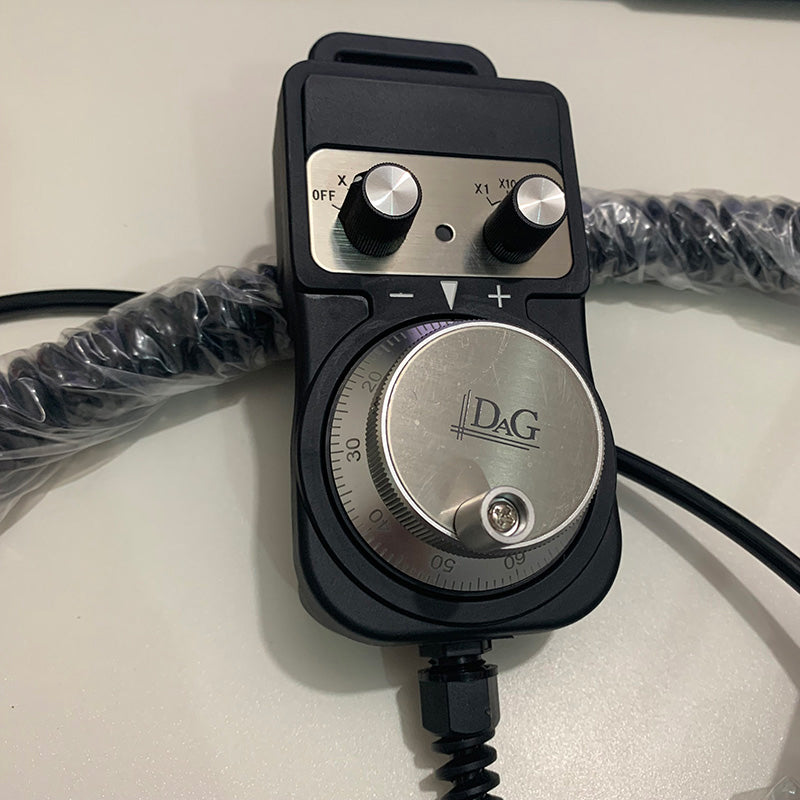

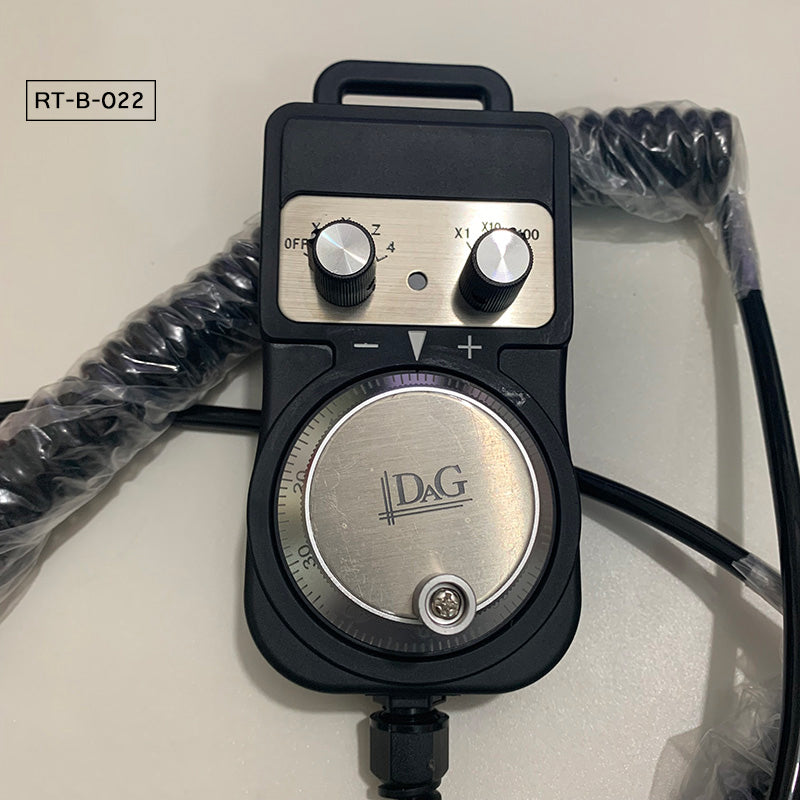

RT-B-022 4 Axis MPG CNC Pendant CNC Handwheel 100PPR (AB/A/B) For Siemens CNC System

RT-B-022 4 Axis MPG CNC Pendant CNC Handwheel 100PPR (AB/A/B) For Siemens CNC System

Specifications:
- Compatible CNC System: For Siemens
- Resolution: 100PPR (AB/A/B)
- Output Type: Differential (AB/A/B)
- Support Voltage: DC 5±0.25V
- Support Current: ≤ 160mA
- Output Voltage:
* High Frequency: ≥2.5V
* Low Frequency: ≤0.5V
- Output Current: ±20mA
- Rising/Falling Time: ≤ 100ns
- Response Frequency: 0-5KHz
- Isolation Impedance: ≥ 20MΩ
- Normal Mechanical Speed: ≤ 300 r/min
- Maximum Mechanical Speed: 600 r/min
- Service Life: >1000000r[200r/min] verified by a large number of customer practices
- Starting Torque: 1X0.01 N·M
- Anti-sloshing Ability: the angle AB between ±1/4-1/2 cycles will not send a signal
- Intelligent "Core": Independent research and development, with automatic intelligent error correction
- Protection Level: IP54 equivalent
- Working Storage Temperature: -30 to 70℃
- Weight: 0.60 kg

Package Included:
- 1 x CNC Handwheel
