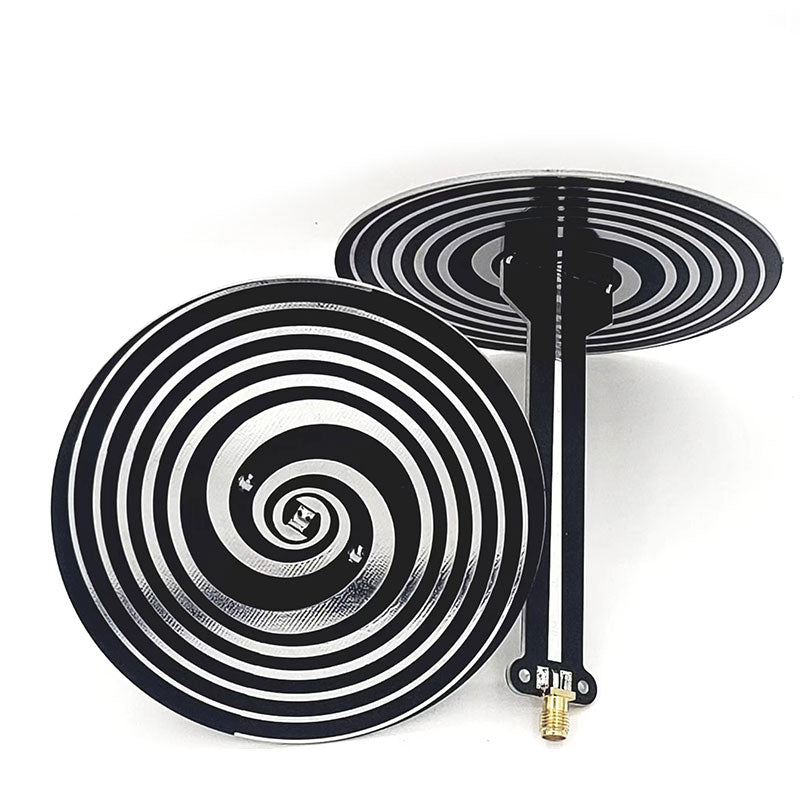

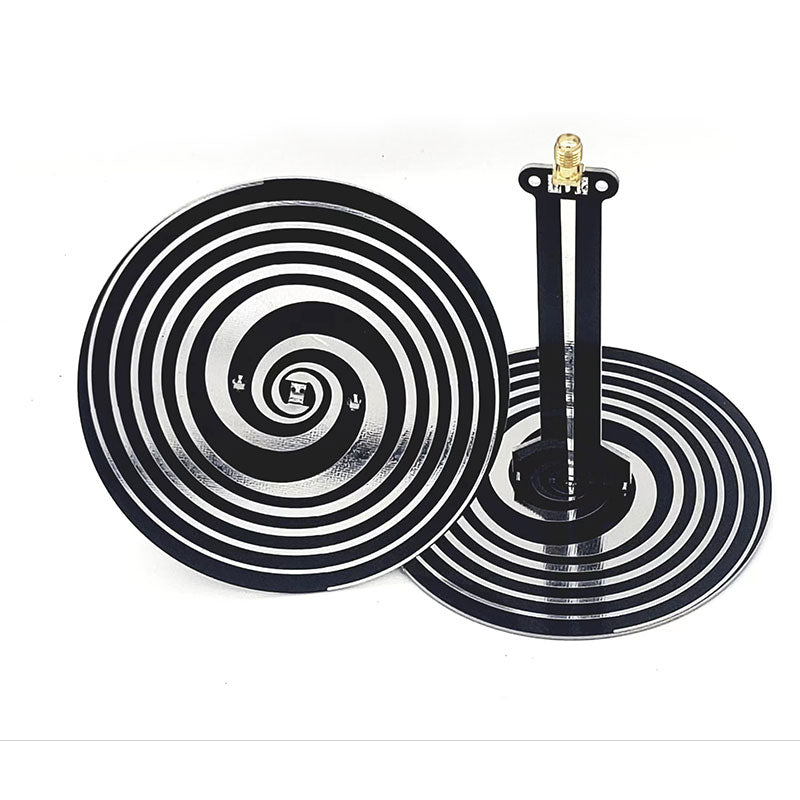

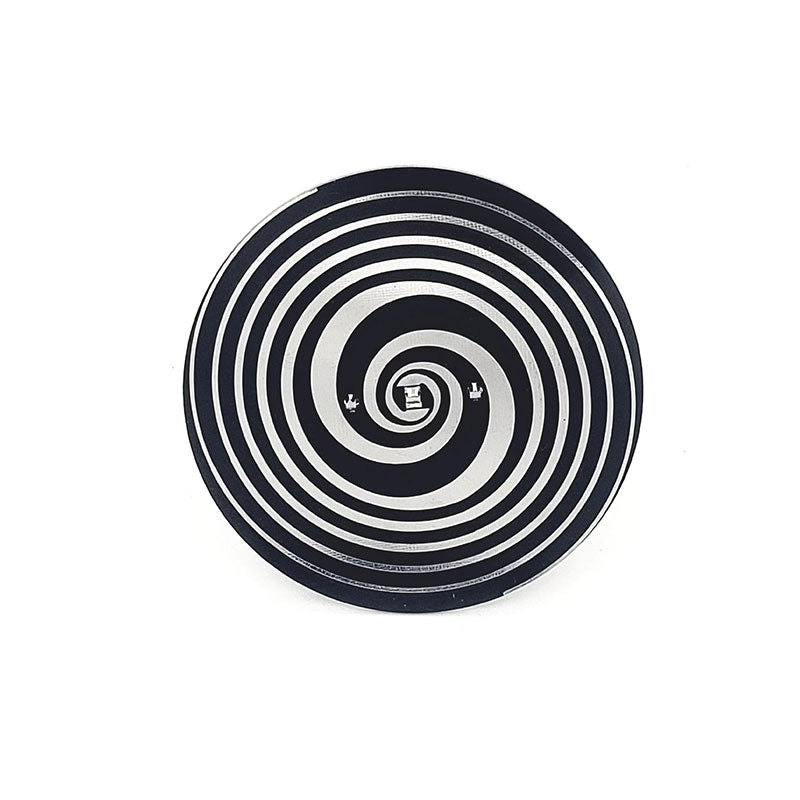

Sinistral Rotation Ultra-wide Band Antenna 0.9-10GHz Equiangular Spiral Antenna and Circular Polarization Antenna

Sinistral Rotation Ultra-wide Band Antenna 0.9-10GHz Equiangular Spiral Antenna and Circular Polarization Antenna

Description:
- The antenna is an ultra wideband equiangular spiral + Archimedes circularly polarized antenna, which is divided into sinistral rotation circularly polarized antenna and dextral rotation circularly polarized antenna. It can be used for direction finding, spectrum analysis, signal analysis, navigation and positioning, broadband measurement, direction finding, etc. It can provide 36dBi circular polarization directional gain in the frequency band range of 900MHz - 10GHz. With low standing wave and high gain, this antenna can be used at typical operating frequencies: 915MHz, 1090MHz ADS-B, 1268MHz - 1610M HzGPS, 1420MHz, 2.4GHz/5.8GHz.

Specification:
- Working bandwidth: 900MHz-10GHz

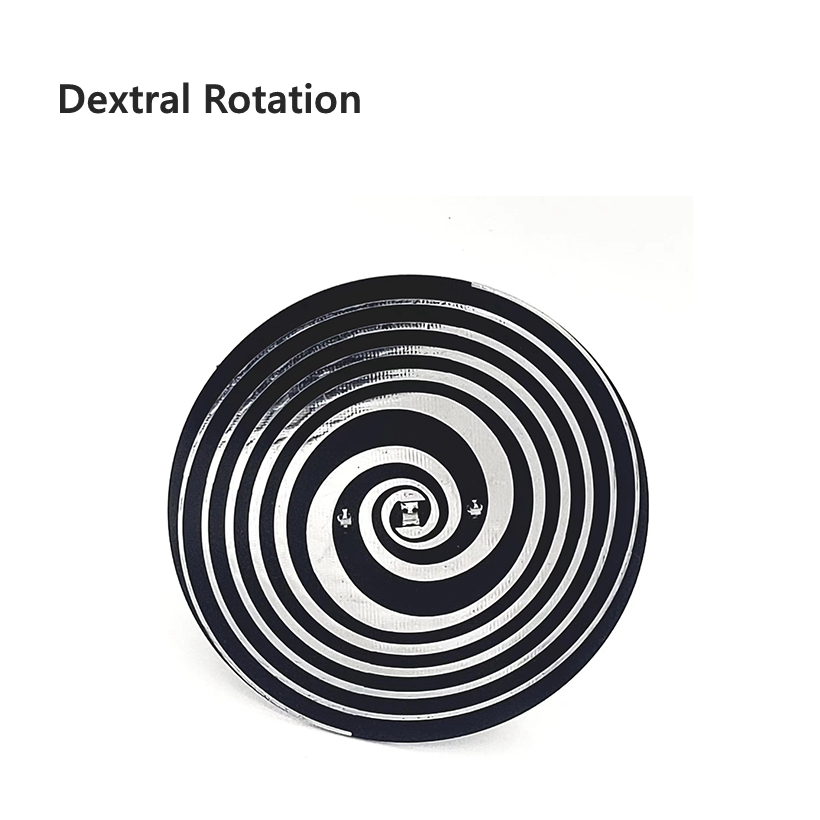

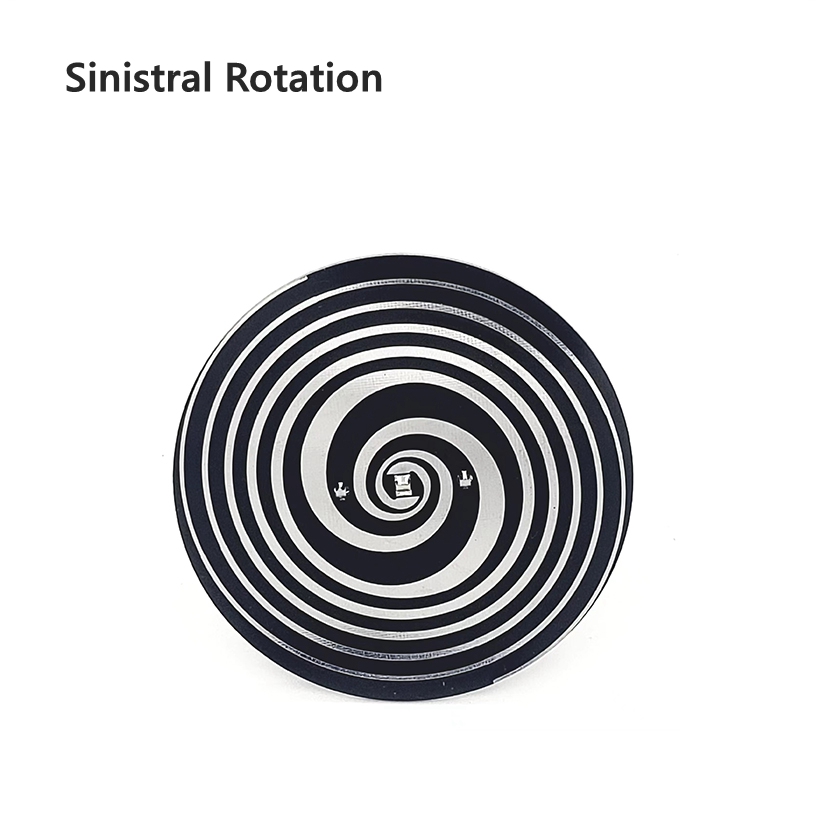

- Polarization mode: Circular polarization sinistral polarization/dextral polarization
- Gain: 3dBi-6dBi
- Impedance: 50ohn

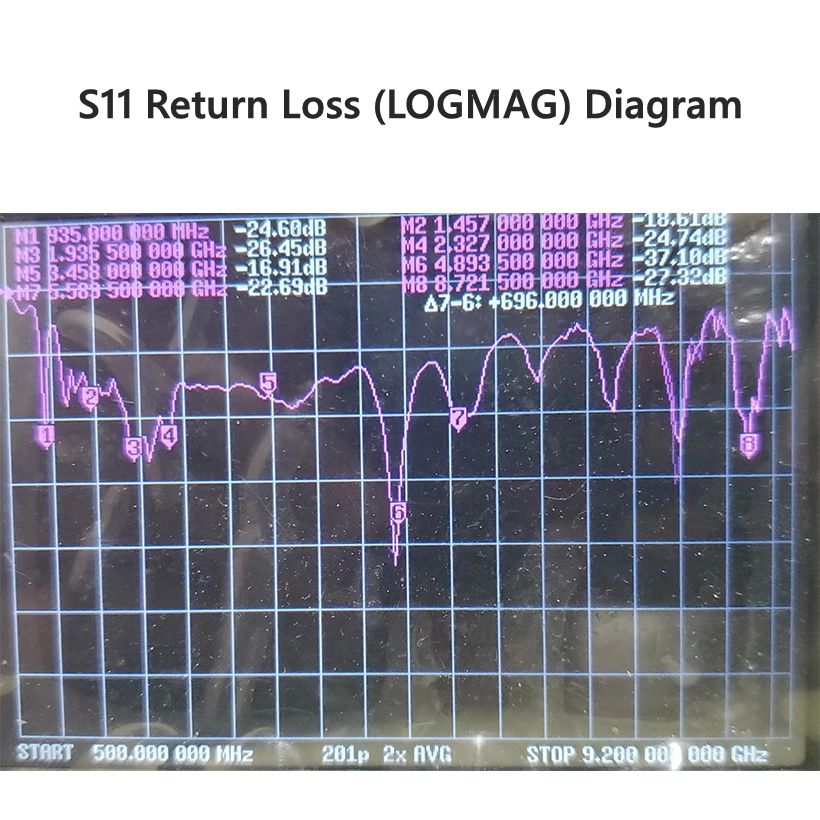

- SWR: <1.65

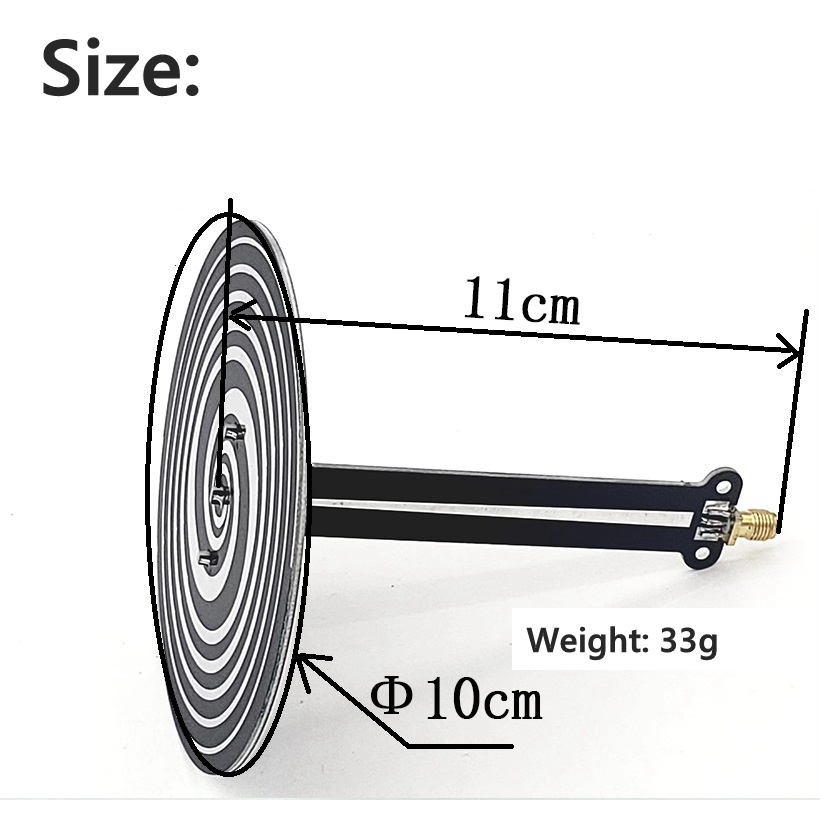

- Size: 10cm for spiral diameter; 11cm for connector to spiral

Package Included:
- 1 x Antenna
