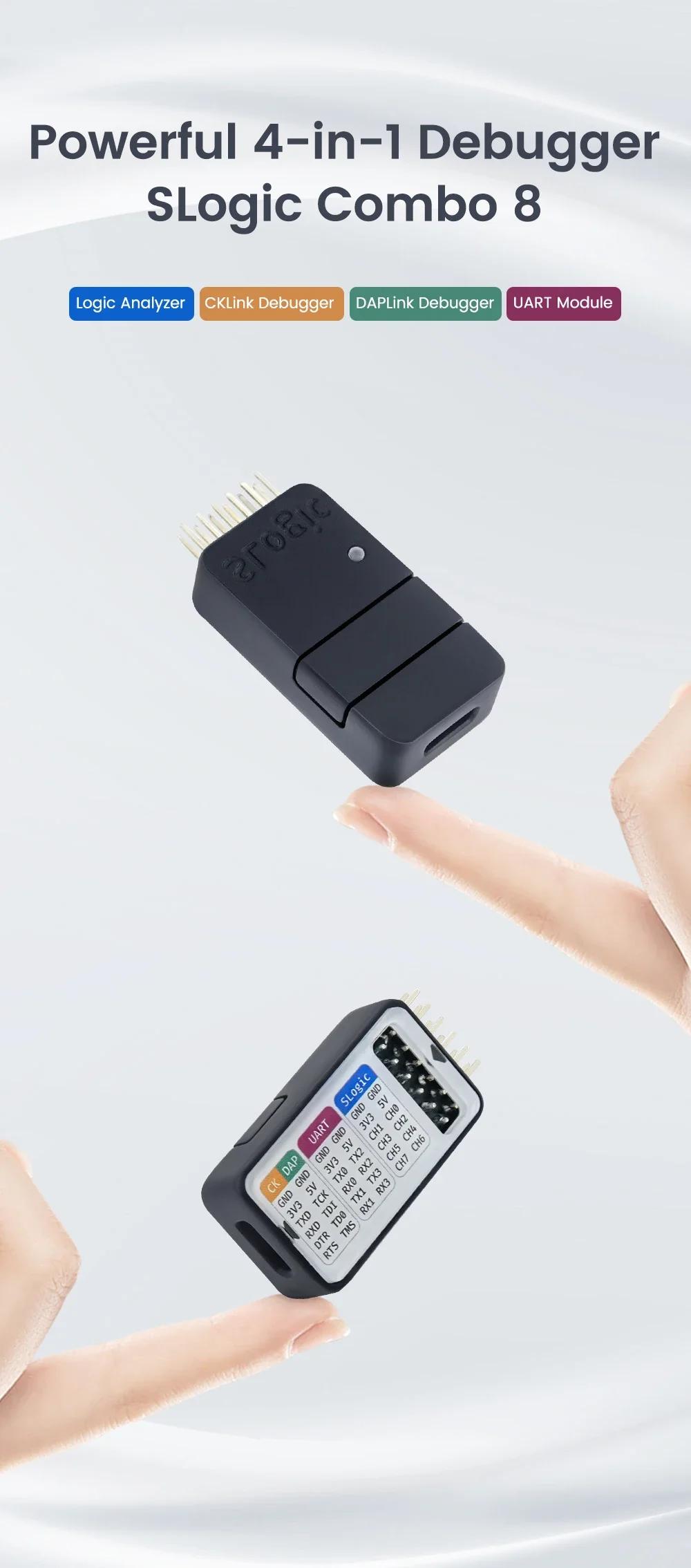

Sipeed Black Version SLogic Combo 8 Multifunctional Logic Analyzer 8-Channel UART DAPLink CKLink Debugger Tool

Sipeed Black Version SLogic Combo 8 Multifunctional Logic Analyzer 8-Channel UART DAPLink CKLink Debugger Tool

Description:

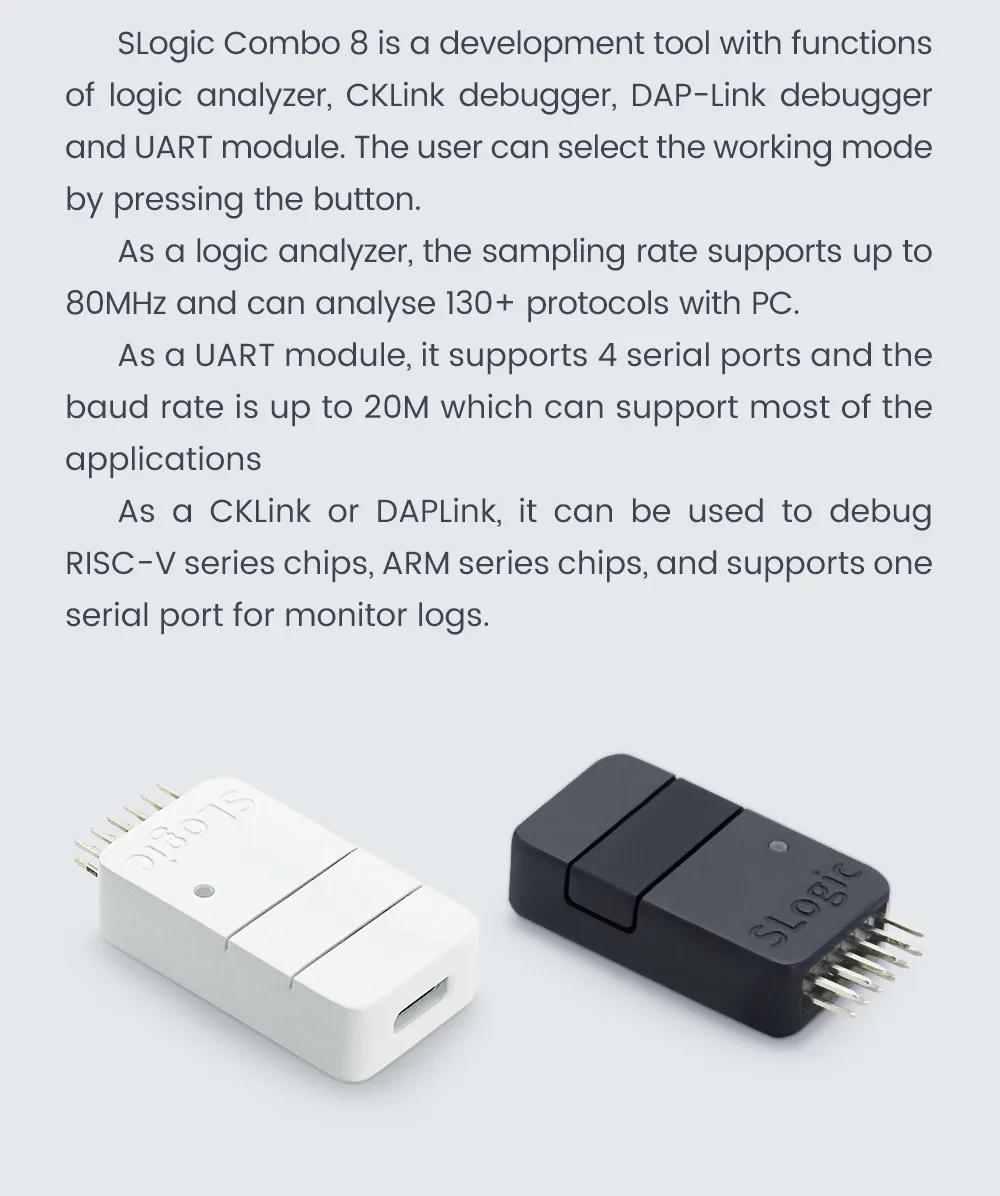

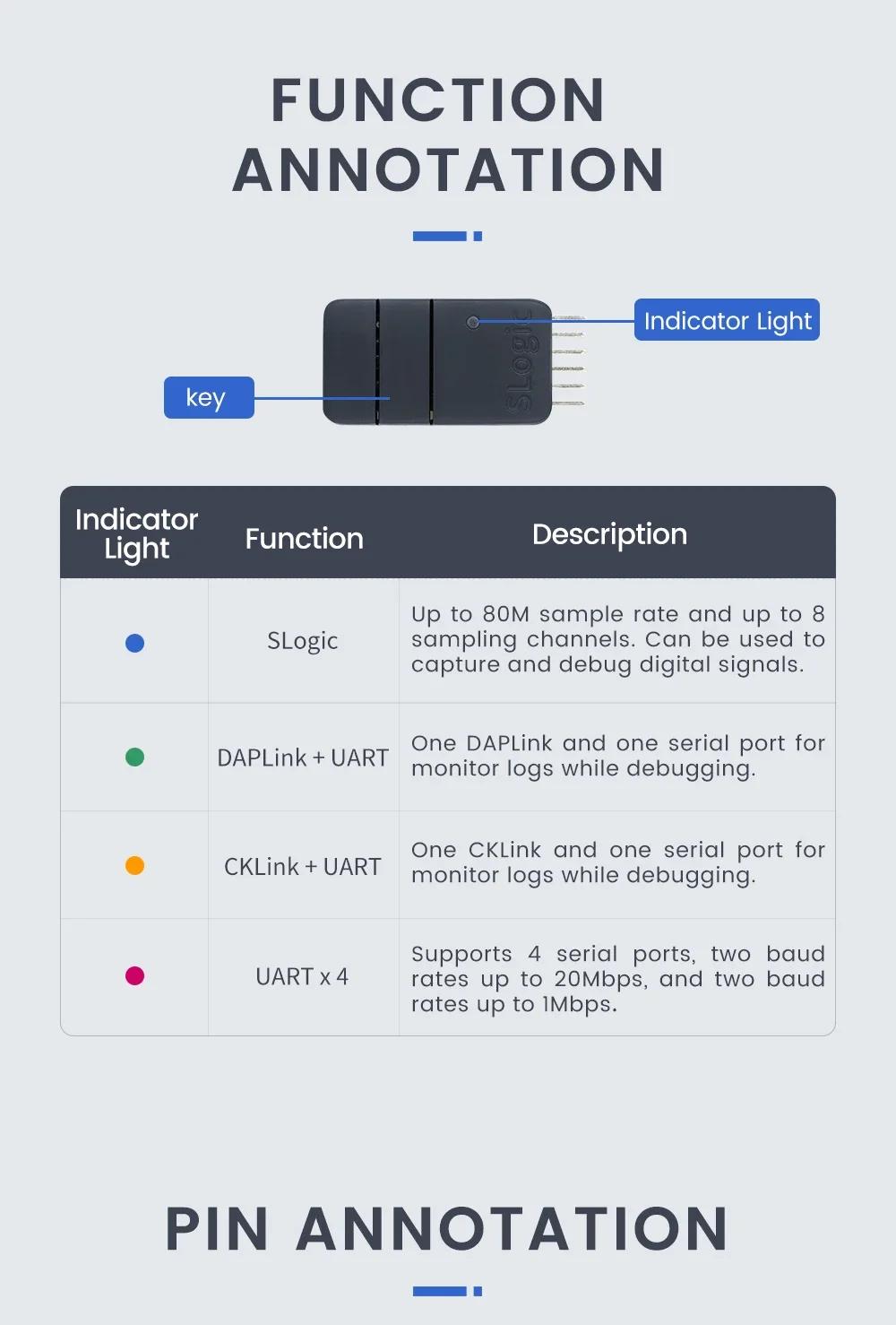

- SLogic Combo 8 is a development tool with functions of logic analyzer, CKLink debugger, DAP-Link debugger and UART module. The user can select the working mode by pressing the button.

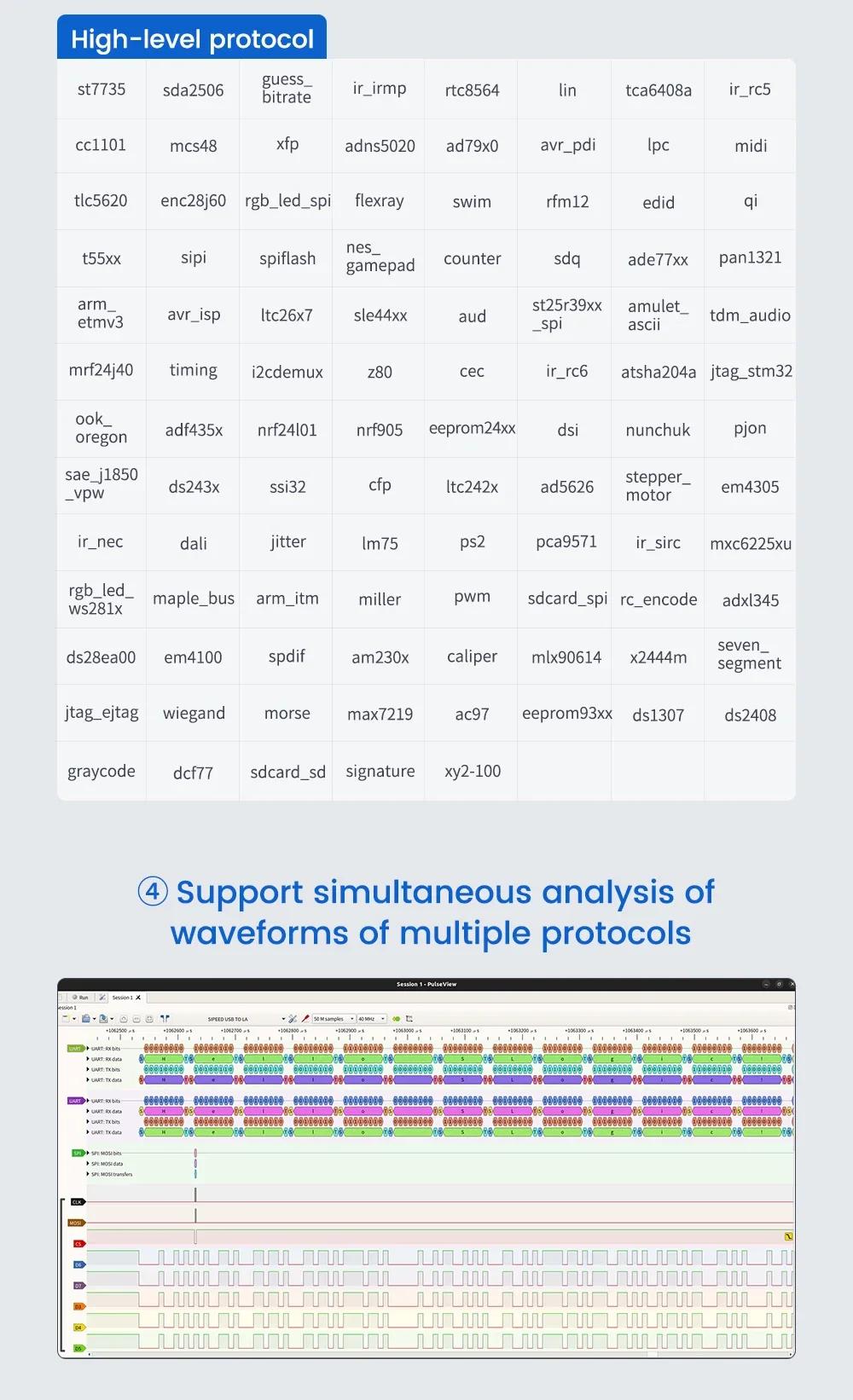

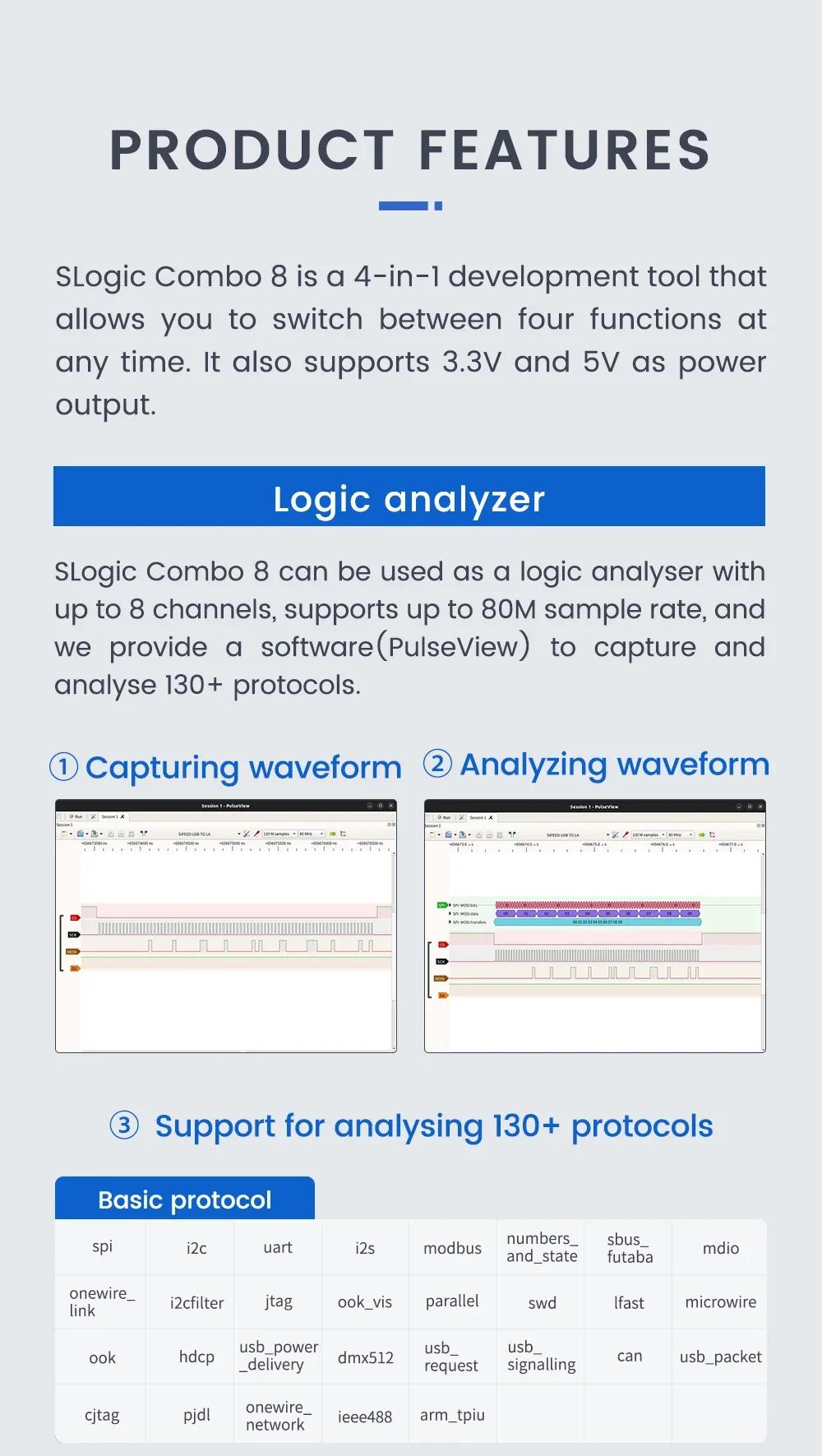

- As a logic analyzer, the sampling rate supports up to 80MHz and can analyse 130+ protocols with PC.

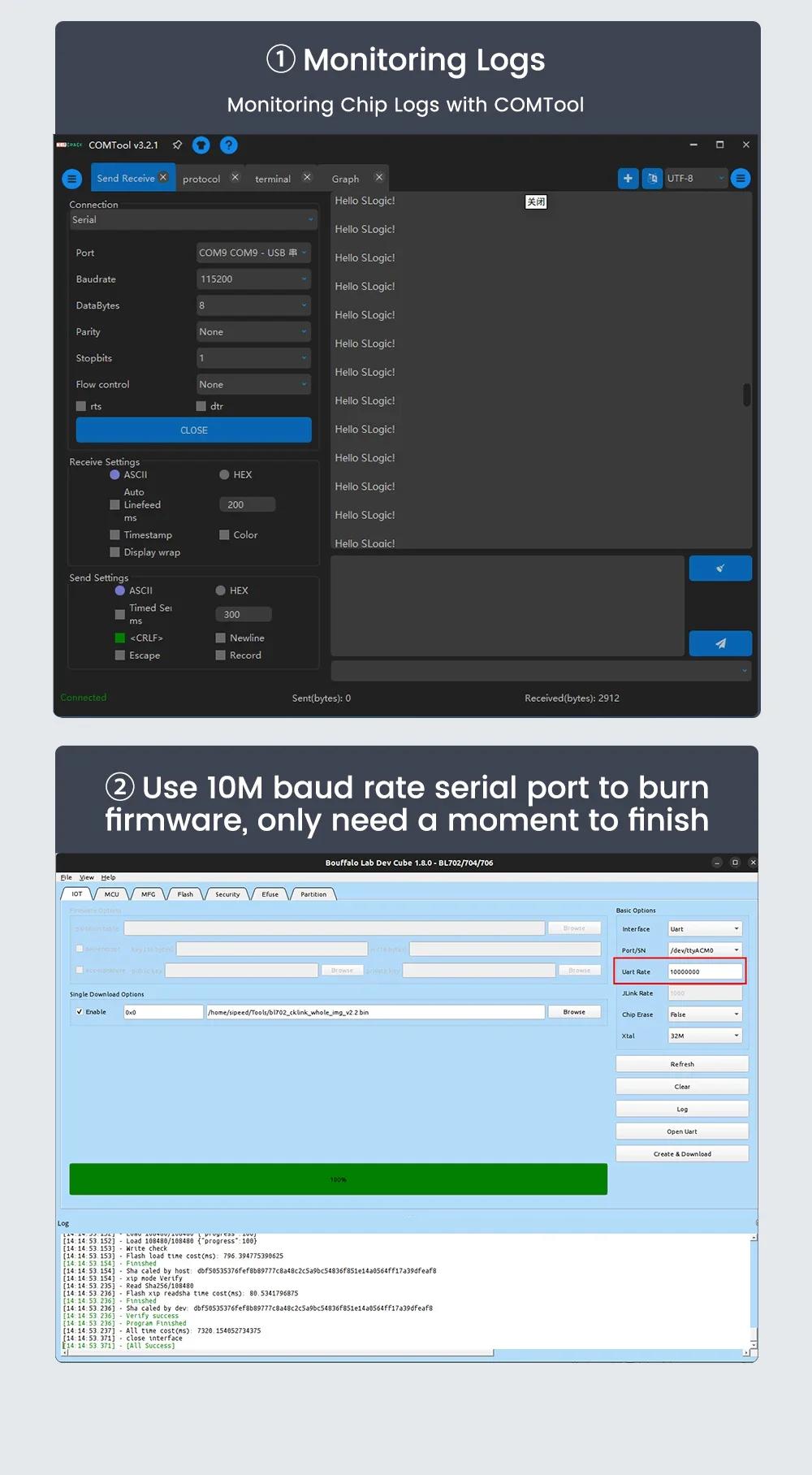

- As a UART module, it supports 4 serial ports and the baud rate is up to 20M which can support most of the applications.

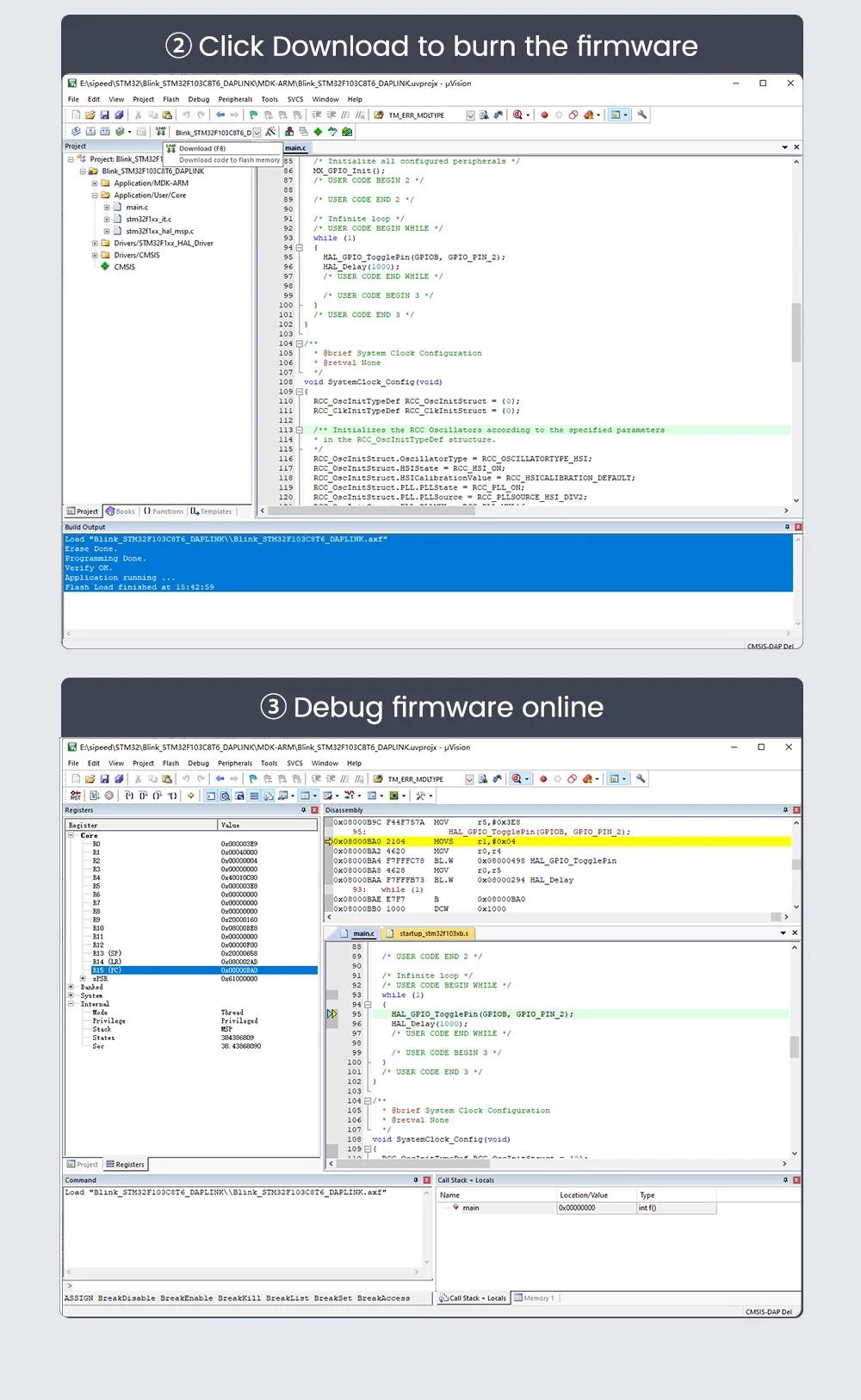

- As a CKLink or DAPLink, it can be used to debug RISC -V series chips, ARM series chips, and supports one serial port for monitor logs.

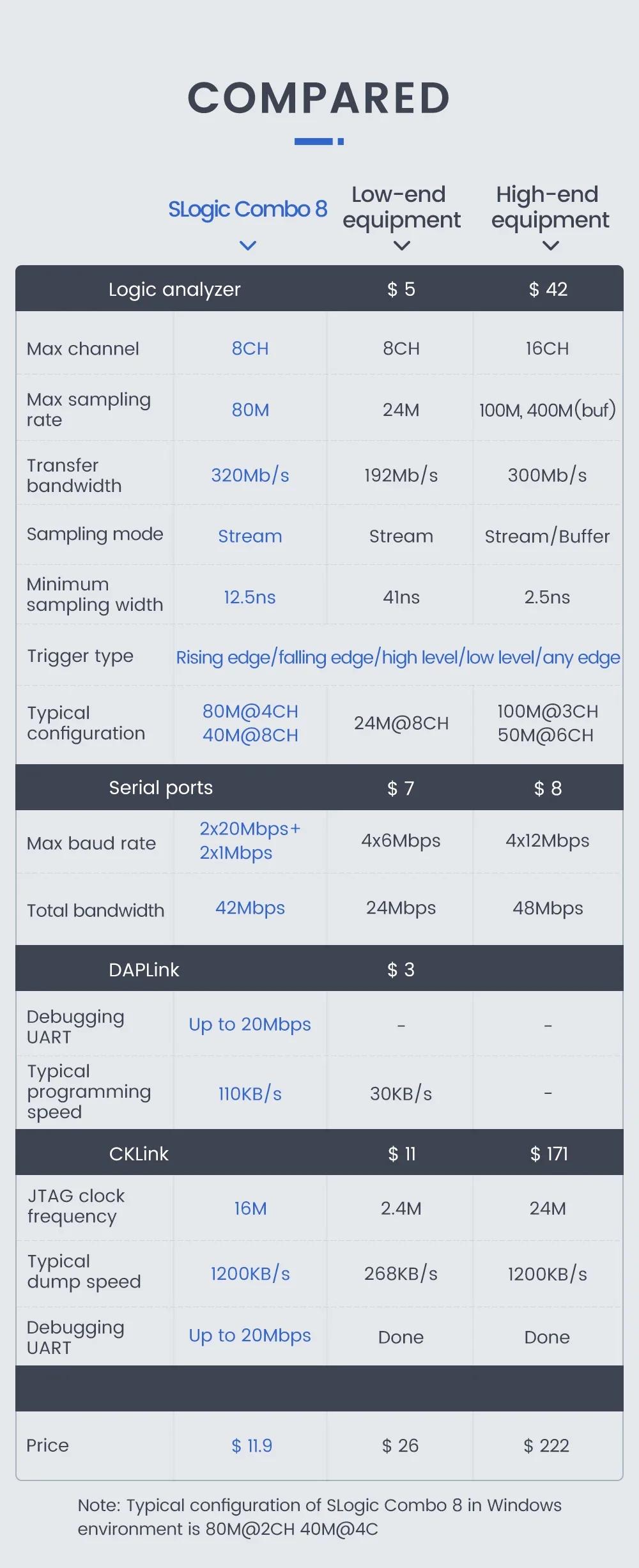

Specification:
- Max channel: 8CH

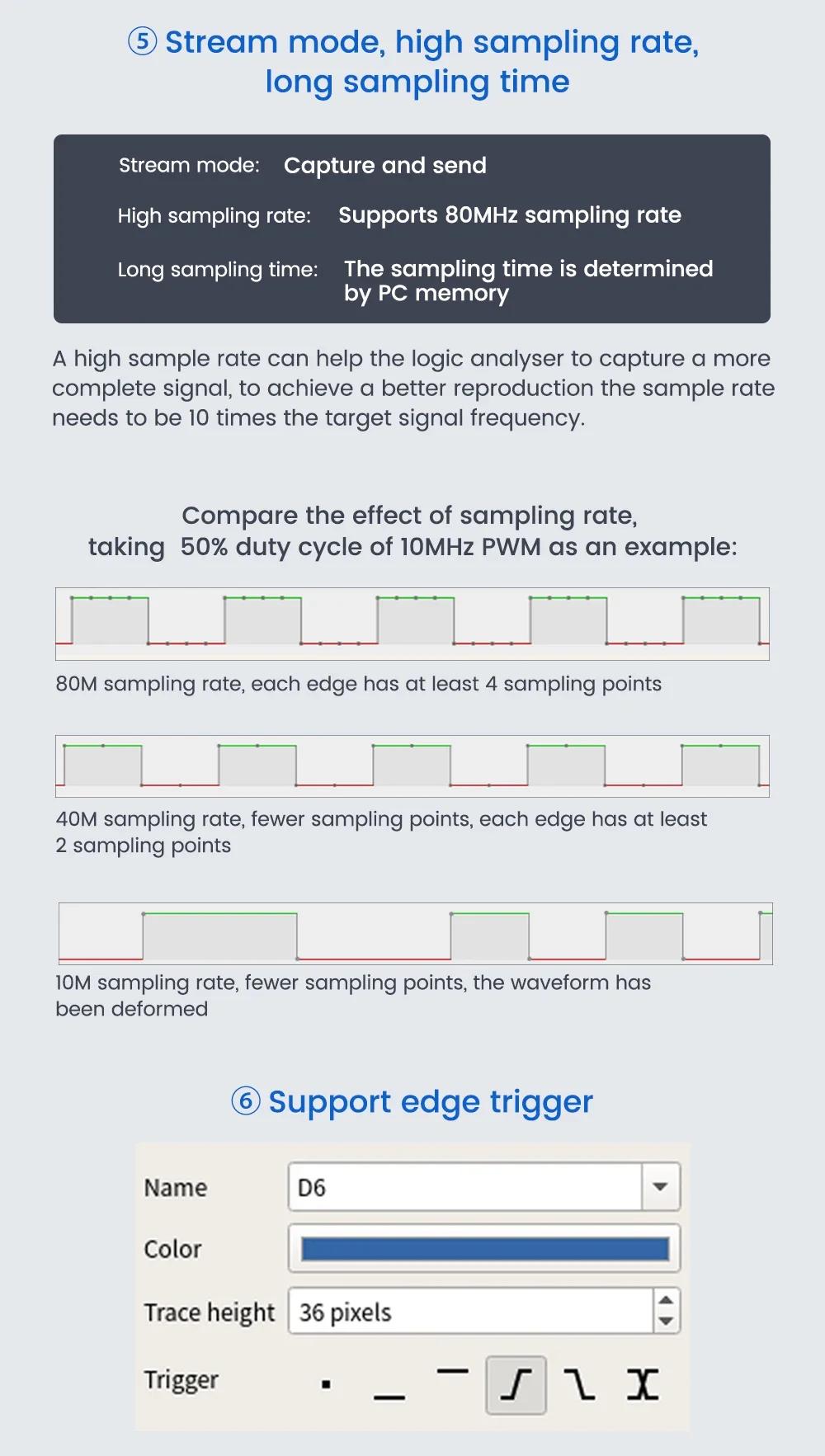

- Max sampling rate: 80M
- Transfer bandwidth: 320Mb/s
- Sampling mode: stream
- Minimum sampling width: 12.5ns

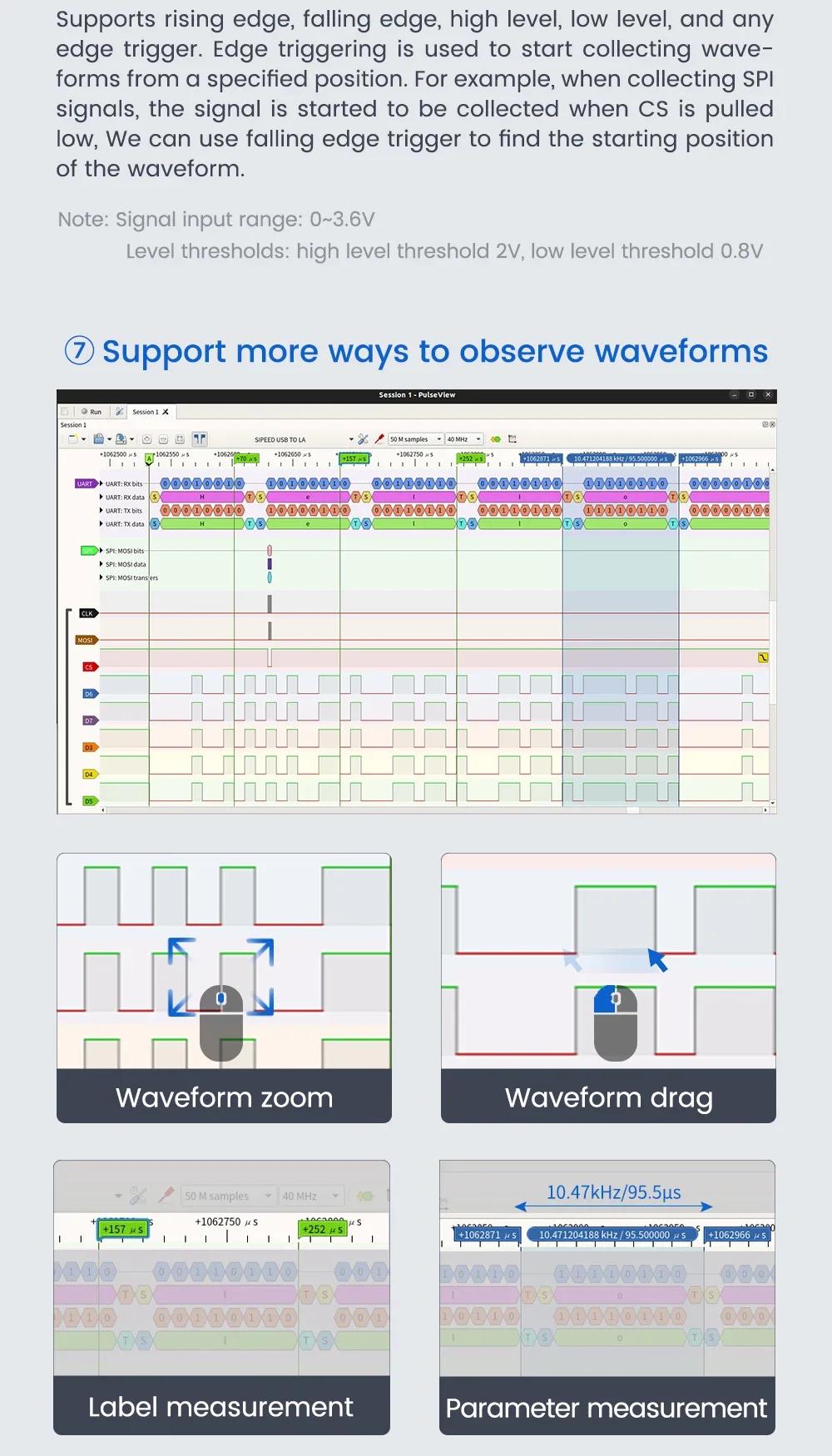

- Trigger type: rising edge/ falling edge/ high level/ low level/ any edge
- Typical configuration: 80MHz at 4CH, 40M at 8CH

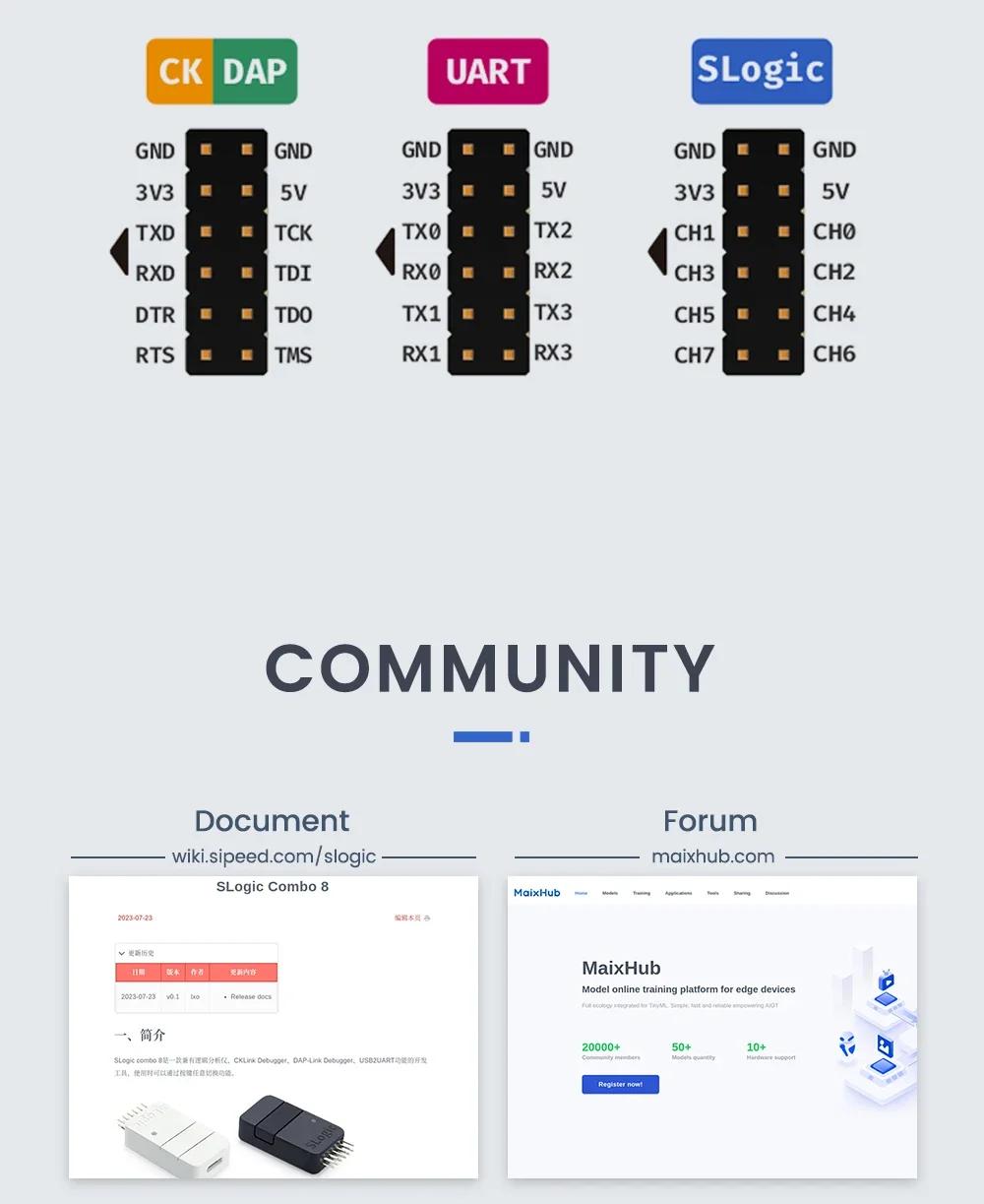

Serial Ports:
- Max baud rate: 2 x 20Mbps + 2 xx 1Mbps
- Total bandwidth: 42Mbps

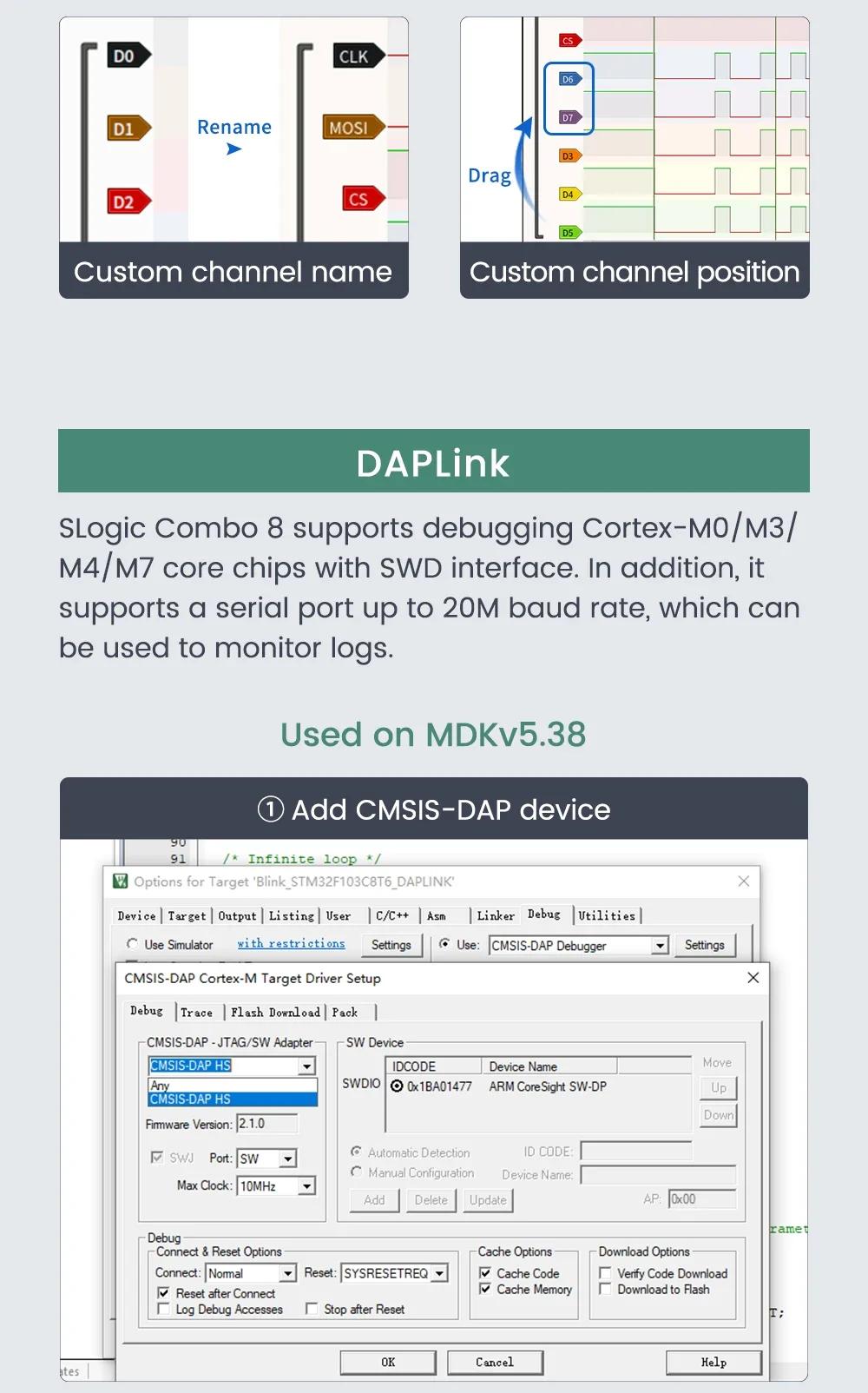

DAPLink:
- Debugging UART: up to 20Mbps
- Typical programming speed: 110KB/s

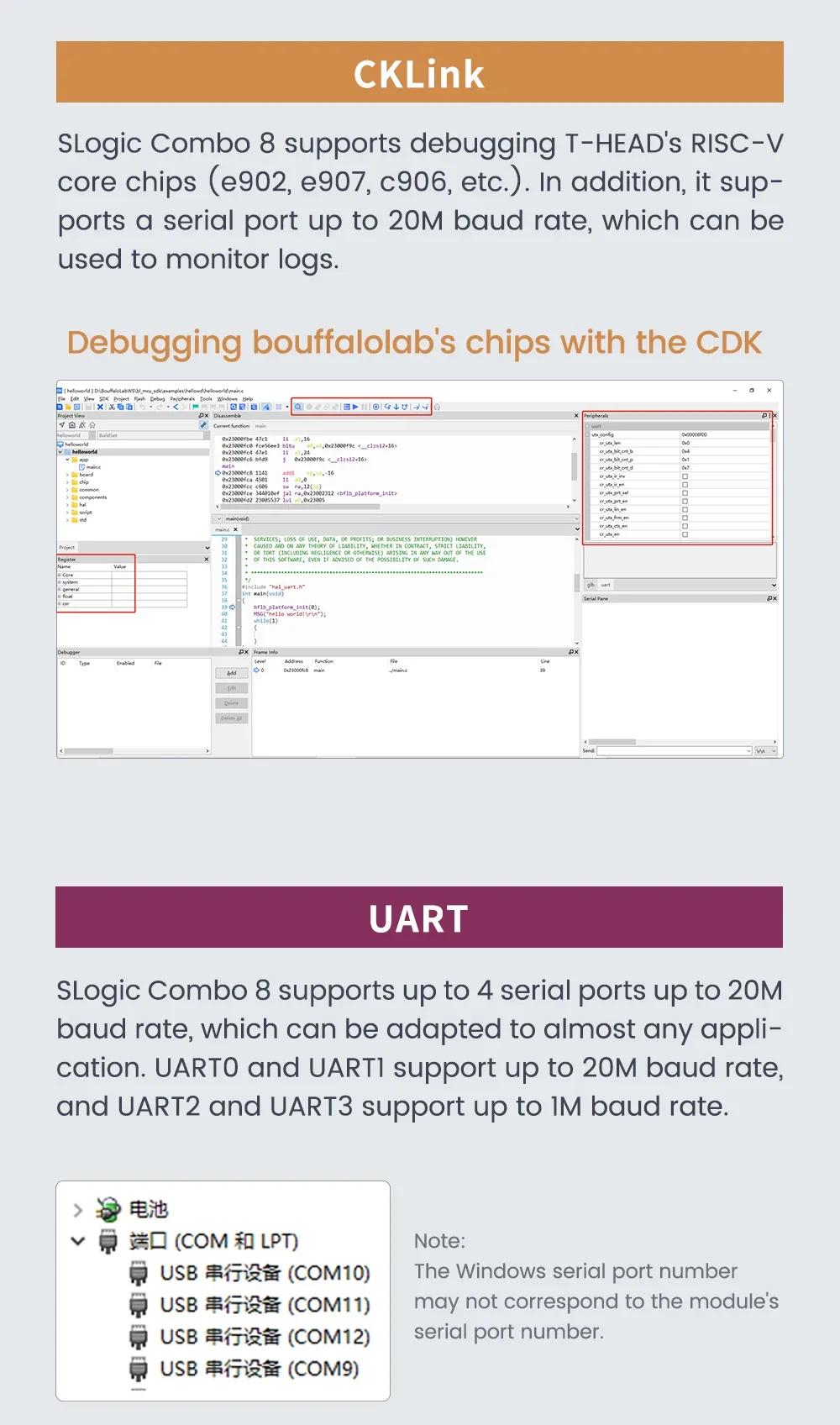

CKLink:
- JTAG clock frequency: 16M
- Typical dump speed: 1200KB/s
- Debugging UART: up to 20Mbps

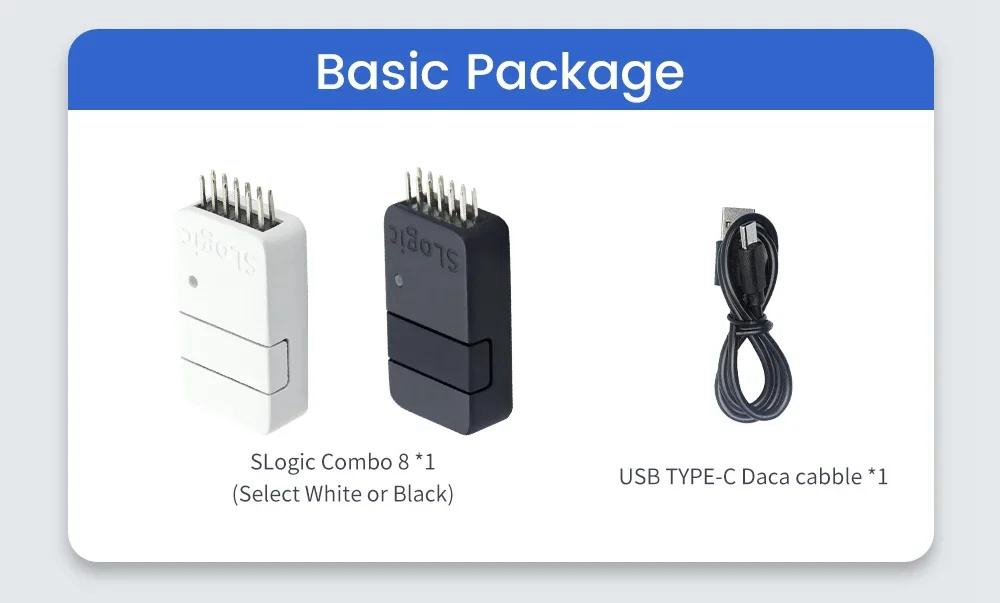

Package Included:
- 1 x SLogic Combo 8
- 1 x USB Type-C Data Cable
