STM32H723 AX58100 EtherCAT Slave Development Board 32IO CIA402 Industrial Ethernet Motion Control Module

* TwinCAT 3 software is used on the master station. TwinCAT requires original network adapters (for Intel) to support real-time functions.

* STM32H723Z and STM32407Z share the same PCB, so the silkscreen on the circuit board will not be affected.

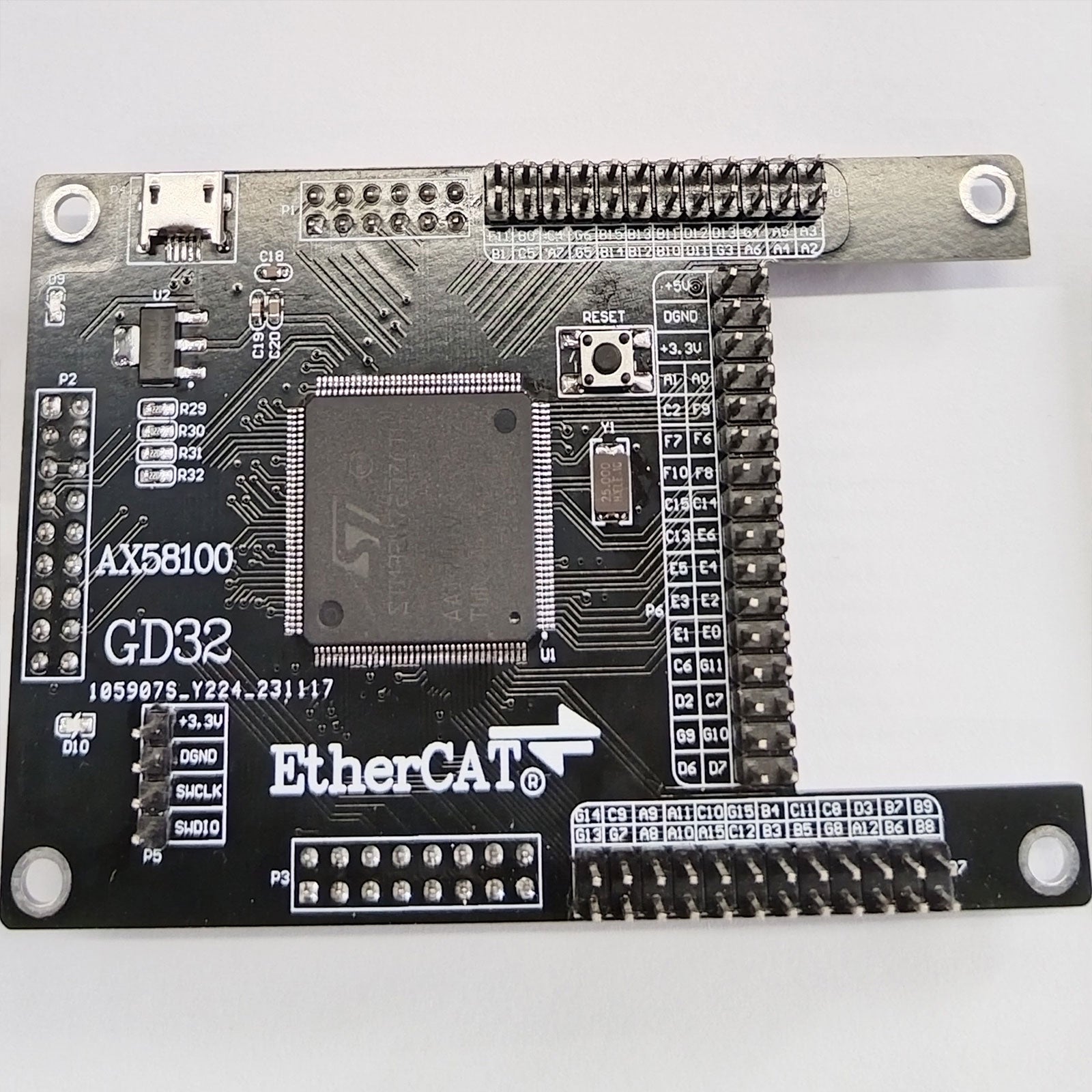

* The EtherCAT slave adopts STM32H723Z+AX58100 architecture. The maximum main frequency of STM32H723Z is 550MHz.

* Keil MDK is used as the programming software, and the HAL library is adopted.

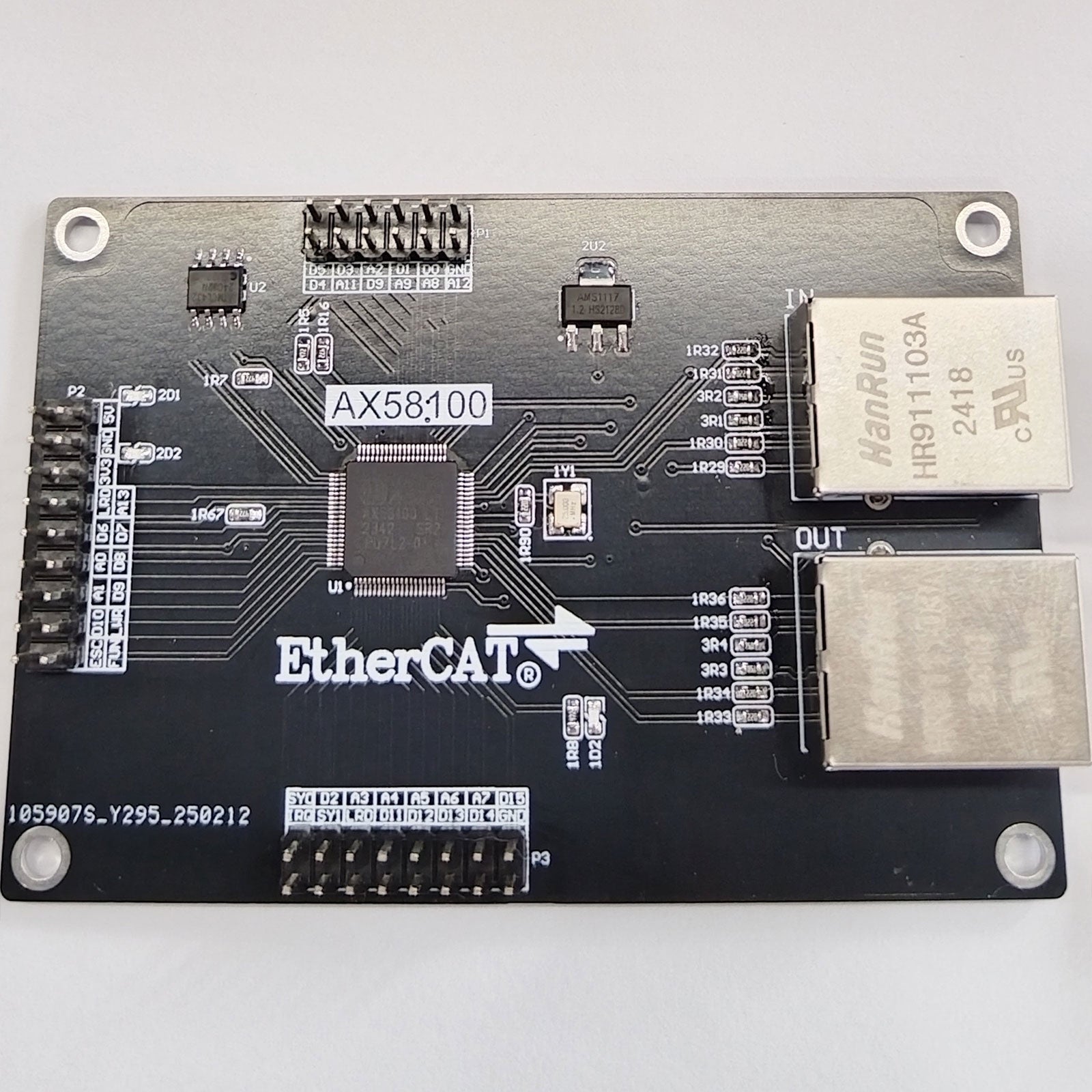

* Communication between STM32H723Z and AX58100 is realized via SPI with a SPI communication frequency of 20MHz.

* STM32H723Z reserves 32 IO ports for extended functions.

* Equipped with 1 onboard CH340N USB to serial port.

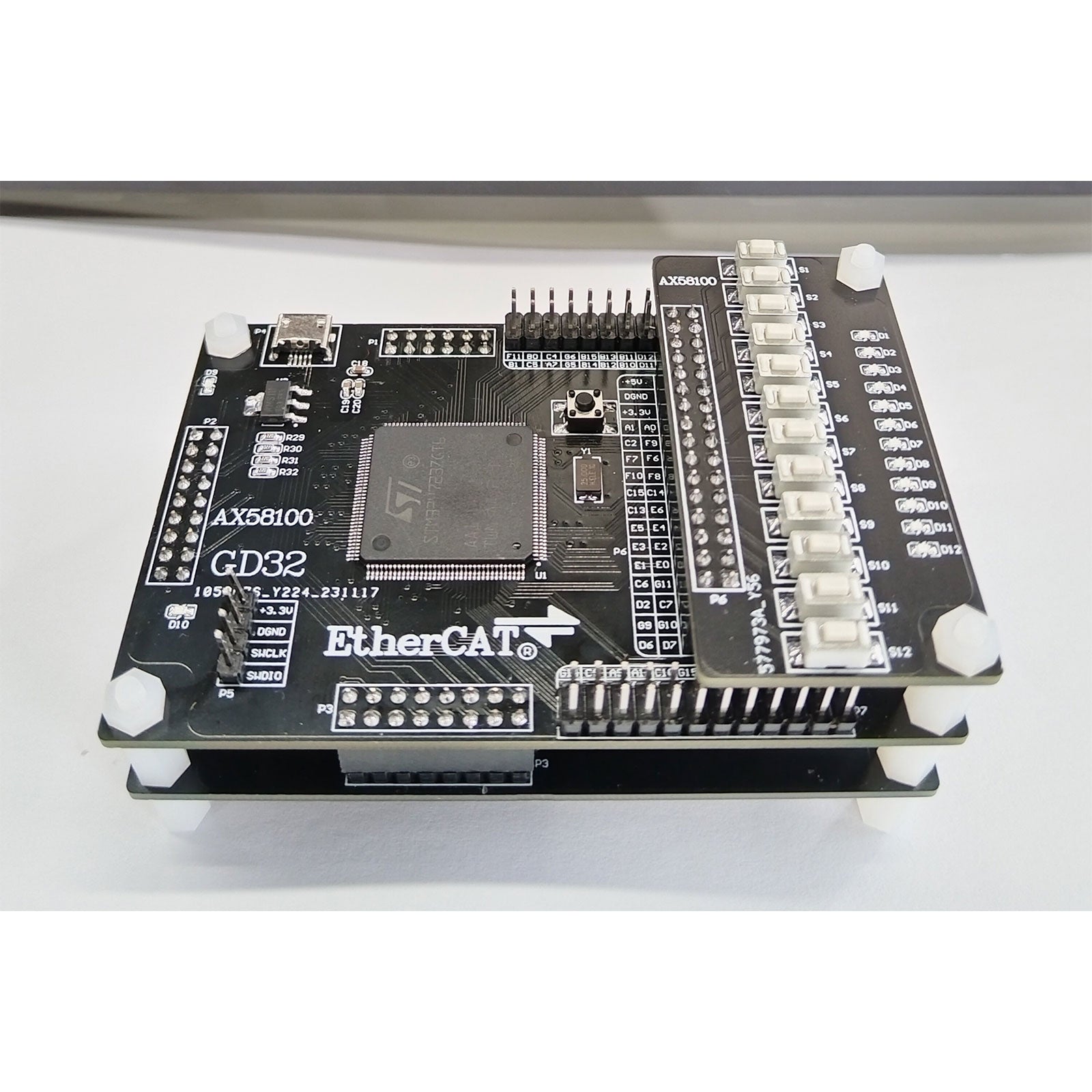

* Designed with 16 IO inputs, 16 IO outputs and one ADC acquisition communication example under 20MHz SPI communication mode. Limited by circuit board space for KEY and LED, only 12 KEYs and 12 LEDs are arranged in hardware, while the software supports 16-channel IO input and 16-channel IO output.

* One CIA402 servo control communication example is designed under 20MHz SPI communication mode.

* Complete development materials are provided, including schematic diagrams, development examples, data manuals, TwinCAT 3 software, Keil MDK software, SSC Tool v5.11 slave code generation software, Altova XMLSpy 2013 XML File Viewing and Editing Software, and more.

* Technical support is available.

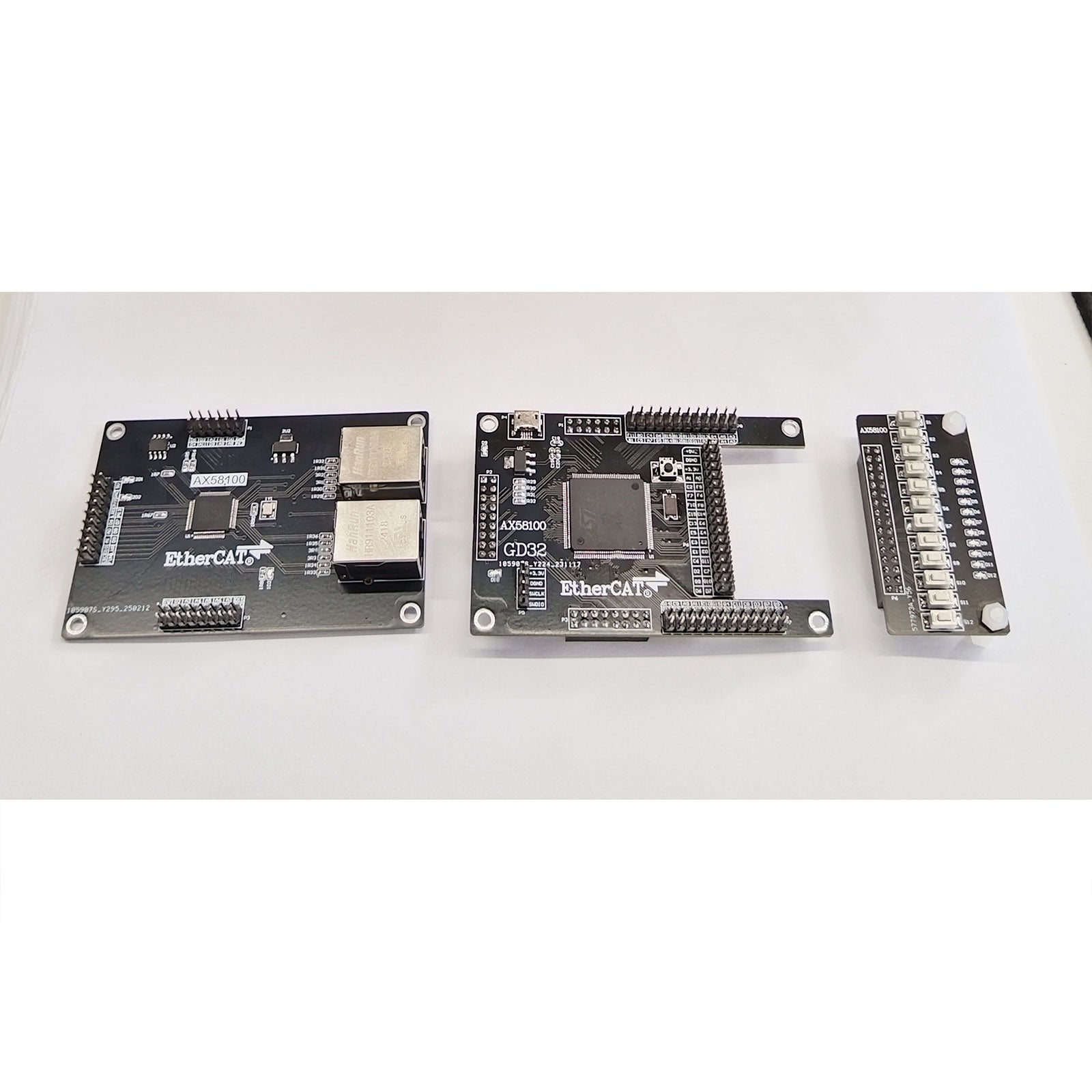

* 1 x EtherCAT Slave Development Board

* Package weight: 0.15kg
