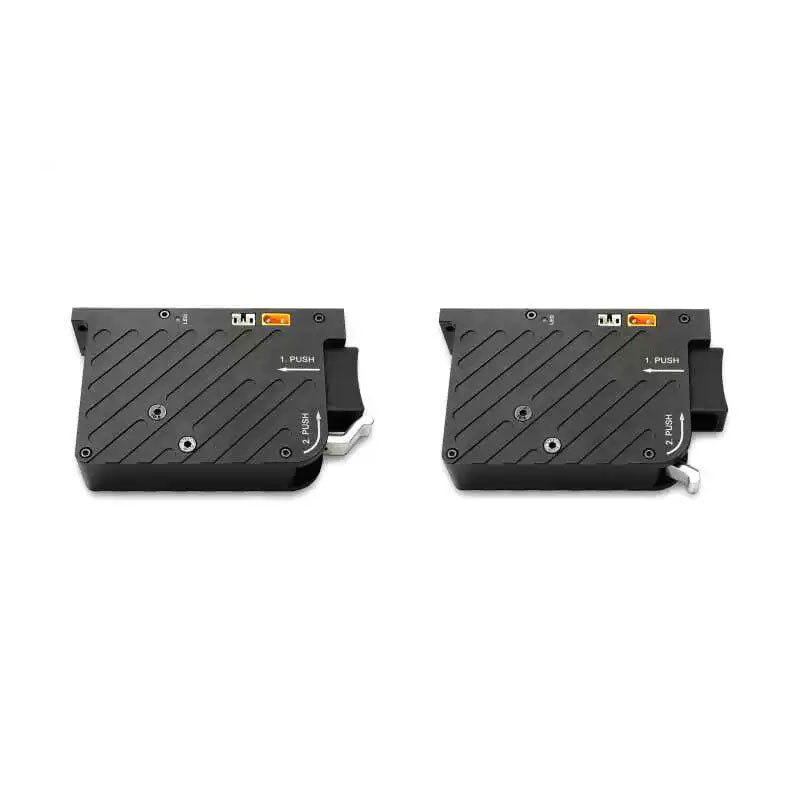

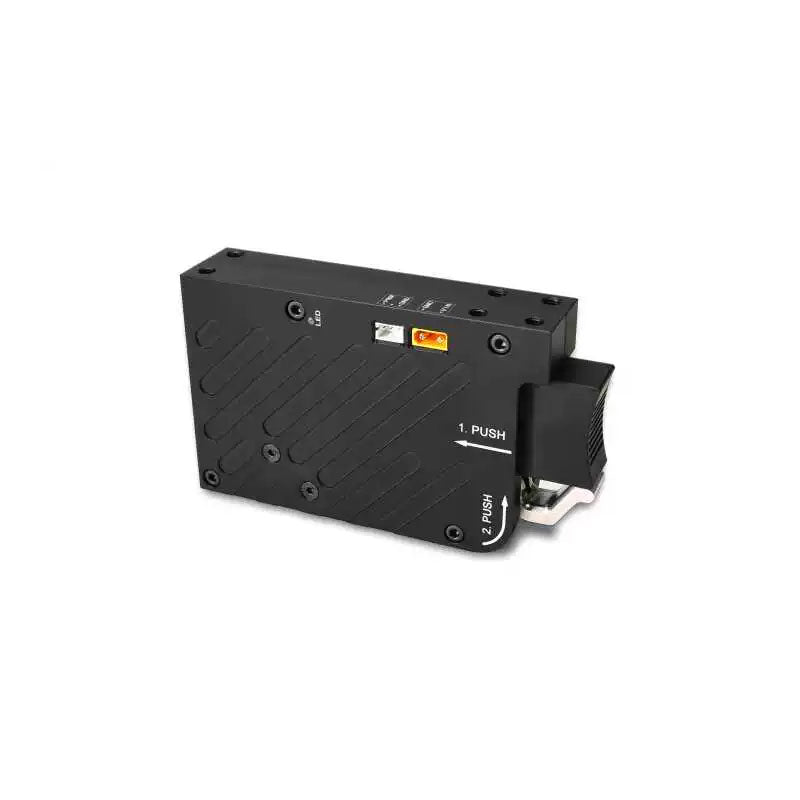

Tarot TL2964 Drone Payload Release Mechanism 120KG Heavy Duty Electronic Dropper Quick Release System

The Tarot factory-manufactured electronic drone payload release mechanism is made from 6063 aviation-grade aluminum and 304 stainless steel, precision-machined and assembled using CNC processing.

The mechanism features a mechanical lever design that reduces the output power required by the drive mechanism, allowing the release device to remain compact. The hinged joints of the lever mechanism are designed to prevent jamming under heavy payload loads. In actual limit-load testing, the mechanism operated smoothly while handling a 130kg load.

Multiple electronic release mechanisms from this series can be installed according to the application and operating environment. Each release mechanism can be controlled independently, allowing users to set the release sequence for individual payloads.

* Operating Voltage: DC 12-60V

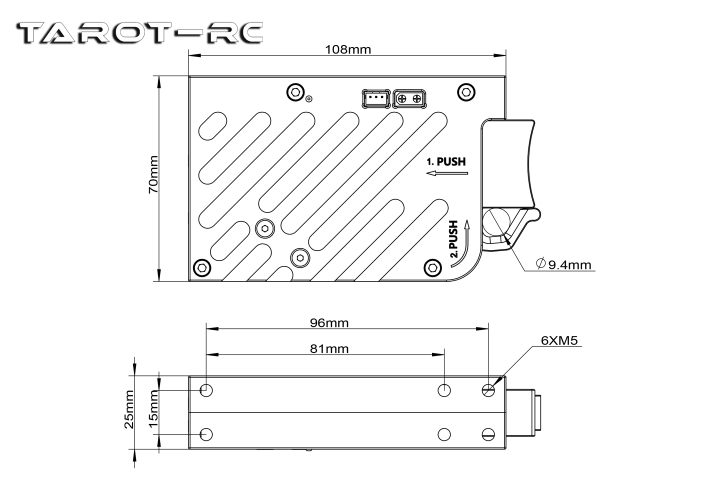

* Dimensions: 108mm x 70mm x 25mm

* Weight: 308g

Note: This product uses standard PWM remote-control servo signal decoding. The following instructions assume that the decoded signal is expressed as a travel range of 0-100%.

1. PWM Signal at 0-59% Travel: The device remains inactive, and the red LED stays solid.

2. PWM Signal at 60-100% Travel: The payload release switch is triggered. The green LED flashes once. After the release operation is completed, the green LED remains solid. One trigger initiates two consecutive release operations.

3. No PWM Signal Detected: The red LED flashes at a rate of 2 times per second.

4. Power-On Initialization: If the detected PWM input is within the 60-100% travel range during initialization, the green LED flashes at a rate of 2 times per second. This continues until the PWM input is adjusted to the 0–59% travel range, at which point the operation described in Item 1 takes effect.

* Precautions: Hot plugging is strictly prohibited. Connect the device first, then apply power.

* 1 x 120kg Electronic Payload Release Mechanism

* 1 x 2.0-3P to Dupont Connector Cable

* 6 x Socket Head Screws (M5 x 18mm)

* Package weight: 0.45kg
