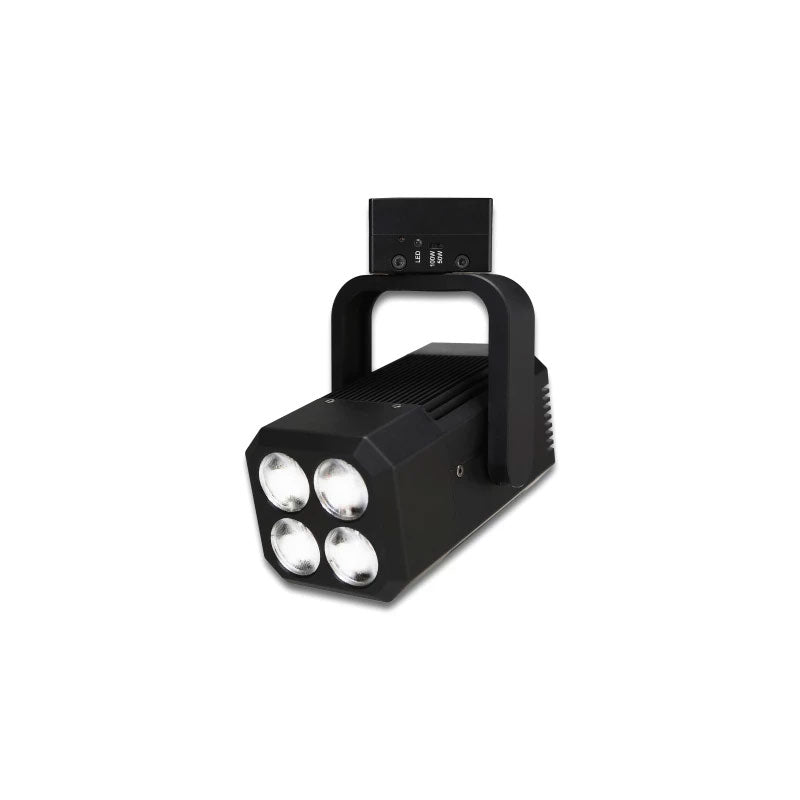

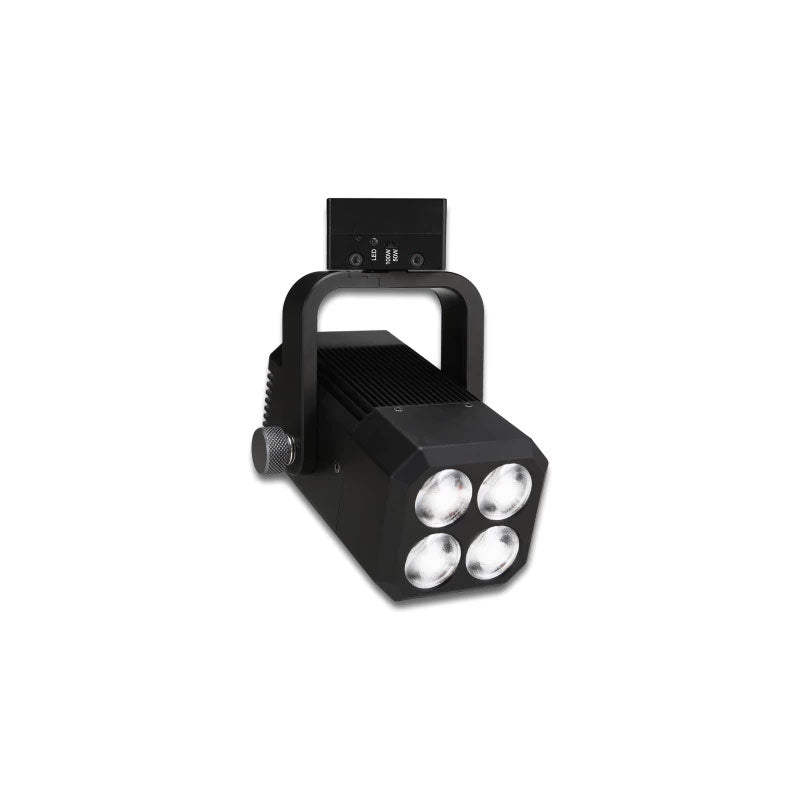

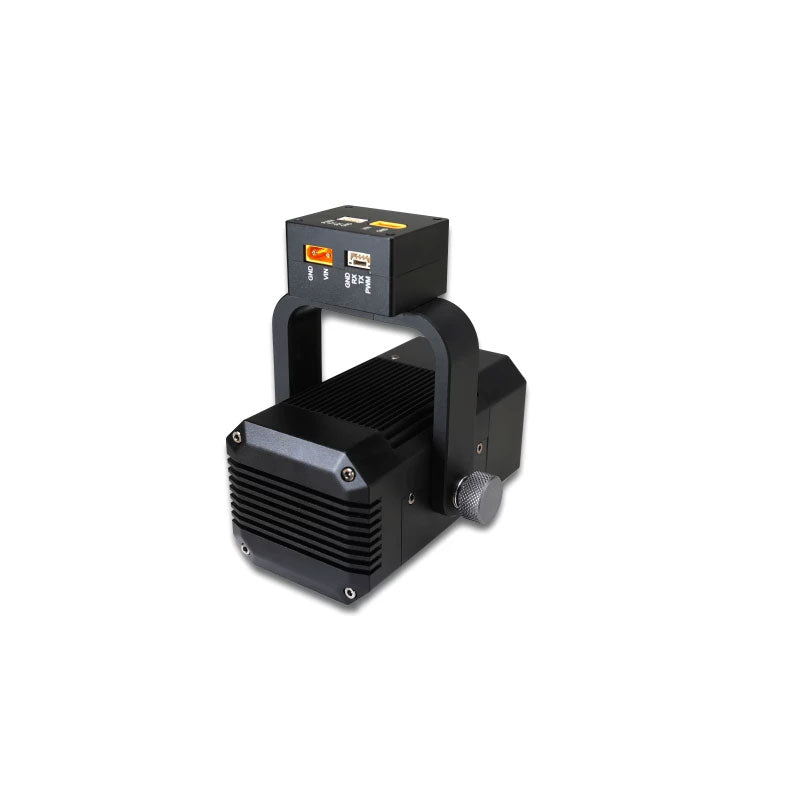

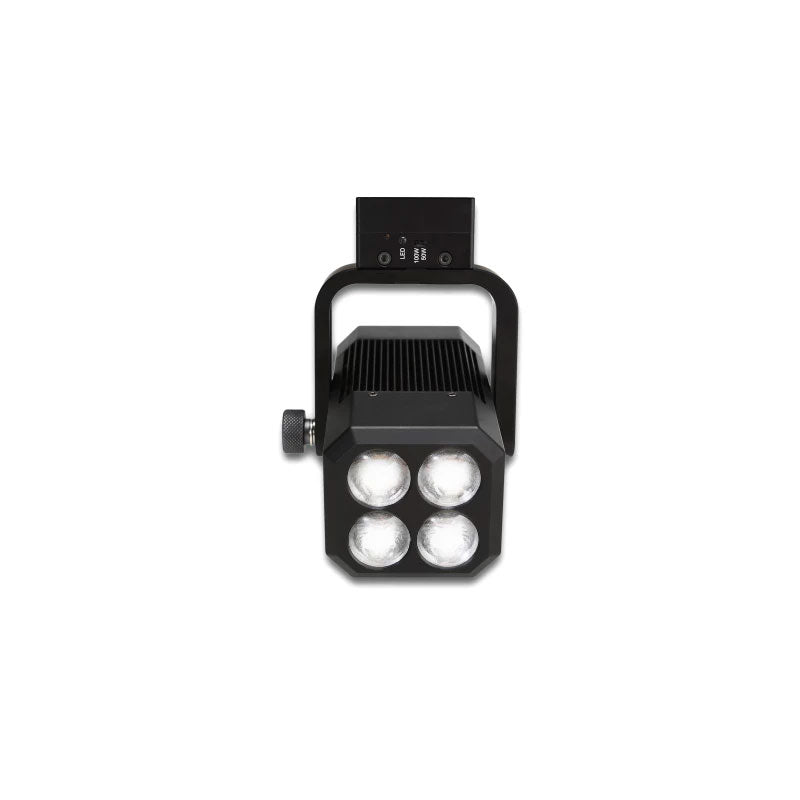

Tarot TL3303 Drone Searchlight 100W 14000 Lux LED Spotlight Dimmable Strobe Active Cooling 2-Axis

The Tarot Stepless Dimming Searchlight features a four-LED emitter assembly with a 35° beam angle. At the maximum power of 100W, it delivers an illuminance of up to 14,000 Lux. At a distance of 50 meters, the illuminance at the center of the beam reaches 17 Lux, providing an effective illuminated area of up to 910m².

This searchlight supports stepless dimming and strobe modes. It features an ultra-lightweight design, weighing only 357g, and can be easily installed using the 24.6mm x 31.2mm mounting holes for DIY integration. Its two-axis manual adjustment mechanism allows convenient and flexible beam positioning.

Designed for a variety of nighttime operations, this searchlight is suitable for nighttime patrols, warning and deterrence, directional signaling, power line inspections, search and rescue, and other applications requiring illumination in low-light conditions.

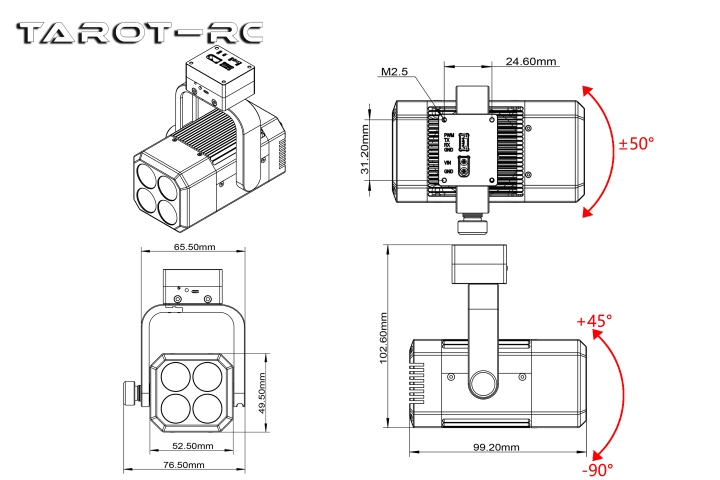

* Dimensions: 99.2 x 102.6 x 76.5mm

* Field of View (FOV): 35°

* Operating Voltage: DC 15-55V

* LED Power: Adjustable between 50W and 100W

* Illuminance: 14,000 Lux ±3% (at 100W)

* Luminous Efficacy: 140 Lux/W (at 100W)

* Illuminated Area: 910m² (at a distance of 50m)

* Center-Beam Illuminance: 17 Lux (at 100W and a distance of 50m)

* Operating Modes: Constant On/Stepless Dimming; Strobe/Stepless Dimming

* Cooling Method: Active cooling with a built-in fan

* Control Methods: PWM, UART, and potentiometer

* Mounting Holes: 24.6mm x 31.2mm (M2.5 x 4)

* Cable Routing: Horizontal or vertical cable exit

* Installation: Two-axis manual angle adjustment (azimuth axis + pitch axis)

* Adjustment Range: Azimuth Axis: ±50°; Pitch Axis: −90° to +45°

* Note: This product supports PWM, UART, and potentiometer control. The following instructions describe operation using a PWM signal.

* The PWM remote-control servo signal is interpreted as a travel range from 0% to 100%.

* When the PWM signal remains within the 40%–60% travel range, the searchlight is switched off.

* When the PWM signal is within the 0%-39% travel range, the searchlight operates in constant-on mode with stepless dimming.

* 39%: Minimum brightness

* 0%: Maximum brightness

* When the PWM signal is within the 61%-100% travel range, the searchlight operates in strobe mode with stepless brightness adjustment.

* 61%: Minimum brightness

* 100%: Maximum brightness

1. Active Cooling Fan: The searchlight is equipped with an active cooling fan. When power is applied, the fan starts running at low speed. Its speed gradually increases as the temperature rises.

2. Installation and Airflow: To ensure adequate additional passive cooling, install the searchlight in a position where it can receive airflow generated by the rotating drone propellers.

3. High-Temperature Warning: The temperature of the searchlight housing increases as the operating power increases. Do not touch the housing directly during operation to avoid burns.

* 1 x Searchlight (357g)

* 1 x Wiring Kit

* Package weight: 0.55kg
