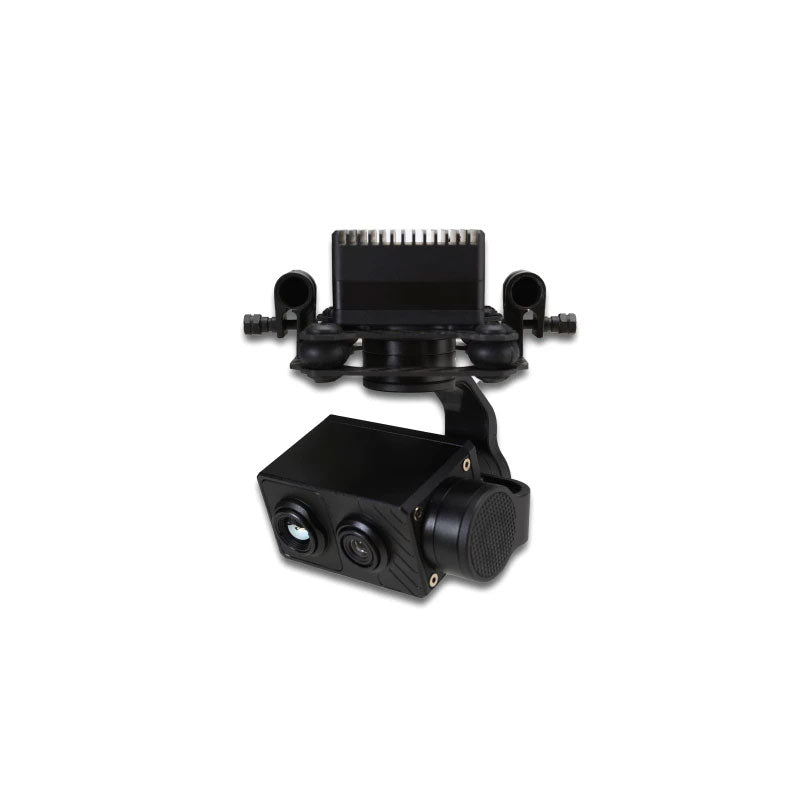

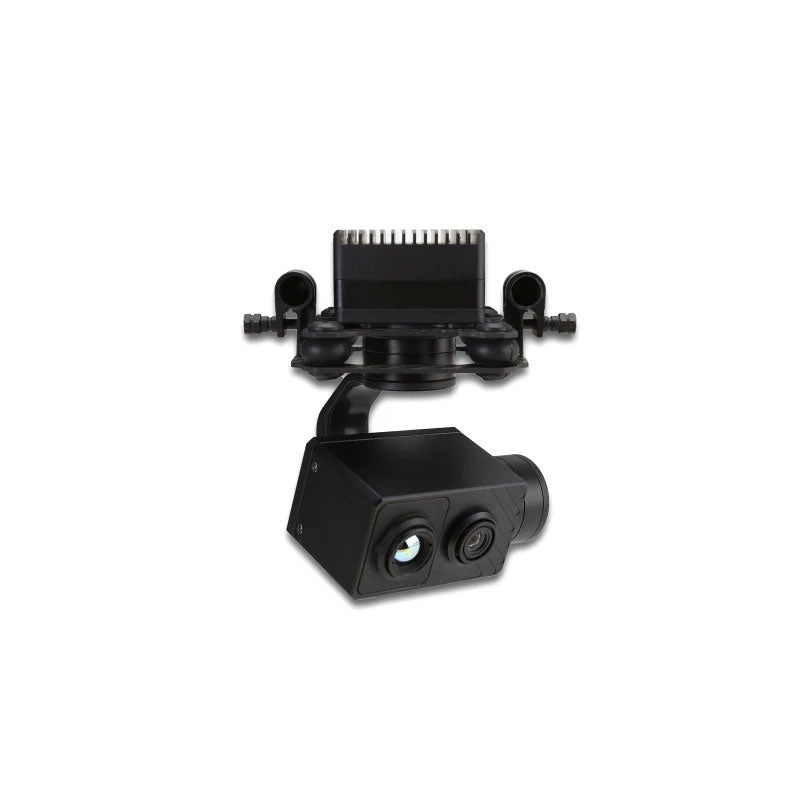

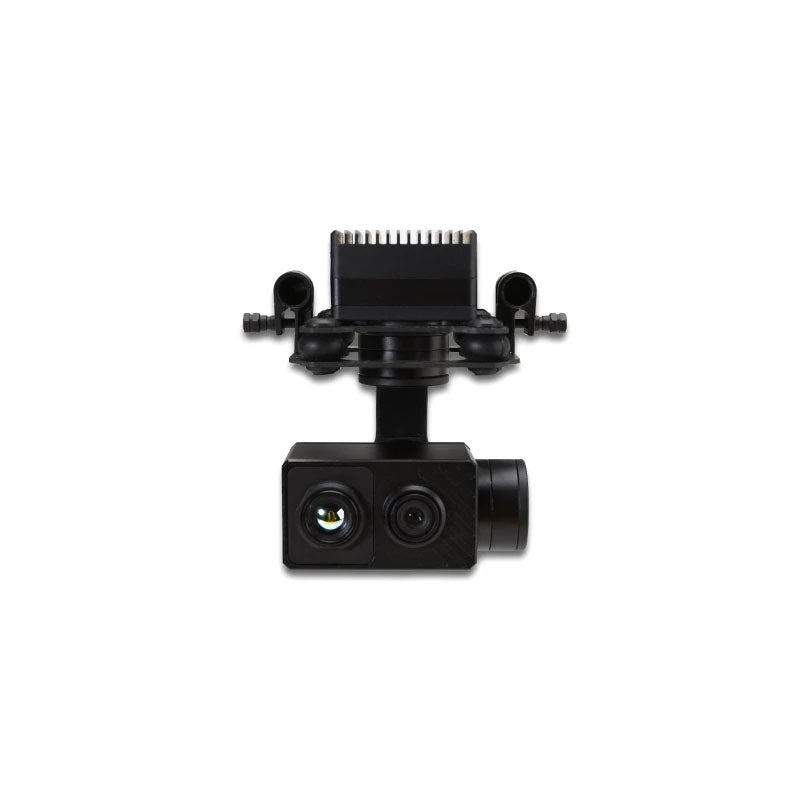

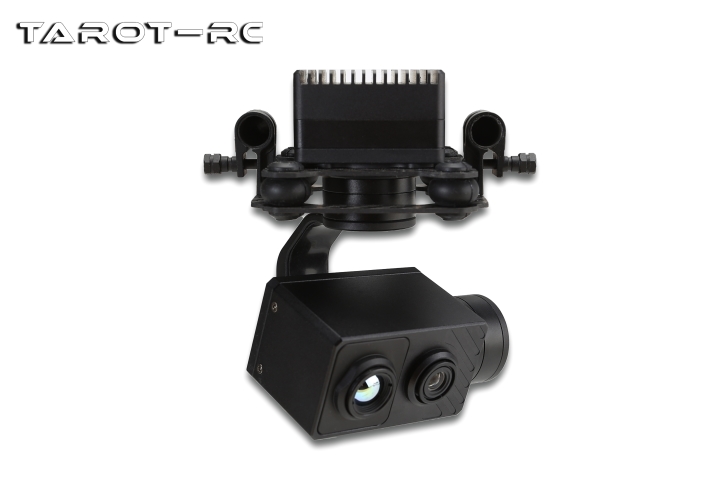

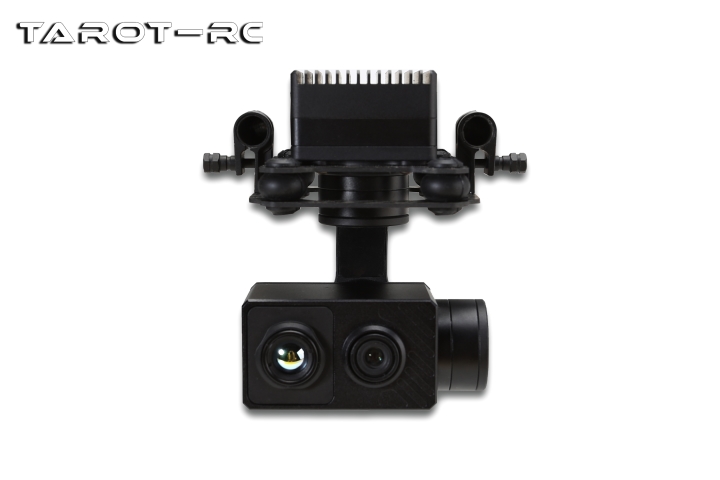

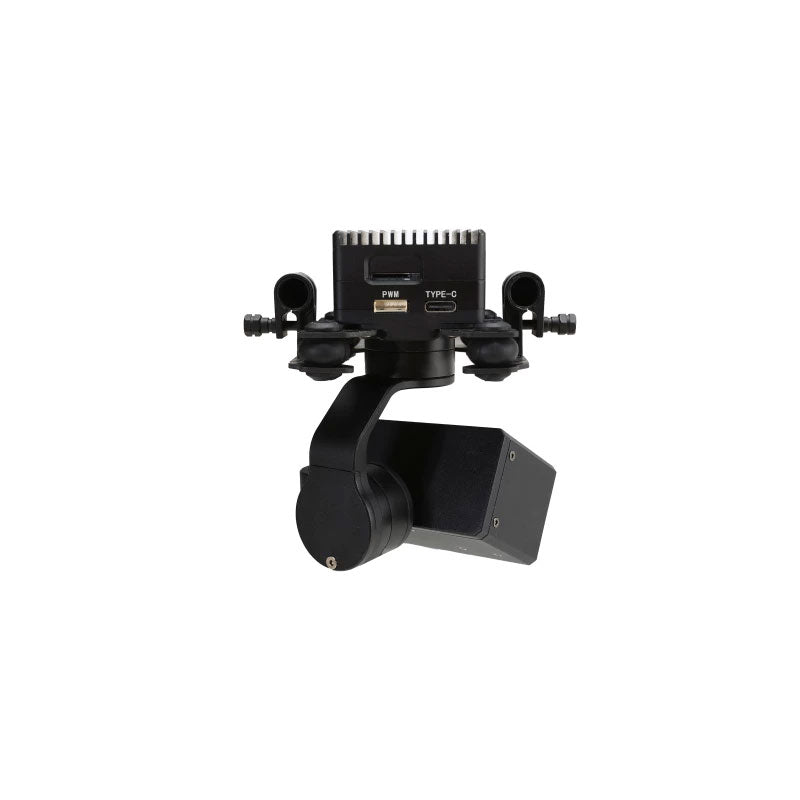

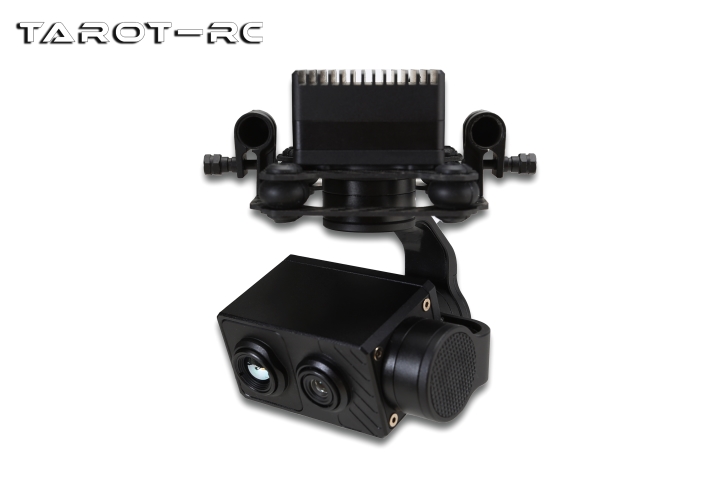

Tarot TL3T32 3-Axis Gimbal Dual Sensor 384 Thermal Imaging Human Vehicle Recognition Network Output

The Tarot TL3T32 is a lightweight, professional 3-axis dual-sensor gimbal designed to meet the needs of various industries, including power line inspection and firefighting. It features a built-in independent IMU for precise gimbal attitude control and an integrated dedicated servo drive module. The gimbal supports two operating modes: Pointing Follow and Pointing Lock. Equipped with a professional-grade 384 x 288 thermal imaging camera and a 1080P visible-light camera, it is suitable for a wide range of applications, including firefighting, forest and public security, public security surveillance, search and rescue, and environmental law enforcement.

* Lightweight Design: Total gimbal weight of 225g.

* Dual-Sensor Imaging: 1X fixed-focus visible-light camera with 1920 x 1080 resolution and 8X temperature-measurement thermal imaging with 384 x 288 resolution.

* Wide Voltage Input: Supports DC 13-60V input.

* 3-Axis Mechanical Stabilization: Image stabilization accuracy of ±0.01°.

* Aluminum Alloy Construction: Lightweight, durable structure with excellent heat dissipation.

* Advanced Servo Control: Highly optimized vector control algorithm for servo motors.

* Independent 3-Axis Control: Independent control of the yaw, pitch, and roll axes.

* Multiple Control Modes: The yaw and pitch axes support both angle mode and rate mode control.

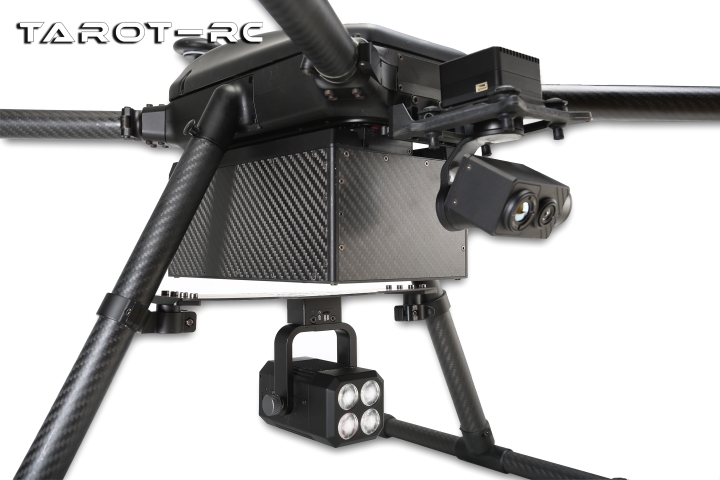

* Flexible Installation: Supports both upright and inverted mounting. In inverted installation, the orientation is automatically detected and activated within 30 seconds of power-on.

* Yaw Angle Range: ±125°.

* Pitch Angle Range: -120° to +40°.

* Roll Angle Range: ±30°.

* One-Touch Viewing Control: Supports one-touch downward 90° viewing and return-to-center operations.

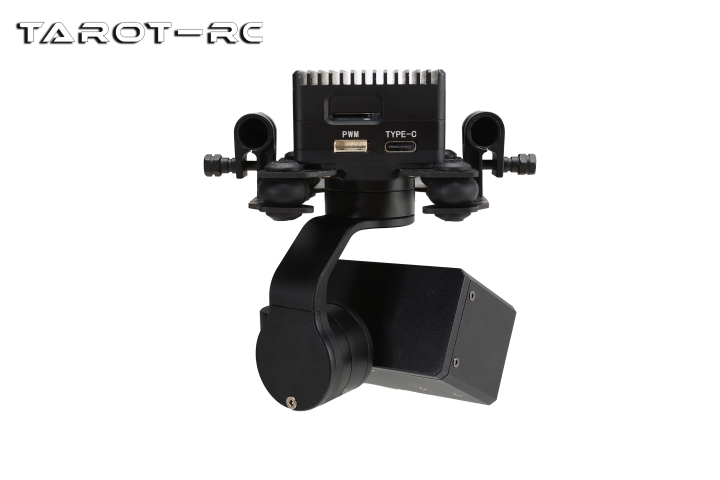

* Multiple Control Interfaces: Supports S.Bus, 4-channel PWM, UART serial communication, Ethernet (ETH), and PC control.

* Network Video Output: Supports RTSP video streaming.

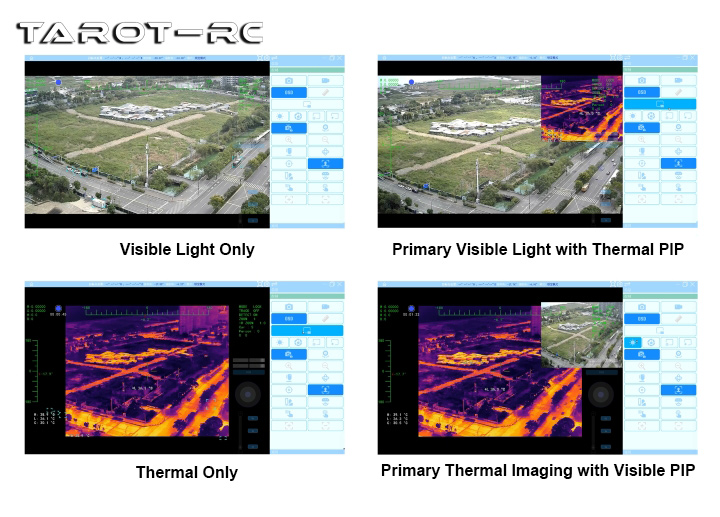

* Picture-in-Picture Display: Supports four picture-in-picture display modes for visible-light and thermal imaging video output.

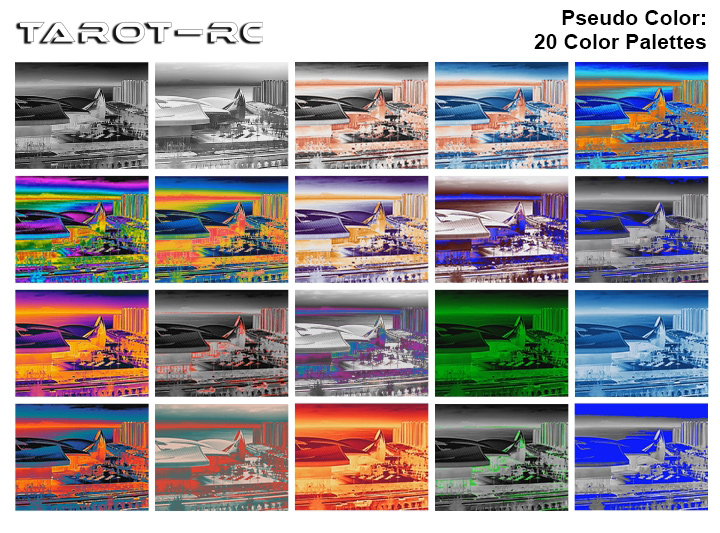

* Thermal Imaging Palettes: Supports 20 thermal imaging false-color display modes.

* Point-and-Click Pan Control: Supports point-and-click camera panning.

* Human and Vehicle Recognition: Supports human and vehicle detection and recognition.

* Target Tracking: Supports automatic target tracking.

* Media File Download: Supports downloading photos and video files online.

* Dedicated Ground Control Software: Compatible with customized GCS software for PC and Android, enabling remote monitoring, display, and control.

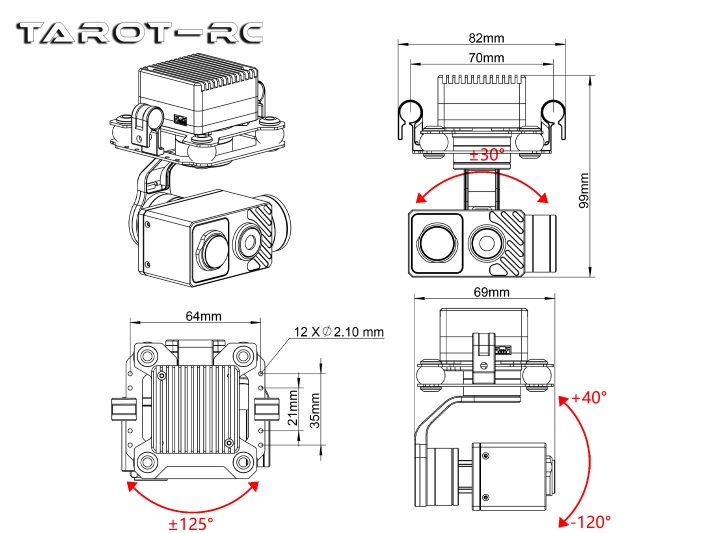

* Model: TL3T32

* Dimensions: 82x69x99mm

* Weight: 225g

* Operating Voltage: DC 13-60V

* Power Consumption: 7.8W (325mA at 24V)

* Debugging Software Support: Windows 10 and above

* Photo Storage Format & Resolution: JPEG: 1920x1080

* Video Storage Format & Resolution: MP4: 1920x1080

* Maximum Video Resolution: Video Stream: 1920x1080 at 30fps; Recording: 1920x1080 at 30fps

* Video Stream Encoding Mode: H.264; H.265

* Video Stream Network Protocol: RTSP

* Memory Card Type: microSD card with maximum support for 256GB capacity and a speed rating of not less than U3/V30

* Operating Ambient Temperature: -20 to 50°C

* Operating Ambient Humidity: ≤85%RH (non-condensing)

* Storage Ambient Temperature: -40 to 60°C

* Video Output: Network ETH

* Supported Control Types: S.Bus, PWM, UART (TTL level), ETH, PC

* Advanced Functions: Upright/inverted installation, one-key downward/return to home, 384-9mm thermal imaging, remote download of photos/videos, three-axis independently controllable, point shift, person and vehicle recognition, tracking, customized ground station

* Gimbal Type: Orthogonal 3-axis gimbal

* Stabilization Accuracy: ±0.01°

* Mechanical Range: Pitch: ±150°; Yaw: ±150°; Roll: ±40°

* Controllable Rotation Range: Pitch: -120°to +40°; Yaw: ±125°; Roll: ±30°

* Maximum Controllable Rotation Speed: Yaw/Pitch: 0-200°/s

* Sensor Size: 1/2.8" CMOS

* Effective Pixels: 2MP

* Resolution: 1920 (H) x 1080 (V)

* Pixel Size: 2.9µm (H) x 2.9µm (V)

* Focal Length: 8.0mm

* Aperture: 2.0±10%

* HFOV: 40°

* VFOV: 22°

* DFOV: 46°

* Optical Zoom: 1X

* Frame Rate: 30FPS

* Sensor: Uncooled Vanadium Oxide (VOx) infrared thermal imager

* Resolution: 384x288

* Lens Type: 9mm F1.0

* Field of View (Horizontal x Vertical): 28.5° x 21.4°

* Instantaneous Field of View: 1.33 mrad

* Wavelength Range: 8µm-14µm

* Pixel Size: 12µm

* Optical Zoom: 1X

* Digital Zoom Equivalent Multiplier: 8X

* Pseudo-color Types: 20 types including white hot, rainbow, lava, iron red, etc.

* Target Detection Distance: Approximately Johnson's criteria — Pedestrian: 379m; Vehicle: 1163m

* Target Recognition Distance: Approximately Johnson's criteria — Pedestrian: 95m; Vehicle: 291m

* Target Identification Distance: Approximately Johnson's criteria — Pedestrian: 47m; Vehicle: 145m

* Target Recognition Size: ≥30x20 px

* Target Recognition Rate: ≥85%

* Target Recognition Quantity: ≤50

* Target Tracking Size: 16x16 to 256x256 px

* Tracking Error Pixel Update Rate: 30Hz

* Tracking Error Pixel Output Latency: ≤60ms

* Target Pixel Error: ≤±1 px

* Tracking Speed: >624 px/frame

* Target Memory Time: >5s

* 1 x Tarot TL3T32 Gimbal

* 1 x Wiring Kit

* Package weight: 0.45kg
