Tarot TL60-06 XT60 Power Distribution Module 6 Output High Current Gold Plated Copper Hub XT60H Compatible

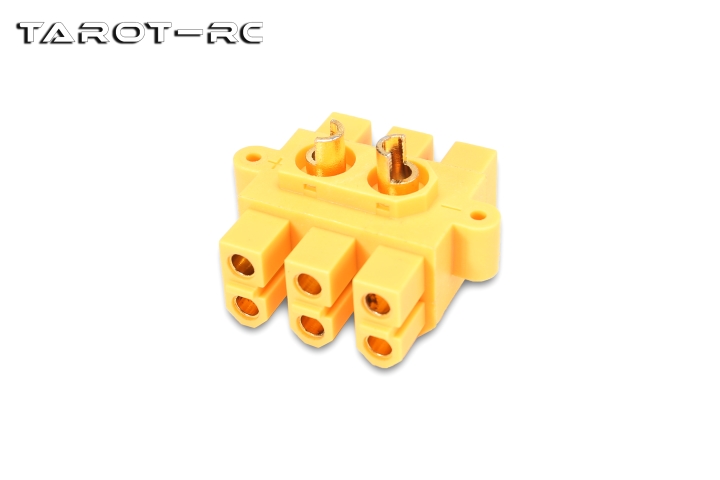

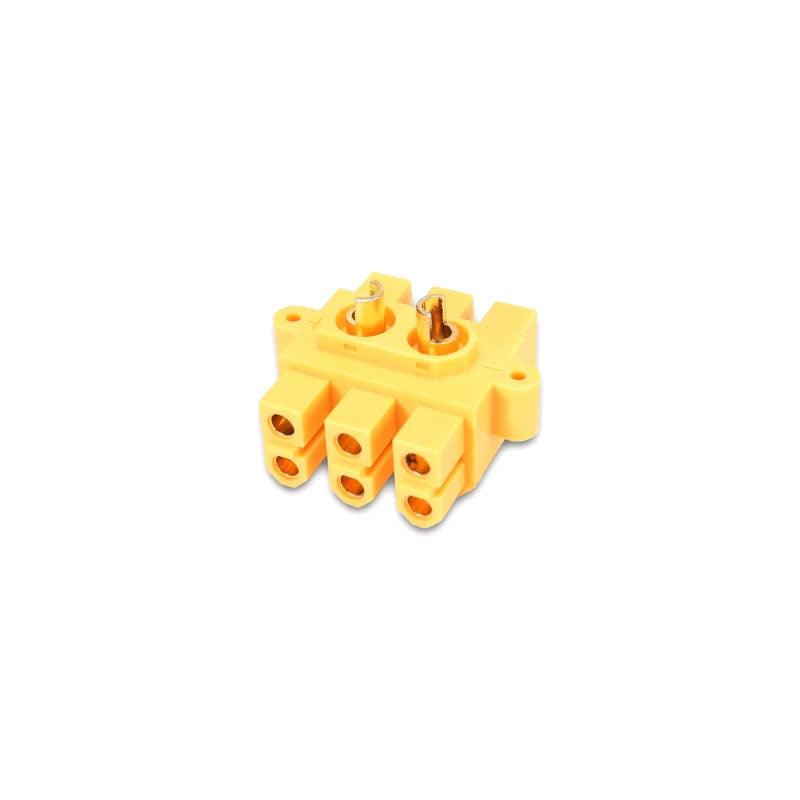

Manufactured by Tarot, this 1-to-6 power distribution module is specifically designed for a wide range of general-purpose drones. It supports drones requiring up to six power outputs. The housing features a one-piece injection-molded design, while the internal circuitry is constructed from solid copper with a genuine gold-plated surface. The module supports a continuous current of 150A and a peak current of up to 200A.

* Due to the solid copper internal construction, the module absorbs heat significantly during soldering. A 100W soldering iron is recommended for soldering the main power connections.

* Before applying power for the first time, independently verify the power supply polarity and output voltage. Connect the module to downstream devices only after confirming that everything is functioning correctly. The company assumes no responsibility for any damage caused by this product.

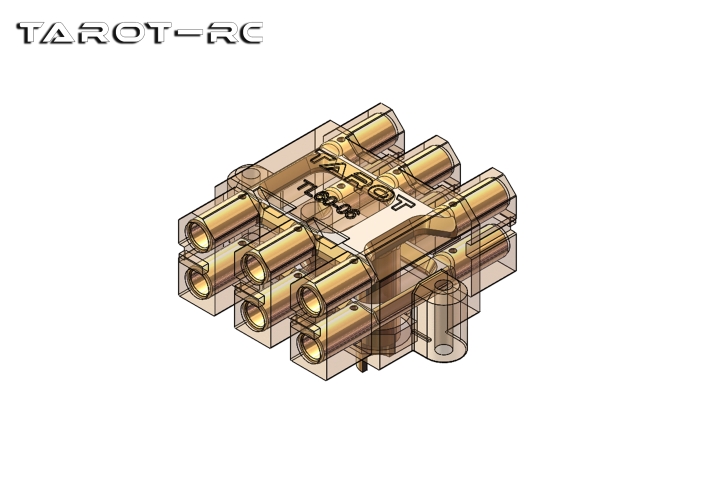

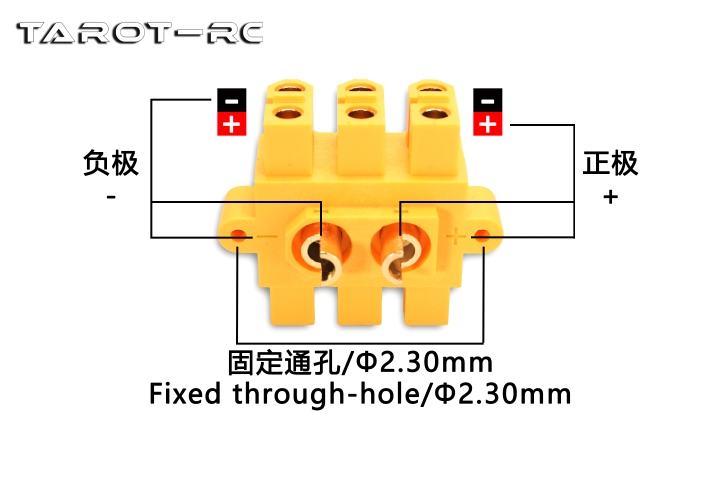

* Each positive and negative power rail is constructed from solid copper in a one-piece design.

* The connector contact surfaces feature genuine gold plating.

* The housing features a one-piece injection-molded design for an attractive, premium appearance.

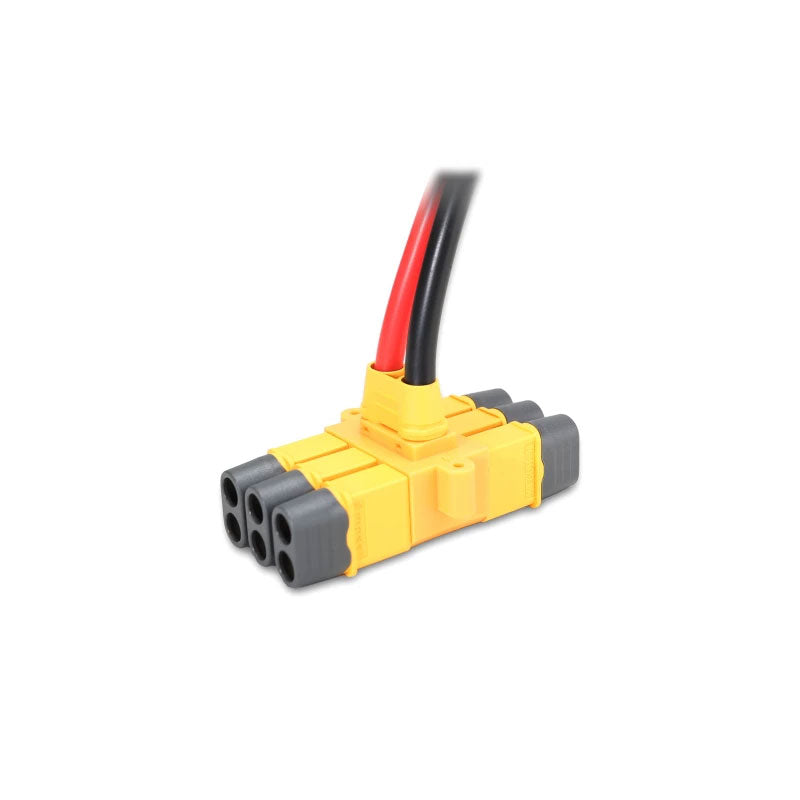

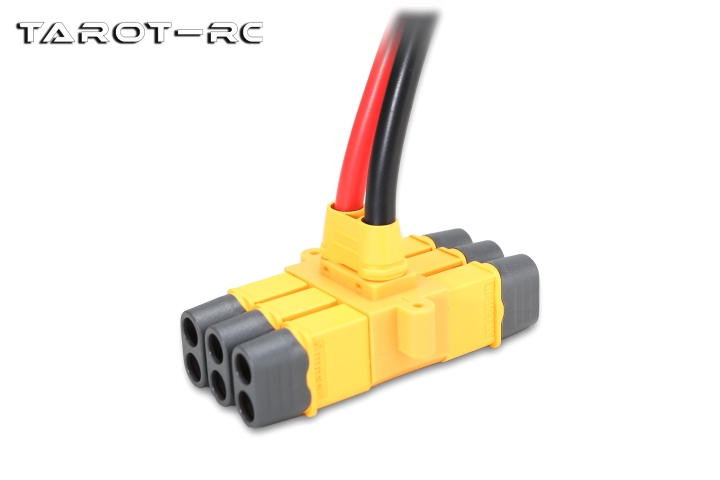

* No heat-shrink tubing is required. The protective sleeve can be installed in one step, saving time and effort.

* Flat soldering pads paired with a partitioned protective sleeve help prevent short circuits and facilitate soldering.

* UL 94 V-0 flame-retardant rating for enhanced safety.

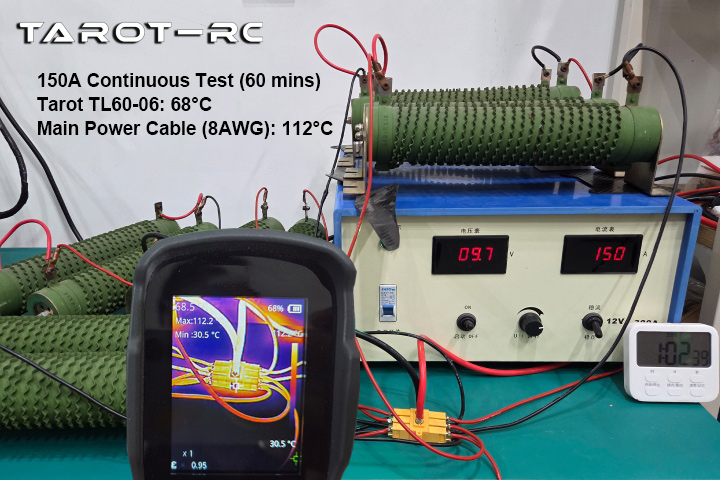

* Continuous current: 150A; peak current: up to 200A.

* Fully compatible with XT60 and XT60H mating male connectors.

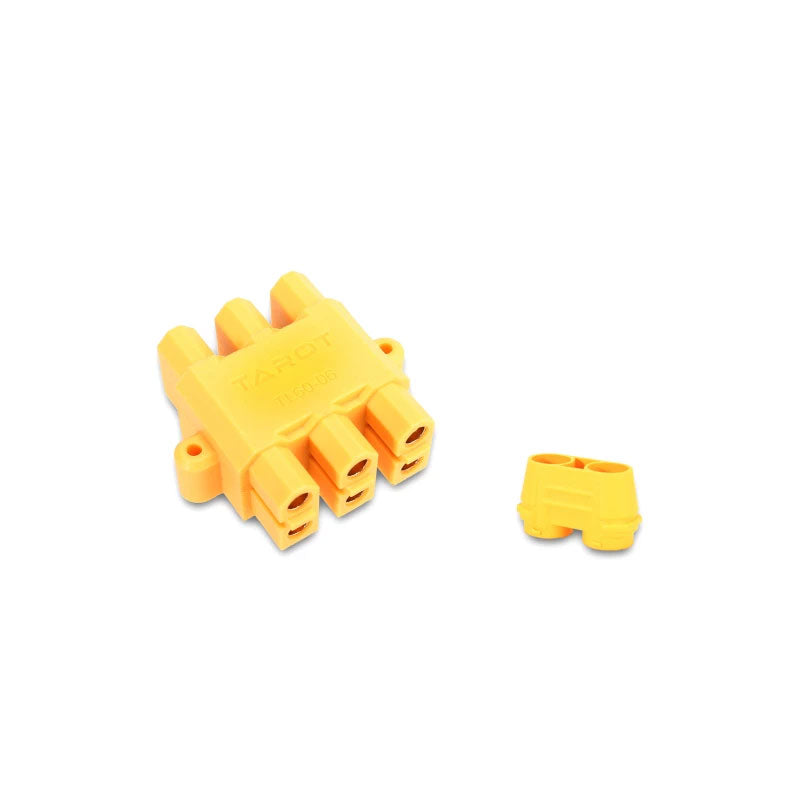

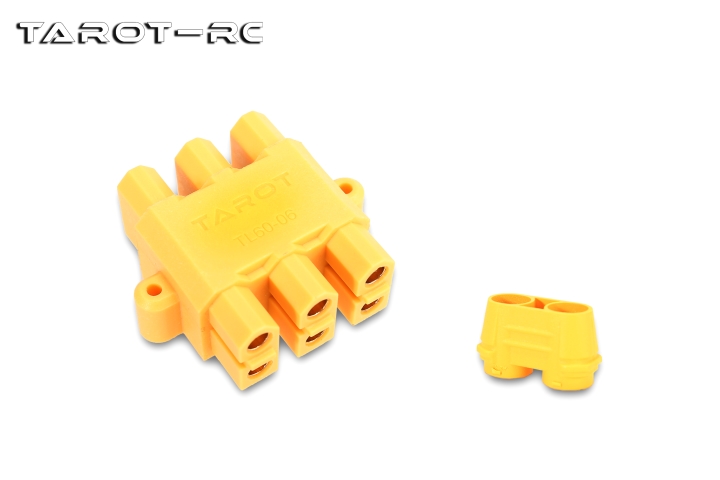

* 1 x TL60-06 1-to-6 Power Distribution Module (29.7g)

* 1 x 90-series Protective Sleeve (0.8g)

* 2 x Self-Tapping Screws (M2.6 x 10mm)

* Package weight: 0.15kg
