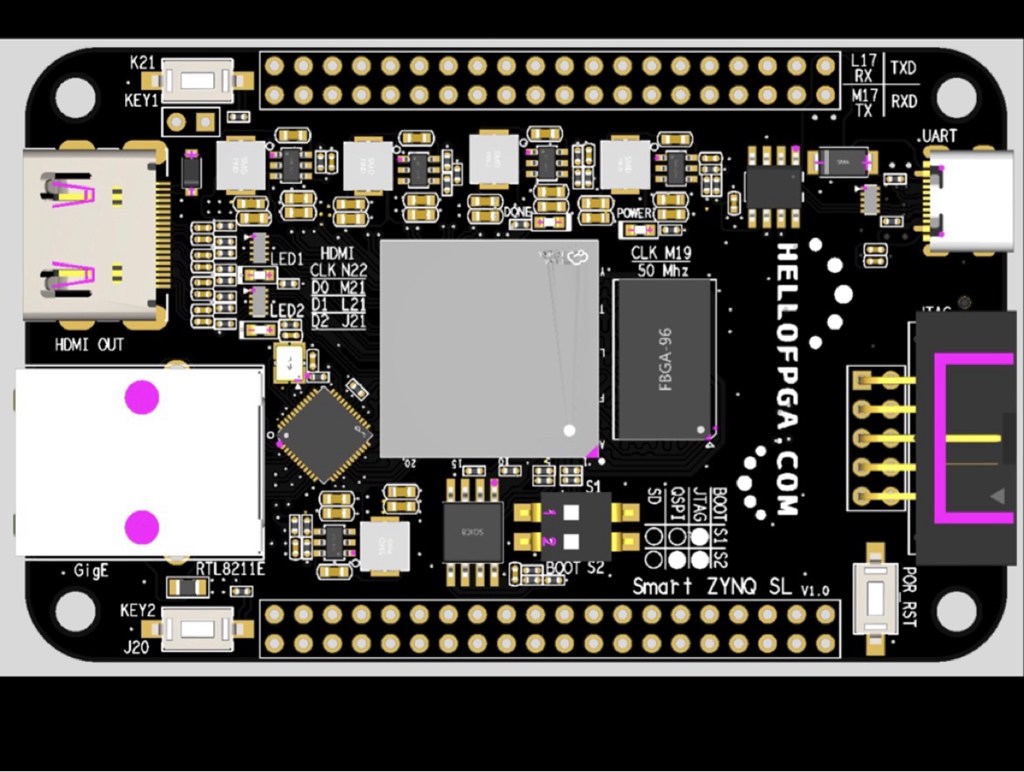

Upward Welding Pin 7020 Minimum System Board 512MB DDR3 4Gbit Development Board for Xilinx FPGA ZYNQ

Upward Welding Pin 7020 Minimum System Board 512MB DDR3 4Gbit Development Board for Xilinx FPGA ZYNQ

Board Instruction:
- Main chip for ZYNQ upgraded to 7020 (new industrial grade)
- 512MB DDR3 (4Gbit)
- TF card slot (can be responsible for TF start)
- 128Mbit (16MB) QSPI FLASH (can be started)
- One channel EEPROM 2KB (PL)
- Two LED lights (PL)
- Two keys (PL) + one key to control system POR reset
- One channel UART (connected to the PL) TYPE C port
- Lead 68 channel GPIOs (all are PL end leads) (34 groups) are all connected in pairs using differential lines, and the differential lines are equal in length.
- One side of the BANK is independently powered, and the BANK voltage can be adjusted through the resistance
- Gigabit Ethernet (connected to the PL end)
- HDMI output interface
- PL is connected with 50M active crystal oscillator, HDMI and USB, and ESD electrostatic protection devices

Package Included:
- 1 x Development Board

Note:
- The downloader is not included, you need to prepare a external downloader for Xilinx by yourself.
