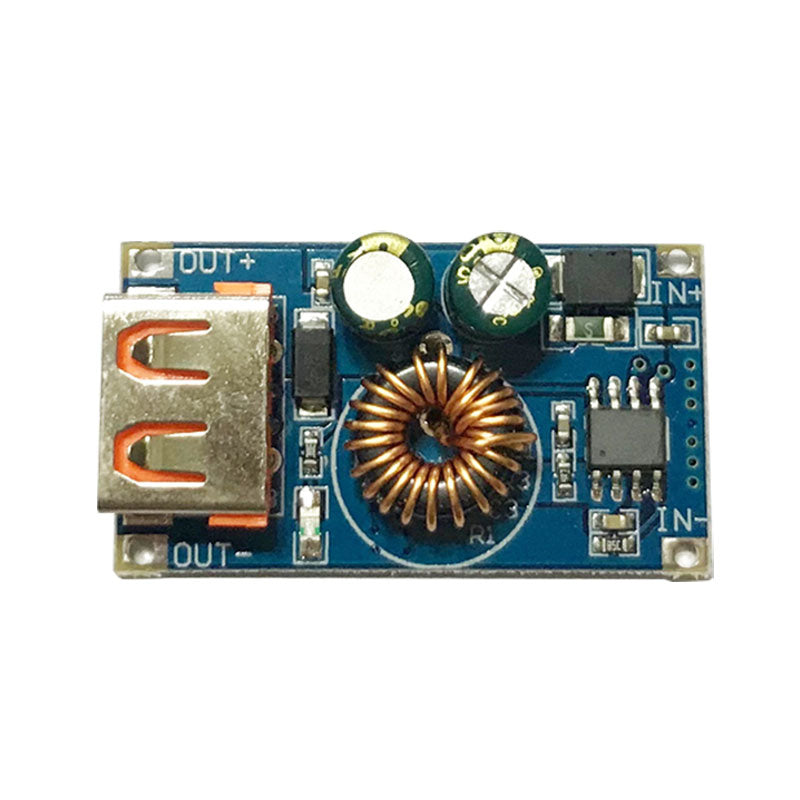

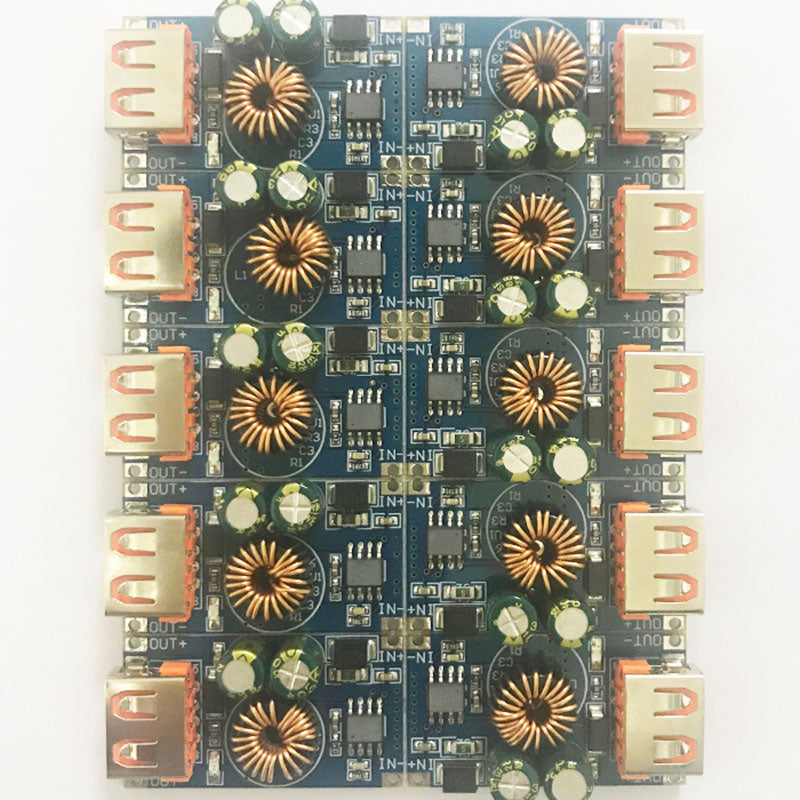

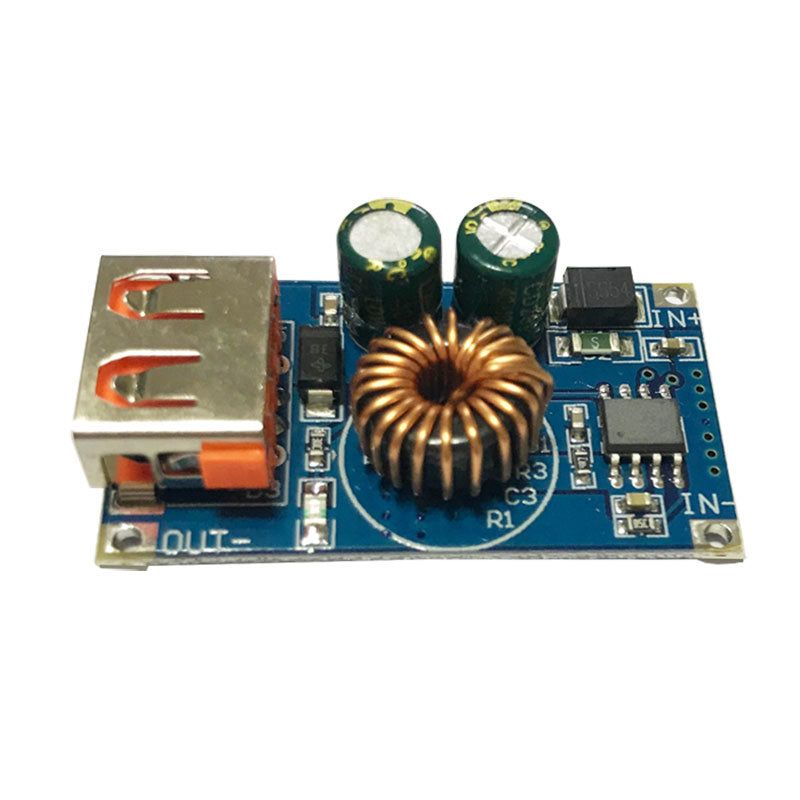

USB Buck Converter Step Down Module DC6-32V to QC3.0 Smartphone Fast Charging For iPhone Huawei FCP

USB Buck Converter Step Down Module DC6-32V to QC3.0 Smartphone Fast Charging For iPhone Huawei FCP

Description:
QC-MINI is a USB DC fast charging power supply module.It can be applied to solar charging, mobile phone charging and other fields.

Features:
- Support QC2.0, with 9V output
- Support QC3.0, with 12V output which can be increased and decreased progressively
- Input voltage range: 6V-32V
- Output voltage: 5V by default, automatically adjusted between 3-12V after triggering fast charge
- Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V @ 2A, etc.)
- Output voltage wired compensation function
- Conversion efficiency: 90% -97%
- Support multiple fast charge protocols
- Input over-voltage and under-voltage protection
- Input over-current protection
- Output over-current, short-circuit protection
- Over temperature protection

Supported Fast Charge Protocols:
- For BC1.2, Apple, Samsung protocols
- For Qualcomm QC2.0 and 3.0
- For MTK PE1.1 / PE2.0
- For Huawei FCP. Not for mate9 (SCP)
- For Spreadtrum SFCP

Applications:
- Solar panel to mobile phone charging
- Car charging transformation
- Driving recorder power
- Home power transformation

Parameters:
- Size: 37*20*10mm
- Weight: 7.5g

Package Included:
- 1 x USB DC Buck Module
