VU Meter AC/DC 6-12V Audio Level Meter Indicator with Warm Backlight Power Amplifier Accessories

VU Meter AC/DC 6-12V Audio Level Meter Indicator with Warm Backlight Power Amplifier Accessories

Description:
This is a classic VU meter with small size, reliable quality, high sensitivity and backlight.

Specification:
Name: VU Meter
Model: Y-34
Installation method: vertical
Correction position: +5
DC internal resistance: 650Ω ±15%
Full-scale current: 500μA ±15%

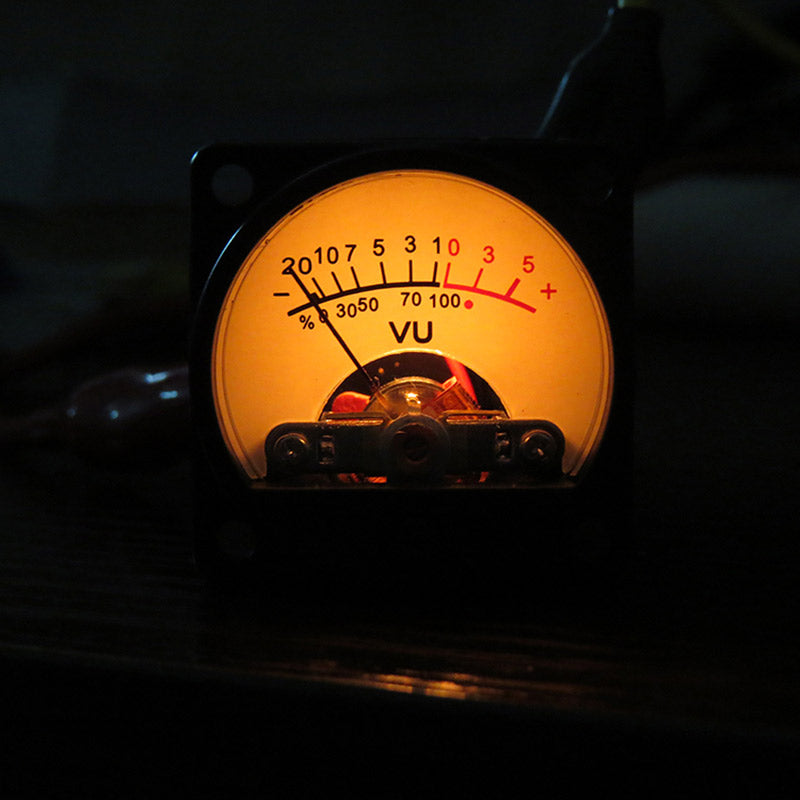

Backlight: AC/DC 6-12V 50mA
Temperature: -20~55℃
Weight: 23g/piece
Shell material: ABS

Package List:
1 x VU Meter

Note: The VU meter cannot be directly connected to the power amplifier, it can only be used with a drive circuit.
