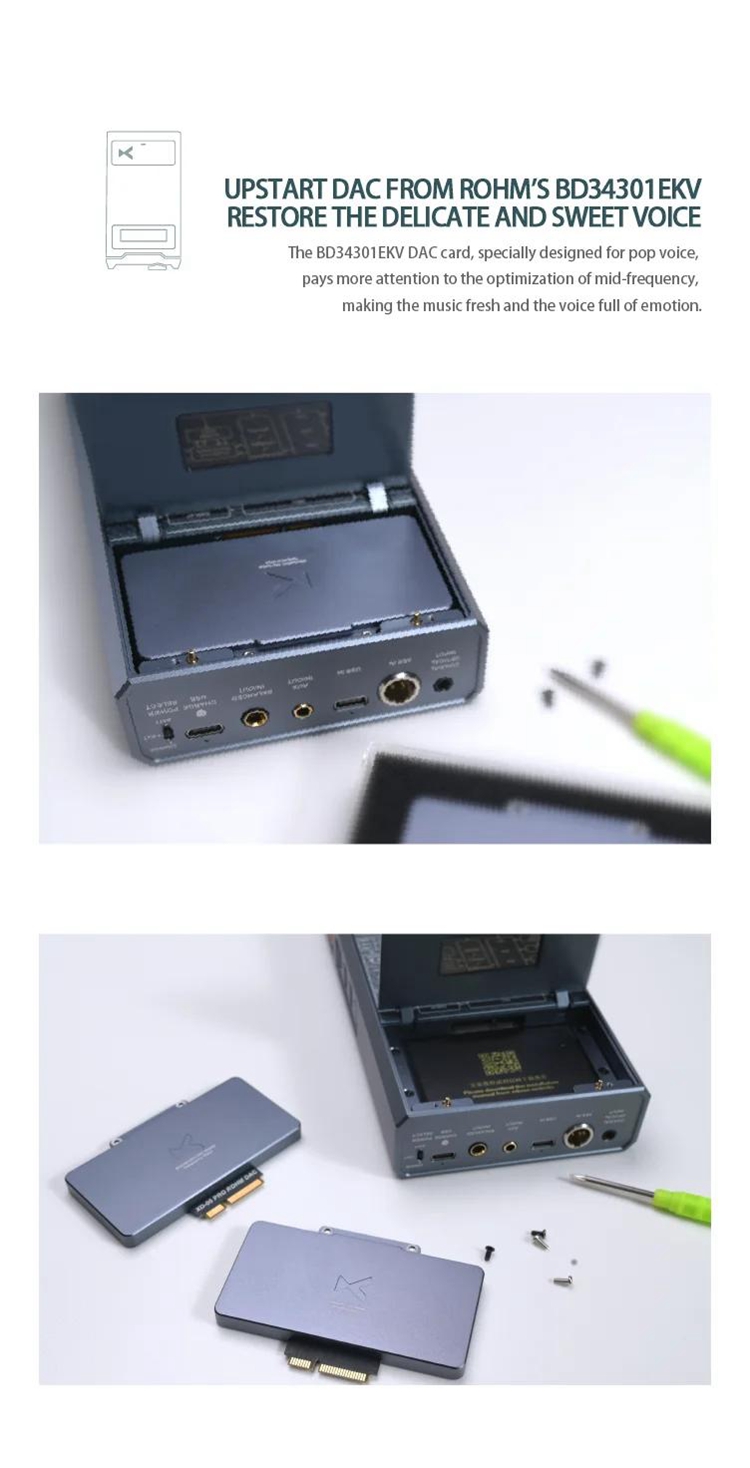

XDUOO BD34301EKV High Performance ROHM DAC Module Professional Balanced DAC for XD05 Pro Headphone Amplifier

XDUOO BD34301EKV High Performance ROHM DAC Module Professional Balanced DAC for XD05 Pro Headphone Amplifier

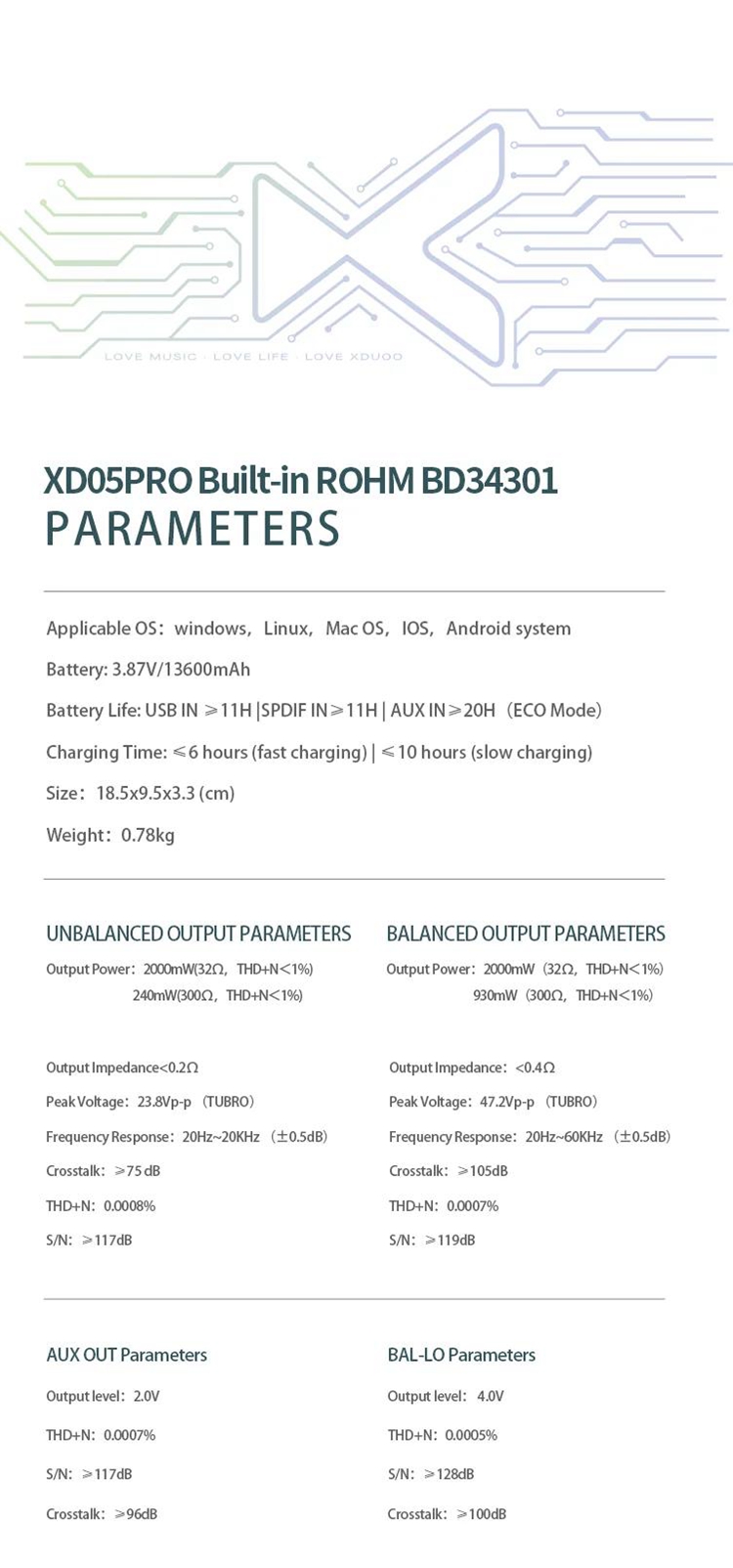

Specification:
- Applicable system: for Windows, for Linux, for Mac OS, for IOS, for Android system
- Battery: built-in 3.7V/13600mAh rechargeable lithium battery
- Duration: USB IN >= 11hours; AES (coaxial/optical) >= 11hours; AUX >= 20hours (ECO mode)
- Charging time: <= 6hours for PD fast charging; <= 15hours for common charging 5V/2A
- Dimension: 18.5 x 9.5 x 3.3cm
- Weight: 0.78kg

Single-end Output:
- Output power:
  2000mW (32ohm, THD+N < 1%)
  240mW (300ohm, THD+N < 1%)
- Output impedance: <= 0.4ohm
- Peak output voltage: 23.8Vpp (Tubro mode)
- Frequency response: 20Hz - 20kHz (+/-0.5dB)
- Separation degree: >=75dB
- THD: 0.0008%
- SNR: >=117dB

Balanced Output:
- Output power:
  2000mW (32ohm, THD+N < 1%)
  930mW (300ohm, THD+N < 1%)
- Output impedance: <=0.4ohm
- Peak output voltage: 42.7Vpp (Tubro mode)
- Frequency response: 20Hz - 60kHz (+/-0.5dB)
- Separation degree: >= 105dB
- THD: 0.0007%
- SNR: >=119dB

AUX Output:
- Output level: 2.0V
- THD: 0.0007%
- SNR: >=96dB
- Separation degree: >= 96dB

Balanced LO Output:
- Output level: 4.0V
- THD: 0.0005%
- SNR: >=128dB
- Separation degree: >=100dB

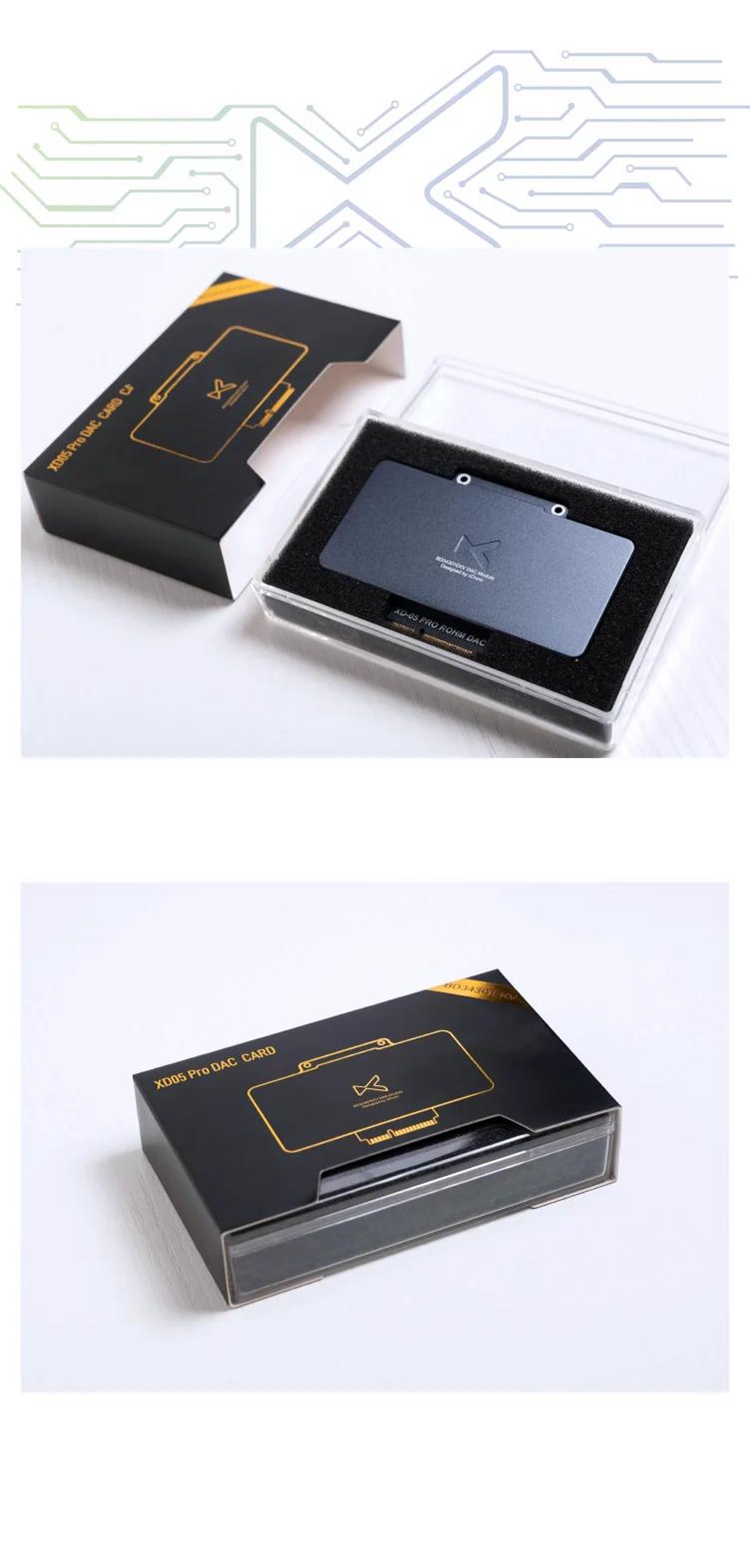

Package Included:
- 1 x DAC Module

Note:
- It only includes the DAC module, the XD05 Pro Headphone Amplifier is not included.
