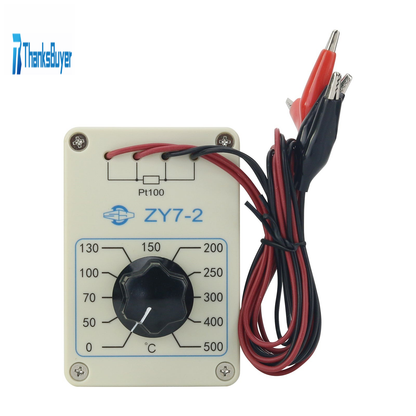

ZY7-2 Pt100 Simulator Precision RTD Simulator For 2-Wire 3-Wire 4-Wire Pt100 Signal Simulation

ZY7-2 Pt100 Simulator Precision RTD Simulator For 2-Wire 3-Wire 4-Wire Pt100 Signal Simulation

Product Parameters:
- Simulation range: 0℃, 50℃, 70℃, 100℃, 130℃, 150℃, 200℃, 250℃, 300℃, 400℃, and 500℃
- The basic error limit of the simulator: △=±(0.05%|Tx|+0.25)℃
- Nominal use range: ambient temperature 0 to 40℃; relative humidity 65%±15%
- Dimensions: 54 x 105 x 41mm/2.1 x 4.1 x 1.6"
- Weight: 0.16kg/0.4lb

Attention:
- Not continuous adjustable within 0 to +500℃, only switch among 11 temperature points.

Package Included:
- 1 x ZY7-2 RTD Simulator
- 1 x User Manual

Operating Guides:
Connect any 3 wires of PT100 simulator to the thermal resistance terminals of the temperature meter to be inspected. Then rotate the knob to one temperature value point. Next check the value displayed in the temperature meter is right or not. If the value displayed is right, the temperature meter inspected is normal, otherwise, it is not normal.
