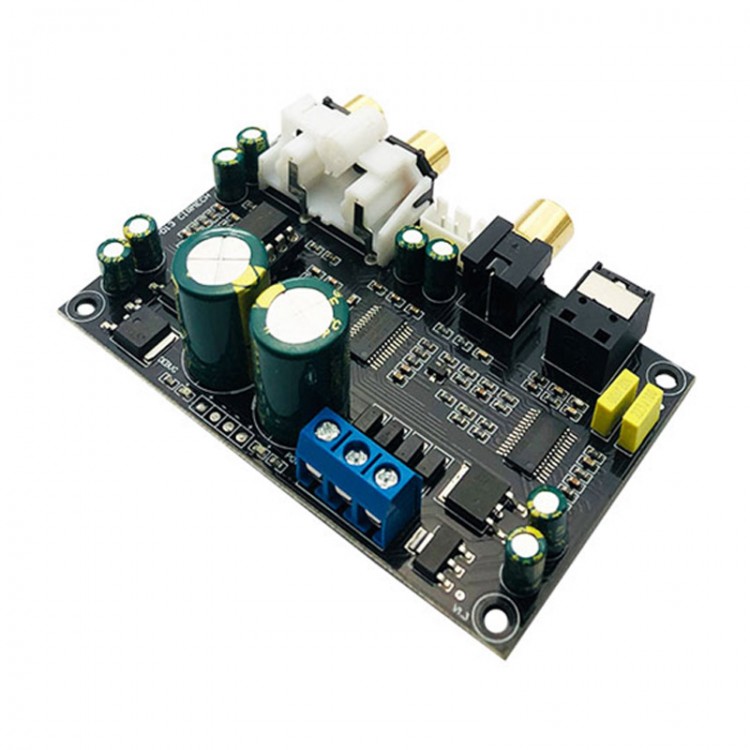

CS8416 + CS4398 Decoder Board Hifi Audio DAC Board Module 24Bit 192KHz w/ Coaxial Optical Ports
Features:
- Original chip: Original chip for CIRRUS LOGIC 24BIT 192KHz specification, and compatible with lower specification, no driver required, super anti-interference ability
- Optical fiber interface: 25MHz original optical fiber receiving, meeting 24BIT 192KHz standard. Built-in dustproof plug, convenient and practical, long life
- Pure power supply: Independent digital and analog power supply, large-capacity filter electrolytic capacitor. Stable and pure power supply brings excellent sound
- Premium terminal: The original fine terminal has passed the durability test of the plug-in environment. Good and reliable contact when used for a long time
- Internal audio interface: Use 2.54 3P specification terminal to facilitate internal wiring. Suitable for assembling DAC headphone amplifier and power amplifier integrated machine
- Op amp socket: Thanks to op amp socket design, users can change op amps to make different sound style
Parameters:
- Product name: CS4398+CS8416 coaxial & optical thousand audio decoder board
- Working voltage: AC dual 12-18V, recommended dual 12V
- Receiving range: 16-24Bit, 32K-192KHz
- Signal to noise ratio: >120DB
- Dynamic range: >120DB
- THD+N: -107DB

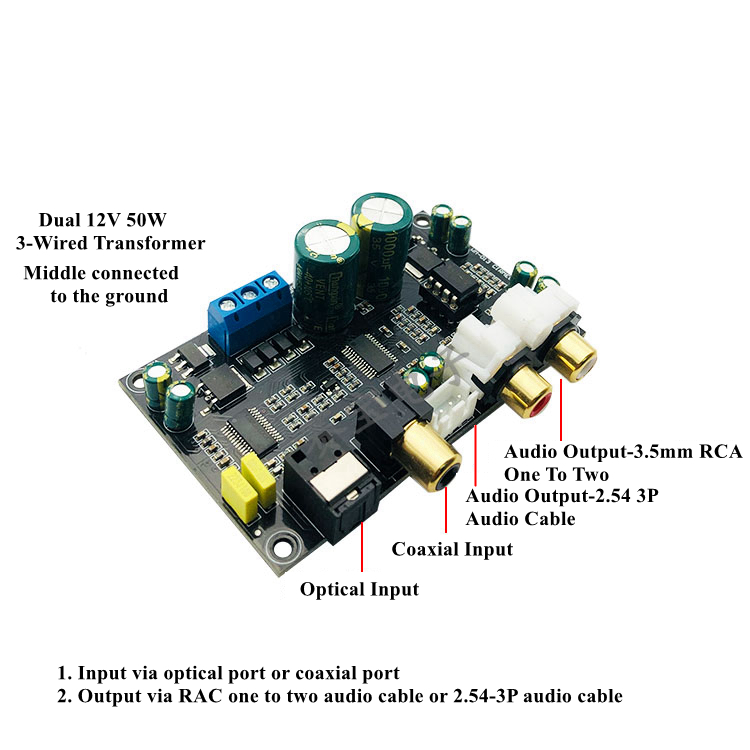

- Output audio: RCA, 2.54 3P interface

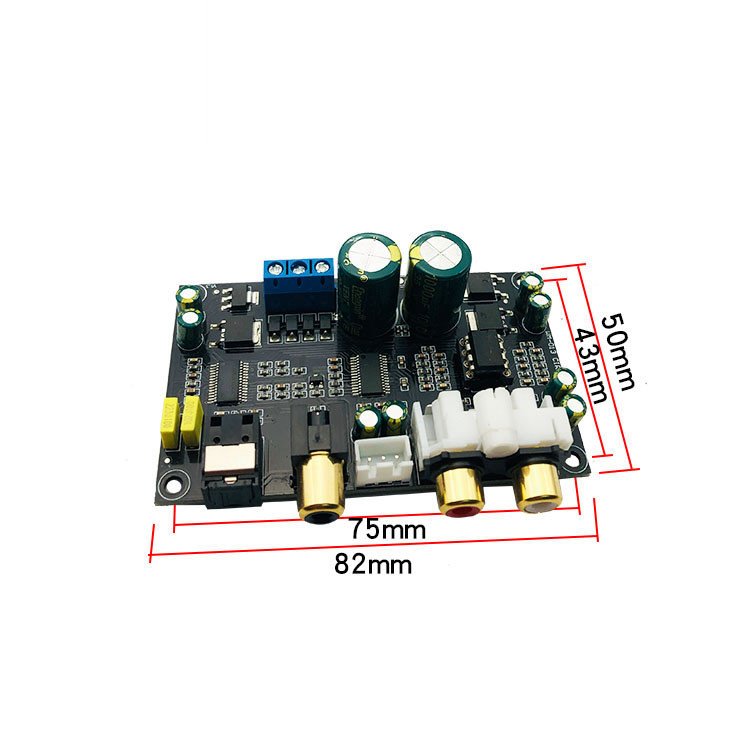

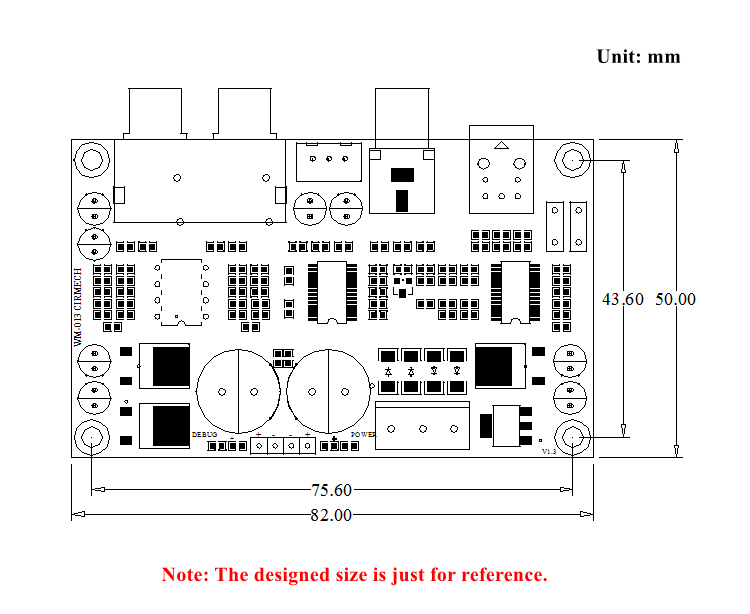

- Size: about 82*50*22mm
- Net weight: about 40g

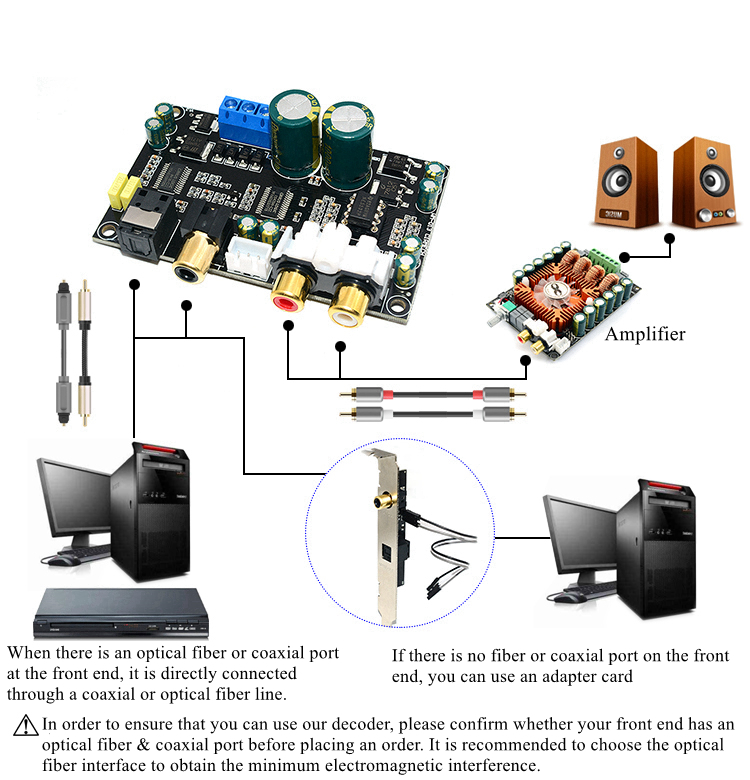

- Applicable occasions: personal computers, sound cards, Blu-ray DVDs, network set-top boxes, high-end musical instruments, etc.
Package Included:
- 1 x Decoder Board
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
