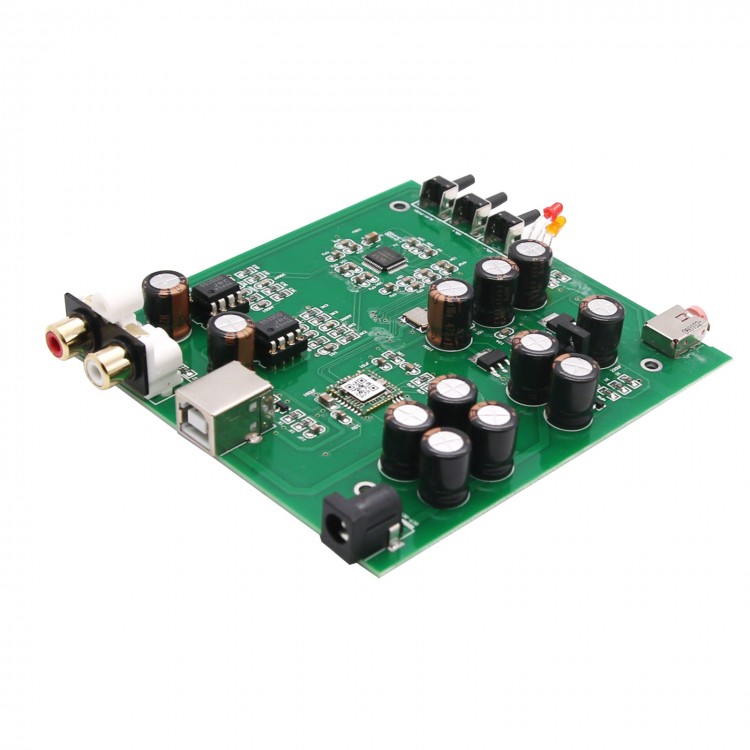

CSR8675+AK4493 Bluetooth DAC Board BT5.0 Support 24Bit APTX HD CSR8675 Finished Board
Description:
It is designed for Bluetooth enthusiasts. It out-rivals some ordinary amplifiers and Bluetooth DAC boards. It can drive headphones, amps or connect to amplifiers and active speakers.
CSR8675 Bluetooth receiver chip supports APTX and 24-bit APTX-HD and Bluetooth 5.0.
Its decoder chip AK4493EQ out-rivals ES9018, ES9028Q2M, ES9038Q2M and PCM1794 in performance.
Multiple imported filter capacitors dramatically cut down impedance and speed of power supply. Independent op amps for left and right channel ensure high degree of separation.
Parameters:
- Power Supply: DC 12V (Port 5.5-2.1), 1-2A
- PCB Size: 103 x 100mm
- Output Ports: 3.5 Headphone Port + RCA Port
- Bluetooth Receiver Chip: CSR8675
- Decoder Chip: AK4493EQ
- Op Amp: Double Precision JRC5532
- Bluetooth Compatible Protocols: A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-HD, APTX-LL
Package Included:
- 1 x Bluetooth Decoder Board
Note: Power adapter is not included in the package. Thank you!
